CMX E-Bike Chiptuning Speedbox Evo2 50km/h for Shimano middle motor pedelec

CMX Chiptuning Speedbox Shimano

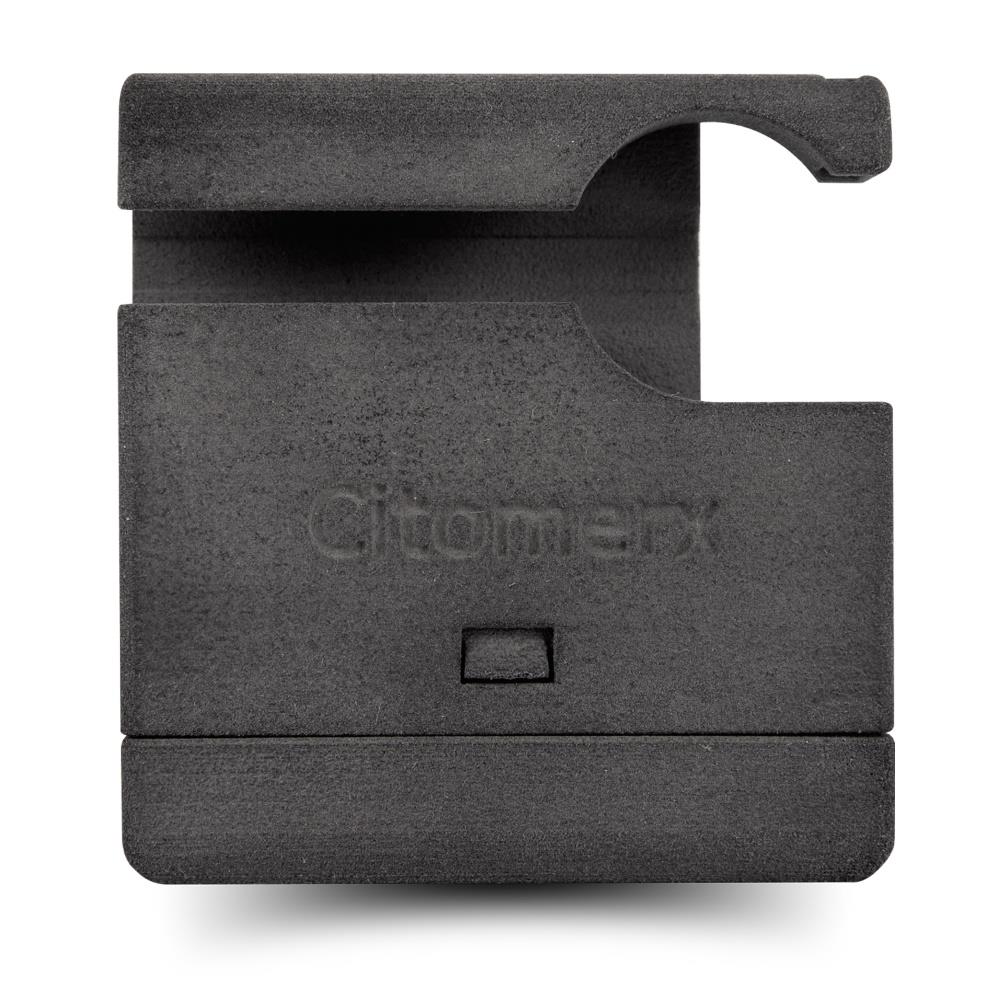

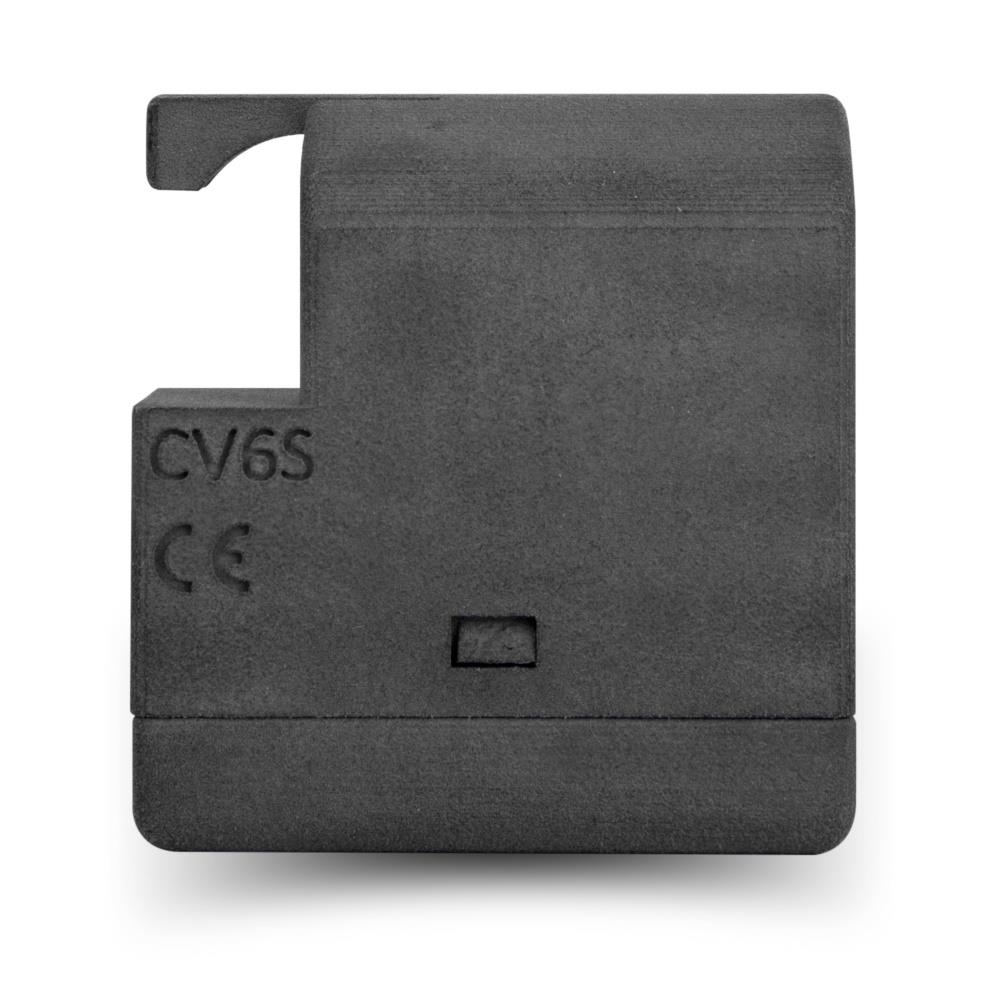

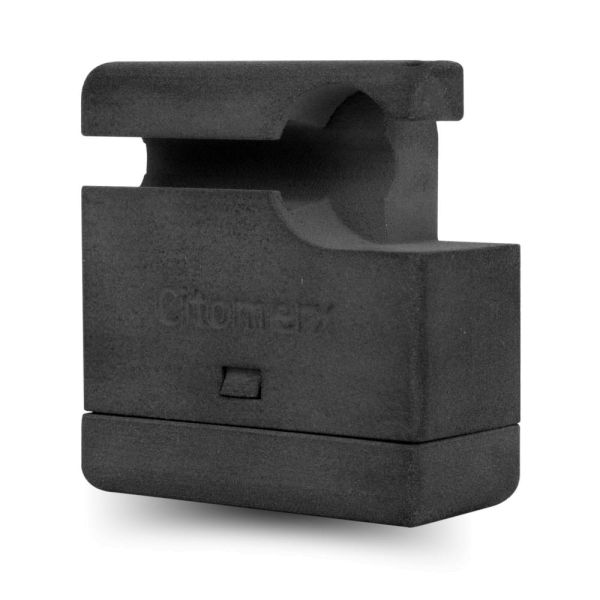

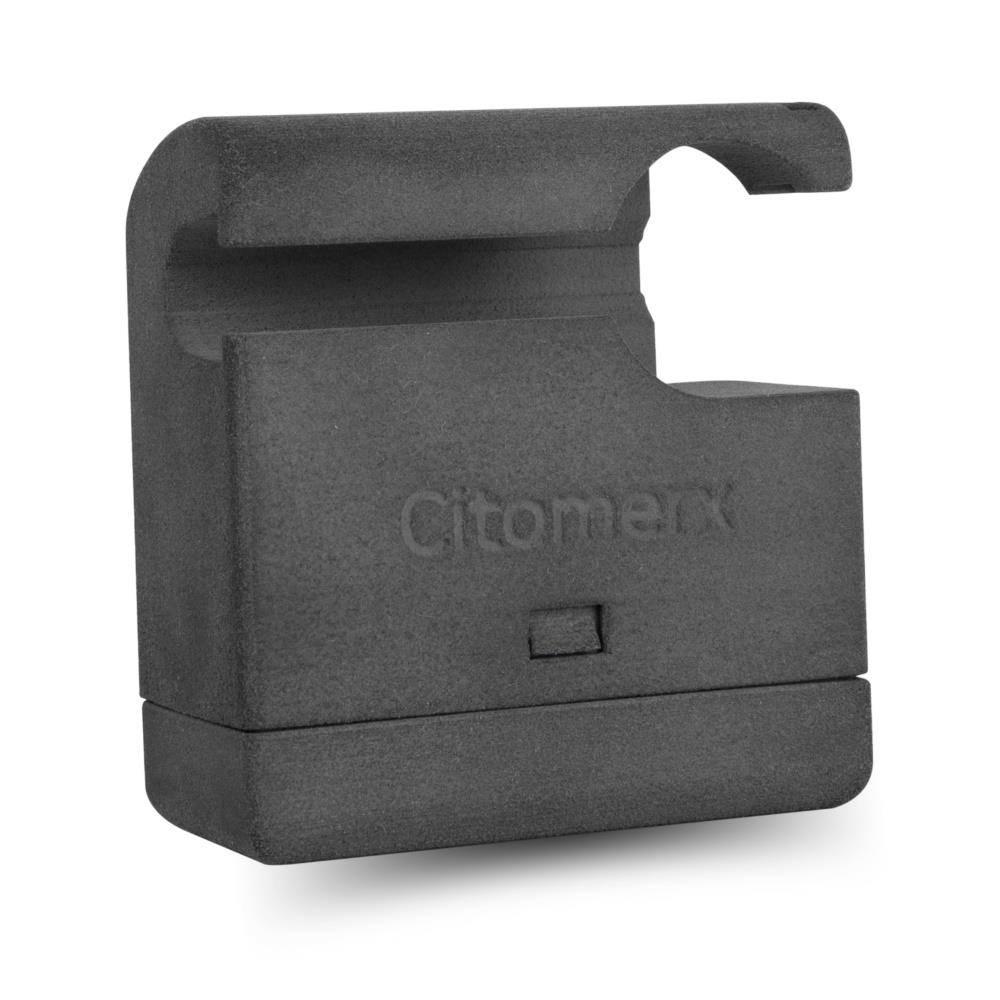

The CMX Speedbox is a professional chip tuning module to increase the speed of EBikes to about 50 km/h.
The construction was specially adapted to e-bikes with Shimano mid-engine and is compatible with conventional circuits as well as with the electronic circuits of the Shimano DI2 series.

DESCRIPTION:
The Speedbox increases the electrical support on e-bikes to approx. 50 km/h. It is characterized by simple Plug&Play - assembly as well as an intelligent control. For simple start-up the Chiptuning Speedbox is only plugged on the original speed sensor. Thanks to the newly developed mounting bracket, cable ties, O-rings etc. are superfluous. Afterwards the spoke magnet must be moved only a small piece. Depending on the wheel circumference, at approx. 20-23 km/h the integrated control unit starts to halve the signal of the speed sensor, which enables the support up to 50 km/h.

For use in road traffic, the CMX Speedbox is simply removed from the sensor and then the magnet is moved back to its old position. The EBike is now back in its original condition.

TECHNICAL DATA:
- Control unit: Microprocessor
- Battery: Lithium-ion button cell type CR2450
- battery life: 7000-8000
- Weight: approx. 28 g
- Dimensions: 59 x 49 x 14,5 mm
- Housing: laser-sintered special housing, water-protected
- Made in Germany

Matching e-bikes:
The CMX Chiptuning Speedbox is suitable for vehicles with Shimano mid-engine.

FURTHER INFORMATION:
The switching speed of the Tuning Speedbox can be changed on request by the programmable interface through us.

Commissioning and use of the CMX Speedbox in the area of operation of the StVO not permitted. The use can lead to loss of warranty.
SCOPE OF DELIVERY:
✔ 1xCMX EBike Chiptuning Speedbox including battery CR2450
