Naraku HS-CNC V-belt pulley for 50cc scooters/quads from CPI, Keeway, Generic
Prices incl. VAT plus shipping costs
Unfortunately, this item is already sold out due to high demand.
- Item no: 6790048
- EAN: 4060861144882
- Manufacturer: Naraku

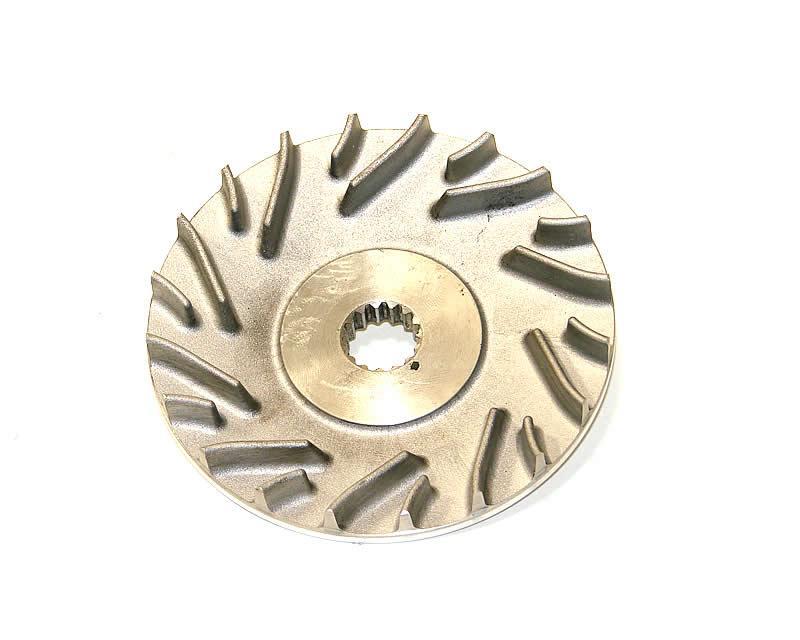

Naraku HS-CNC V-belt pulley
DESCRIPTION:
The standard design of the V-belt pulley is only suitable to a limited extent, especially for higher performance engines, as the power is only transmitted through the comparatively thin star pulley, which can lead to increased wear on the crankshaft and the V-belt pulley or to the star pulley becoming defective.
As an alternative to this system, we offer you a V-belt pulley that is itself continuously toothed and therefore makes a star pulley superfluous.
TECHNICAL DATA:
- V-belt pulley Naraku HS, CNC-milled/turned
- for 50cc scooters and quads from CPI, Keeway, Generic or other identical vehicles, for original and tuning
- continuous toothing for low-loss power transmission, precision fit (fitting may be a little more difficult if the crankshaft toothing has been damaged by the original star washer)
- optimized running surface for less vibration and more top speed thanks to adapted flank angle
- Outer diameter: 94 mm
- Inner diameter of multi-tooth mount: 16 mm
- Height: 19 mm
- Number of teeth multi-tooth inside: 15
SCOPE OF DELIVERY:
✔ 1x V-belt pulley
| Product type: | V-belt pulley |
| GTIN: | 4250362411440 |
| Motor & drive parts area: | Gearbox, drive & clutch |
| Manufacturer number: | 6790048 |
| Country and region of manufacture: | Taiwan |
| Manufacturer warranty: | 2 years |
| Brand: | Naraku |
Racing Planet Distribution GmbH
Löbstedter Str. 50
07749 Jena DEU
Web page http://www.naraku.com
Email: service@racing-planet.de
Naraku has been supplying extremely high quality spare and tuning parts for almost all scooters and maxi-scooters for many years. Particular attention is paid to a high accuracy of fit and a high quality level of spare parts. Naraku supplies cylinder kits in OEM quality as well as in various sport variants. In addition, ignitions as well as tuning parts and the entire range of spare parts.
