Piaggio TPH 50 Carburettor 12 Intake Manifold Diaphragm Block Sfera Typhoon NRG Vespa

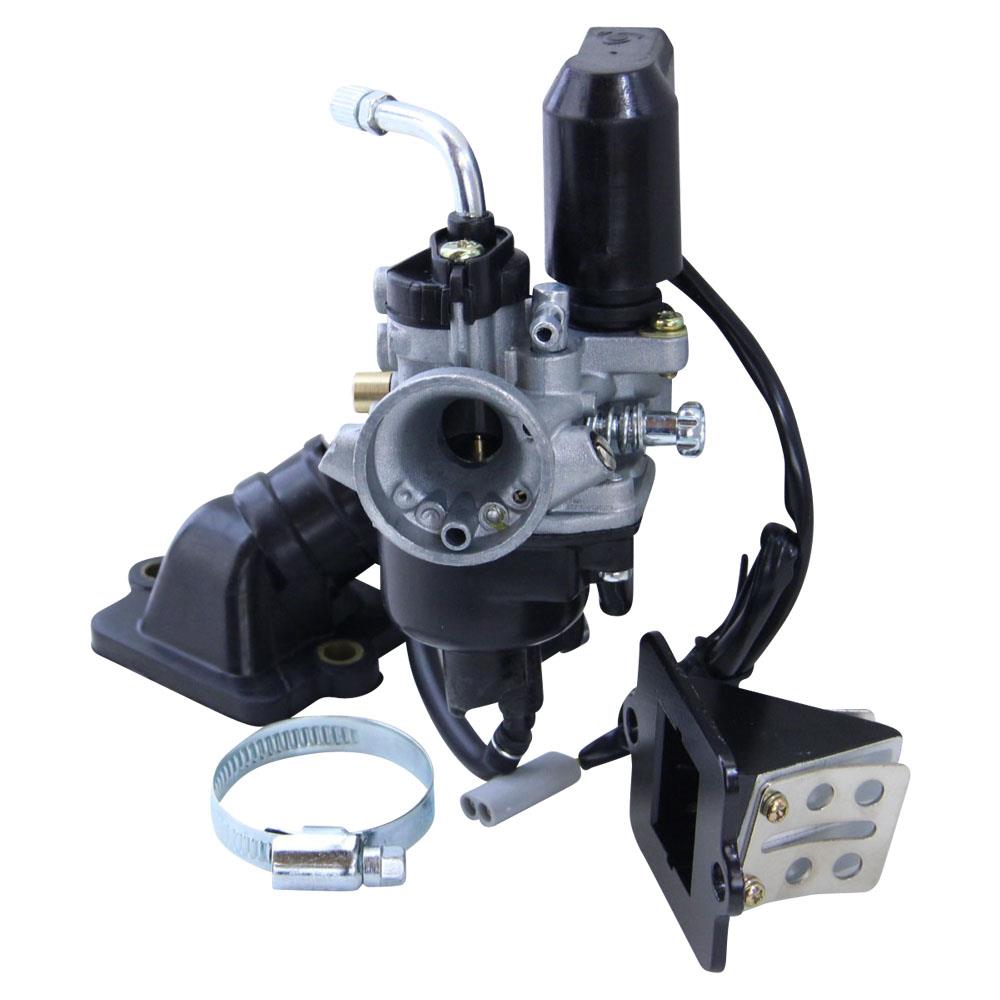

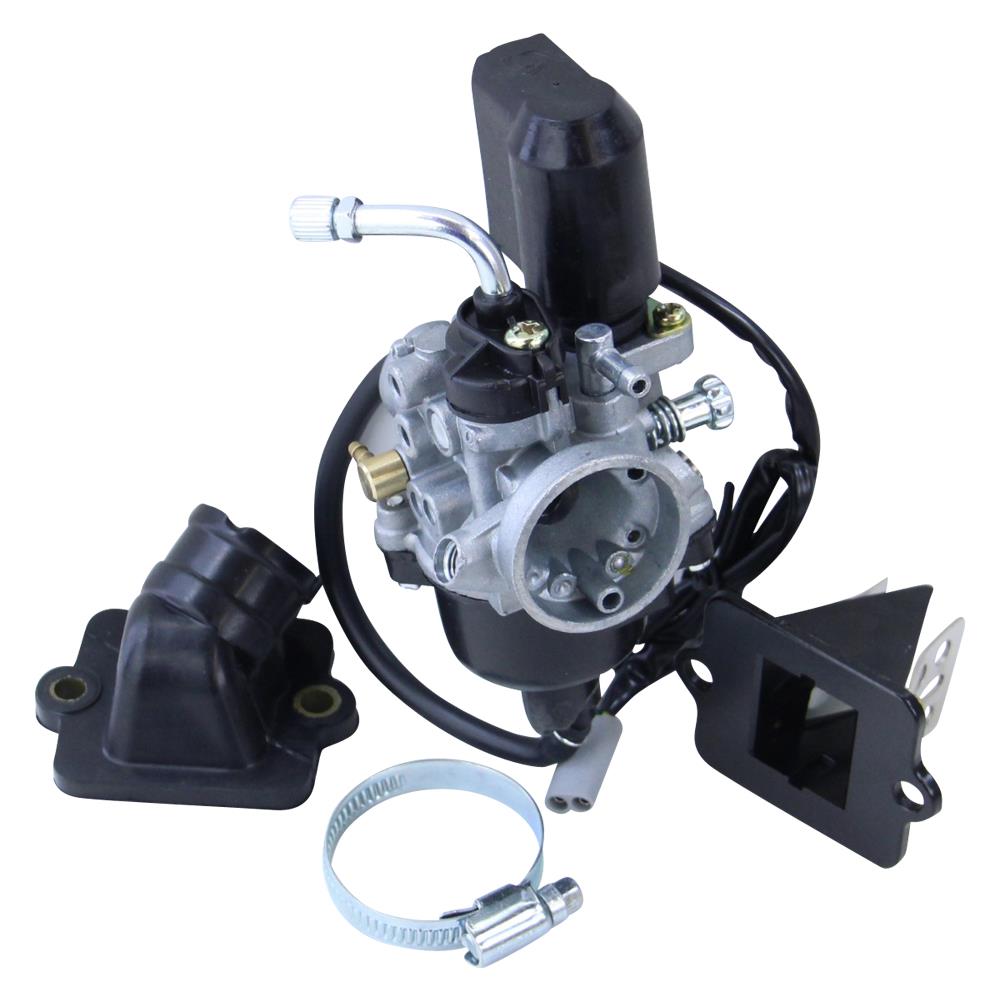

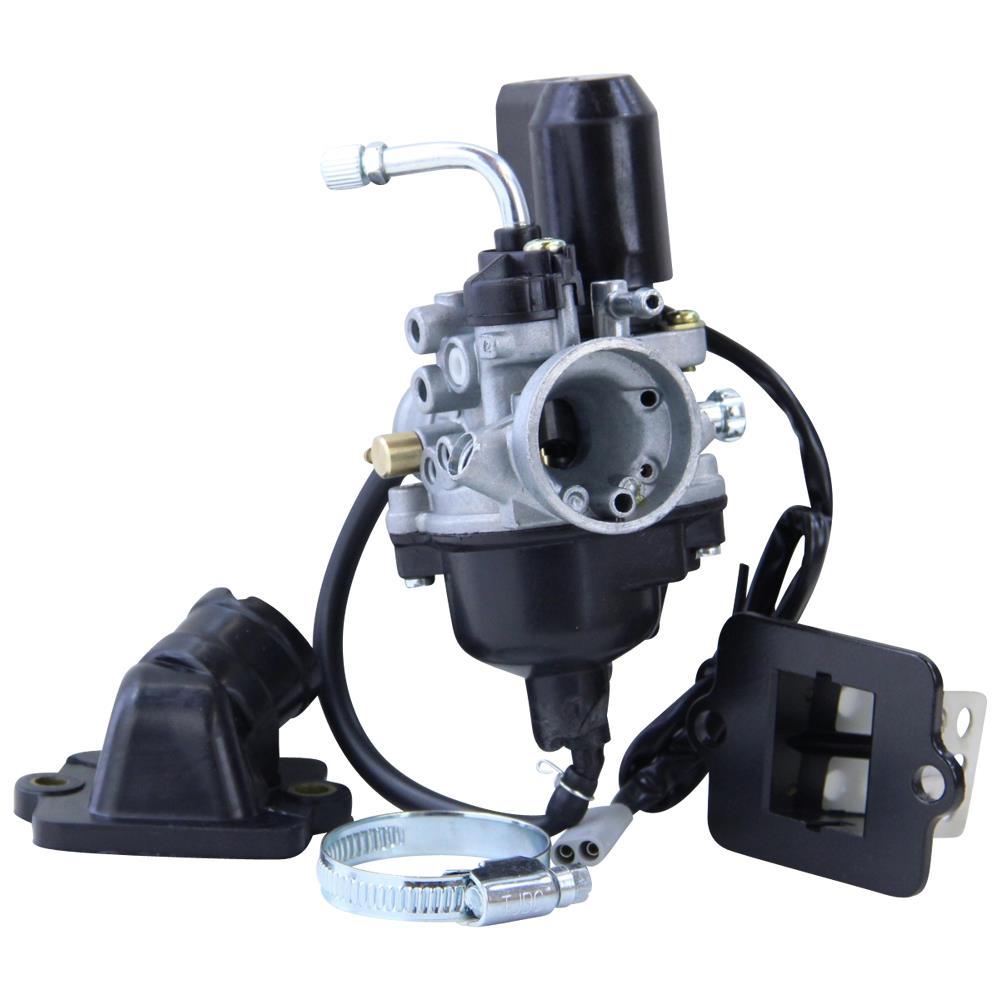

Piaggio TPH 50 carburettor set incl. intake manifold and diaphragm block

DESCRIPTION:
Renew the carburettor of your scooter including accessories - this set makes it possible for little money!

Our two-wheeler experts have carefully assembled this carburettor set for you. As a result, we can offer it to you at a much lower price than buying it individually. In addition, you save yourself the tedious search for all the individual parts.

With this set you get everything you need to get your scooter's heart back into shape!

TECHNICAL DATA:
Carburettor:
- Type: comparable with DellOrto PHVA 12 and PHBN carburettors
- pre-tuned
- Air passage: 12mm
- Air filter connection: 35mm
- Intake port connection: 24mm
- Vacuum connection
- Oil connection
- with E-Choke

Intake manifold:
- Tuning intake manifold
- passage: 20mm
- connection width (without expansion): 22,4mm
- for many DellOrto carburettors up to a port width of 24mm

Diaphragm block:
- Diaphragm block with metal reeds
- for Piaggio engines
- permitted in road traffic (STVZO)

SCOPE OF DELIVERY:
✔ 1x sports carburettor, 1x intake manifold, 1x diaphragm block, 1x mounting clamp.
