Cylinder kit including cylinder head for Morini AC for Suzuki Address - Version 2
€39.90 *
Content:
1 piece
Prices incl. VAT plus shipping costs
Unfortunately, this item is already sold out due to high demand.
- Item no: 161359
- EAN: 4060861136641
- Manufacturer: Citomerx
- Manufacturer no.: 161359
50cc cylinder kit for AC Morini engines DESCRIPTION: We are offering you a cylinder kit... more
Product information about Cylinder kit including cylinder head for Morini AC for Suzuki Address - Version 2

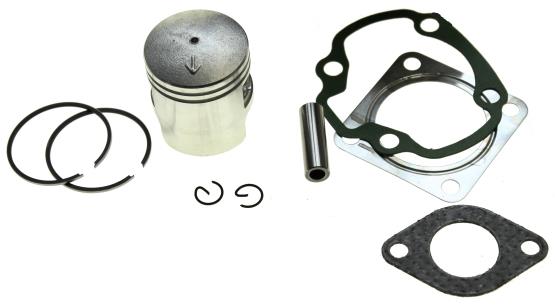

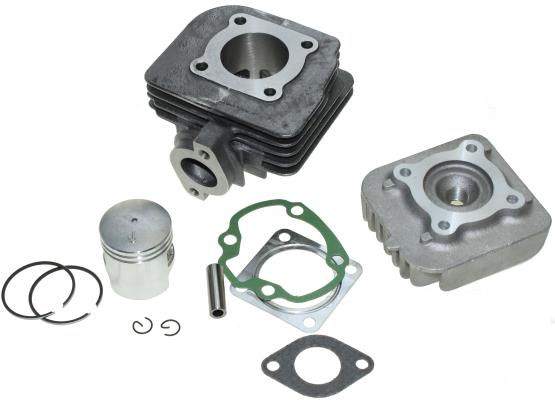

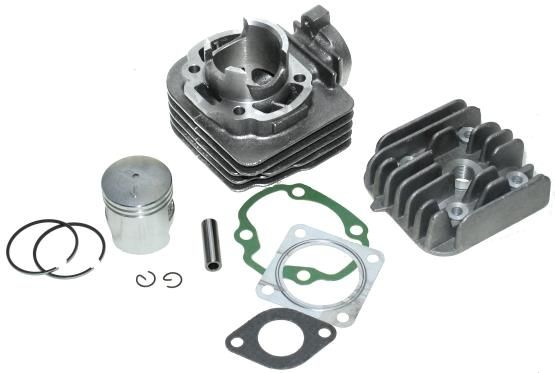

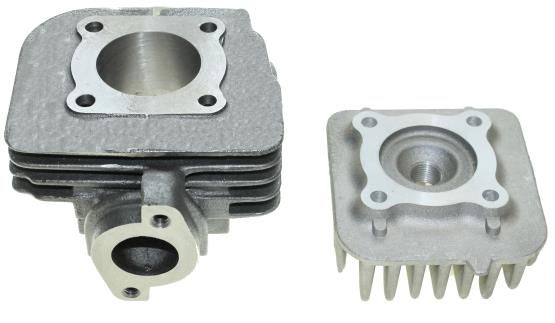

50cc cylinder kit for AC Morini engines DESCRIPTION: We are offering you a cylinder kit manufactured by Citomerx! This is a high-quality replica of the standard cylinder, suitable as a cost-effective replacement for the original cylinder! We recommend replacing the needle bearing. You can, of course, also find the right one in our shop. TECHNICAL DATA: - 50cc cast iron cylinder - for Morini AC - 41mm piston diameter - Piston with 2 piston rings (already pre-assembled) - 10mm piston pin diameter - 50cc replacement cylinder head, air-cooled (AC) - made of very durable cast iron - unbeatable price/performance ratio! SCOPE OF DELIVERY: - 1x cylinder - 1x cylinder head - 1x piston - 1x piston rings - 1x pin - 2x piston clips - 1x gasket set
Properties
| Product type: | Cylinder set |
| Cylinder head dimensions (LxWxH): | 100 x 90 x 35 mm |
| Piston pin diameter: | 10 mm |
| Displacement: | 50 cc |
| Can the original cylinder head be used?: | Yes |
| Cylinder head stud bolt spacing: | 46 x 46 mm |
| Tuning & Styling Part: | No |
| Piston ring profile: | Halbtrapez-Ring |
| Vintage part: | No |
| Cylinder head stud diameter: | 7 mm |
| Surface finish: | Matt |
| GTIN: | 4060861136641 |
| Diffuser internal dimension: | 25 mm |
| Note: | Zylinderkopf beachten! Es gibt 2 Versionen! / Hier Version 2! |
| Cylinder dimensions (LxWxH): | 110 x 100 x 80 mm |
| Outlet Stud distance: | 46 mm |
| Scope of delivery: | Kolben Set, Cylinder head, Cylinder, Gasket set |
| Outlet stud bolt thread: | M6 |
| Cylinder stud distance: | 46 x 46 mm |
| Number of overflows: | 5 |
| Cylinder stud bore: | 7 mm |
| Manifold connection type: | Flange |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 2 |
| Features: | Corrosion resistant, Durable |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 161359 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Scooter |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder head cylinder set |
| Manufacturer warranty: | 2 years |
| Material: | Several materials |
| Type: | Standard |
| Suitable for: | Morini AC |
