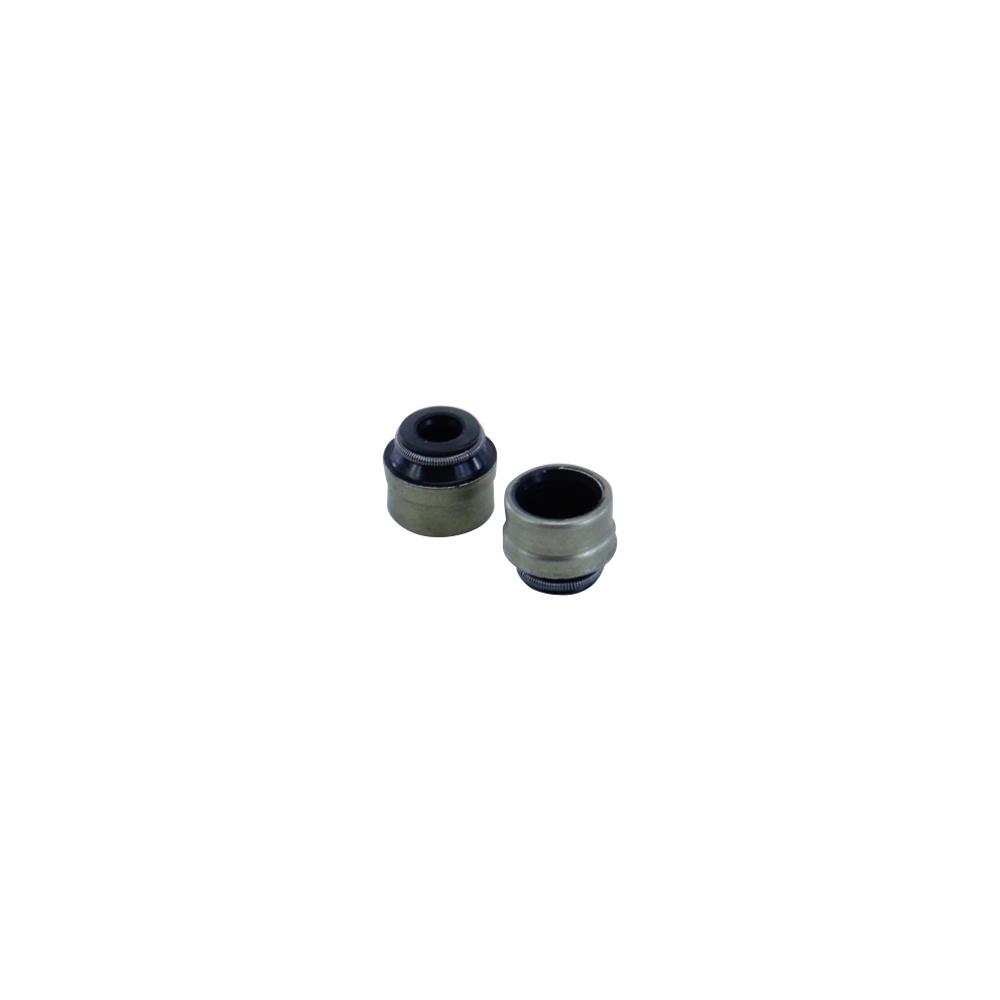

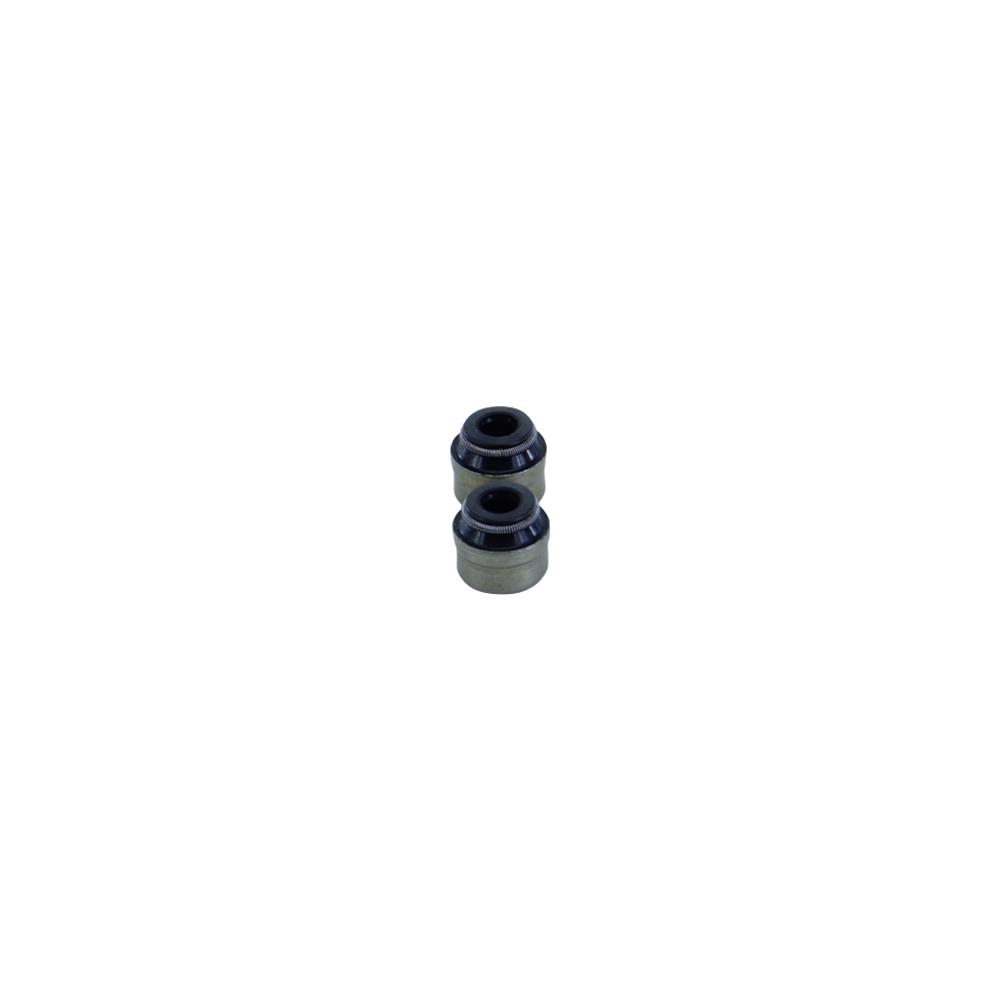

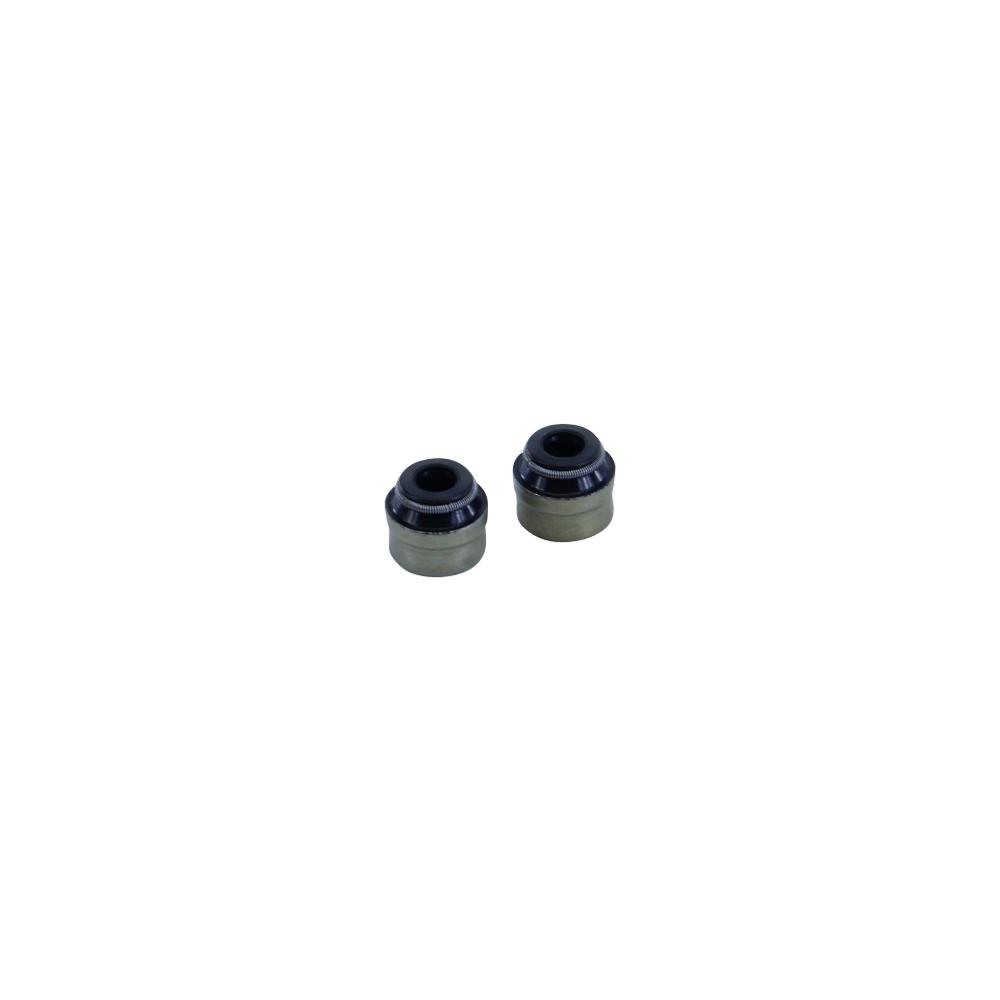

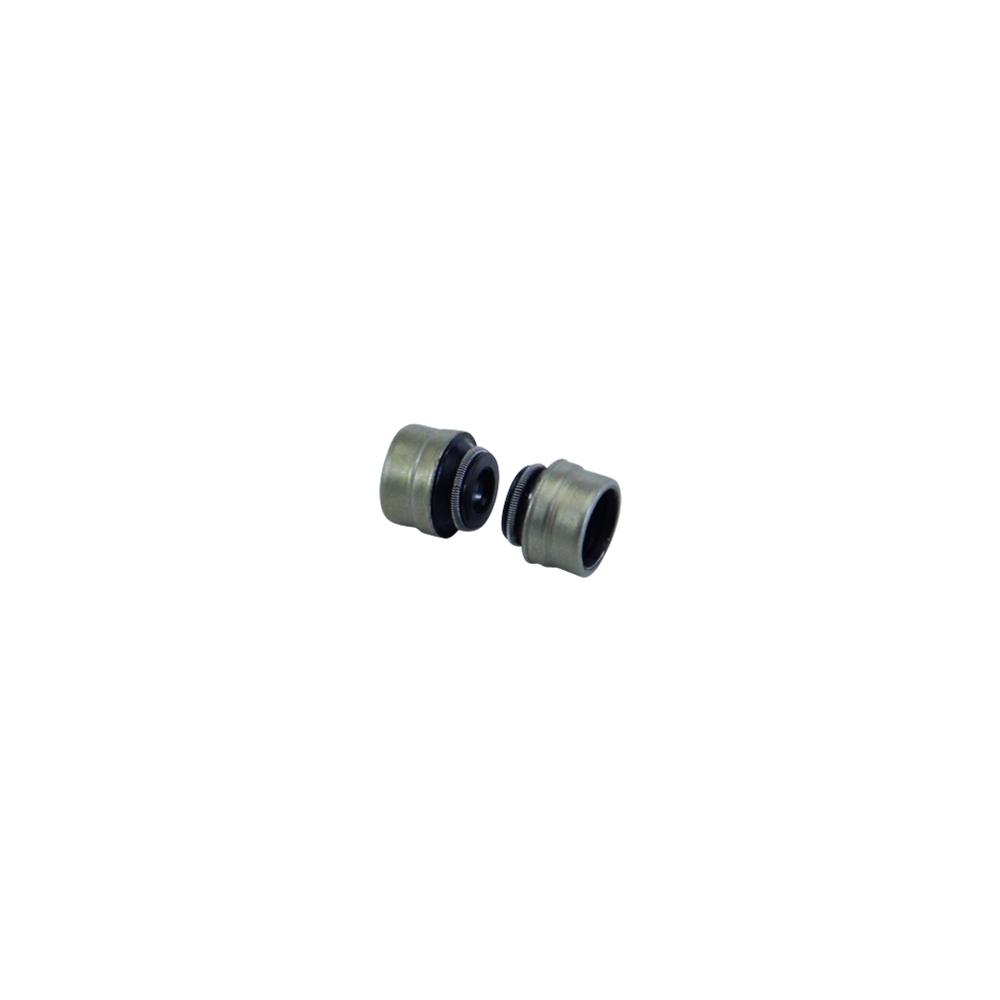

Valve stem seal set 2 pieces for Derbi Atlantis Boulevard GP1 Variant
- Item no: 165592032
- Manufacturer: Citomerx
- Manufacturer no.: 165592032
You notice an increased oil consumption of your machine? Perhaps it is due to a porous valve stem... more
Product information about Valve stem seal set 2 pieces for Derbi Atlantis Boulevard GP1 Variant
You notice an increased oil consumption of your machine? Perhaps it is due to a porous valve stem seal.
DESCRIPTION:
Often porous valve stem seals allow too much engine oil to enter the combustion chamber through the valves. This results in oil carbon deposits on the valve head, in the combustion chambers and on the exhaust ducts.
In the manufacturing process, only selected materials that are designed for the highest loads were used. A long service life is therefore "pre-programmed".
TECHNICAL DATA:
- Overall dimension Outer diameter 10.5 fitting 11.2 with groove
- Overall dimension height 9,6
- for shank diameter 4.0
- Connection dimension inside diameter 7.5
- Height of fitting ring (metal ring) 4.0 fitting 6.3 with groove
- Material: metal sleeve with rubber insert
- Spring washer: top
comparable with OE number:
Derbi: 8550326
SCOPE OF DELIVERY:
✔ 2x valve stem seal for Derbi Atlantis Boulevard GP1 Variant
DESCRIPTION:
Often porous valve stem seals allow too much engine oil to enter the combustion chamber through the valves. This results in oil carbon deposits on the valve head, in the combustion chambers and on the exhaust ducts.
In the manufacturing process, only selected materials that are designed for the highest loads were used. A long service life is therefore "pre-programmed".
TECHNICAL DATA:
- Overall dimension Outer diameter 10.5 fitting 11.2 with groove
- Overall dimension height 9,6
- for shank diameter 4.0
- Connection dimension inside diameter 7.5
- Height of fitting ring (metal ring) 4.0 fitting 6.3 with groove
- Material: metal sleeve with rubber insert
- Spring washer: top
comparable with OE number:
Derbi: 8550326
SCOPE OF DELIVERY:
✔ 2x valve stem seal for Derbi Atlantis Boulevard GP1 Variant
Eigenschaften
| Design: | Metallhülse Gummieinsatz |
| Valve stem diameter: | 4.0mm |
| Total height: | 9,6mm |
| GTIN: | 4251048872319 |
| Outer diameter: | 10,5mm |
| Manufacturer number: | 165592032 |
| Country and region of manufacture: | China |
| Installation position: | Above |
| Product type: | Valve stem seal |
| Reference number(s) OE: | Derbi: 8550326 |
| Manufacturer warranty: | 2 years |
