Inspection set Hercules Prima 3 5 gasket air filter 16mm spark plug NGK B6HS carburetor repair kit Sachs 505/2 2-speed
Prices incl. VAT plus shipping costs
Delivery time on request
Further variants / accessories
- Item no: 166409
- EAN: 4251048896162
- Manufacturer: Citomerx
- Manufacturer no.: 166409
You can find the perfect spare parts for your Hercules here!
The company "Hercules" was founded in 1886 by Carl Marschütz as Velozipedfabrik Carl Marschütz & Co. and produced bicycles in the early years until 1928. It was not until 1928 that the production of motorcycles with an engine capacity of less than 200 cm³ became profitable again. All engines of the Hercules two-wheelers were made by Fichtel & Sachs.

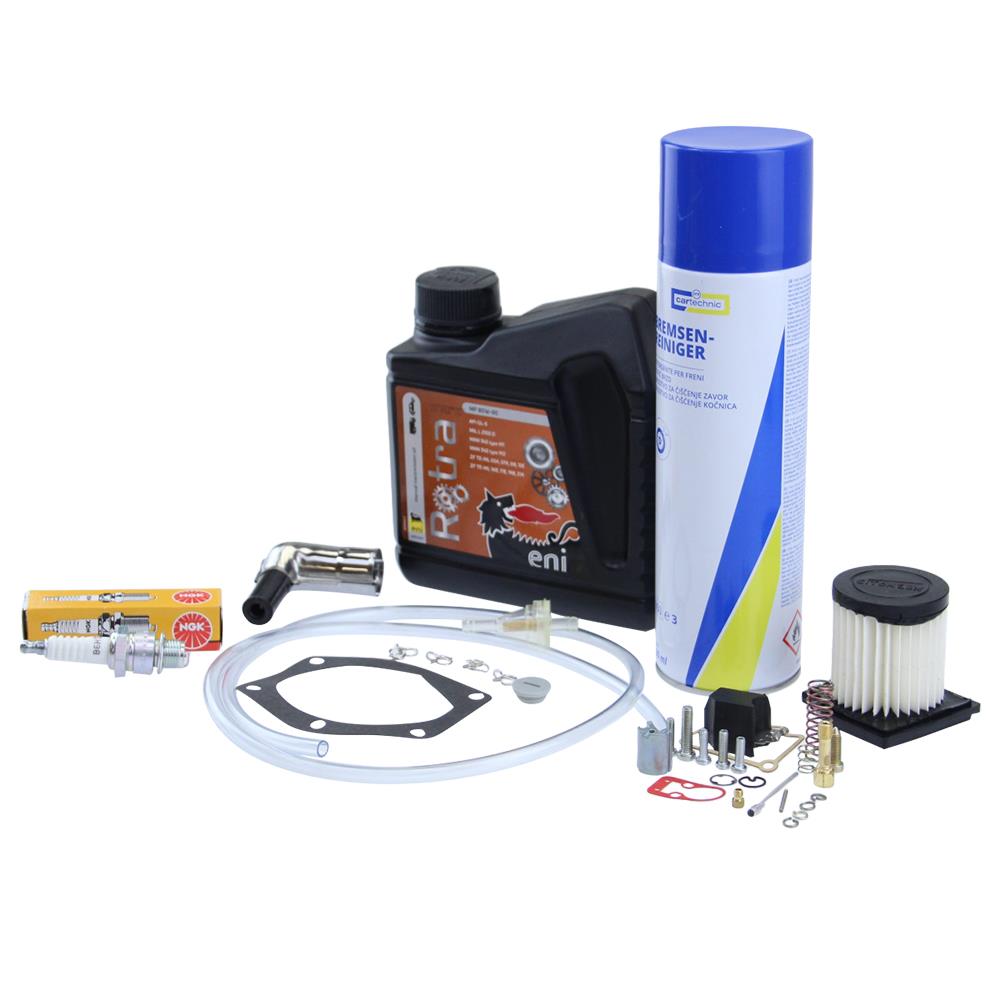

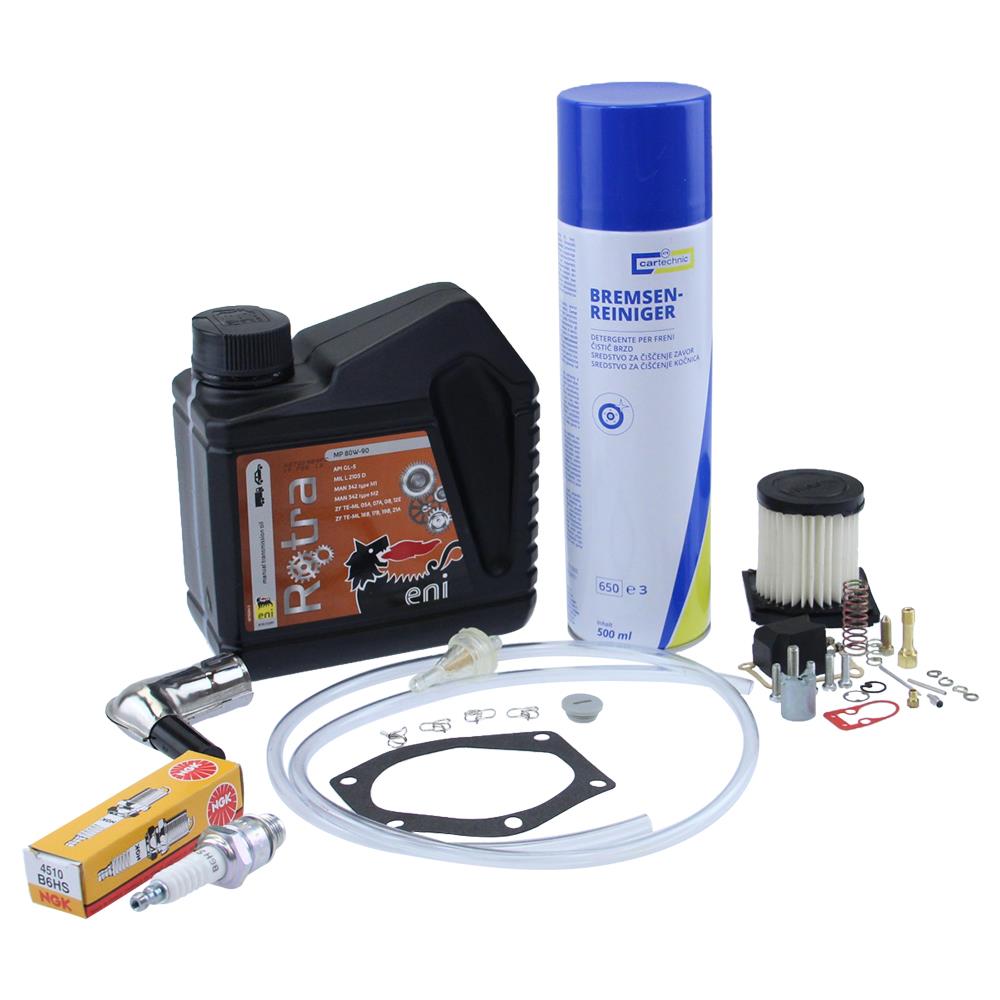

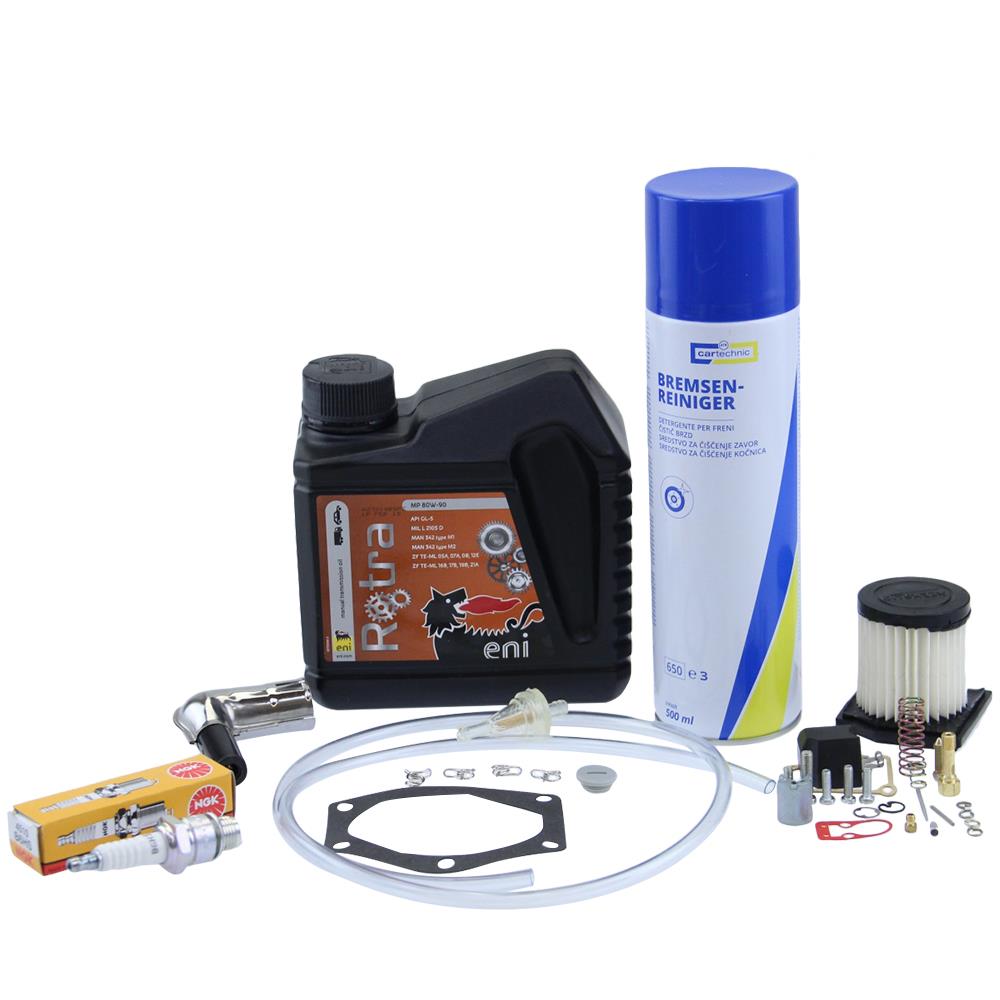

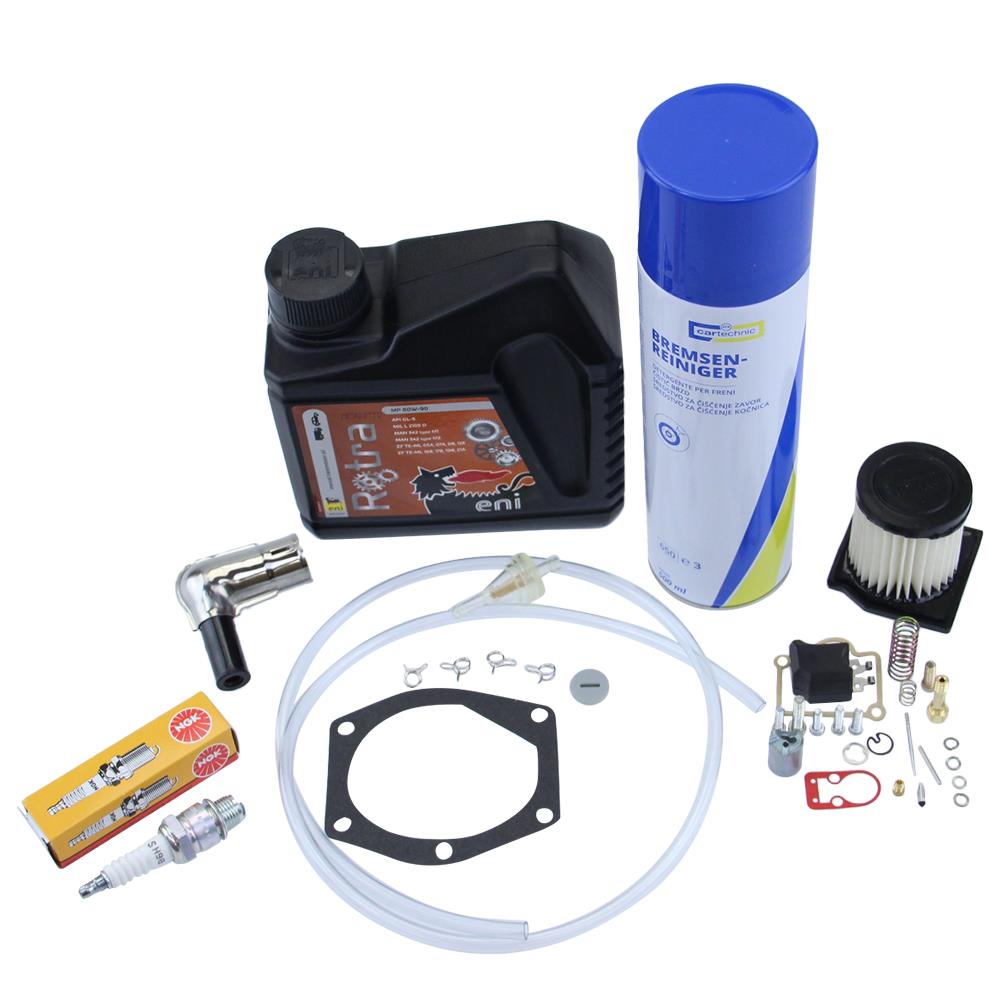

With this set the inspection of your Sachs 505 2-speed engine is no problem. It contains all the spare parts that should be replaced regularly to prevent major repairs or, in the worst case, damage to the engine. Firstly, the gasoline or air supply is completely renewed. The kit includes a carburetor repair kit, a new fuel filter, a one meter fuel hose and a new air filter. On the other hand, the spark plug and spark plug cap can be replaced. Furthermore, this inspection kit includes a new clutch cover gasket, a new oil check screw and the right transmission fluid for your engine. The included brake cleaner is used to clean the outside of the engine.
Buy your new replacement, wear or tuning part now!
Technical data:
- Gasoline hose 5mm
- Universal plastic fuel filter
- Oil control screw: M14x1
- Clutch cover gasket: paper
- Plug connector: "Classic" // interference suppressed with 5 kOhm
- Spark plug connector: 90° angled // color black-silver
- spark plug: type NGK B6HS // wrench size SW21
- spark plug: thread M14 // electrode gap 0,7mm
- Air filter insert passage: 16mm
- Brake cleaner 500ml
- Gear oil 80W-90 1 liter
- Carburetor repair kit for Bing type 85/10/, 85/12/ and 85/13/
Scope of delivery:
- 1x gasoline hose
- 1x gasoline filter
- 4x hose clamp
- 1x oil screw
- 1x clutch cover gasket
- 1x spark plug connector "Klassik
- 1x Spark plug NGK B6HS
- 1x Air filter insert 16mm
- 1x brake cleaner
- 1x Gear oil 1 liter
- 1x Carburetor repair kit
