Cylinder- Kit for Suzuki Address AH100 AG100, Malaguti Ciak F12 100, Morini AC
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 166060
- EAN: 4251048856883
- Manufacturer: Citomerx
- Manufacturer no.: 166060

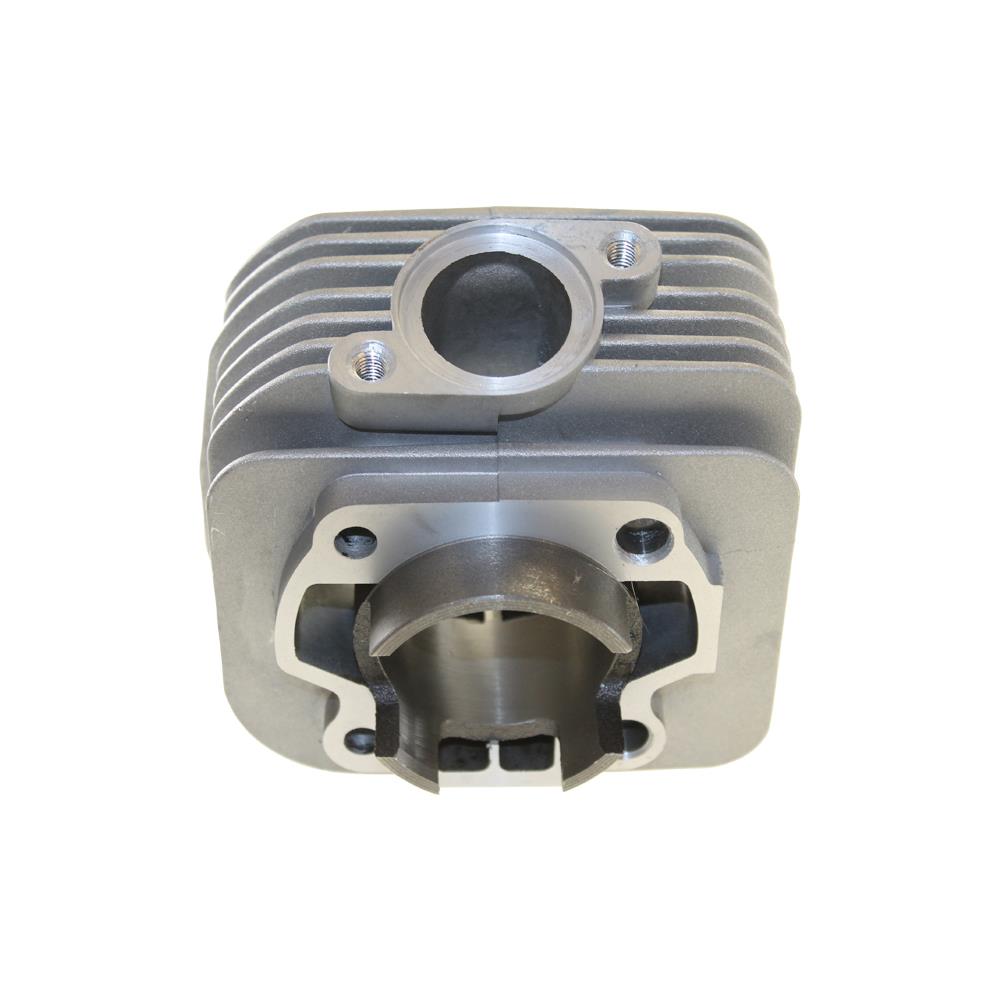

Citomerx cylinder kit
DESCRIPTION:
Together with the piston and the cylinder head, the cylinders of an internal combustion engine form the working and combustion chamber. This naturally becomes very hot due to the explosions that occur inside. Basically, this heat is transferred to the ambient air and the engine oil. This oldest and original form of air-oil cooling is commonly referred to as AC - Air Cooled. With this type of cooling, the available surface area is decisive, which is why the cylinders are usually surrounded by a large number of cooling fins. The system can be supplemented by additional air ducts to the cylinder/engine block, for example. In some cases, an (electric) fan is also installed in these ducts, which constantly draws in fresh air for cooling. In some vehicles, the heated engine oil is also passed through an extra air cooler for cooling. The second major type of engine cooling is cooling using coolant (LC - liquid cooled). Here, the engine block and especially the cylinders are flooded with "cooling water", which absorbs the heat and transports it to the outside where it is released into the ambient air via a radiator. This type of cooling is more efficient and allows considerably more freedom in the design of the entire vehicle due to the relatively free choice of radiator position. This is why liquid cooling has become the standard in many areas of vehicle construction.
If you are looking for a solid and robust cast iron cylinder for the air-cooled 100cc Morini engine, you will find it here. The engine was used in a number of scooters from various manufacturers, most notably the Suzuki Address 100 and the 100 cc variants of the Malaguti Ciak and F12 Phantom. The cylinder set can be installed with a clear conscience as a replacement cylinder for the original and comes with a top price/performance ratio - naturally with StVZO approval.
TECHNICAL DATA:
- 4 transfer ports
- Piston diameter: 52.4 mm
- Piston pin diameter: 12 mm
- Manifold connection: round 40 mm (31 mm passage)
- Mounting manifold: 2x M7, diagonally 60 mm apart
REPLACES THE FOLLOWING OE-NUMBERS:
- Suzuki - AG100/AH100 (1991-2000).
- Cylinder 11210-41D00-0F0
- Head gasket 11141-04C00-000
- Foot gasket 11241-41D21-000
- Set of pistons with 2 rings 12100-41D01-050/100
- Piston 12110-41D00-0F0
- Piston ring set (2 pcs.) 12140-35510-000
- Piston pin 12151-35500-000
- 2x piston pin clip 09381-12001-000

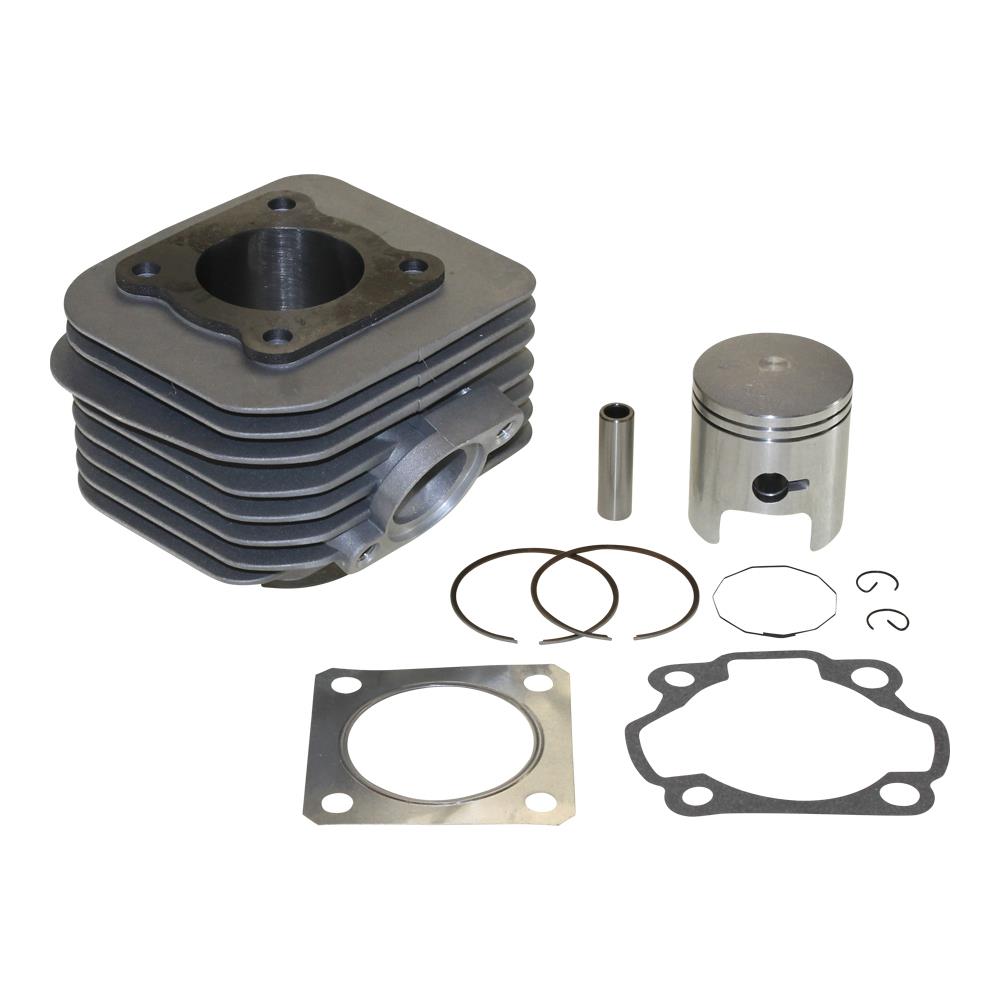

SCOPE OF SUPPLY:
✓ Cylinder kit for Suzuki Address
Piston diameter: | 52,4 mm |
GTIN: | 4251048856883 |
Mounting manifold: | 2x M7, diagonal 60 mm Abstand |
Number of overflow channels: | 4 |
Elbow connection: | rund 40 mm (Durchlass 31 mm) |
Piston pin diameter: | 12 mm |
for motor type: | Morini AC, 100 ccm |
Scope of delivery: | 1x Zylinder- Kit für Suzuki Address |
Color: | Grey |
Manufacturer number: | 166060 |
Country and region of manufacture: | China |
Installation position: | Front |
Reference number(s) OE: | 2x Kolbenbolzen-Clip 09381-12001-000, Fussdichtung 11241-41D21-000, Kolben 12110-41D00-0F0, Kolbenbolzen 12151-35500-000, Kolbenring-Satz (2 Stk.) 12140-35510-000, Kopfdichtung 11141-04C00-000, Satz Kolben mit 2 Ringen 12100-41D01-050/100, Zylinder 11210-41D00-0F0 |
Offer package: | Yes |
Description of the package content: | Zylinder + Kolben + Montageteile |
Manufacturer warranty: | 2 years |
