Dellorto carb PHVA 12 DD for Piaggio Quartz NSP1T, Sfera NSL1T, Zip SSL1T 01020

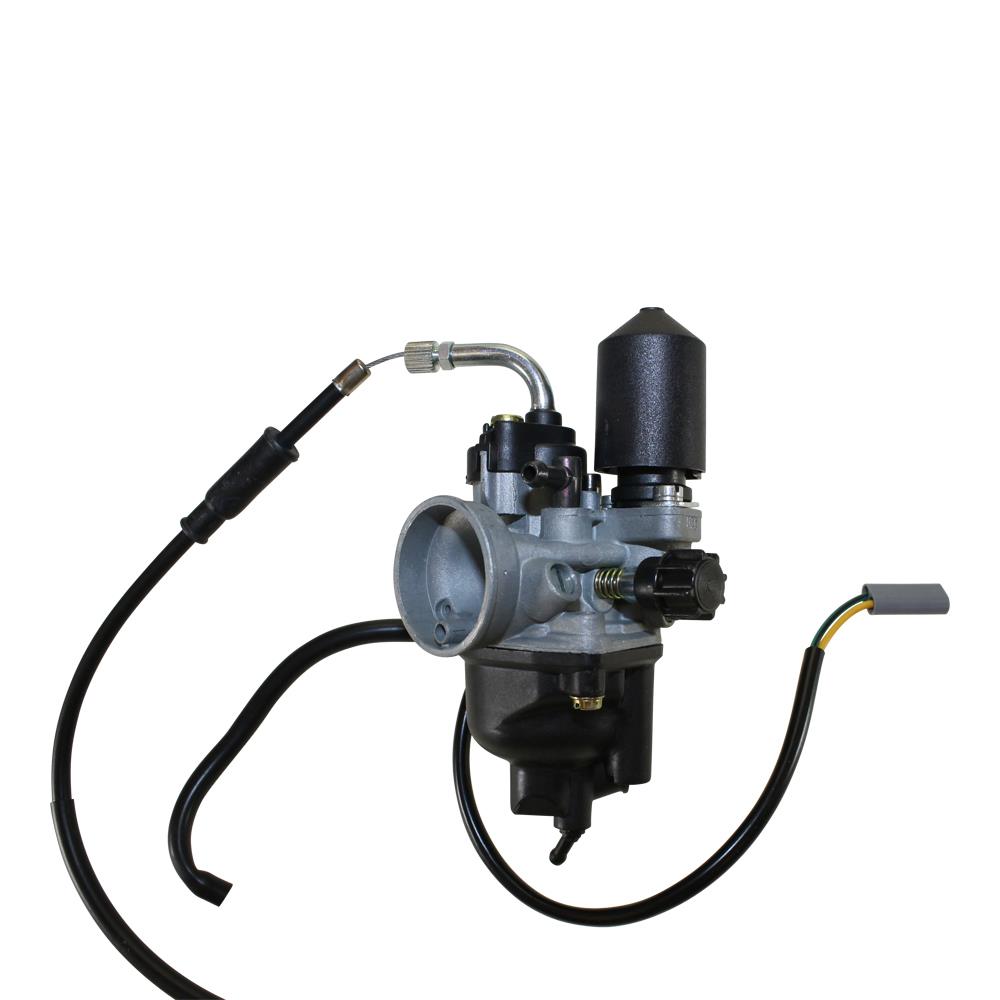

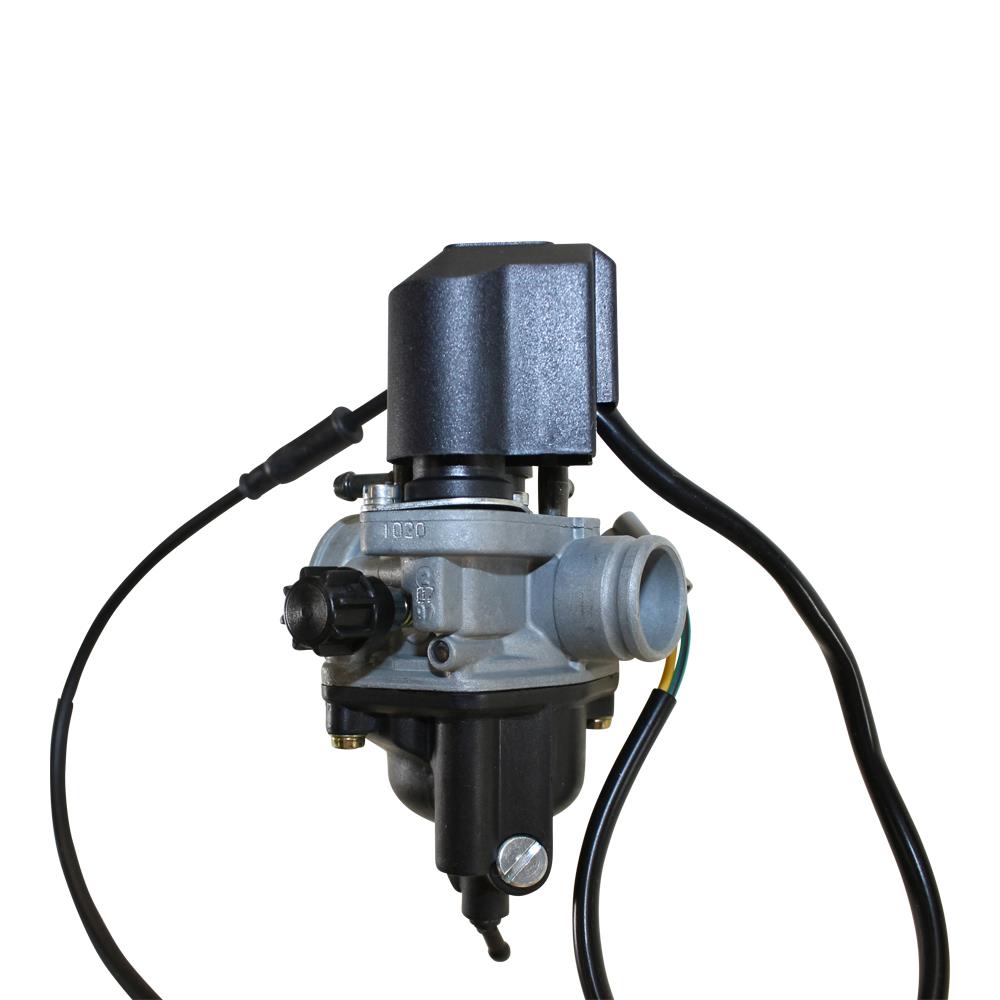

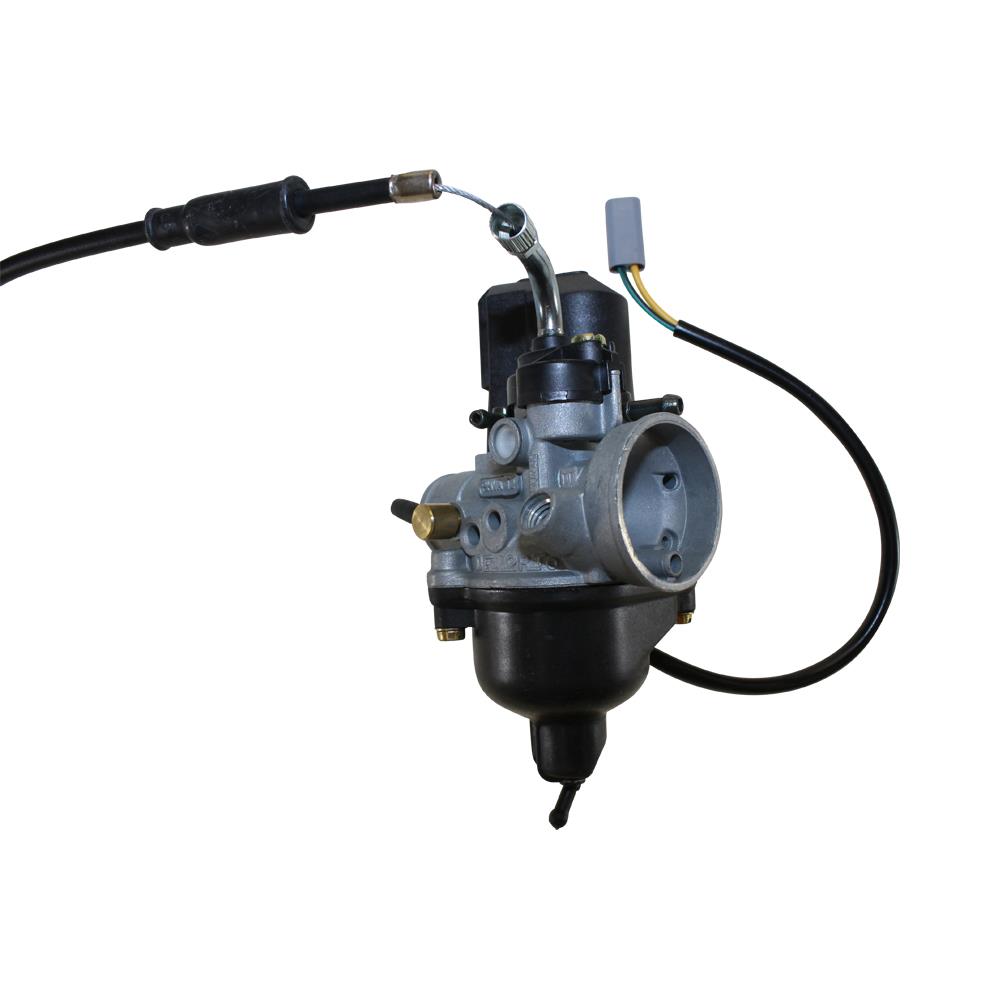

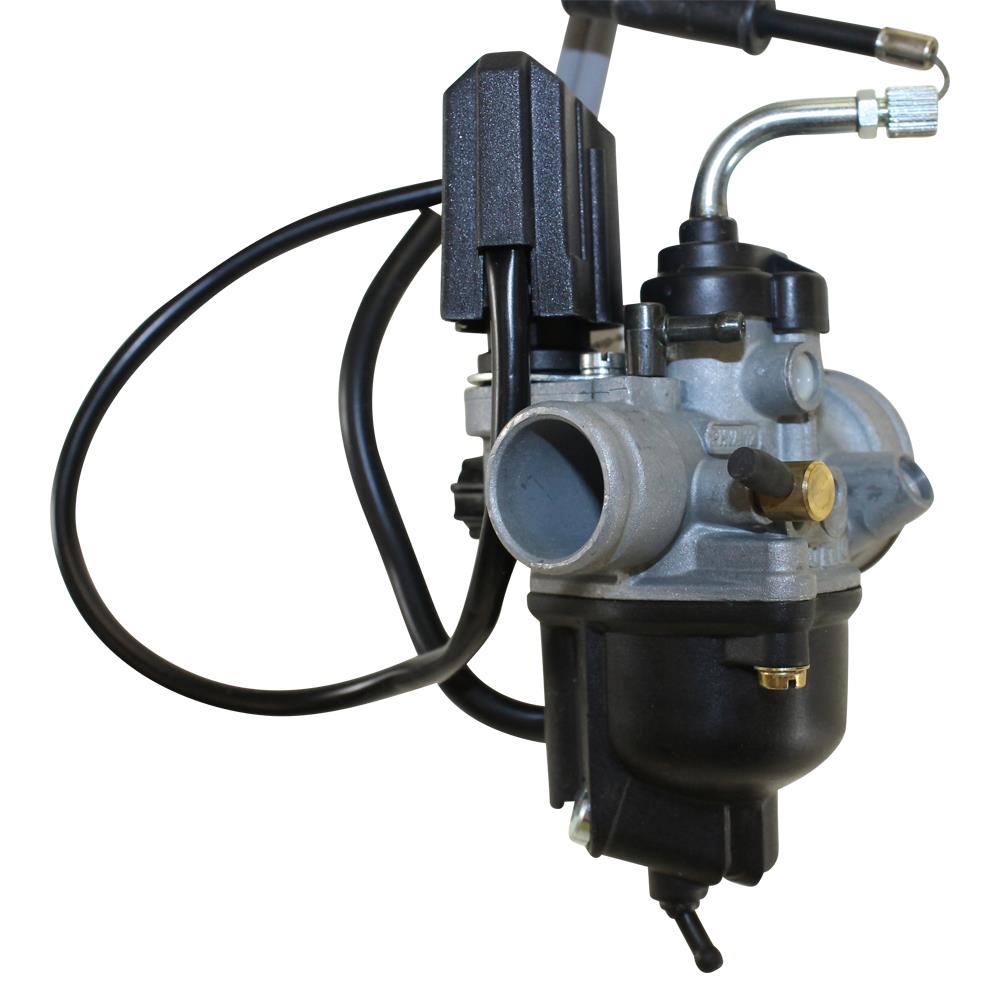

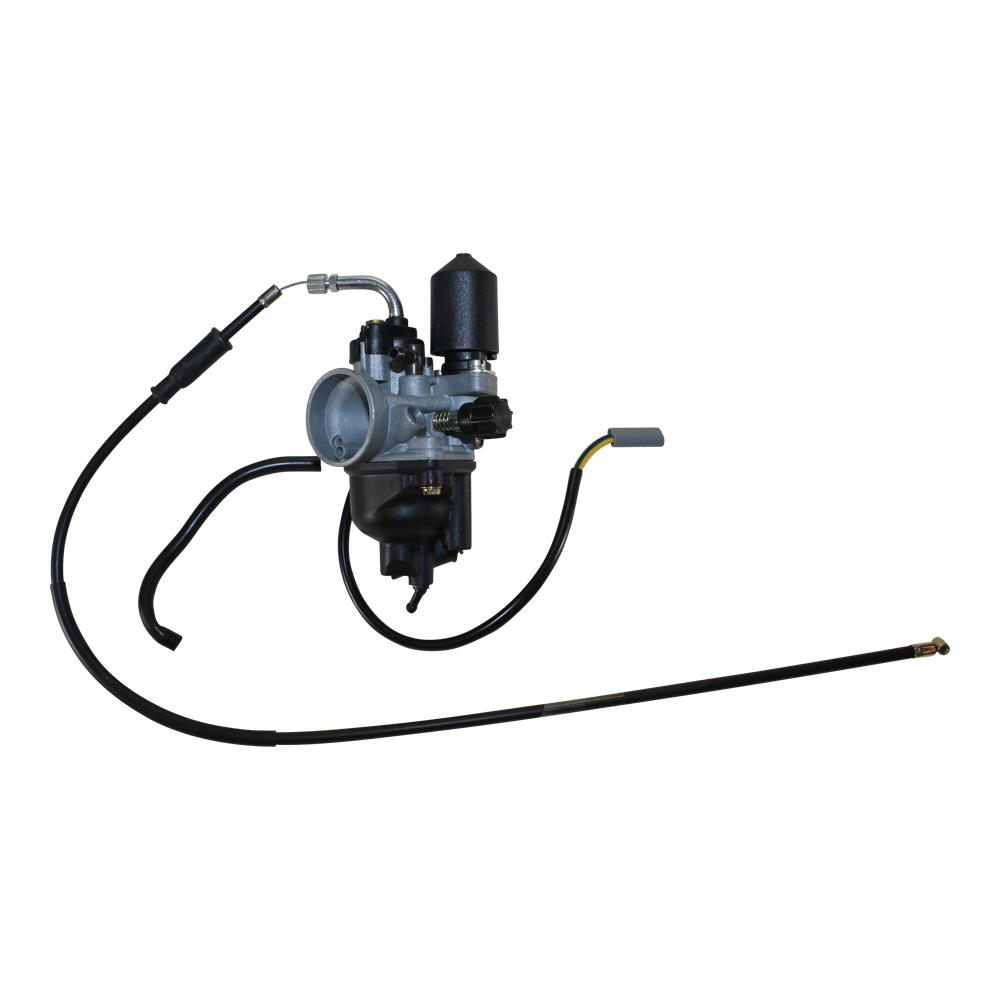

Dellorto carburettor PHVA 12 DD for Piaggio in OEM quality

DESCRIPTION:
Since 1933 Dell'Orto has been supplying Italian motorbike manufacturers such as Aprilia, Piaggio, Moto Guzzi, Ducati, Benelli, Laverda and MV Agusta, but also other manufacturers such as BMW, Honda, Husqvarna, Husaberg, KTM, Peugeot and Yamaha, with carburettors that are always of the highest quality and innovative. The big scooter engine manufacturers Minarelli and Morini also appreciate the know-how and premium quality of the Italian carburettor specialist Dell'Orto. At Dell'Orto, this experience is reflected in every single product, from the smallest accelerator pump ball to the gas sliders and the complete carburettor, in the highest quality and fitting accuracy.

Here we offer you a carburettor from the original equipment manufacturer Dell'Orto, precisely matched to your vehicle.

In contrast to injection systems, the carburettor draws the required amount of fuel from the float chamber. In order to create the necessary negative pressure, the intake manifold from the air intake channel via the mixing chamber to the engine connection is usually formed in a narrowing channel, a venturi.

The PHVA and PHVB carburettors are the most common models in the 50ccm class. Almost every Piaggio engine is equipped with them. With their classic construction and a wide range of equipment options, such as various throttle cable and choke variants, these models are extremely variable.

TECHNICAL DATA:
- Type: PHVA Var. D with 12 mm passage
- Adjusting screws right
- Throttle cable angled
- Electric Choke
equipped with
- Gas slide 13685-40
- Carburettor needle A 16250-12
- Main atomiser FQ 14351-210
- Main nozzle 6413-70
- Idle jet 11600-38
- Starter nozzle 13815-60
- float 13700-01, 3,5gr

FIT FOR:
This carburettor is used in exactly this configuration (nozzles, atomizers, connections, etc.) in the following models:

- Piaggio Scooter (base), year 1992, 50 cc, 1 cyl. - 2-stroke

Of course the carburettor can also be used in other models. The air intake, the engine connection, the throttle cable and the choke connection may have to be adapted for this purpose. carburettors for 2 and 4 stroke engines should not be mixed. It must also be checked whether the carburettor is prepared for mixed or separate lubrication and whether vacuum connections are required to control a fuel tap or an oil pump.

SCOPE OF DELIVERY:
✔ Dellorto carburettor PHVA 12 DD for Piaggio
