Preview: Ventilschaftdichtung CVSD-6,1x14,5x9,0 Metallhülse mit Gummieinsatz (165601)

Ventilschaftdichtung CVSD-6,1x14,5x9,0 Metallhülse mit Gummieinsatz (165601)

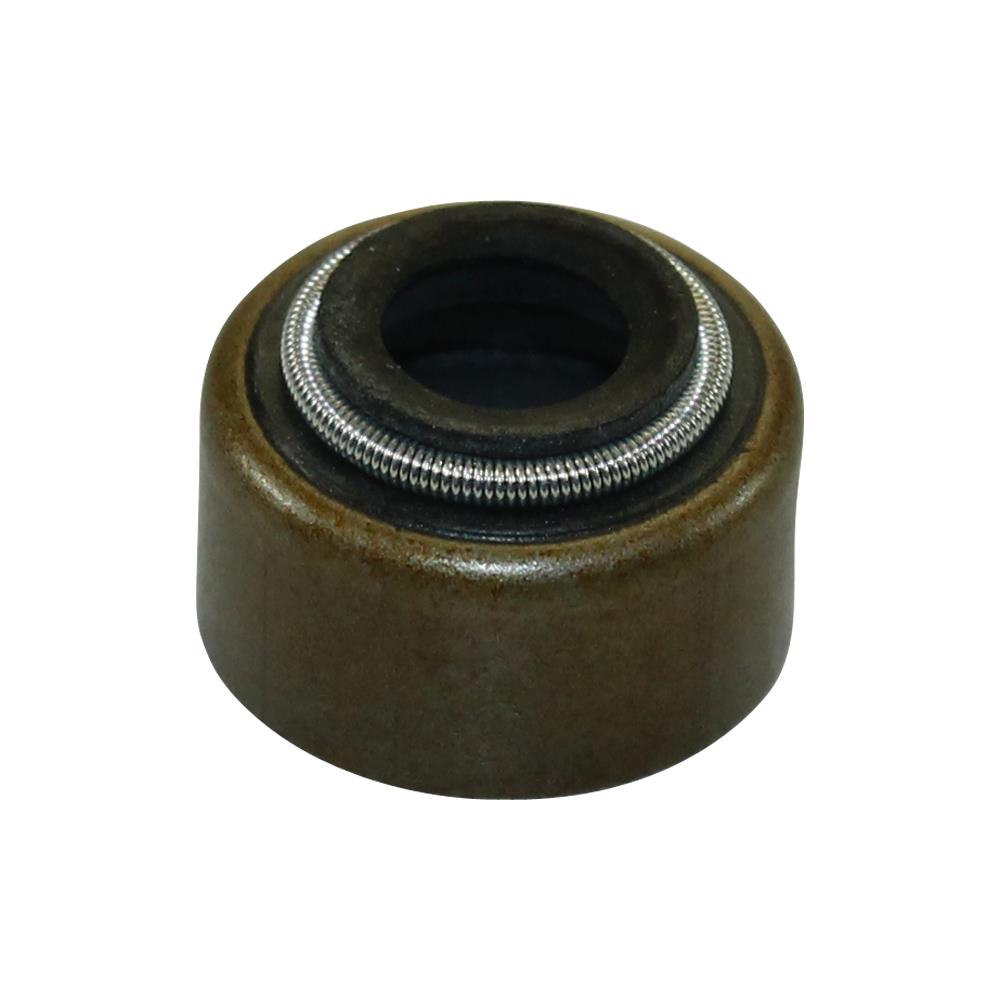

Valve stem seal CVSD-6.1x14.5x9.0 Metal sleeve with rubber insert

Bewerten

€1.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Item no: 165601
EAN: 4251048830470
Manufacturer: Citomerx
Manufacturer no.: 165601

Is "blue smoke" coming out of your exhaust? This is a symptom of worn or porous valve stem... more

Close menu

Is "blue smoke" coming out of your exhaust? This is a symptom of worn or porous valve stem seals.

The valve stem seal basically has the function of covering the valve stems with sufficient lubrication. On the other hand, the engine burns uncleanly and oil consumption increases unnecessarily if oil enters the combustion chamber.

Only selected materials designed for the highest loads are used in the manufacturing process. A long service life is therefore "pre-programmed".

Technical data:
- Overall external diameter 14.5
- Overall height 9.0
- for shaft diameter 6.1
- Connection dimension inner diameter 12.0
- Height of fitting ring (metal ring) 7.5
- Material: Metal sleeve with rubber insert
- Spring washer: top

comparable:
Athena P400510420502

Scope of delivery:
- 1x valve stem seal CVSD-6,1x14,5x9,0 metal sleeve with rubber insert

Spring washer:	oben
Overall height:	9,0 mm
GTIN:	4251048830470
OE/OEM reference number(s):	P400510420502
Connection dimension inside diameter:	12,0 mm
for shaft diameter:	6,1 mm
Overall dimension Outer diameter:	14,5 mm
Height of fitting ring (metal ring):	7,5 mm
Scope of delivery:	1 Ventilschaftdichtung CVSD-6,1x14,5x9,0 Metallhülse m. Gummieins
Product type:	Valve stem seal
Manufacturer number:	165601
Country and region of manufacture:	China
Product type:	Valve stem seal
Manufacturer warranty:	2 years
Brand:	Citomerx
Material:	Metallhülse mit Gummieinsatz
