Ignition alternator 12V 100W bgl. vape set for Simson S51 S50 S53 S70

TECHNICAL DATA:

- Product type: Alternator (complete)
- identical to: Vape ignition
- Replacement for: all ignition systems up to 1990
- Ignition pulse generation: fully electric, contactless
- Output: 100W
- Voltage 12V

Charge controller
- identical to: VAPE R54
- Cable length: 90 mm
- Cable connection: 1 plug 3-pin // 2 cables

rotor
- identical to: VAPE A70R-3
- Outer diameter: 104 mm

stator
- identical to: Vape A70S-3
- Cable length: 400 mm
- Cable connection: 1 plug 4-pin

Ignition module
- identical to: VAPE Z71
- Cable length: 90 mm
- Cable connection: 2 plugs 1-/2-pole

Mounting set
- suitable for the electronic parts
- 13-piece mounting set
- Incl. holder for regulator & ignition coil

Flasher unit
- Color: black
- Dimensions: 31 x 31 x 40 mm
- Suitable for 12V on-board voltage
- Power: 0.24W - 240W
- Connections: Ground (31) / input (49) / output (49a)
- incl. mounting bracket

sealing cap
- Material: plastic
- Color: black
- Suitable for the heart box (air filter box)
- Length: approx. 75 mm
- Width: approx. 65 mm

Spark plug connector
- interference suppressed with 5kOhm
- for ignition cables with 5-7 mm thickness
- for spark plugs with width across flats 21
- for clipping onto the upper thread (without SAE terminal)

Ignition cable
- Diameter: 7mm
- Length: 1 meter
- High-voltage safe up to 38000 volts
- heat-resistant up to 220 degrees

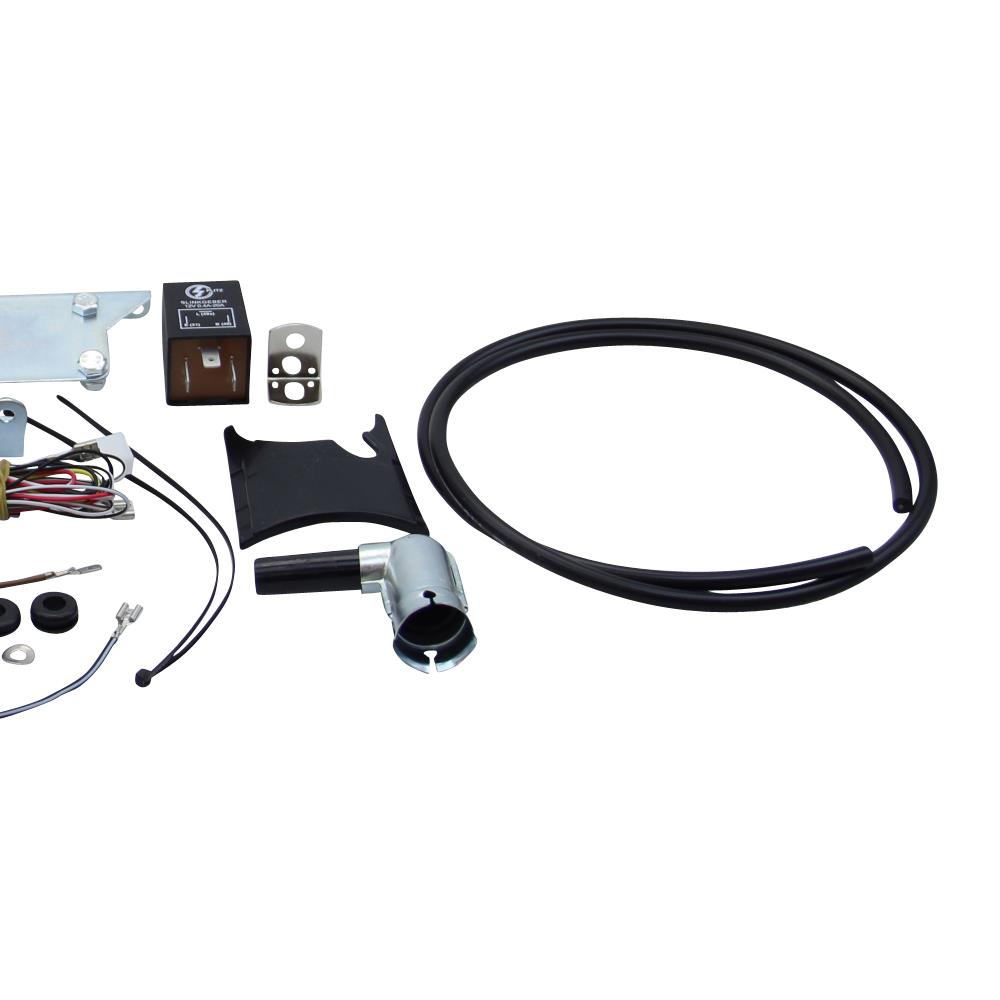

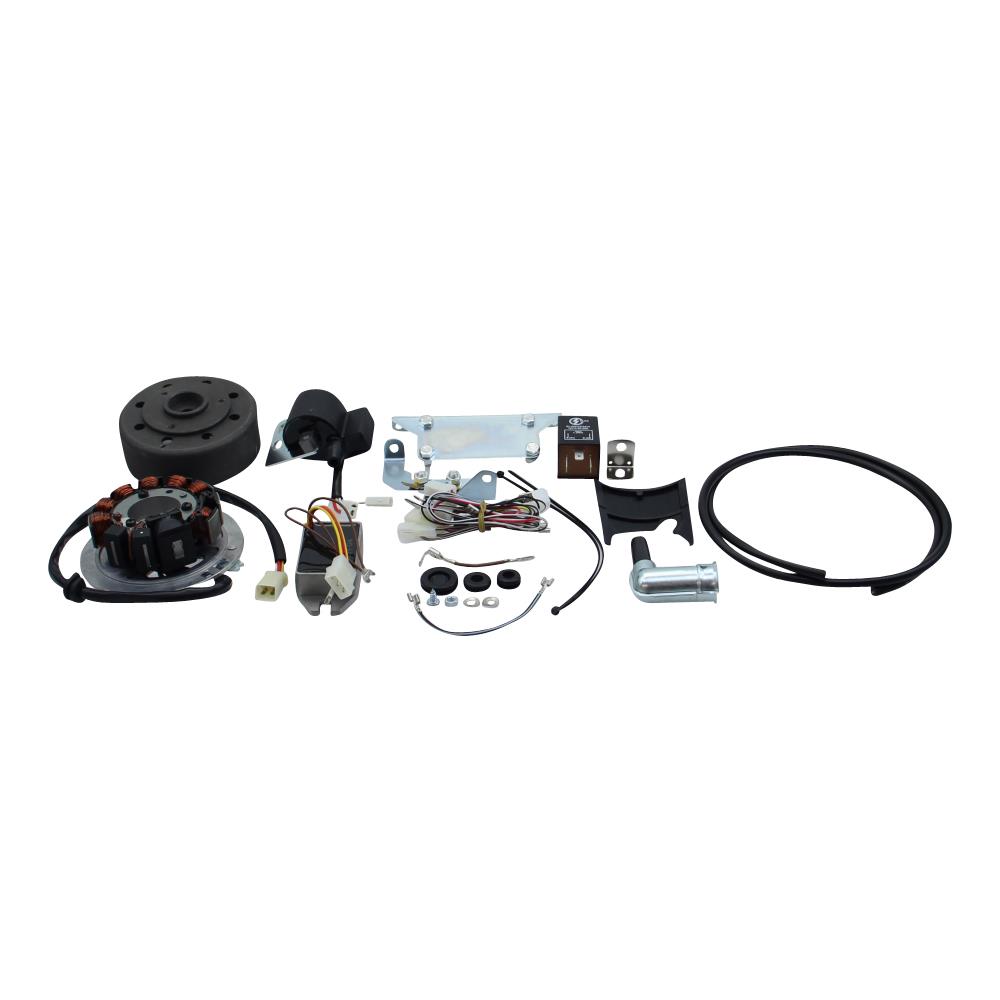

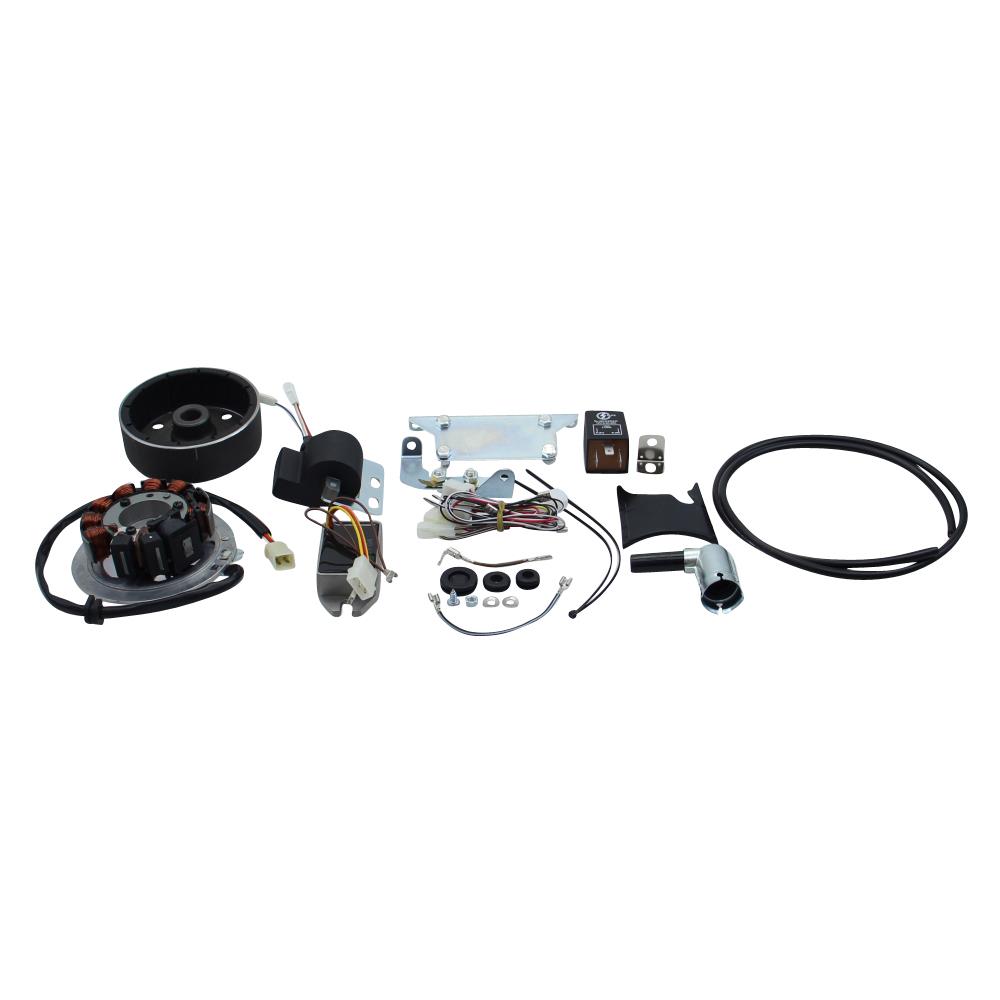

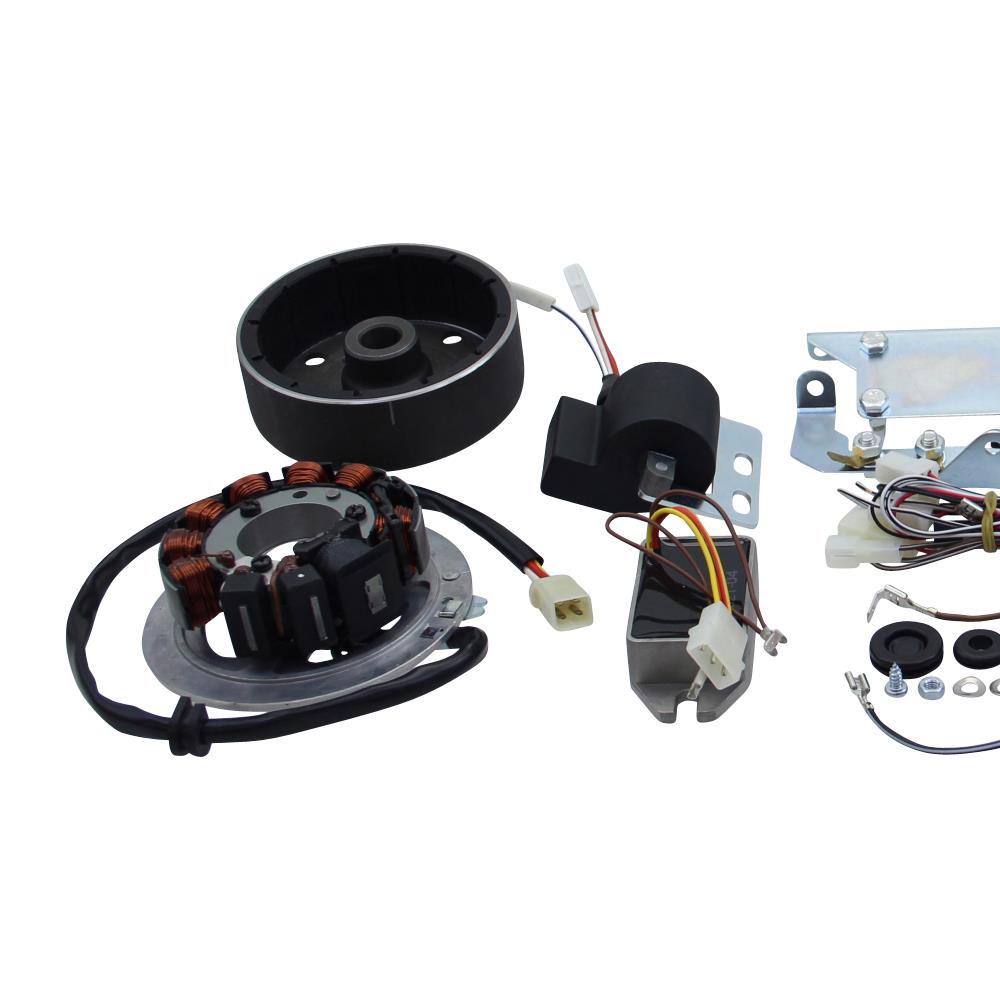

SCOPE OF DELIVERY:

- 1x base plate
- 1x pole wheel
- 1x ignition coil
- 1x charge controller AC-DC
- 1x mounting set
- 1x flasher unit
- 1x sealing cap
- 1x spark plug connector
- 1x ignition cable
