Preview: Düsennadel Reparatursatz Bing Vergaser für Kreidler Flott MF 24 25 K54/400 Mustang (167943)

Düsennadel Reparatursatz Bing Vergaser für Kreidler Flott MF 24 25 K54/400 Mustang (167943)

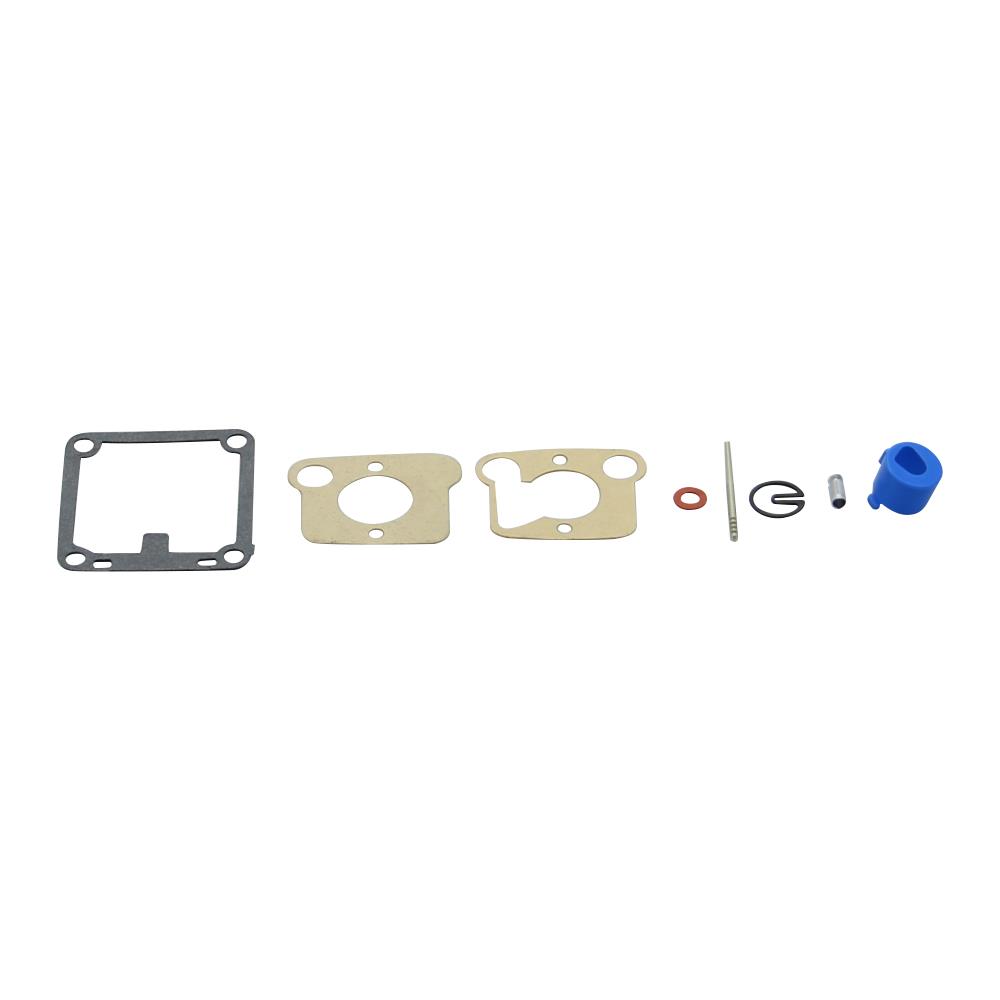

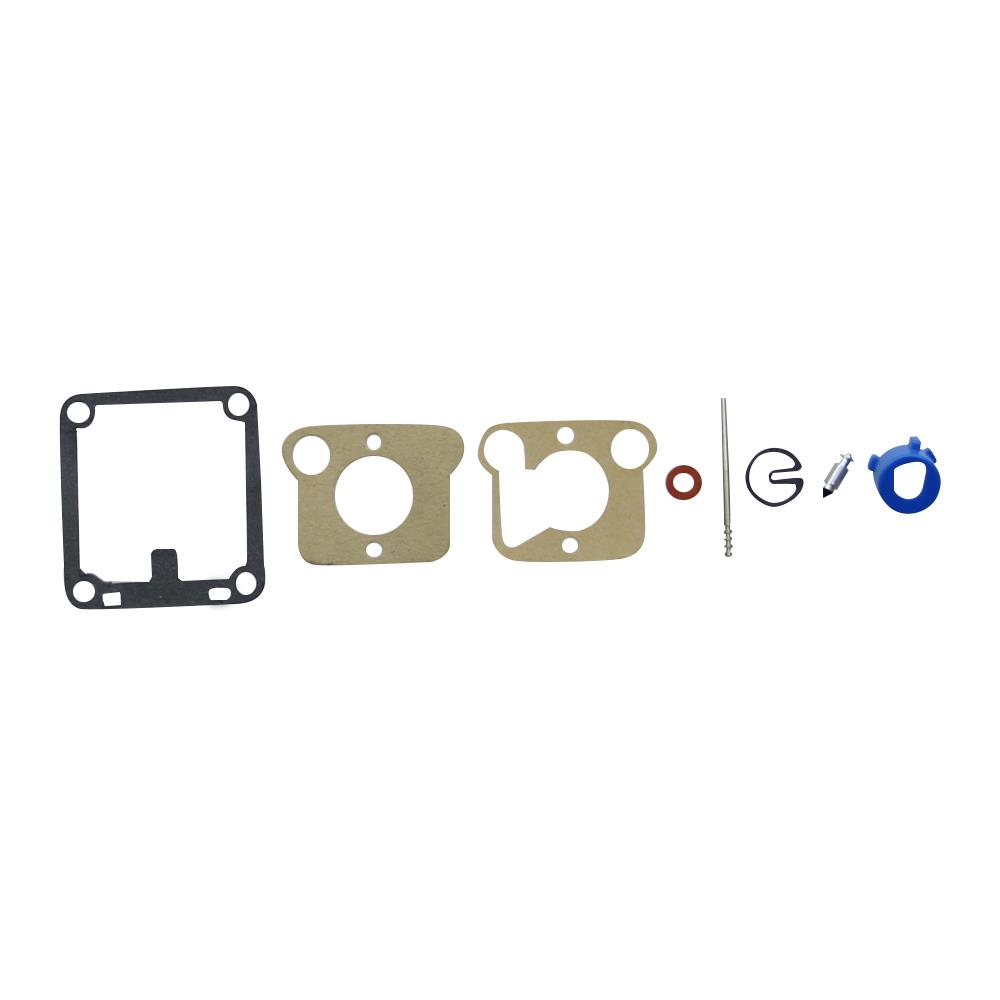

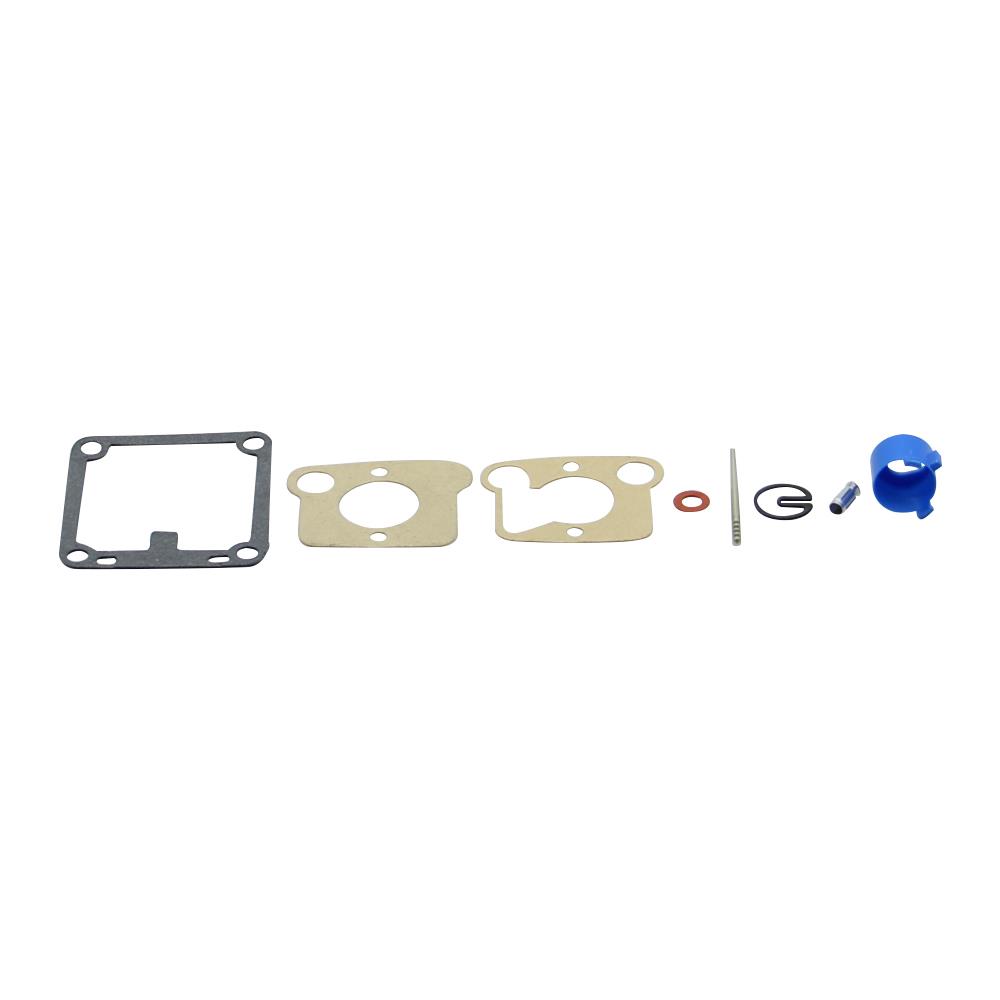

Jet needle repair kit Bing carburetor for Kreidler Flott MF 24 25 K54/400 Mustang

Rate

€18.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Further variants / accessories

Dichtungssatz klein Bing Vergaser für Kreidler Flott MF 24 25 K54/400 Mustang

Dichtungssatz groß Bing Vergaser für Kreidler Flott MF 24 25 K54/400 Mustang

Düsennadel Reparatursatz Bing Vergaser für Kreidler Flott MF 24 25 K54/400 Mustang

Schwimmer Reparatursatz Bing Vergaser für Kreidler Flott MF 24 25 K54/400 Mustang

Vergaserreparatursatz Bing Vergaser für Kreidler Flott MF 24 25 K54/400 Mustang

Vergaserreparatursatz groß Bing Vergaser für Kreidler Flott MF 24 25 K54/400 Mustang

Item no: 167943
EAN: 4060861159558
Manufacturer: Citomerx
Manufacturer no.: 167943

Kreidler original/reference number: - 07.16.95 (float chamber gasket) - 07.16.90 (with starter... more

Close menu

Kreidler original/reference number: - 07.16.95 (float chamber gasket) - 07.16.90 (with starter cable) - 07.16.82 (fuel hose connection gasket) - 07.16.03 (jet needle) - 07.15.48 (lock washer) - 07.16.92 (float needle) - 07.16.85 (slide guide) TECHNICAL DATA: - suitable for Bing Type 15 17 18 carburettor with starter button or starter cable Float chamber gasket - Color: Gray - Material: Paper gasket - Length: 44 mm - Width: 48 mm - Length of web to the inside: 6.5 mm - Thickness: 1 mm - Installation note: The web to the inside must be shortened by 4 mm on some carburettors Carburettor cover gasket - Material: Paper gasket - Color: Brown - Dimensions: approx. 32 x 40 mm - Thickness: 0.5 mm Fuel hose connection seal - Material: Paper seal - Color: red - Inner diameter: 4 mm - Outer diameter: 8 mm - Thickness: 1 mm Throttle needle - Material: Metal - Color: S...

Product type:	Nozzle needle repair kit
Lock washer thickness:	0.7 mm
Lock washer diameter:	13.2 mm
Float chamber gasket width:	48 mm
Petrol hose connection seal Outer diameter:	8 mm
Float chamber gasket thickness:	1 mm
Fuel hose connection gasket thickness:	1 mm
Float chamber gasket installation Note:	Inward bar must be shortened by 4 mm on some carburetors
Petrol hose connection seal Inner diameter:	4 mm
Float chamber seal Length:	44 mm
Float chamber gasket length web inwards:	6.5 mm
Float needle length:	11.9 mm
Float needle cross-section:	3.4 x 3.4 mm
Gas valve needle diameter at the tip:	1.2 mm
Spring seat outer diameter:	14 mm
Spring seat height:	13 mm
Gas slide needle Cone length:	17 mm
Spring seat inner diameter:	13 mm
Gas slide needle length:	36 mm
Gas slide needle Grooves/notches:	4
Carburetor cover gasket thickness:	0.5 mm
Gas valve needle Juice diameter:	1.95 mm
Carburetor cover gasket dimensions:	approx. 32 x 40 mm
Color:	Grey
Scope of delivery:	1x nozzle needle repair kit
Manufacturer number:	167943
Country and region of manufacture:	China
Reference number(s) OE:	07.16.95, 07.16.90, 07.16.82, 07.16.03, 07.15.48, 07.16.92, 07.16.85
Offer package:	Yes
Description of the package content:	Carburetor jet needle repair kit
Manufacturer warranty:	2 years
Material:	Paper gaskets
Suitable for:	Bing type 15 17 18 Carburetor with start button or start cable
