Intake manifold ASS straight Hercules Prima M 2 3 4 5 Optima Jogging HR Sachs 504 505 engine
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 166743g
- Manufacturer: Citomerx
- Manufacturer no.: 166743g
Looking for spare parts? Then you are exactly right here as a rider of a Hercules machine!
Hercules is probably one of the most famous bicycle and motorcycle brands in Germany. Founded by Carl Marschütz in 1886, the company is an integral part of the Nuremberg motorcycle industry. Through close cooperation with Fichtel & Sachs, the F & S engines were installed in Hercules' light motorcycles up to 200 cm³ from 1928.

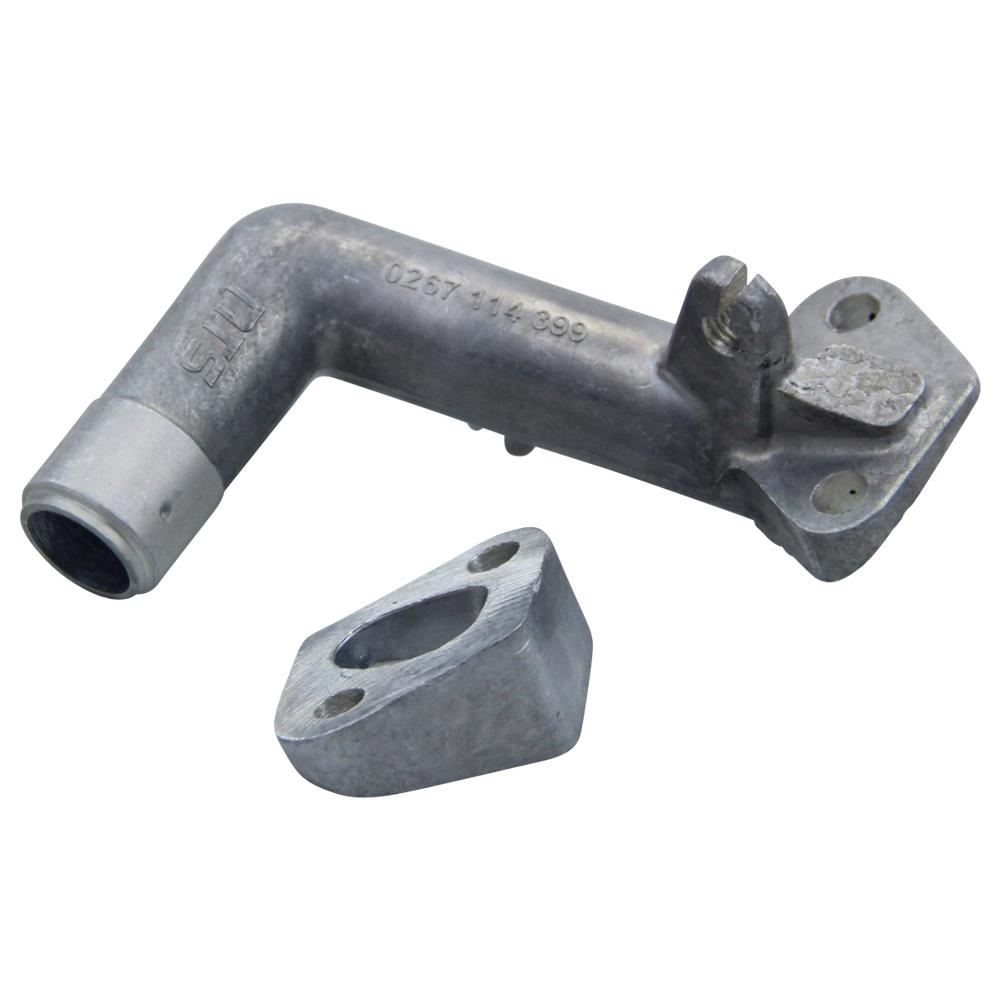

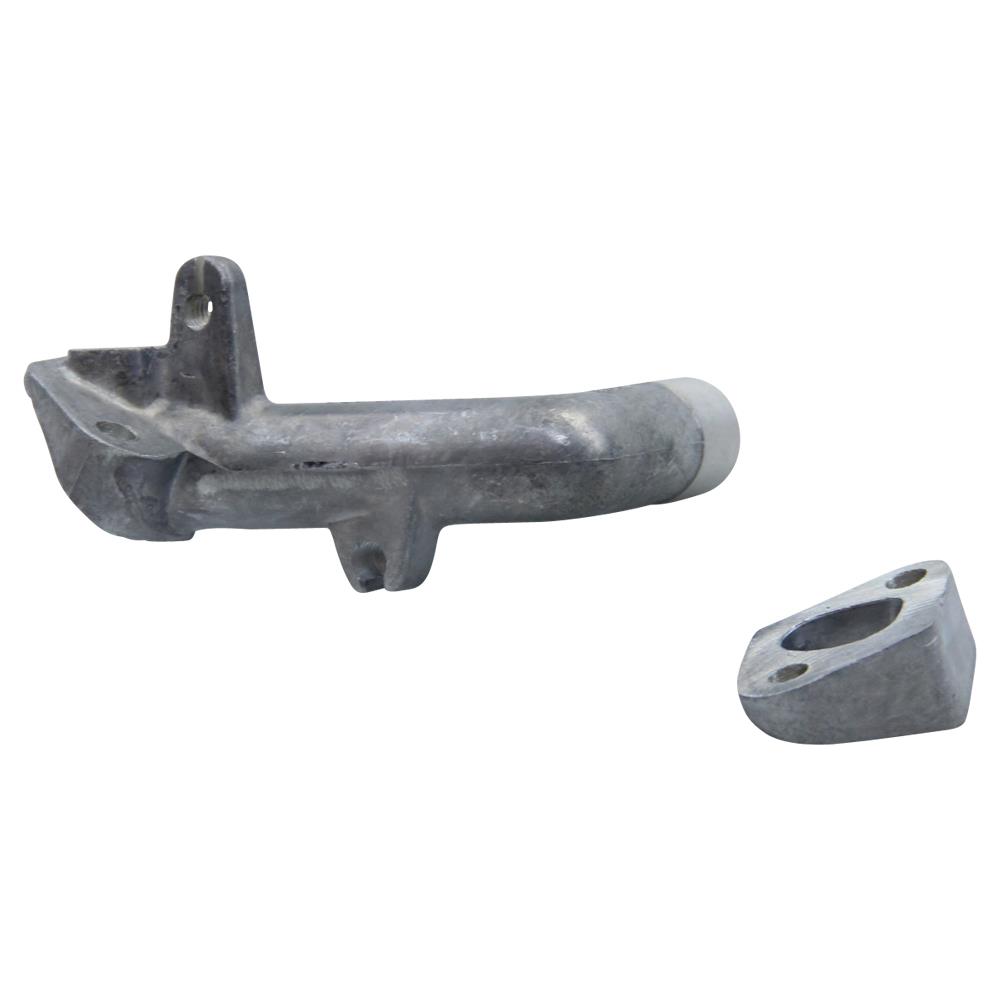

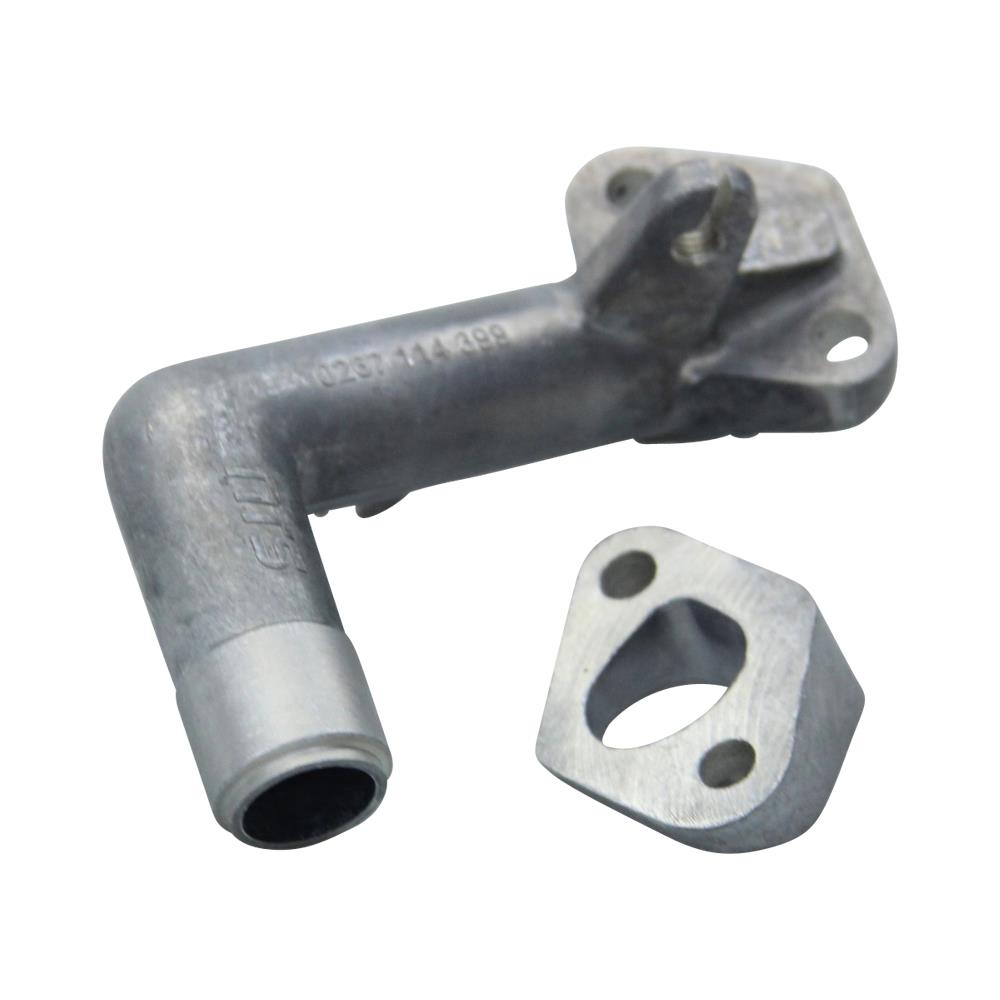

The intake manifold connects the carburetor to the cylinder. This allows the gasoline-air mixture to pass from the carburetor into the combustion chamber. This nozzle corresponds to the original shape of Hercules or Sachs. It is suitable for many Hercules Prima, M, Optima, Hobby Rider and many other mopeds of different manufacturers. Also suitable is the intake manifold for two-wheelers with the Sachs 504 or 505 engine. Please note that there are two different connection types. The intake manifold offered here is suitable for cylinders with a STRAIGHT connection, as this is supplied with an intermediate piece.
Secure your new replacement or tuning part now!
Technical data:
- Passage: 15 mm
- Connection carburetor outer diameter: 20 mm
- Carburetor connection inner diameter: 15 mm
- Cylinder connection type: straight
- Distance mounting holes(hole center-hole center): approx. 32 mm
- incl. adapter for straight cylinder connection
Scope of delivery:
- Hercules / Sachs intake manifold
"Fast goods", is the translation of Citomerx and this is also the motto of the company from Bavaria, which offers numerous spare parts for two- and four-stroke scooters. Speed is the declared goal for both the vehicles and the delivery of the goods, as well as a reasonable price-performance ratio for the standard, racing or high-end products. The range includes almost everything that the scooter rider needs: from exhaust systems and batteries to cylinder kits. An additional plus point is the know-how of the Citomerx crew, acquired over years of experience.
