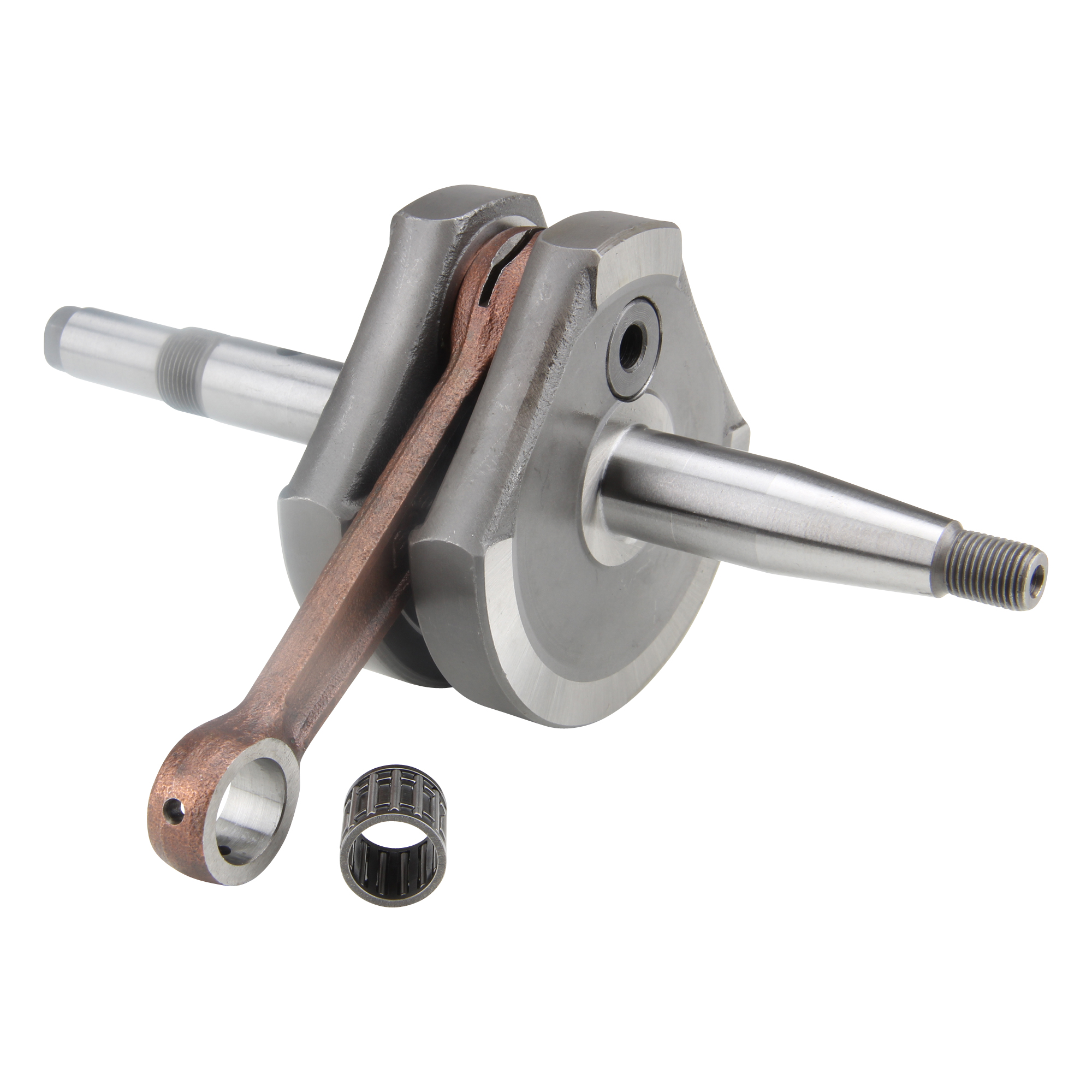

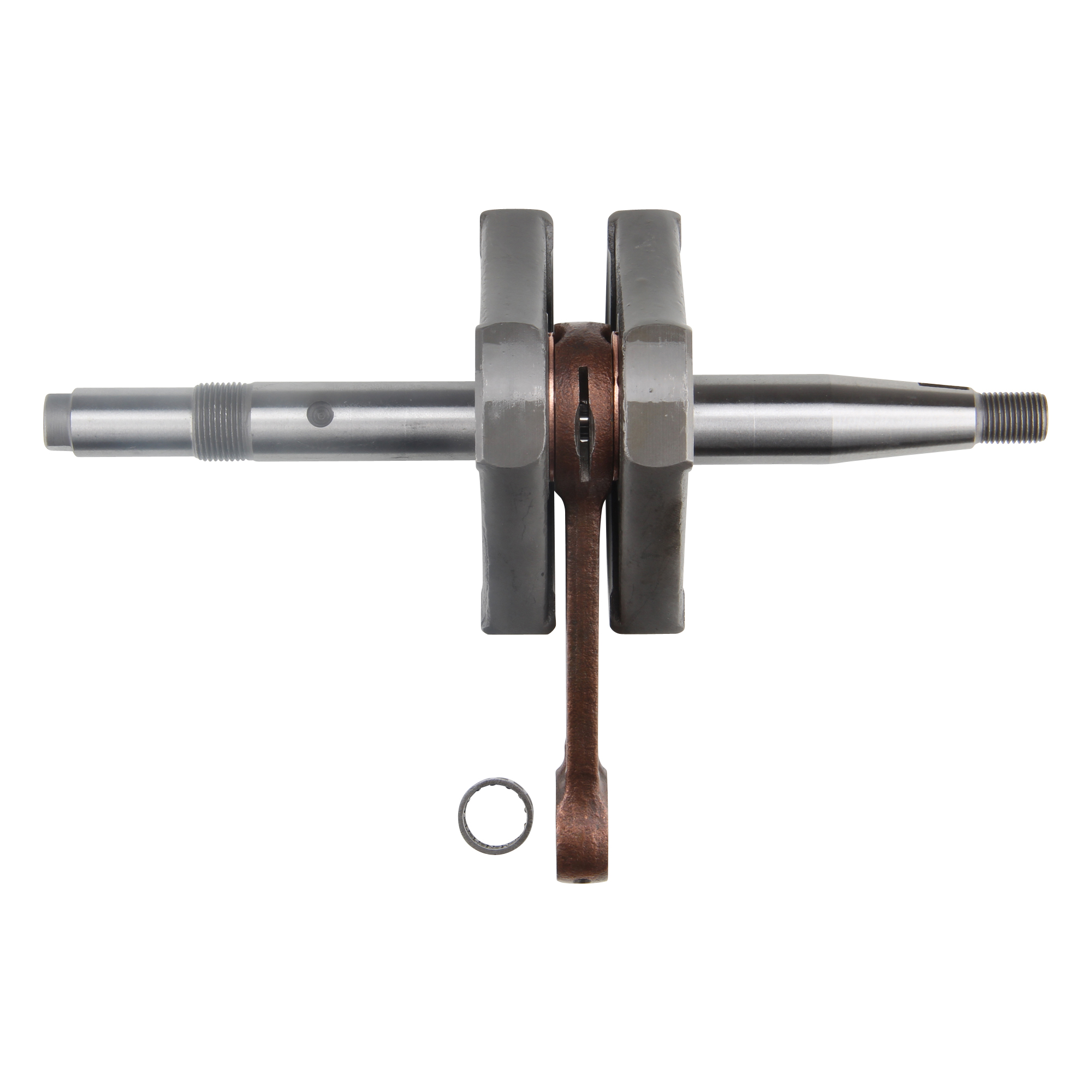

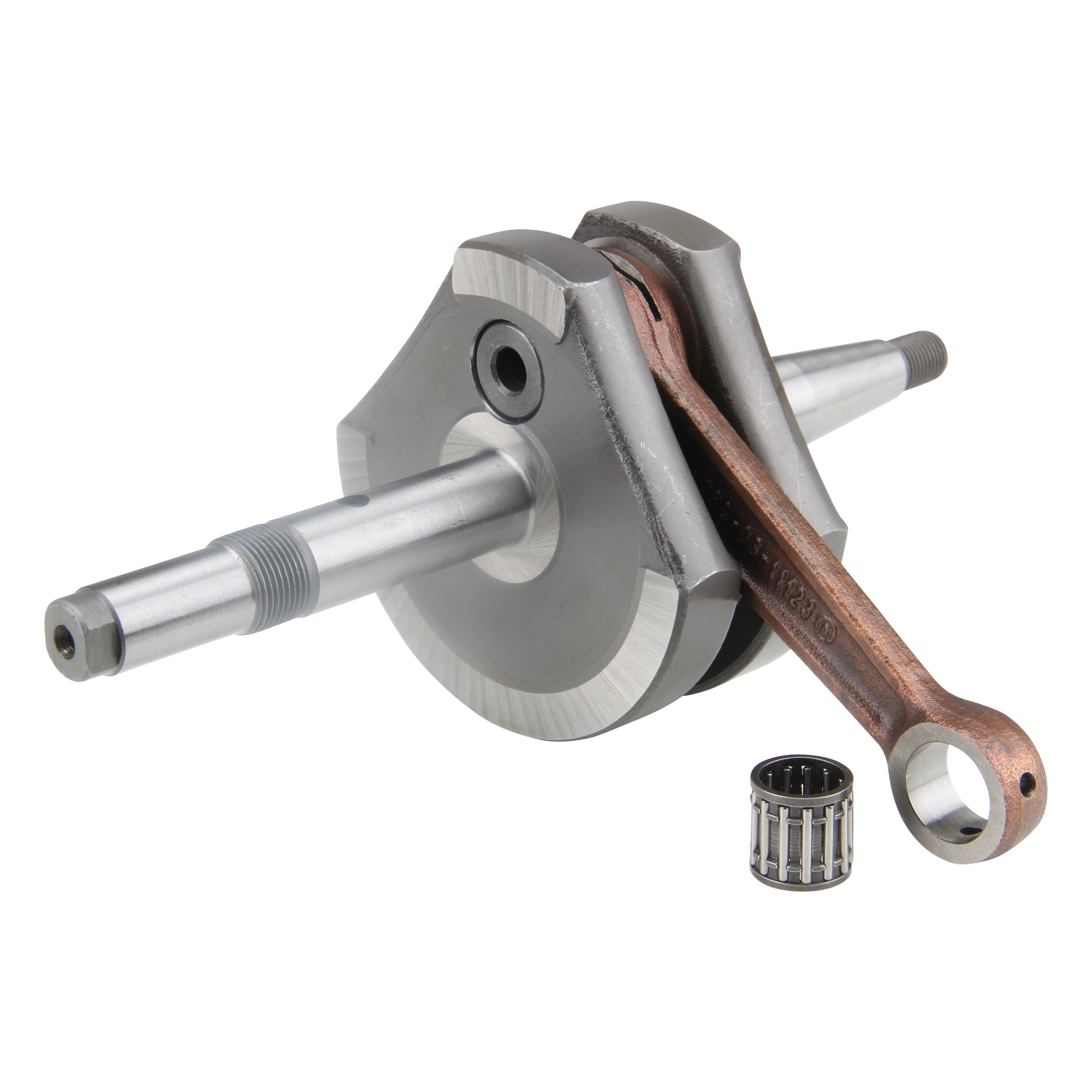

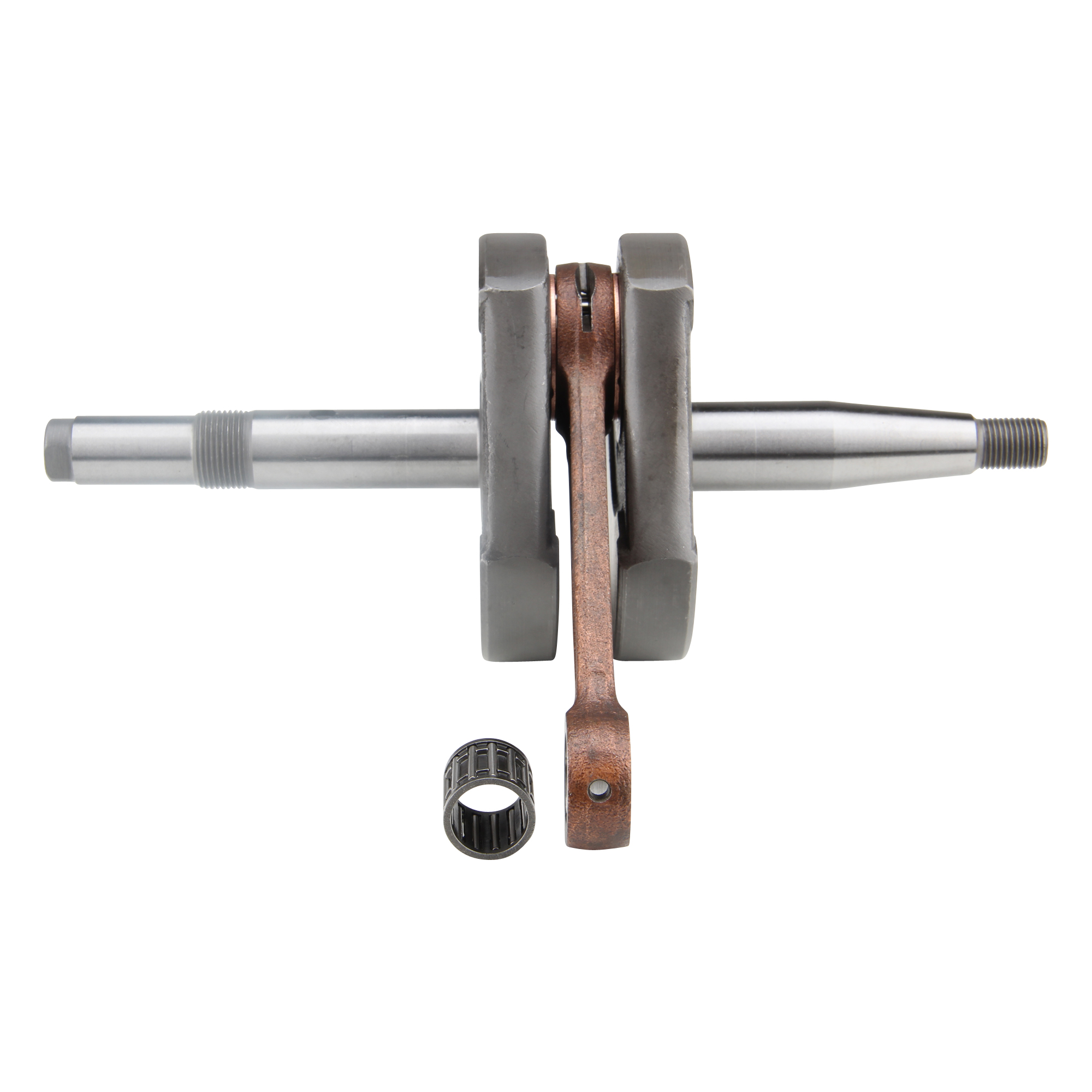

Citomerx crankshaft half cheek ORIGINAL (91mm connecting rod) for Zündapp 3/4 gear
€69.90 *
Content:
1 piece
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
Further variants / accessories
Citomerx Kurbelwelle ORIGINAL (91mm Pleuel) für Zündapp 3/4 Gang
![Citomerx Kurbelwelle ORIGINAL (91mm Pleuel) für Zündapp 3/4 Gang]()
Citomerx Kurbelwelle Halbwange ORIGINAL (91mm Pleuel) für Zündapp 3/4 Gang
![Citomerx Kurbelwelle Halbwange ORIGINAL (91mm Pleuel) für Zündapp 3/4 Gang]()
Citomerx Kurbelwelle ORIGINAL (91mm Pleuel) für Zündapp 3/4 Gang
![Citomerx Kurbelwelle ORIGINAL (91mm Pleuel) für Zündapp 3/4 Gang]()
- Item no: 100119
- EAN: 4060861114342
- Manufacturer: Citomerx
- Manufacturer no.: 100119
Product information about Citomerx crankshaft half cheek ORIGINAL (91mm connecting rod) for Zündapp 3/4 gear
Properties
| GTIN: | 4060861114342 |

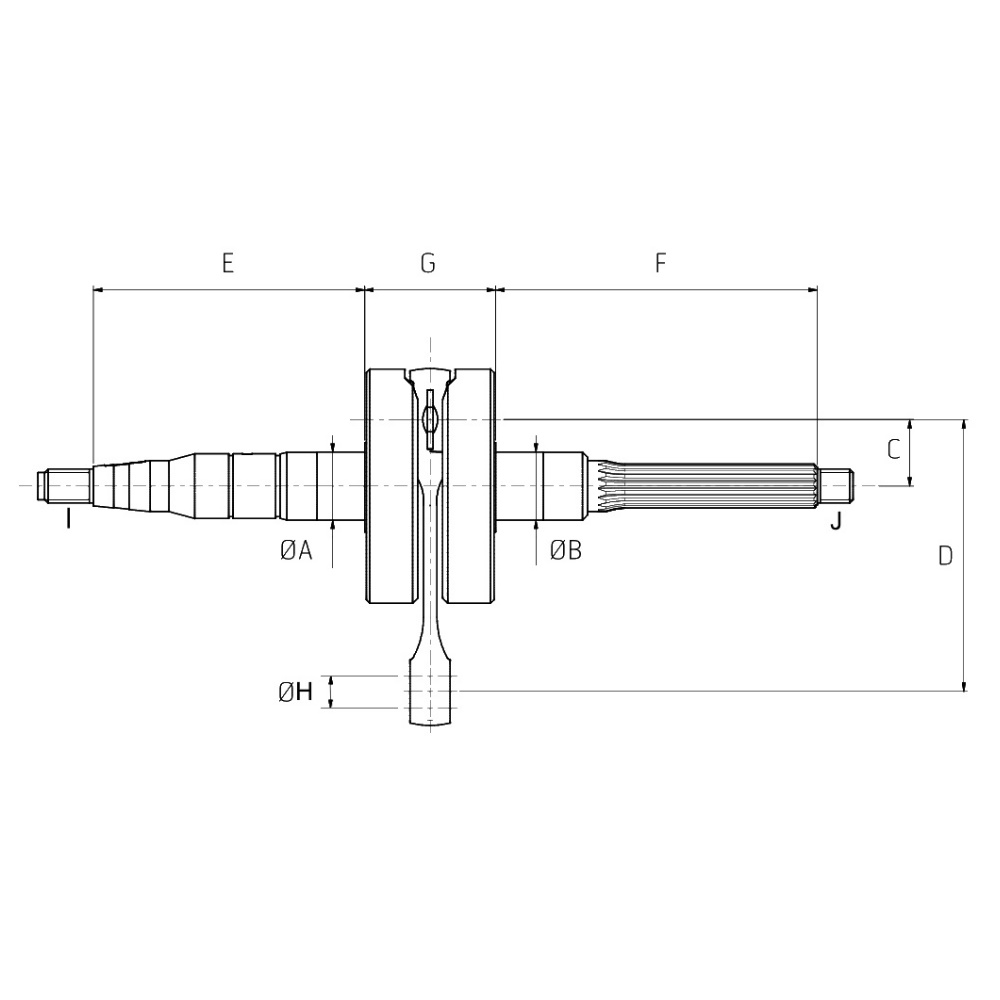

| Dimension D (connecting rod length): | 91 mm |
| Crankshaft type: | Half cheek crankshaft |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension C (stroke pin offset = half stroke): | 20.9 mm |
| Crankshaft stroke: | 41.8 mm |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Feature: | 91 mm connecting rod |
| Dimension F (length of crankshaft stub on clutch side): | 80 mm |
| matching piston pin: | 12 mm |
| Dimension J (thread on coupling side): | M15 x 1 right-hand thread |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Dimension G (width of crank webs): | 38.8 mm |
| Dimension E (length of crankshaft stub on alternator side): | 53.5 mm |
| Dimension B (shaft diameter on coupling side): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 17 mm |
| Tuning & Styling Part: | No |
| Scope of delivery: | Crankshaft + needle bearing |
| Surface finish: | Matt |
| Vintage part: | Yes |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 100119 |
| Country and region of manufacture: | China |
| Product type: | Crankshaft |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | 1,180 kg |
| Material: | Cast iron |
| Type: | Original |
