Gasket set Hercules Prima 2 4 M4 Sachs 505/1 A B C SKF bearing spark plug NGK B6HS gaskets

The perfect spare parts for your Hercules can be found here!

The velocipede factory Carl Marschütz & Co. is probably better known today as Nuremberg Hercules Werke. In 1886, the Marschütz brothers founded the company and produced mainly bicycles until 1928. From this time on, the production of small motorcycles became profitable again, due to the exemption from driving licenses and taxes. The Hercules factories used engines from Fichtel & Sachs since 1930.

With this seal kit you get all the spare parts needed to rebuild and seal your Sachs 505/1 A B C engine. The set includes all oil seals, bearings and gaskets for your engine. In addition, a new NGK B6HS spark plug is included in this kit.

Decide now for your new tuning or spare part!

Technical data:
- suitable for Sachs 505/1 A B C engine
- Oil seal sizes: 15x30x5 mm // 15x35x7 mm // 15x32x5,5 mm
- Seals: high quality paper sealant
- copper sealing ring M10
- Rubber sealing rings: 19x2 mm // 13,5x1,5 mm (2 pieces)
- SKF brand ball bearing: type 6202C3 // 15x35x11 mm // open
- needle bearing: 12x15x13 mm
- Spark plug: Type NGK B6HS // thread M14 // thread length 12,7 mm // wrench size SW21

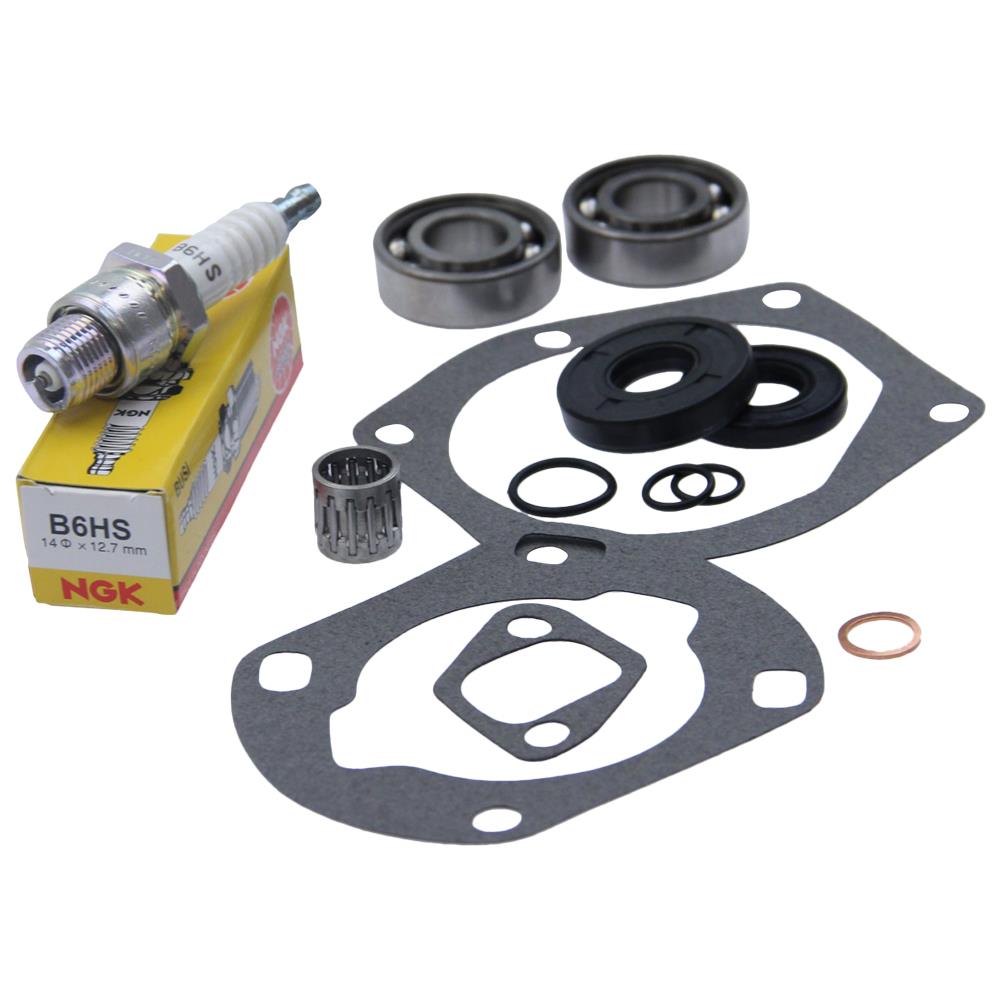

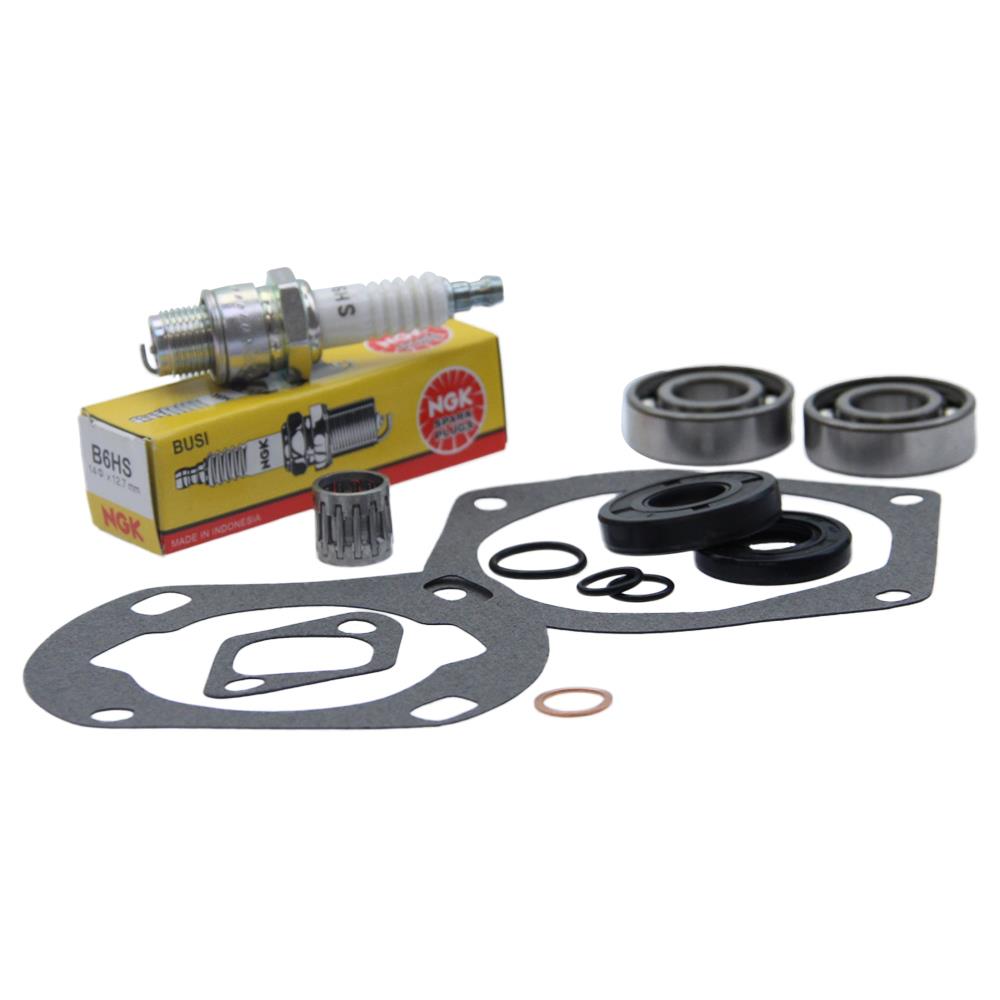

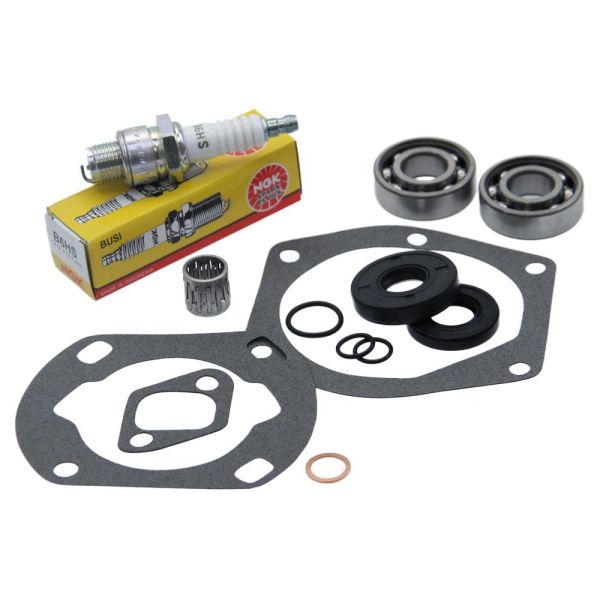

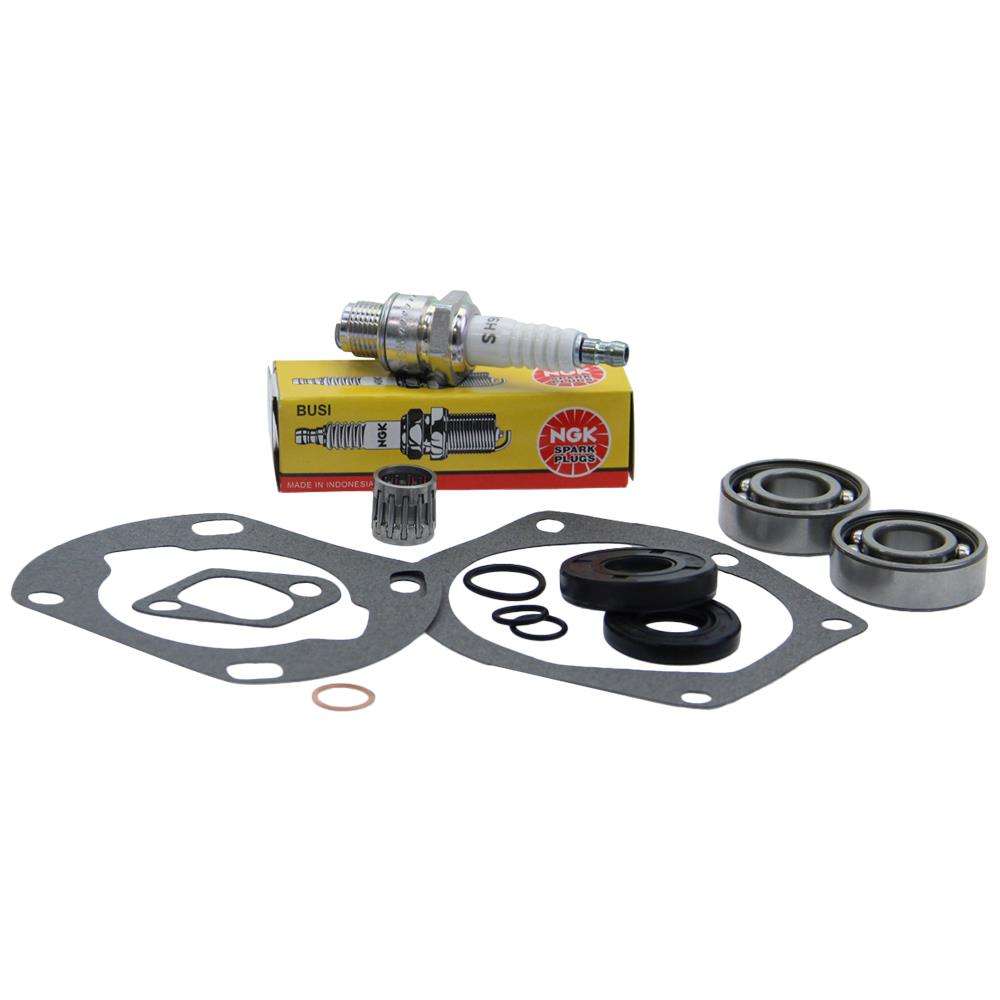

Scope of delivery:
- 3-piece seal set
- 3x shaft seal ring
- 4x sealing ring
- 2x SKF ball bearing 6202C3
- 1x needle bearing
- 1x spark plug NGK B6HS
