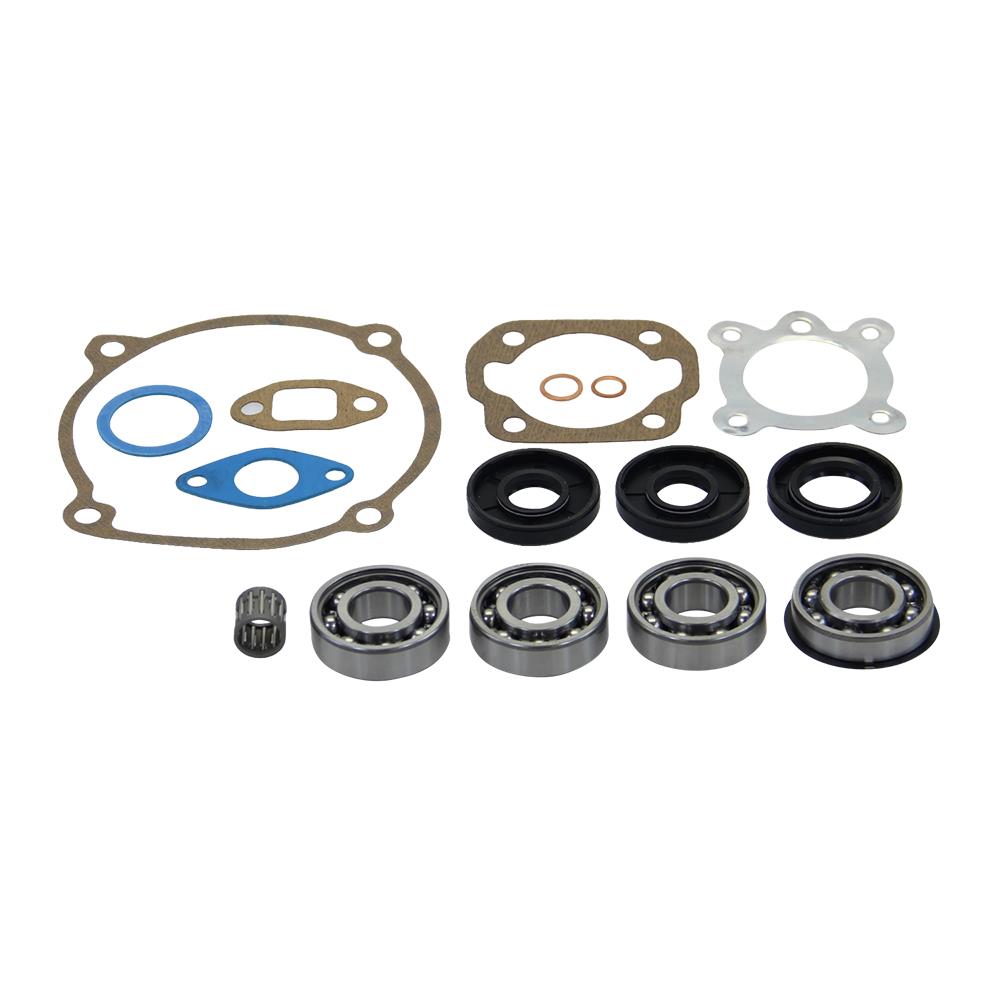

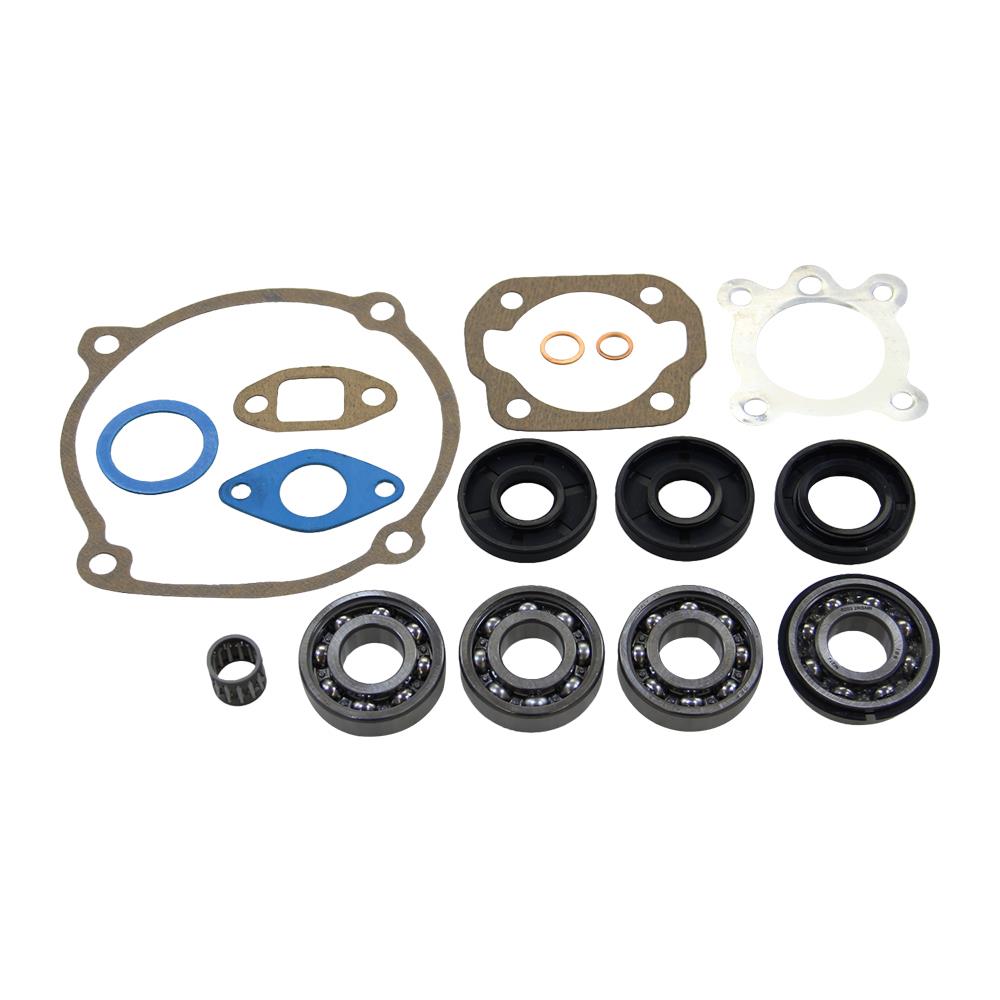

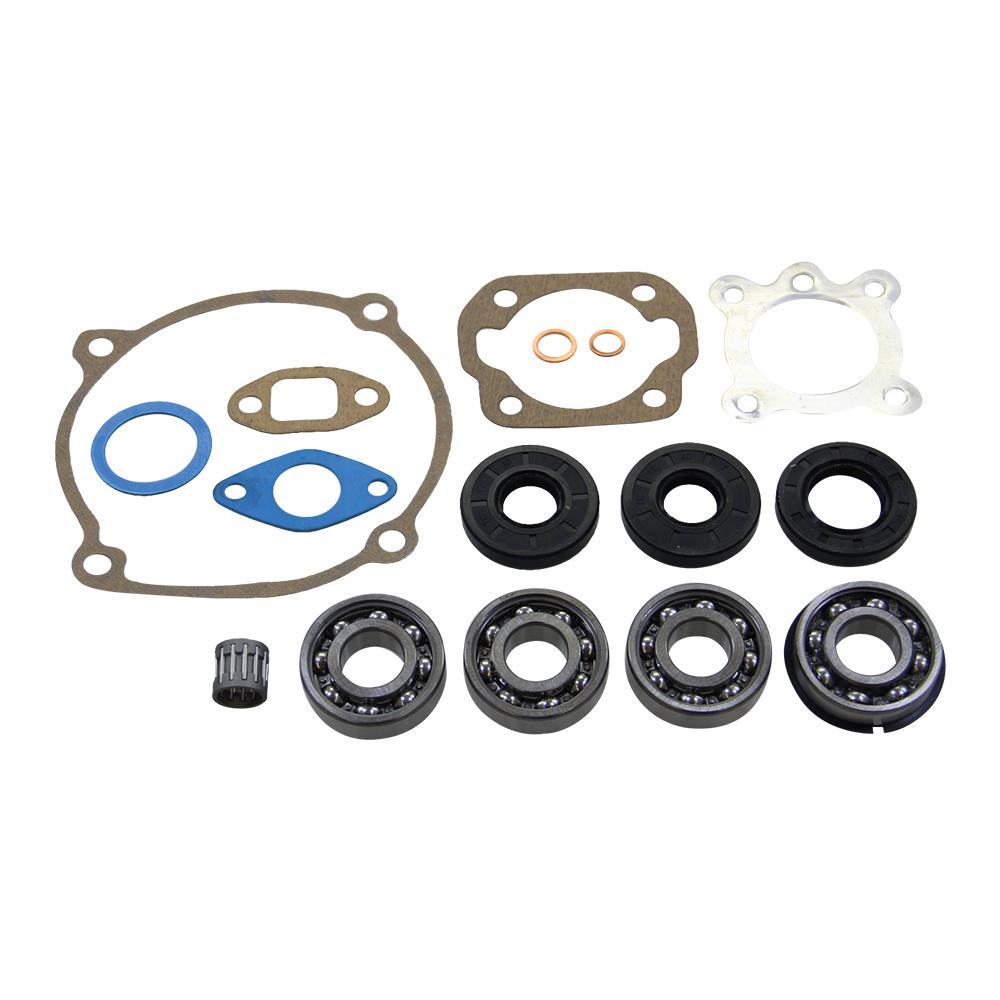

Gasket set + shaft seals + bearings for Puch Maxi NS E50 engine old model...

€26.90 *
Content: 1 piece

Prices incl. VAT plus shipping costs

Unfortunately, this item is already sold out due to high demand.

Further variants / accessories

Dichtsatz + Wellendichtringe + Lager für Puch Maxi N S E50 Motor altes...
Revisionsset KLEIN für Puch Maxi N S E50 Motor altes Modell 4-Lager Anroll
Revisionsset MITTEL für Puch Maxi N S E50 Motor altes Modell 4-Lager Anroll
Revisionsset GROß für Puch Maxi N S E50 Motor altes Modell 4-Lager Anroll
Dichtsatz + Wellendichtringe für Puch Maxi N S E50 Motor altes Modell...
3 Jahre Verschleiß-Plus-Garantie für Artikel 168112
Jetzt 3 Jahre zusätzliche Garantie sichern.   » Details
€1.35*
  • 168112
  • 4060861176661
  • Citomerx
  • 168112
Puch Original-/Vergleichsnummer: 349.1.10.004.1 (Zylinderkopfdichtung) 349.1.10.013.1... more
Product information about Gasket set + shaft seals + bearings for Puch Maxi NS E50 engine old model...

Puch Original-/Vergleichsnummer:
349.1.10.004.1 (Zylinderkopfdichtung)
349.1.10.013.1 (Zylinderfußdichtung)
349.1.10.349.1 (Kupplungsdeckeldichtung)
349.1.16.019.1 (Auspuffverbindungsdichtung)
050.1615 (Auspuffflanschdichtung)
349.2.15.122.1 (Ansaugstutzendichtung)
901.3801 (Wellendichtring Kurbelwelle/Stirnrad)
902.3835 (Wellendichtring Kurbelwelle)

TECHNISCHE DATEN:
- passend für Puch E50 Motor altes Modell 4 Lager Anroll Modell
- Farbe: Mehrfarbig
- Einbauhinweis: Je nach Motor können ein / zwei Dichtungen/Wellendichtringe übrig bleiben.

Dichtsatz
- Lochabstand Stehbolzen: 44 mm
- Stehbolzenabstand Ansaugstutzendichtung: 35 mm
- Durchlass Ansaugstutzendichtung: 17 x 20 mm
- Stehbolzenabstand Auspuffflanschdichtung: 42 mm
- Durchlass Auspuffflanschdichtung: 20 mm
- Durchmesser Auspuffverbindungsdichtung: 27,5 mm (innen) / 35,5 mm (außen)
- Kupferdichtringe: M8 und M10

Wellendichtringsatz
- WeDI 1: 17x40x7 mm (1x Kurbelwelle + 1x Stirnradwelle)
- WeDI 2: 22x40x7 mm (1x Kurbelwelle vergrößerter Wellendichtringsitz kupplungsseitig)

Lagersatz
- Lager 1: 3x 6203 C3 / 17x40x12 mm / offen / SKF
- Lager 2: 1x 6203 NR C3 / 17x40x12 mm / offen / mit Sprengring
- Nadellager: 12x15x15 mm

LIEFERUMFANG:
- 1x Dichtsatz + Wellendichtringsatz + Lagersatz

Properties
Product type: Seals + shaft seals + bearings
Copper sealing rings: M8 und M10
Exhaust connection gasket diameter: 27,5 mm (innen) / 35,5 mm (außen)
Exhaust flange gasket passage: 20 mm
Bearing 1: 3x 6203 C3 / 17x40x12 mm / offen / SKF
Stud distance intake manifold seal: 35 mm
Hole spacing stud bolt: 44 mm
WeDI 1: 17x40x7 mm (1x Kurbelwelle + 1x Stirnradwelle)
Bearing 2: 1x 6203 NR C3 / 17x40x12 mm / offen / mit Sprengring
Intake manifold gasket passage: 17 x 20 mm
Stud bolt distance exhaust flange gasket: 42 mm
WeDI 2: 22x40x7 mm (1x Kurbelwelle vergrößerter Wellendichtringsitz)
Color: Multicolored
Installation instructions: Depending on the engine, one or two gaskets/sealing rings may remain.
Needle roller bearing: 12x15x15 mm
Scope of delivery: 1x seal set + shaft seal set + bearing set
Manufacturer number: 168112
Country and region of manufacture: China
Reference number(s) OE: 349.2.15.122.1 (Intake manifold gasket), 050.1615 (exhaust flange gasket), 901.3801 (oil seal crankshaft/spur gear), 349.1.16.019.1 (Exhaust connection gasket), 902.3835 (crankshaft oil seal), 349.1.10.349.1 (Clutch cover gasket), 349.1.10.013.1 (cylinder base gasket), 349.1.10.004.1 (Cylinder head gasket)
Offer package: Yes
Description of the package content: Seal set + shaft seal set + bearing set
Manufacturer warranty: 2 years
Suitable for: Puch E50 engine old model 4 bearing roll-on model
