Preview: Revisionsset MITTEL für Kreidler Florett K54 RS RMC Mustang 5-GANG MOTOR (168145)

Revisionsset MITTEL für Kreidler Florett K54 RS RMC Mustang 5-GANG MOTOR (168145)

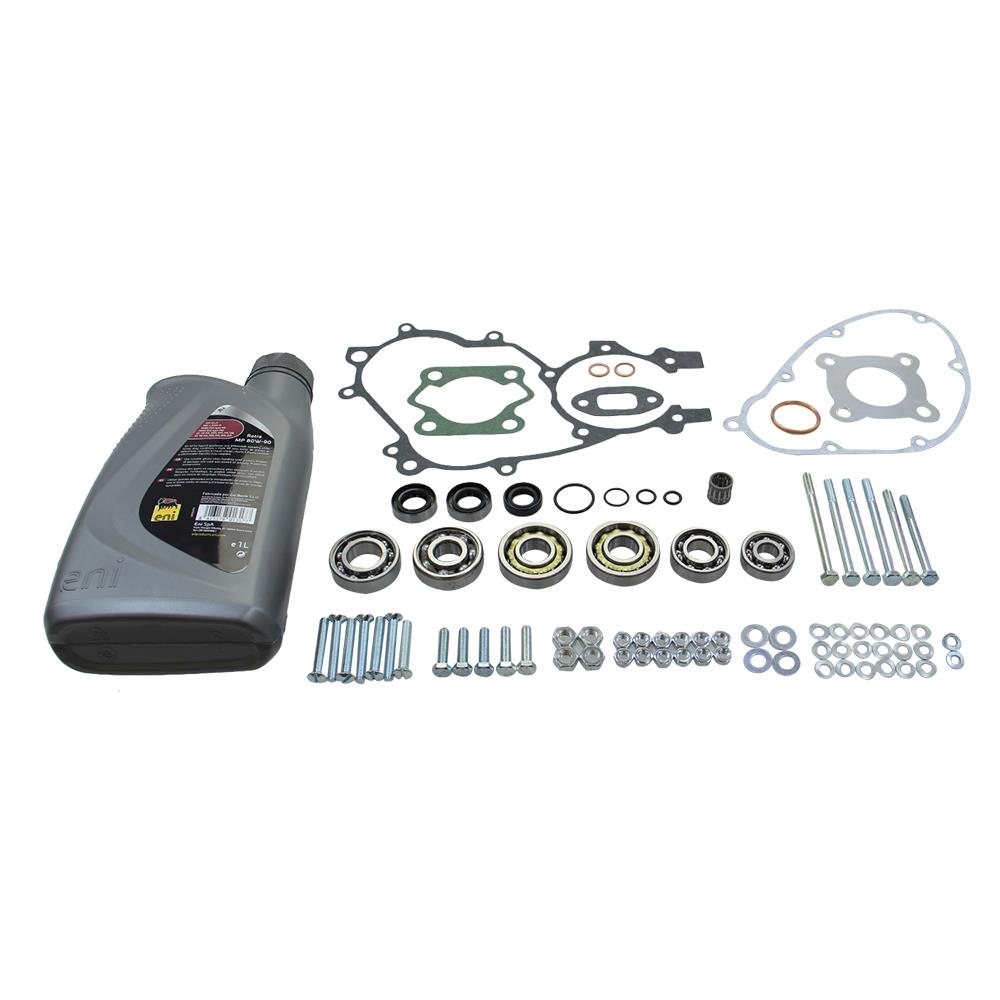

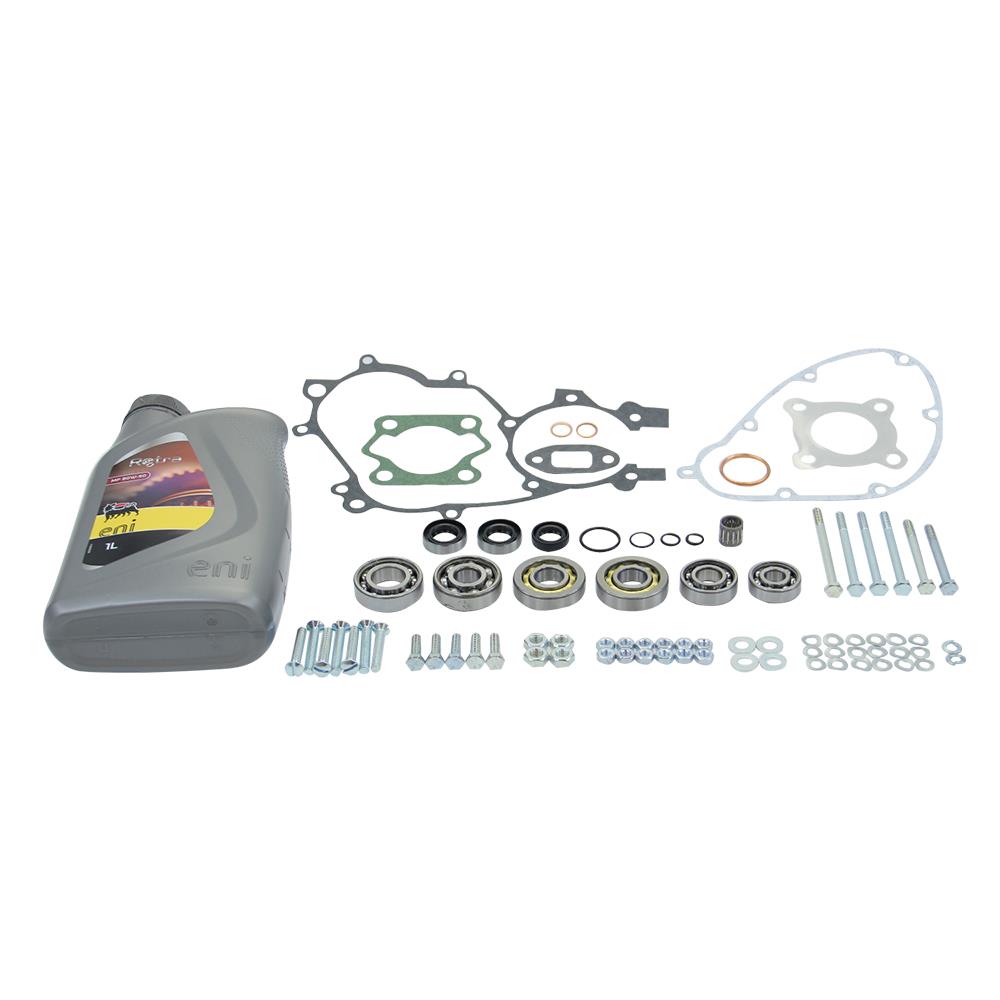

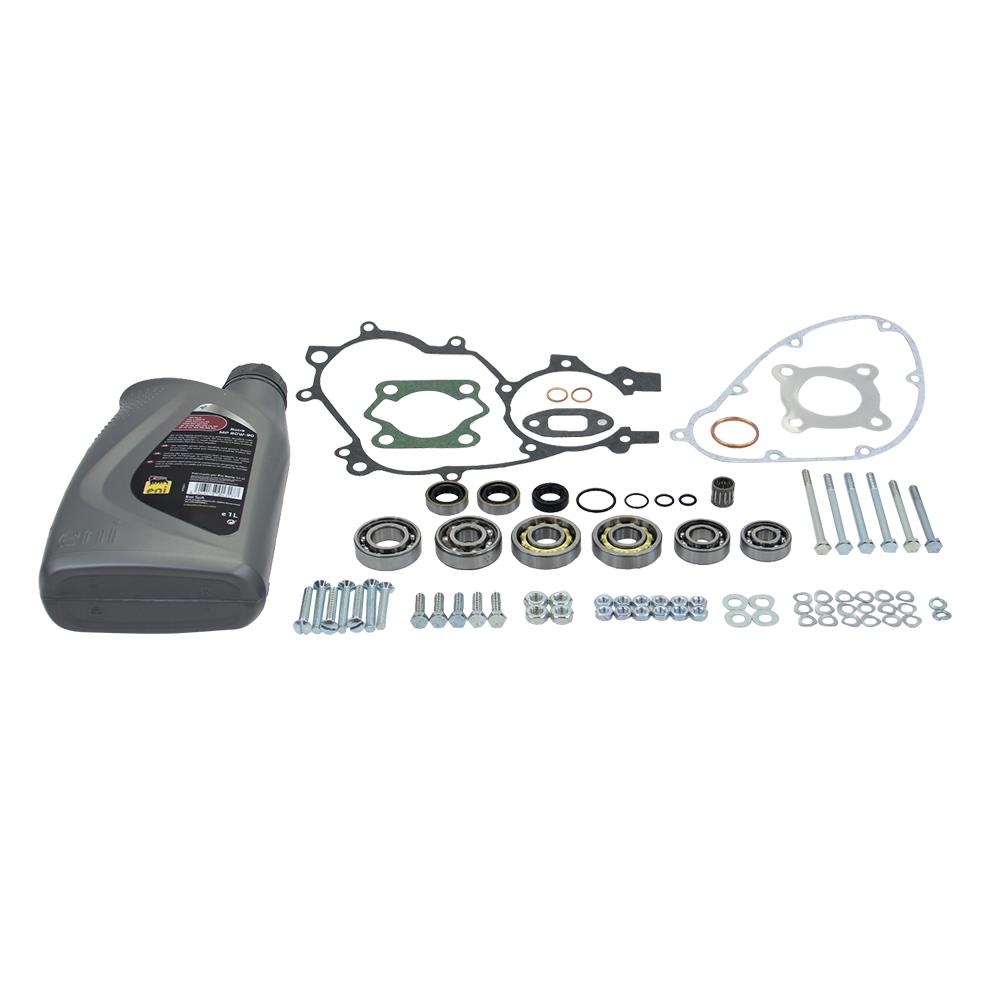

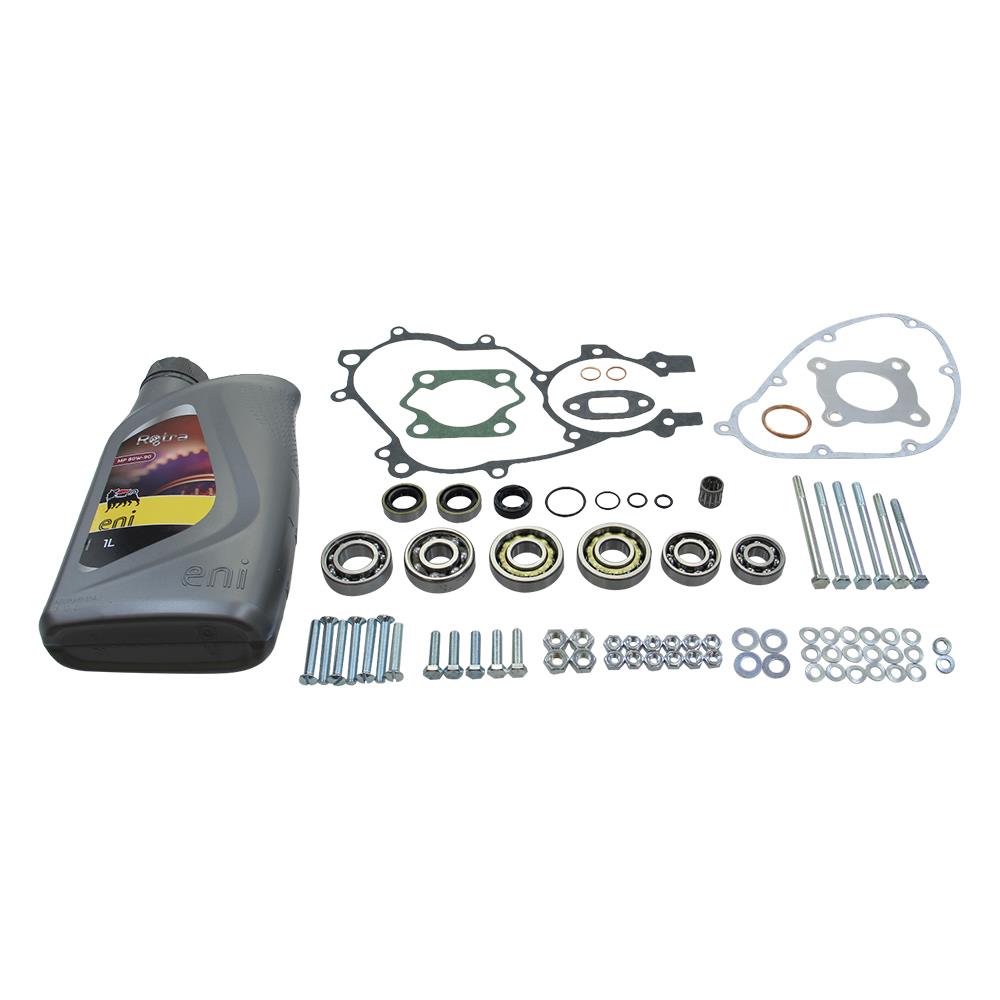

Overhaul kit MEDIUM for Kreidler Florett K54 RS RMC Mustang 5-SPEED ENGINE

Rate

€69.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Only a few left!

Further variants / accessories

Dichtsatz + Wellendichtringe für Kreidler Florett K54 RS RMC Mustang 5-GANG MOTOR

Dichtsatz + Wellendichtringe + Lager für Kreidler Florett K54 RS RMC Mustang 5-GANG MOTOR

Revisionsset KLEIN für Kreidler Florett K54 RS RMC Mustang 5-GANG MOTOR

Revisionsset MITTEL für Kreidler Florett K54 RS RMC Mustang 5-GANG MOTOR

Revisionsset GROß für Kreidler Florett K54 RS RMC Mustang 5-GANG MOTOR

Item no: 168145
EAN: 4060861177040
Manufacturer: Citomerx
Manufacturer no.: 168145

Kreidler original/reference number: 15.61.02 (Crankcase gasket) 15.10.02 (Clutch cover gasket)... more

Close menu

Kreidler original/reference number: 15.61.02 (Crankcase gasket) 15.10.02 (Clutch cover gasket) 15.43.01 (Cylinder head gasket) 15.63.64 (Cylinder base gasket) 15.43.05 (Intake manifold gasket) 00.70.17 (Manifold gasket) 00.76.53 (WeDi crankshaft) 00.77.50 (WeDi mainshaft) 15.56.15 (WeDi shift drum) 15.51.04 (WeDi clutch shaft) 00.01.67 (WeDi kickstarter shaft) 15.51.02 (WeDi kickstarter shaft) 00.70.01 (Copper sealing ring) 00.63.00 (Bearing BO17) 00.61.00 (Bearing 6201 C3) 00.61.30 (Bearing 6302 C3) 00.61.31 (Bearing 6004 C3) 00.61.01 (Bearing 6202 C3) 15.65.02 (Needle bearing) 00.10.36 (Screw M6x80) 00.10.37 (Screw M6x70) 00.10.58 (Screw M6x65) 00.10.59 (Screw M6x85) 00.10.39 (Screw M6x25) 00.16.11 (Screw M6x40) 00.16.12 (Screw M6x35) 00.20.10 (Nut M6) 00.43.57 (spring washer M6) 00.43.57 (spring washer M6) 00.30.03 (washer M8) 00.20.16 (nut M8) TECHNICAL ...

Product type:	Revision set medium
Copper sealing rings:	M12
Stock 3:	6202 C3 / 15x35x11 mm / offen / SKF
Bearing 4:	6302 C3 / 15x42x13 mm / offen / SKF
Bearing 5:	2x BO17 / 17x44x11 mm / Messing-Käfig
GTIN:	4060861177040
Bearing 1:	6004 C3 / 20x42x12 mm / offen / SKF
Stud distance intake manifold seal:	39 mm
Gear oil:	Spezifikation: SAE80W-90 / 1 Liter
O-ring 1:	8x2 mm
Hole spacing stud bolt:	44 mm
Screw set:	58-teilig / Stahl 8.8 verzinkt
WeDI 1:	17x28x8 mm (2x crankshaft)
O-ring 2:	9.5x1.6 mm
Bearing 2:	6201 C3 / 12x32x10 mm / offen / SKF
O-ring 3:	13x1.5 mm
Intake manifold gasket passage:	14 x 23 mm
WeDI 2:	15x24x7 mm (main shaft)
O-ring 4:	22 x 2 mm
Color:	Multicolored
Manifold gasket:	32 x 38 x 3 mm
Reference number(s) OEM:	00.10.58 (screw M6x65) / 00.10.59 (screw M6x85), 00.10.36 (screw M6x80) / 00.10.37 (screw M6x70), 00.30.03 (washer M8) / 00.20.16 (nut M8), 00.43.57 (spring washer M6) / 00.43.57 (spring washer M6), 00.16.12 (bolt M6x35) / 00.20.10 (nut M6), 00.10.39 (screw M6x25) / 00.16.11 (screw M6x40)
Needle roller bearing:	14x18x13 mm
Scope of delivery:	1x revision set medium
Manufacturer number:	168145
Country and region of manufacture:	Sweden
Reference number(s) OE:	00.61.00 (bearing 6201 C3) / 00.61.30 (bearing 6302 C3), 00.01.67 WeDi Kickstart shaft / 15.51.02 WeDi Kickstart shaft, 15.56.15 (WeDi shift drum) / 15.51.04 (WeDi clutch shaft), 15.43.05 (intake manifold gasket) / 00.70.17 (manifold gasket), 00.70.01 (copper sealing ring) / 00.63.00 (bearing BO17), 15.61.02 (housing gasket) / 15.10.02 (clutch cover gasket), 00.76.53 (WeDi crankshaft) / 00.77.50 (WeDi main shaft), 15.65.02 (needle bearing), 00.61.31 (bearing 6004 C3) / 00.61.01 (bearing 6202 C3), 15.43.01 (cylinder-head gasket) / 15.63.64 (cylinder base gasket)
Offer package:	Yes
Description of the package content:	Motor revision set
Manufacturer warranty:	2 years
Suitable for:	Kreidler 5-speed engine
