Preview: Tuning Zylinderkit 70 ccm Bohrung 45 mm für Hercules M 1 2 3 4 5 Prima 5 Optima 3S MX1 (074000-1)

Tuning Zylinderkit 70 ccm Bohrung 45 mm für Hercules M 1 2 3 4 5 Prima 5 Optima 3S MX1 (074000-1)

Zylinder Set 70ccm 45mm (ohne Ansaugstutzen) für Hercules Prima M 2 3 4 5 Jogging HR2 Optima Sachs 504 505

Bewerten

€249.90 * €275.90 * 9.42% saved

Content: 1 piece

Prices incl. VAT plus shipping costs

Free shipping!

IN STOCK - Delivery time 1-3 working days

Only a few left!

Further variants / accessories

Zylinder Set 70ccm 45mm (ohne Ansaugstutzen) für Hercules Prima M 2 3 4 5 Jogging HR2 Optima Sachs 504 505

Zylinder Set 70ccm 45mm (mit Ansaugstutzen) für Hercules Prima M 2 3 4 5 Jogging HR2 Optima Sachs 504 505

Item no: 074000-1
EAN: 8052204292547
Manufacturer: Athena
Manufacturer no.: 074000/1

Hercules C1 C2 C3 Hercules HR2 Hercules Jogging Hercules M 1 2 3 4 5 Hercules MX1 Hercules Prima... more

Close menu

Hercules C1 C2 C3
Hercules HR2
Hercules Jogging
Hercules M 1 2 3 4 5
Hercules MX1
Hercules Prima 2 3 4 5 6
Hercules Optima 50 S SL
Hercules P1 P3
Hercules Supra 2 D
uvm.

Sachs 504
Sachs 505

Comparison number:	Athena 074000/1, Gasket set 074003, Piston 074002 / S4C04500005, Piston ring 002416/R
Inlet stud bolt thread:	M6
Cylinder special feature:	Nikasil-coated piston track
Cylinder stud bore:	8 mm
Displacement:	70 ccm
Manifold connection type:	Flange
Cylinder stud distance:	56 x 56 mm
Outlet Stud distance:	50 mm
Outlet stud bolt thread:	M6
Note:	Attention! Suitable for 42 and 44 mm KW with corresponding seal!
Scope of delivery:	Cylinder, Gasket set, Piston, Piston ring
Diffuser internal dimension:	26 mm
Inlet inside dimension:	13.5 x 23.5 mm, angular (connection ASS: straight)
Inlet stud spacing:	32 mm
Piston special feature:	Chrome-plated piston ring
Cylinder dimensions (LxWxH):	130 x 130 x 120 mm
GTIN:	8052204292547
Piston ring profile:	Rectangular ring
Piston pin diameter:	12 mm
Tuning & Styling Part:	Yes
Surface finish:	Matt
ATTENTION!:	TUNING: Not permitted in the area of the StVZO!
Vintage part:	Yes
Color:	Grey
Spark plug thread:	M14 x 1.25
Number of piston rings:	1
Features:	Corrosion resistant, Durable
Engine type:	2-stroke
Scope of delivery:	1x cylinder set
Manufacturer number:	074000/1
Country and region of manufacture:	Italy
Product type:	Cylinder set
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Units quantity:	1

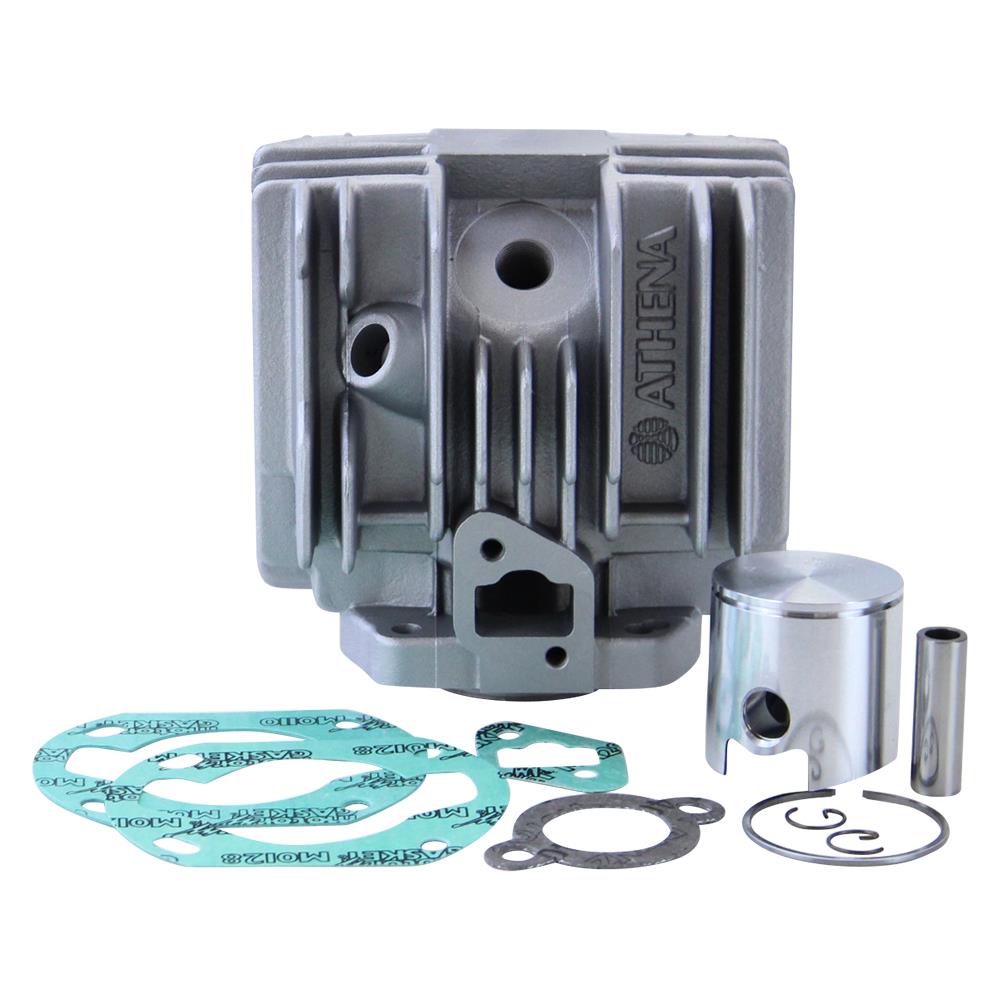

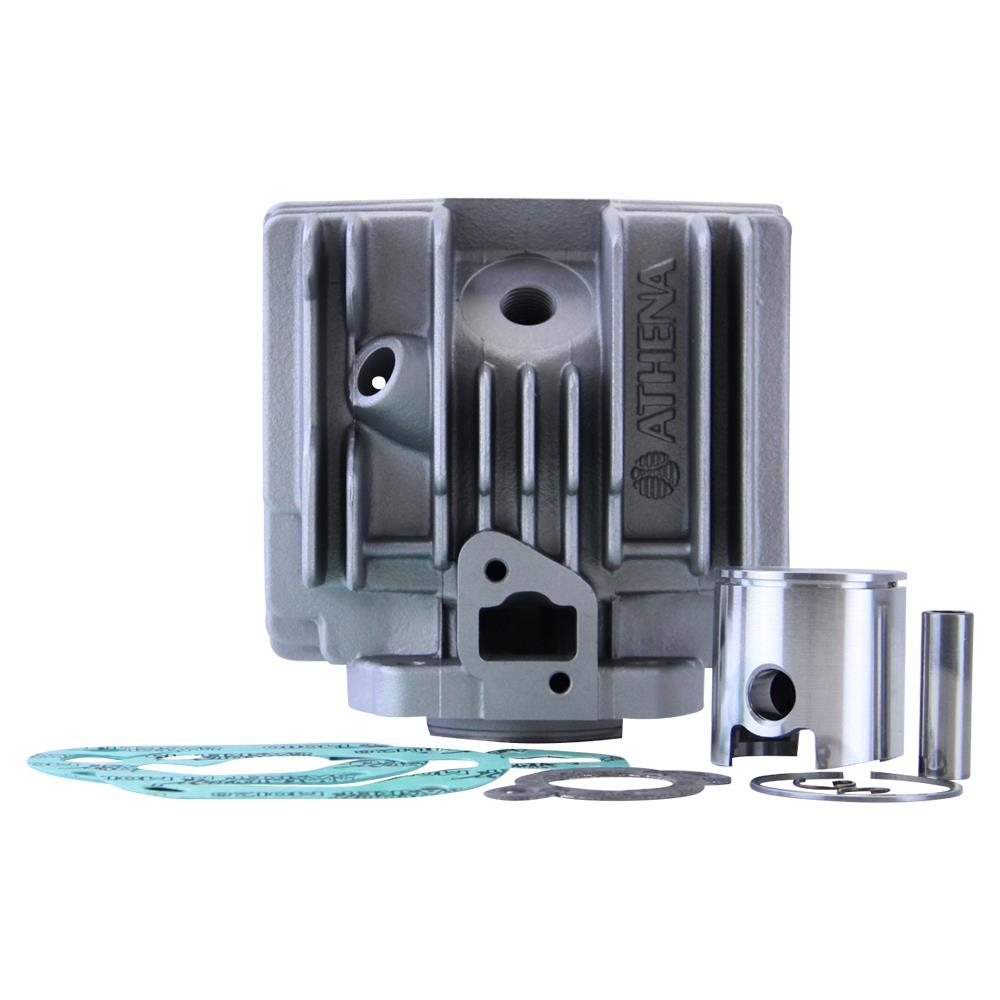

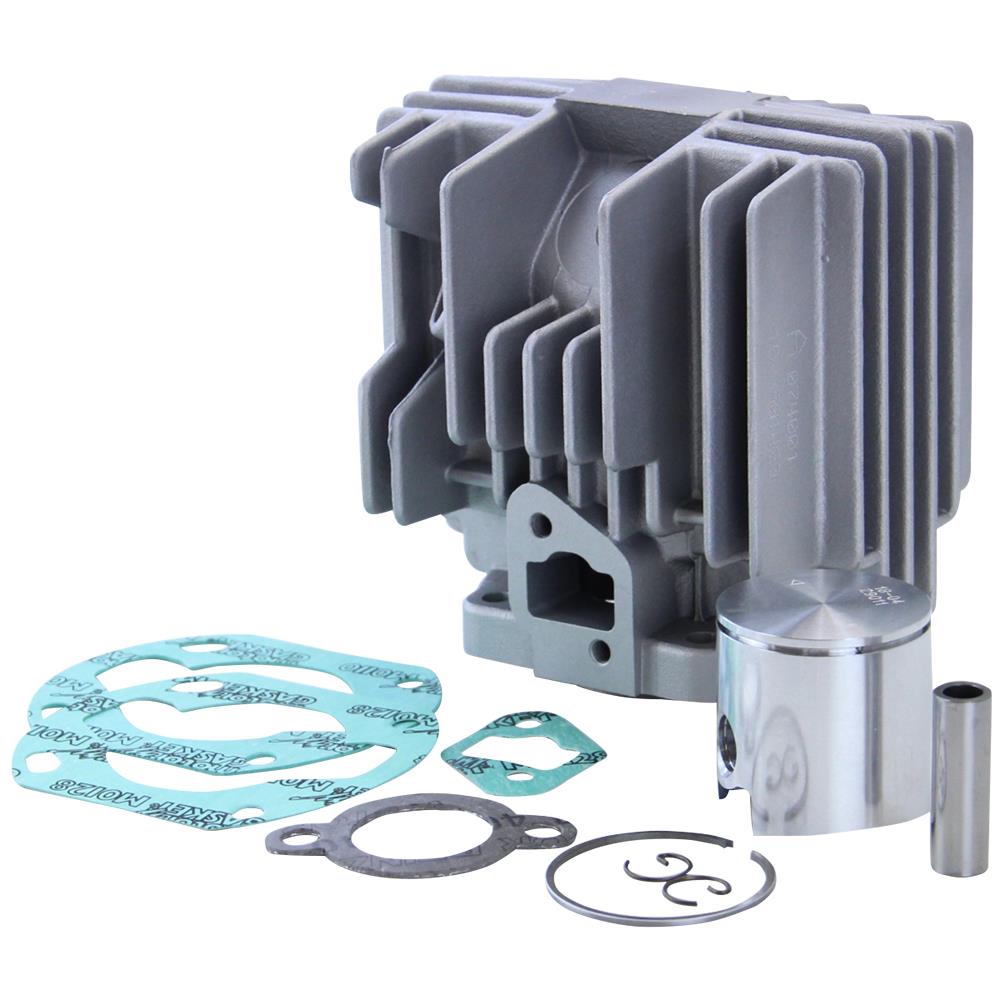

Description of the package content:	Cylinder + piston + gasket set
Manufacturer warranty:	2 years
Weight:	1.70 kg
Material:	Aluminum
Type:	Tuning

Customers also searched for this product under:

Further links to "Zylinder Set 70ccm 45mm (ohne Ansaugstutzen) für Hercules Prima M 2 3 4 5 Jogging HR2 Optima Sachs 504 505"

Video more

schliessen

Eigenschaften:

In recent years, Athena has created its Aftermarket Division, which operates exclusively in the... more

schliessen

"Athena"

In recent years, Athena has created its Aftermarket Division, which operates exclusively in the motorcycle sector, producing gaskets, thermal units and spare parts for every make and model in the world. Athena is the market leader in the production of gasket sets for the repair of mopeds, motorcycles, jet skis, outboard motors and Harley Davidson, offering the most comprehensive range in the world. In addition to gaskets, Athena also offers oil seals and original fork seals, bearings and AP Racing brake pads.
