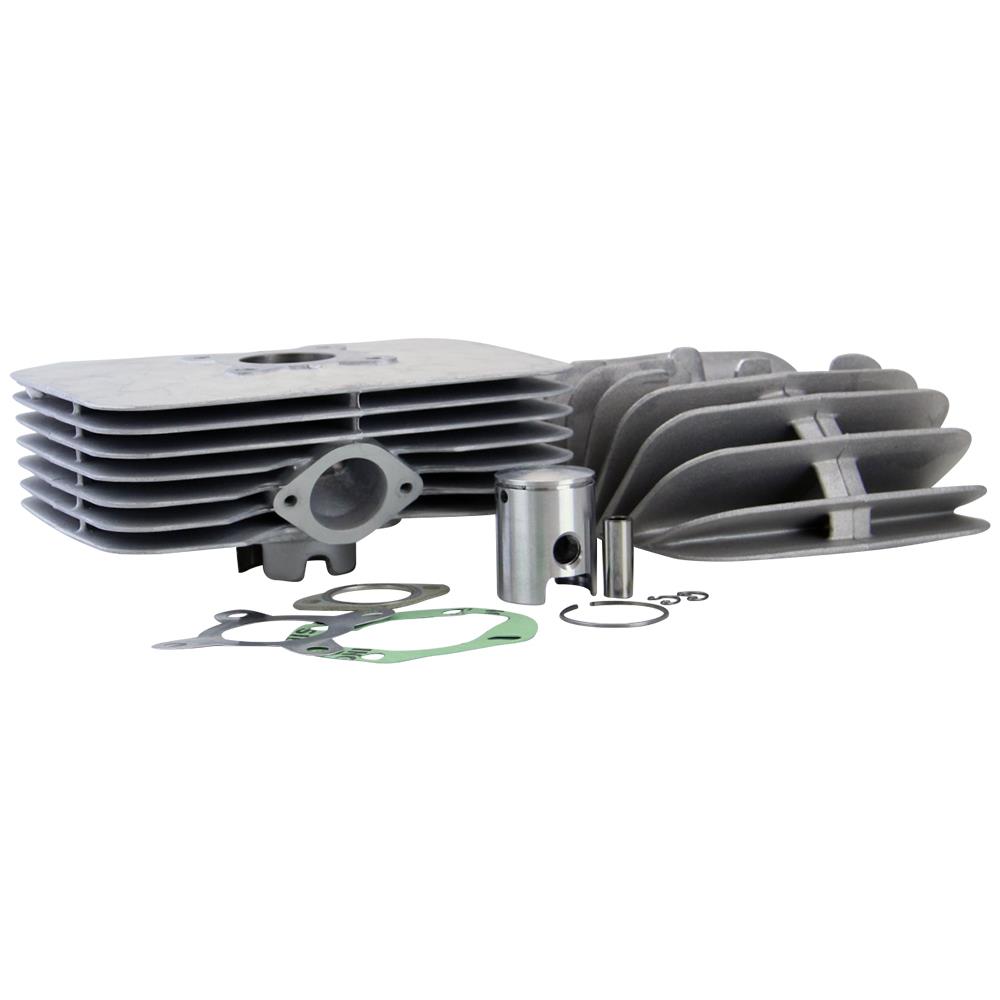

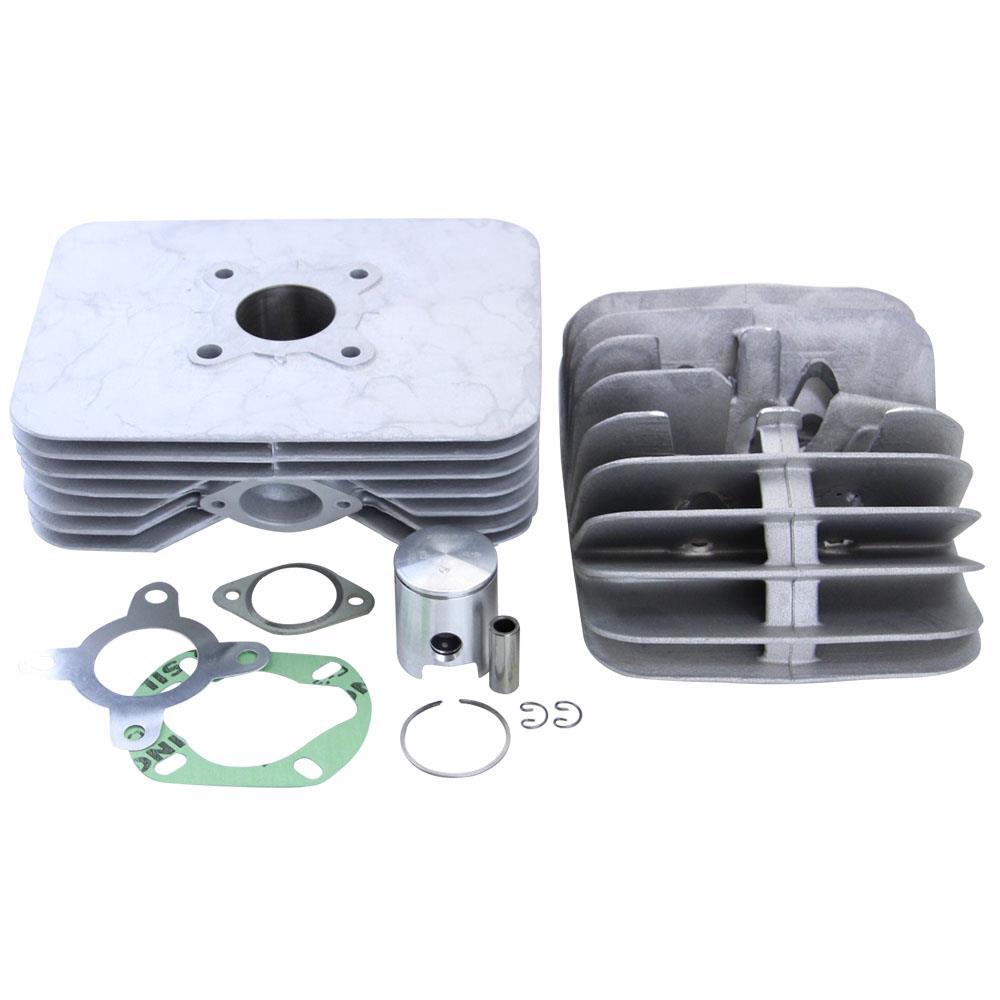

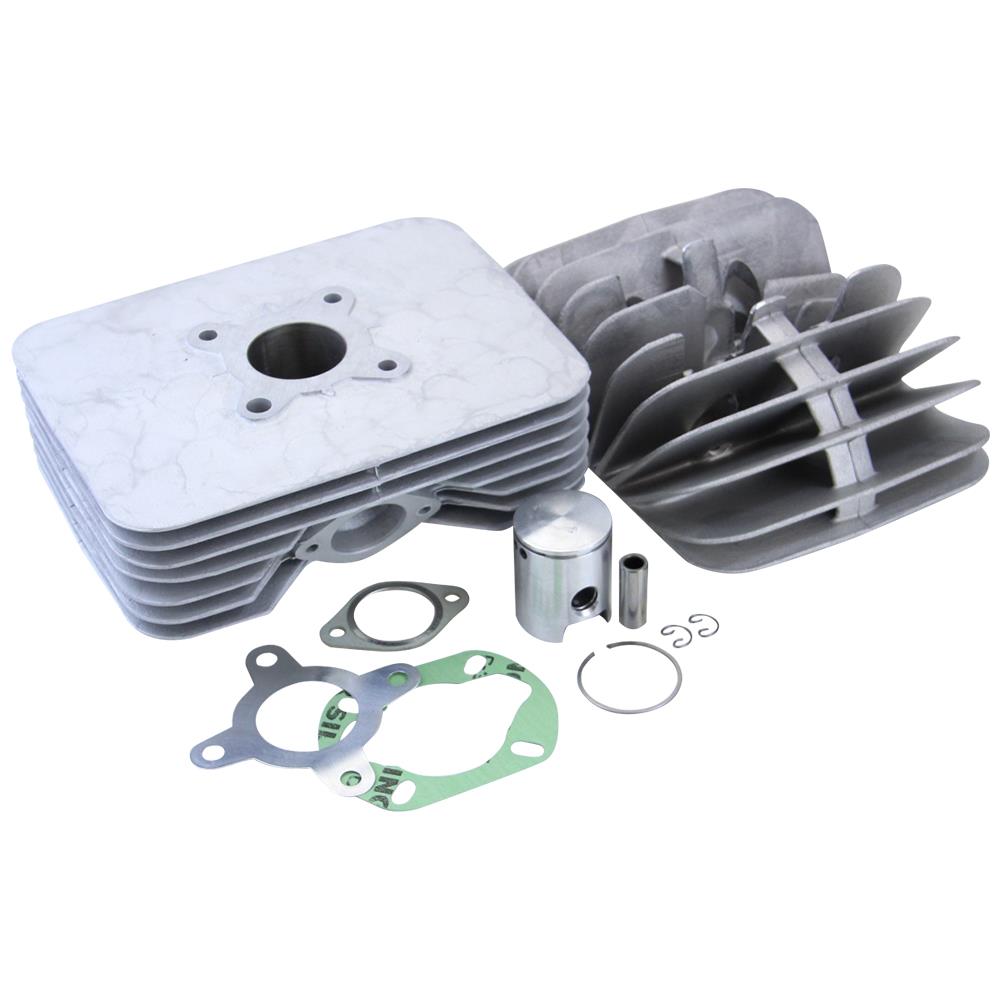

Zylinder Set + Kopf 50ccm 40mm 12mm Kobo (3 ÜS) KURZ HUB für Hercules K50 RLC Ultra 50 LC / Sachs 50/6 AGS 50SW
Prices incl. VAT plus shipping costs
Free shipping!
Delivery time on request
Further variants / accessories
- Item no: 64400.00
- EAN: 4251048884633
- Manufacturer: Parmakit
- Manufacturer no.: 64400.00
- Produktkategorie: NULL
Hercules K 50 R LC (1977-1978)
Hercules K 50 R LC (1979-1980)
Hercules K 50 Ultra LC (1977)
Hercules K 50 Ultra LC (1978-1979)
Hercules K 50 Ultra II LC (1979-1980)
Hercules K 50 Ultra III LC (1980)
Hercules Ultra 50 LC (1981)
Hercules Ultra 50 LC (1982-1983)
Hercules Ultra RS 50 LC (1982-1983)
Sachs 50/6 A GS
Sachs 50SW
| Outlet stud bolt thread: | M6 |
| Comparison number: | Cylinder head 64151.04, Gasket set 64265.03, Parmakit 64400.00, Piston 64400.02, Piston ring 42100.16 |
| Cylinder special feature: | Nikasil-coated piston track |
| Cylinder stud bore: | 8 mm |
| Cylinder head stud diameter: | 8 mm |
| GTIN: | 4251048884633 |
| Number of overflows: | 3 |
| Displacement: | 50 cc |
| Diffuser internal dimension: | 32 mm |
| Inlet inside dimension: | 22 mm, round (outside 26 mm) |
| Piston special feature: | With two 4 mm piston window bores / chrome-plated piston ring |
| Manifold connection type: | Flange |
| Cylinder dimensions (LxWxH): | 160 x 210 x 80 mm |
| Cylinder stud distance: | 56 x 56 mm |
| Cylinder head dimensions (LxWxH): | 160 x 210 x 80 mm |
| Cylinder head stud bolt spacing: | 56 x 56 mm |
| Outlet Stud distance: | 50 mm |
| Piston ring profile: | Rectangular ring |
| Scope of delivery: | Cylinder, Cylinder head, Gasket set, Piston, Piston rings |
| Surface finish: | Matt |
| Vintage part: | Yes |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Tuning & Styling Part: | Yes |
| Piston pin diameter: | 12 mm |
| Color: | Grey |
| Spark plug thread: | M14 x 1.25 |
| Number of piston rings: | 1 |
| Features: | Corrosion resistant, Durable |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder set |
| Manufacturer number: | 64400.00 |
| Country and region of manufacture: | Italy |
| Product type: | Cylinder set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Units quantity: | 1 |
| Description of the package content: | Cylinder head + cylinder + piston + gasket set |
| Manufacturer warranty: | 2 years |
| Weight: | 4.90 kg |
| Material: | Aluminum |
| Type: | Tuning |
| Suitable for: | Hercules short stroke |
PARMAKIT - The motorcycle tuning company presents itself broadly positioned: On the one hand, it sees itself as a specialized supplier to the industry and a reliable parts supplier for moped riders. On the other hand, Parmakit is of course also involved in the tuning sector and offers a range of innovative special parts: from high-quality aluminum cylinder kits to variable ignition units. The experience values for this often come directly from the race track and the Parmakit factory drivers. In the meantime, more than 5,000 products of the company from Parma are on the market. At Parmakit is self-designed and from CNC milling to Nikasil coating manufactured by the employees themselves in two production and factory halls. Convince yourself of the Parmakit quality and order today your high-quality spare parts in the ZS2Radteile Onlineshop always at the best price!
