Cylinder kit + studs 50cc 38mm for Hercules Optima / TUNING Prima M 2 3 4 5 Sachs 504 505 engine
Prices incl. VAT plus shipping costs
Free shipping!
Delivery time on request
Further variants / accessories
- Item no: 168575s2
- EAN: 4060861191169
- Manufacturer: Citomerx
- Manufacturer no.: 168575s2
Hercules/Sachs Original-/Vergleichsnummer:
0287 137 562 (Zylinder)
0286 378 056 (Kolben)
0215 100 100 (Kolbenring)
0245 000 000 (Kolbenclips)
0216 003 105 (Kolbenbolzen)
0250 156 200 (Ansaugdichtung)
0250 154 101 (Zylinderfußdichtung)
TECHNISCHE DATEN:
- passend für 50 ccm Sachs 504 505 Motor
- Zylinder: Original für Optima und TUNING für Prima Motor
- Hinweis: Mit Langlöchern, deshalb passend für Prima und Optima Motor!
- ACHTUNG!: Wir empfehlen dazu einen 85/13 Vergaser!
- Inklusive: Zylinderfußdichtung, Ansaugstutzendichtung, Stehbolzen

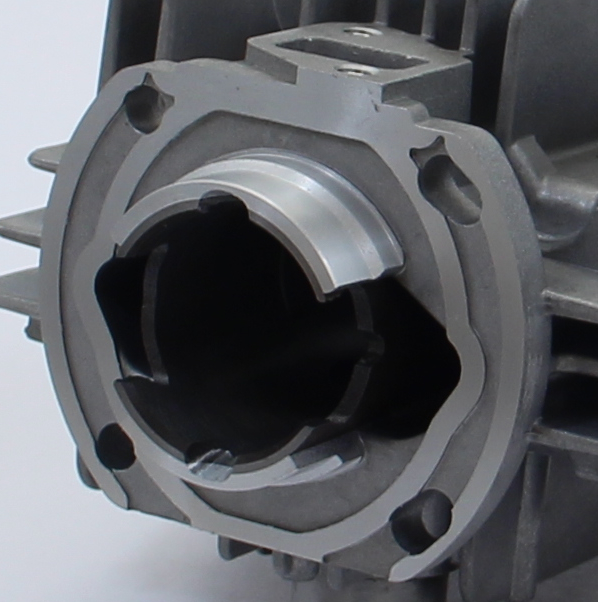

Zylinder
- Farbe: grau
- Material: Grauguss
- Zylinderbohrung: 38 mm
- Stehbolzenabstand (Zylinderfuß): 56 x 56 mm
- Einlass: 13 x 23 mm, eckig
- Ansaugstutzenanschluss: gerade
- Stehbolzenabstand Einlass: 31 mm
- Stehbolzengewinde Einlass: M6
- Auslass Innendurchmesser: 22 mm
- Auslass Außendurchmesser: 26 mm
- Krümmeranschluss: Klemm/Steck
- Maße: 130 mm (Breite); 130 mm (Länge); 120 mm (Höhe)
- Besonderheit: mit Gewindebohrung für Dekompressionsventil
- Zündkerzengewinde: M14x1,25
Kolben
- Farbe: silber
- Durchmesser: 38 mm
- Kolbenhöhe: ca. 50,5 mm
- Durchmesser Kolbenbolzen: 12 mm
- Anzahl Kolbenringe: 1
- Kolbenring Profil: Rechteck

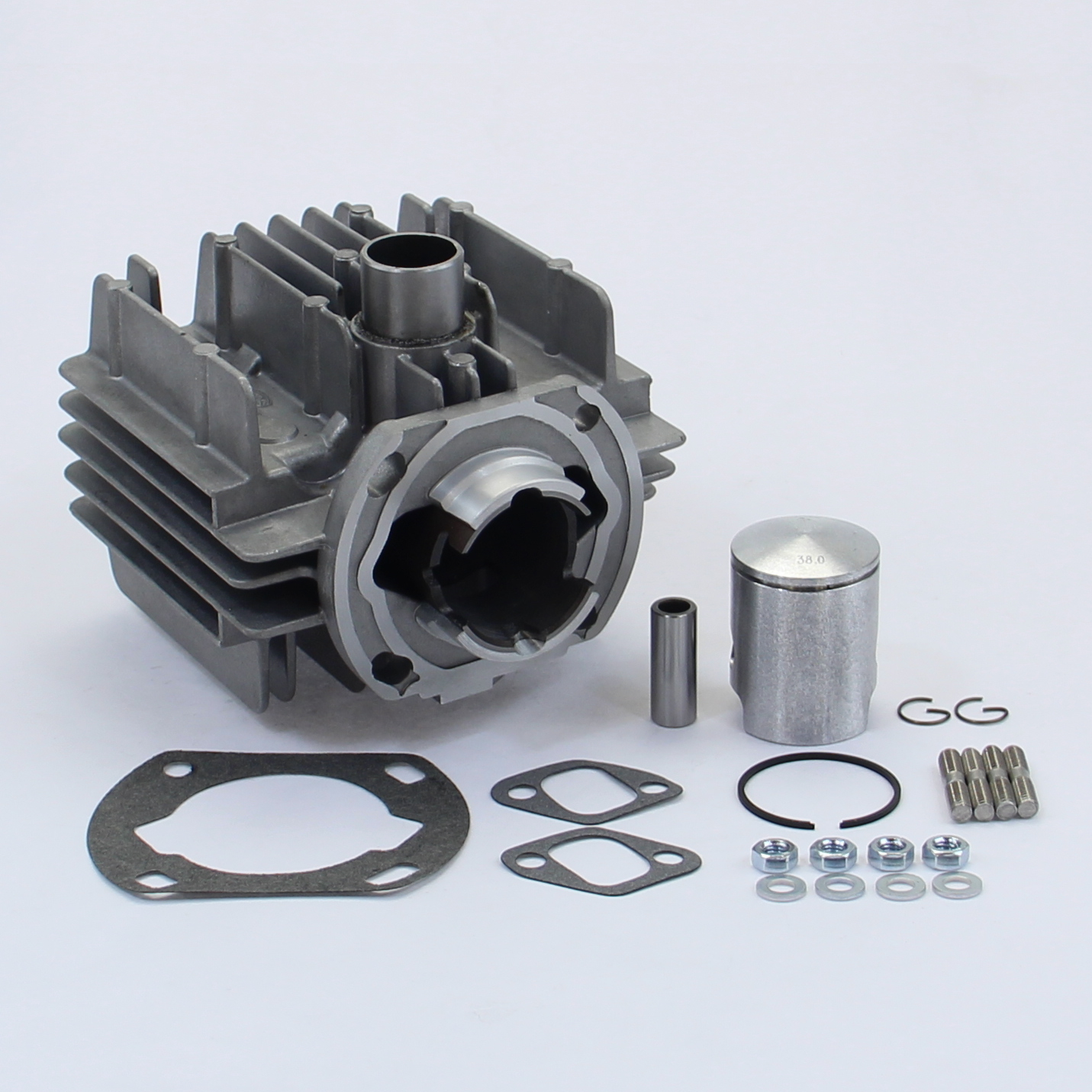

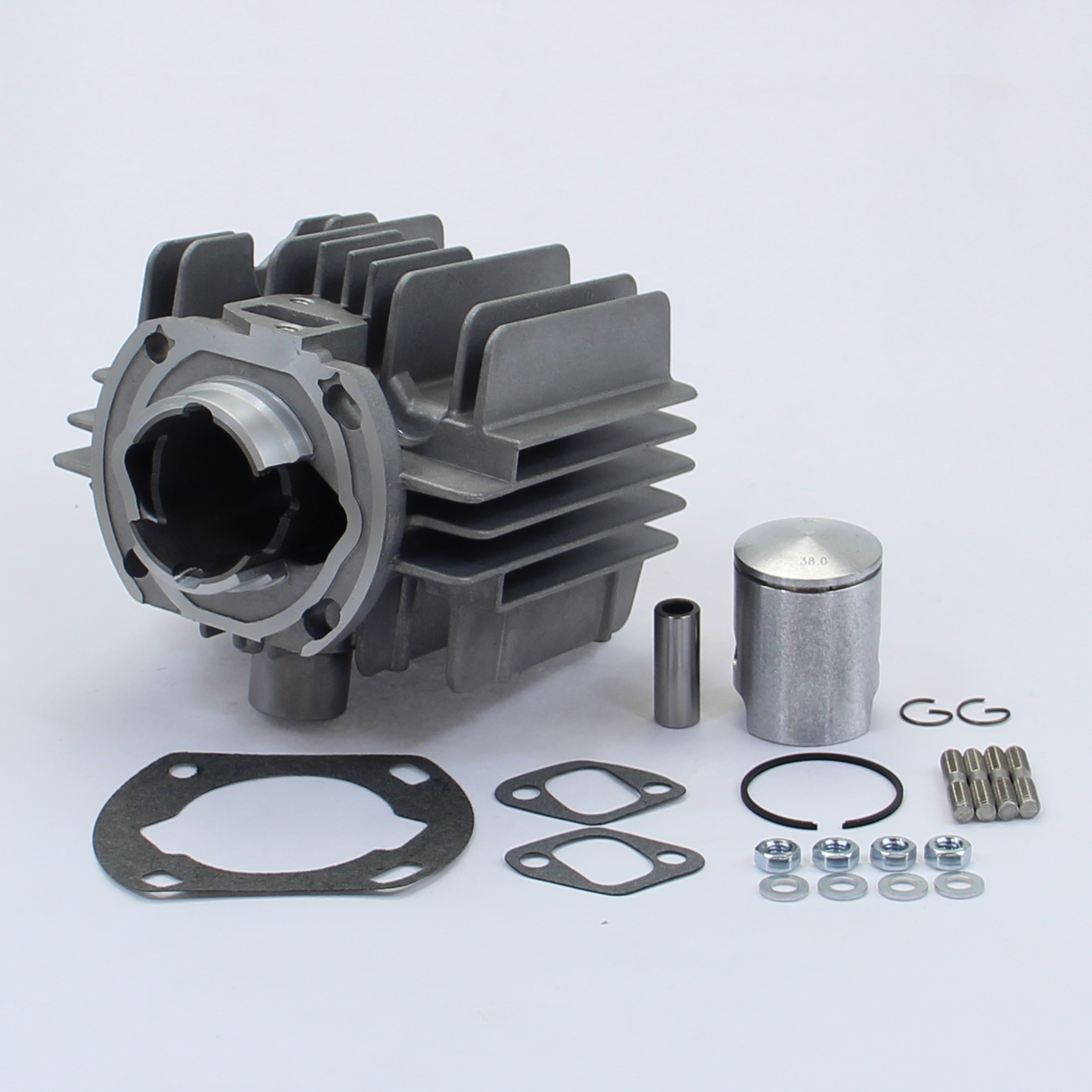

LIEFERUMFANG:
- 1x Zylinder
- 1x Kolben
- 1x Kolbenring
- 1x Kolbenbolzen
- 2x Kolbenclip
- 1x Zylinderfußdichtung
- 1x Ansaugstutzendichtung
- 4x Stehbolzen mit Mutter, Unterlegscheibe
Hercules C 1
Hercules C 3
Hercules HR 2
Hercules Jogging
Hercules M 1
Hercules M 2
Hercules M 3
Hercules M 4
Hercules M 4 S
Hercules M 5
Hercules M 5 S
Hercules MX 1
Hercules Prima 2
Hercules Prima 3
Hercules Prima 4
Hercules Prima 5
Hercules Prima 6
Hercules C 2
Hercules Optima
Hercules P 1
Hercules P 3
Hercules Supra 2
Hercules Supra 3
504/1
505/1
505/2
505/3
| OE/OEM reference number(s): | 0215 100 100 / 0215100100 (piston ring), 0216 003 105 / 0216003105 (piston pin), 0245 000 000 / 0245000000 (piston clips), 0250 154 101 / 0250154101 (cylinder base gasket), 0250 156 200 / 0250156200 (intake gasket), 0286 378 056 / 0286378056 (piston), 0287 137 562 / 0287137562 (cylinder) |
| Cylinder material: | Gray cast iron |
| Cylinder: | Original for Optima and TUNING for Prima engine |
| Stud bolt thread inlet: | M6 |
| Stud distance inlet: | 31 mm |
| Stud distance (cylinder base): | 56 x 56 mm |
| Cylinder Cylinder bore: | 38 mm |
| Scope of delivery: | Piston set / base gasket / intake gasket / stud bolt |
| Manifold connection: | Clamp/plug |
| Piston ring profile: | Rectangle |
| Piston height: | approx. 50.5 mm |
| Piston color: | silver |
| Vintage part: | Yes |
| ATTENTION!: | We recommend an 85/13 carburetor! |
| Intake manifold connection: | straight |
| Outlet Outer diameter: | 26 mm |
| Outlet inside diameter: | 22 mm |
| Feature: | with threaded hole for decompression valve |
| Piston pin diameter: | 12 mm |
| Admission: | 13 x 23 mm, square |
| Note: | With slotted holes, therefore suitable for Prima and Optima engine! |
| Piston diameter: | 38 mm |
| Cylinder color: | gray |
| Spark plug thread: | M14x1.25 |
| Number of piston rings: | 1 |
| Features: | Durable |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x cylinder kit + stud bolt |
| Manufacturer number: | 168575s2 |
| Country and region of manufacture: | Sweden |
| Product type: | Cylinder set |
| Manufacturer warranty: | 2 years |
| Dimensions: | 130 mm (width); 130 mm (length); 120 mm (height) |
| Suitable for: | 50 cc Sachs 504 505 engine |
