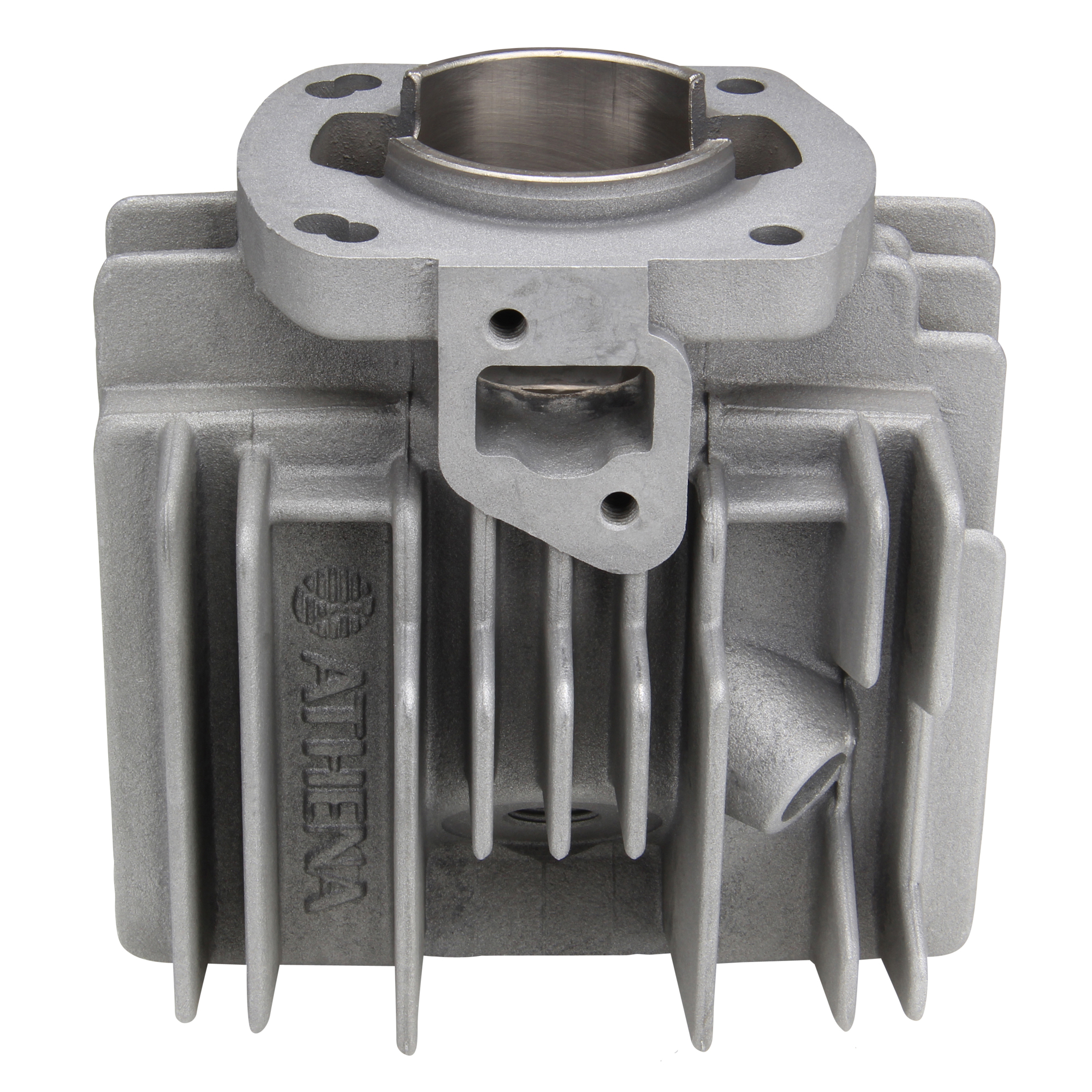

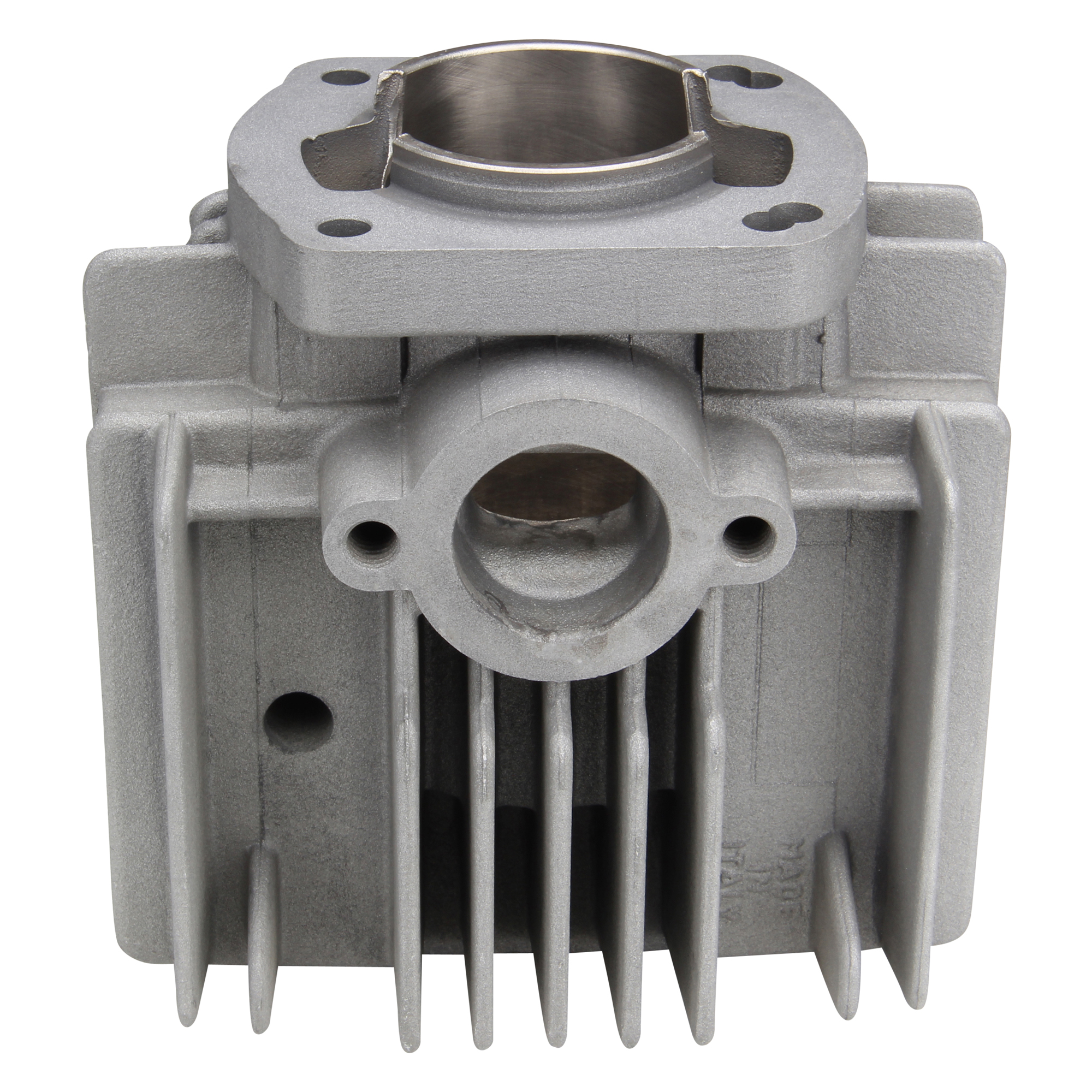

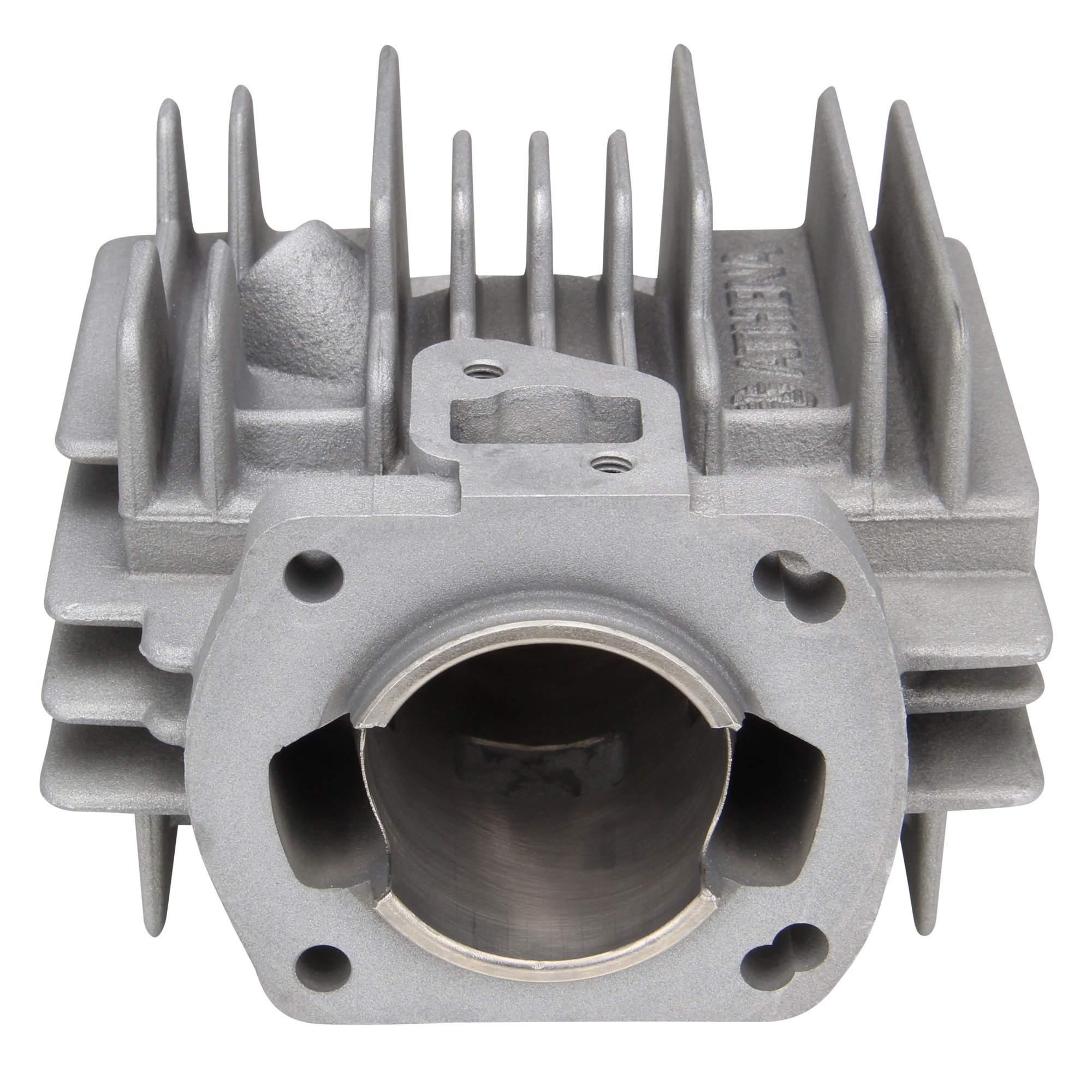

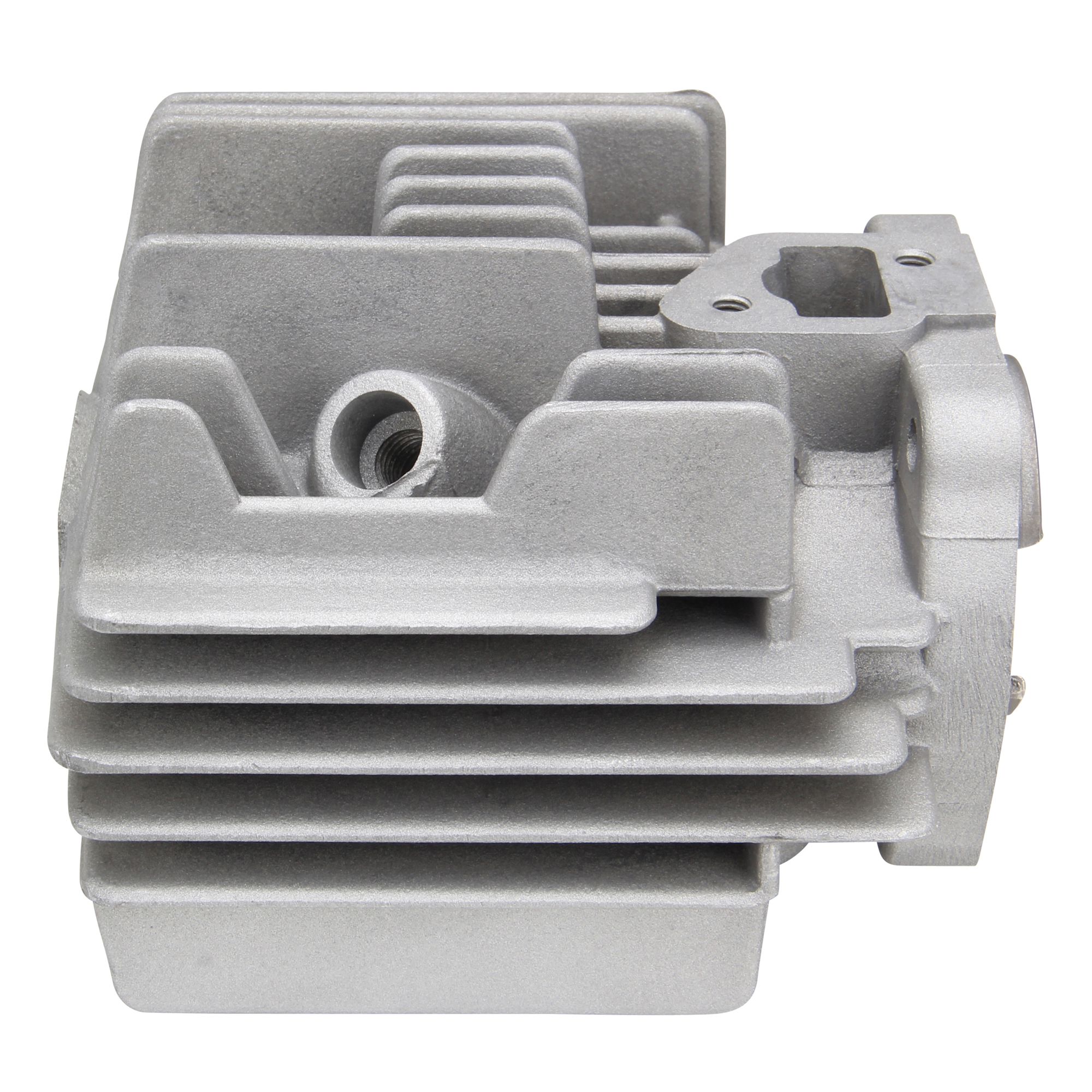

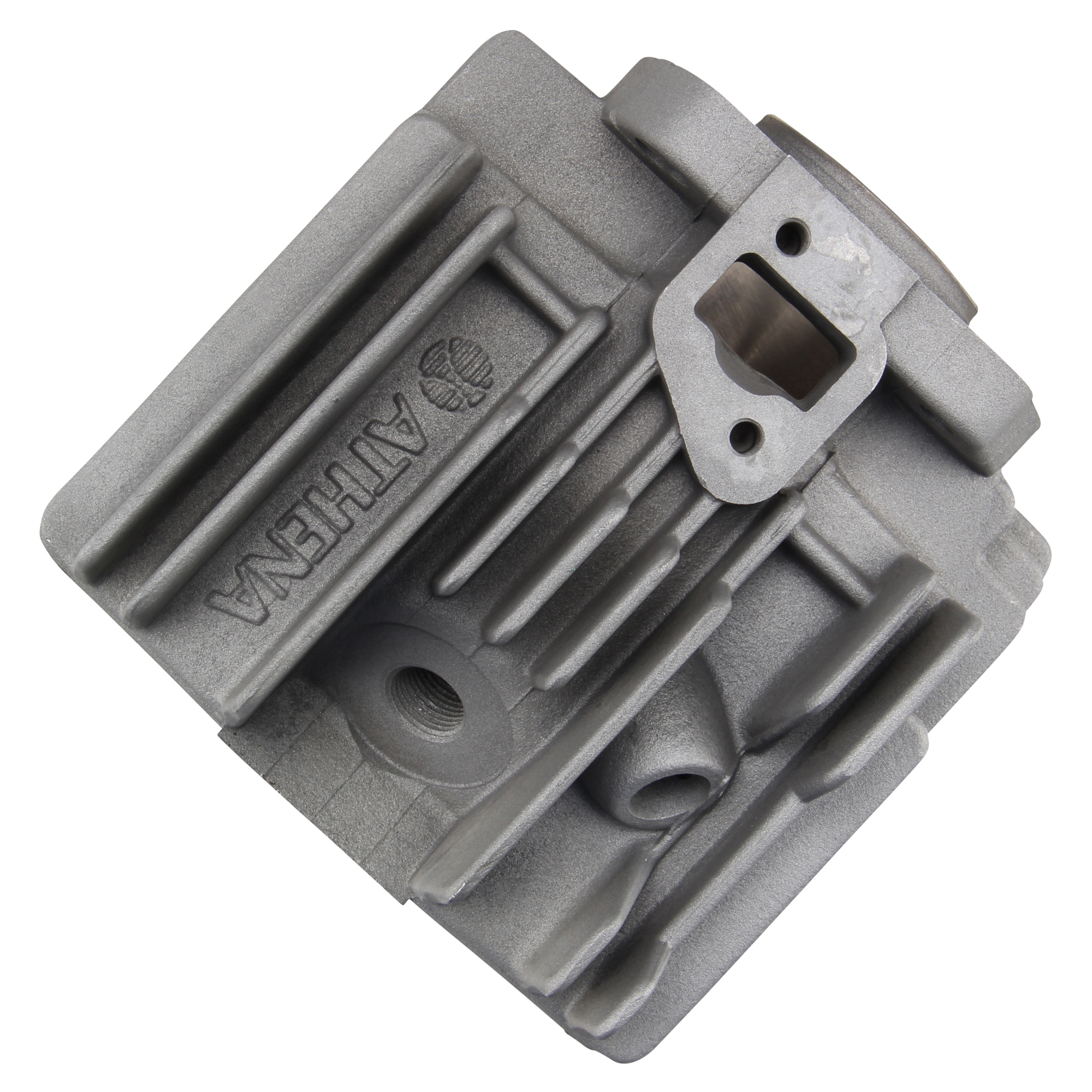

Zylinder Set 70ccm 45mm (mit Ansaugstutzen) für Hercules Prima M 2 3 4 5 Jogging HR2 Optima Sachs 504 505

€314.90 *
Content: 1 piece

Prices incl. VAT plus shipping costs

Free shipping!

IN STOCK - Delivery time 1-3 working days

Only a few left!

Further variants / accessories

Zylinder Set 70ccm 45mm (ohne Ansaugstutzen) für Hercules Prima M 2 3 4...
Zylinder Set 70ccm 45mm (mit Ansaugstutzen) für Hercules Prima M 2 3 4 5...
  • 074000
  • 8050444897133
  • Athena
  • 074000
Hercules C1 C2 C3 Hercules HR2 Hercules Jogging Hercules M 1 2 3 4 5 Hercules MX1 Hercules Prima... more
Product information about Zylinder Set 70ccm 45mm (mit Ansaugstutzen) für Hercules Prima M 2 3 4 5 Jogging HR2 Optima Sachs 504 505

Hercules C1 C2 C3
Hercules HR2
Hercules Jogging
Hercules M 1 2 3 4 5
Hercules MX1
Hercules Prima 2 3 4 5 6
Hercules Optima 50 S SL
Hercules P1 P3
Hercules Supra 2 D
uvm.

Sachs 504
Sachs 505

Eigenschaften
Inlet inside dimension: 15 mm, round (outside: 20 mm)

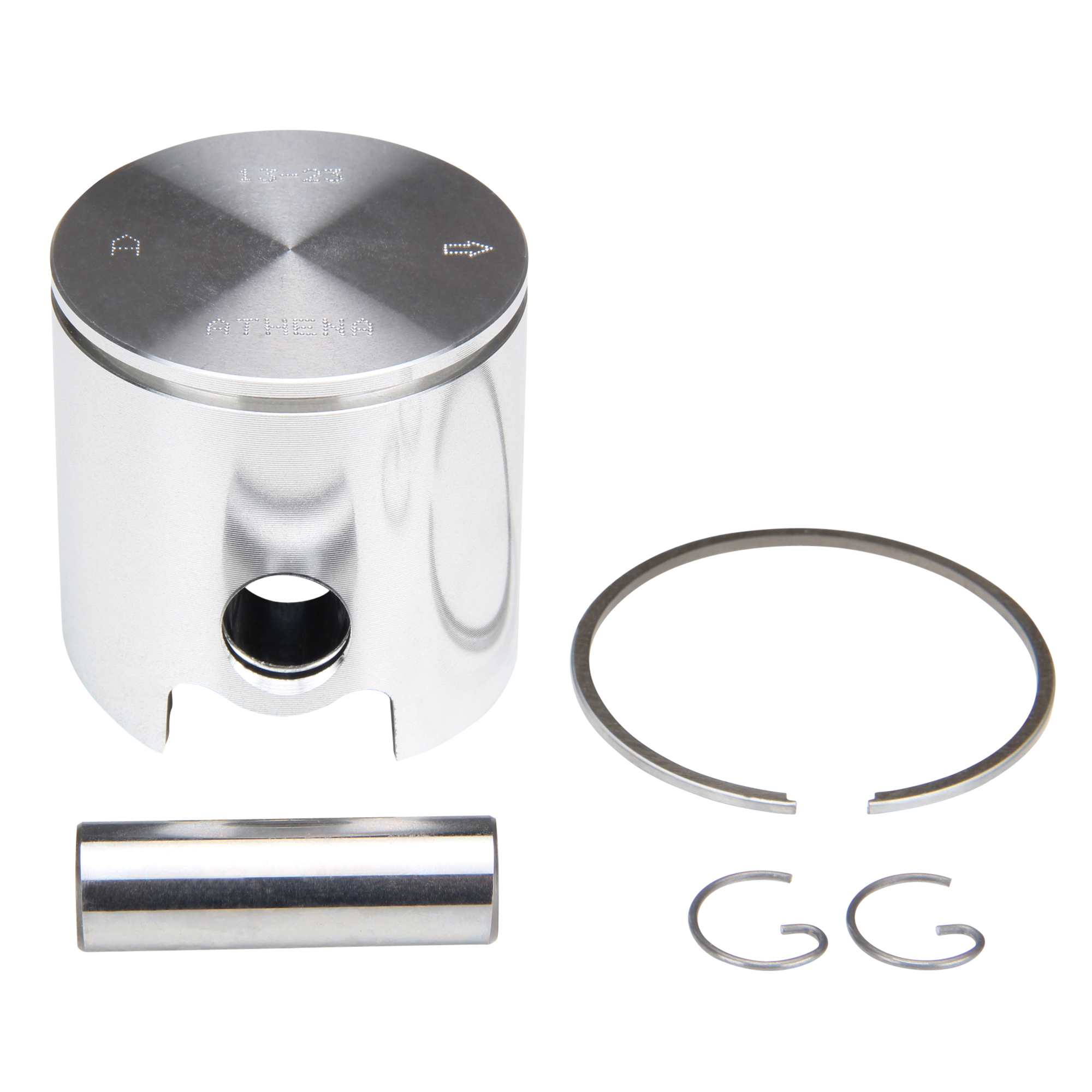

Piston special feature: Chrome-plated piston ring
Cylinder special feature: Nikasil-coated piston track
Cylinder stud bore: 8 mm
Displacement: 70 ccm
Cylinder stud distance: 56 x 56 mm
Outlet Stud distance: 50 mm
Outlet stud bolt thread: M6
Comparison number: Athena 074000, Gasket set 074003, Intake manifold 073905, Manifold adapter 020505, Piston 074002 / S4C04500005, Piston ring 002416/R
Note: Attention! Suitable for 42 and 44 mm KW with corresponding seal!
Inlet stud spacing: 32 mm
Cylinder dimensions (LxWxH): 130 x 130 x 120 mm

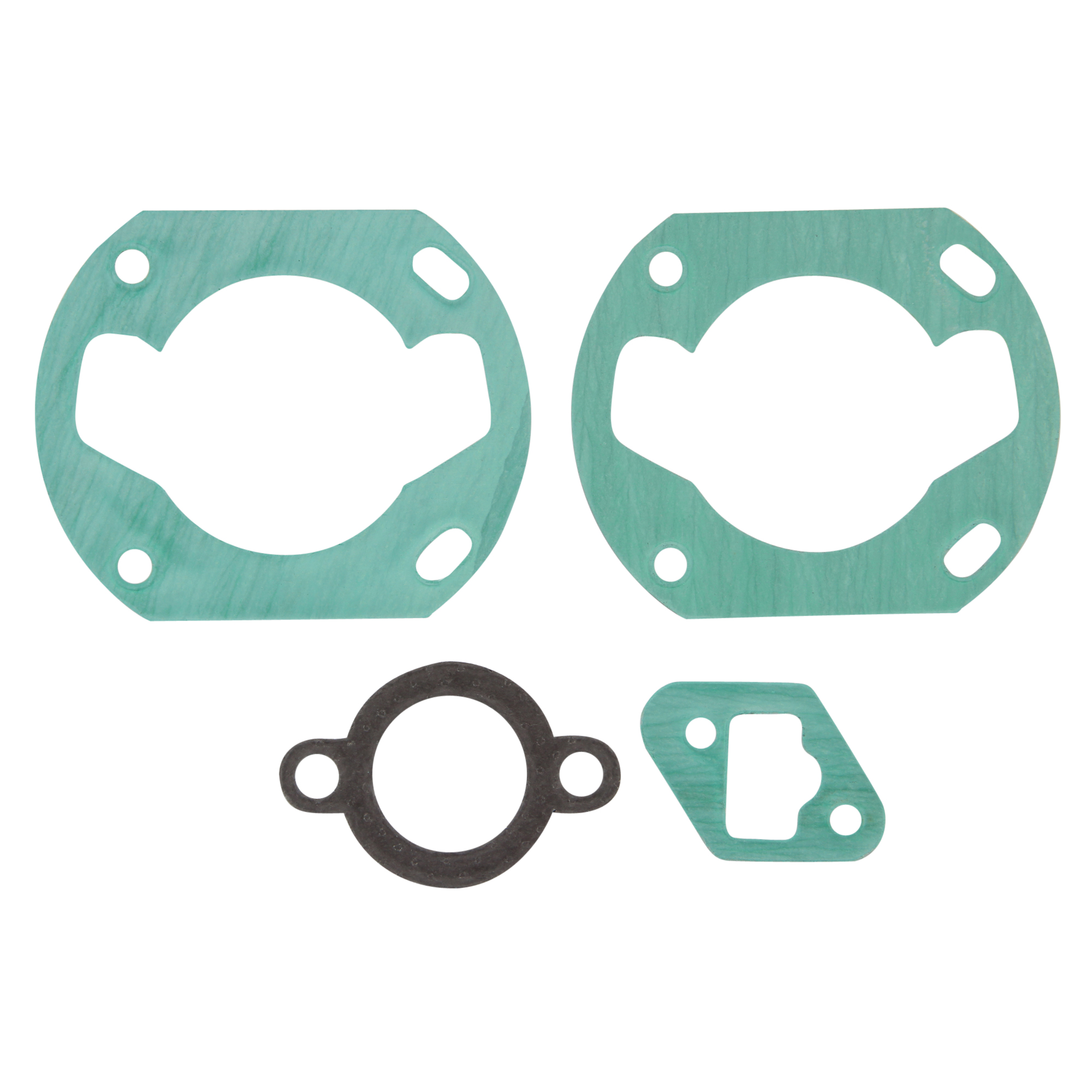

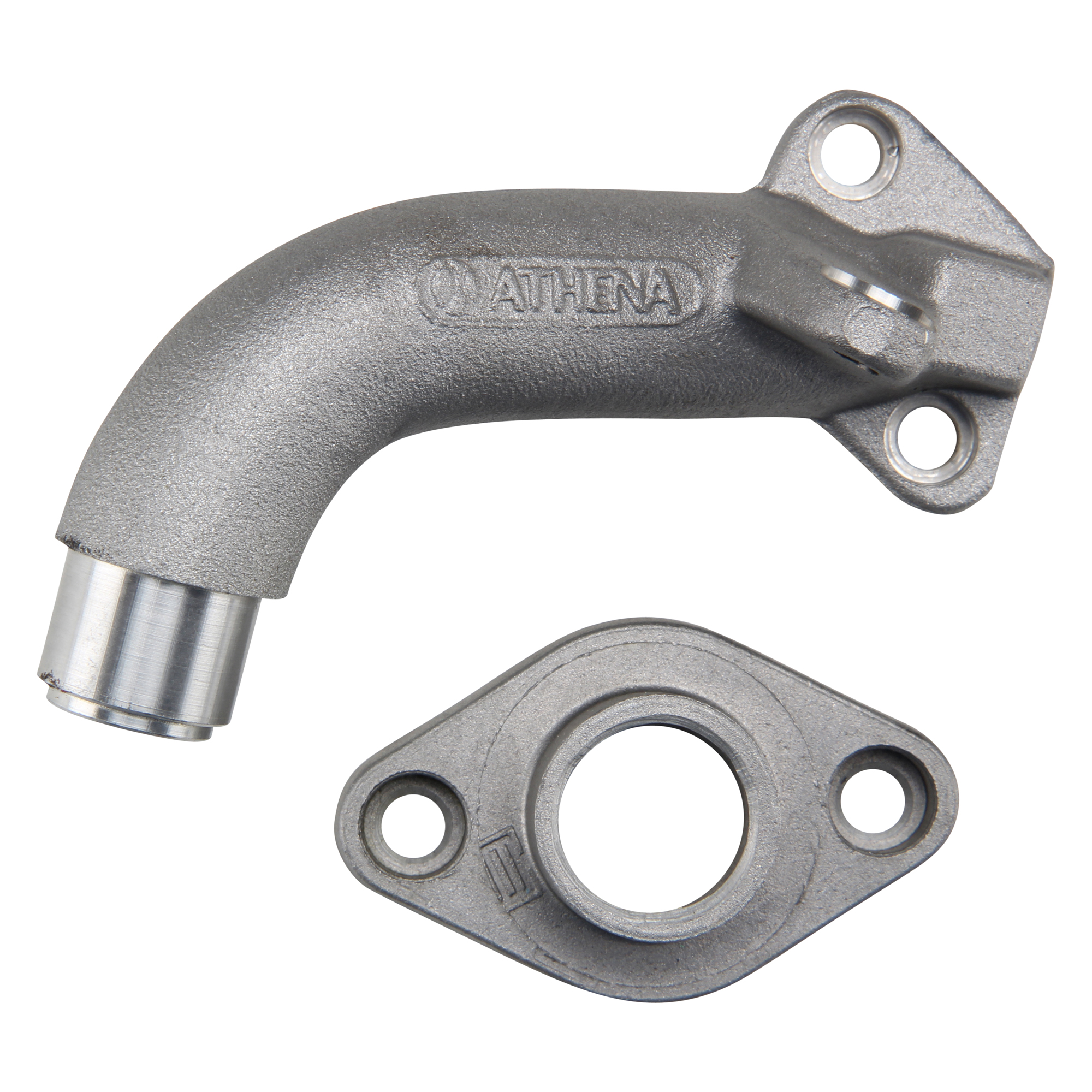

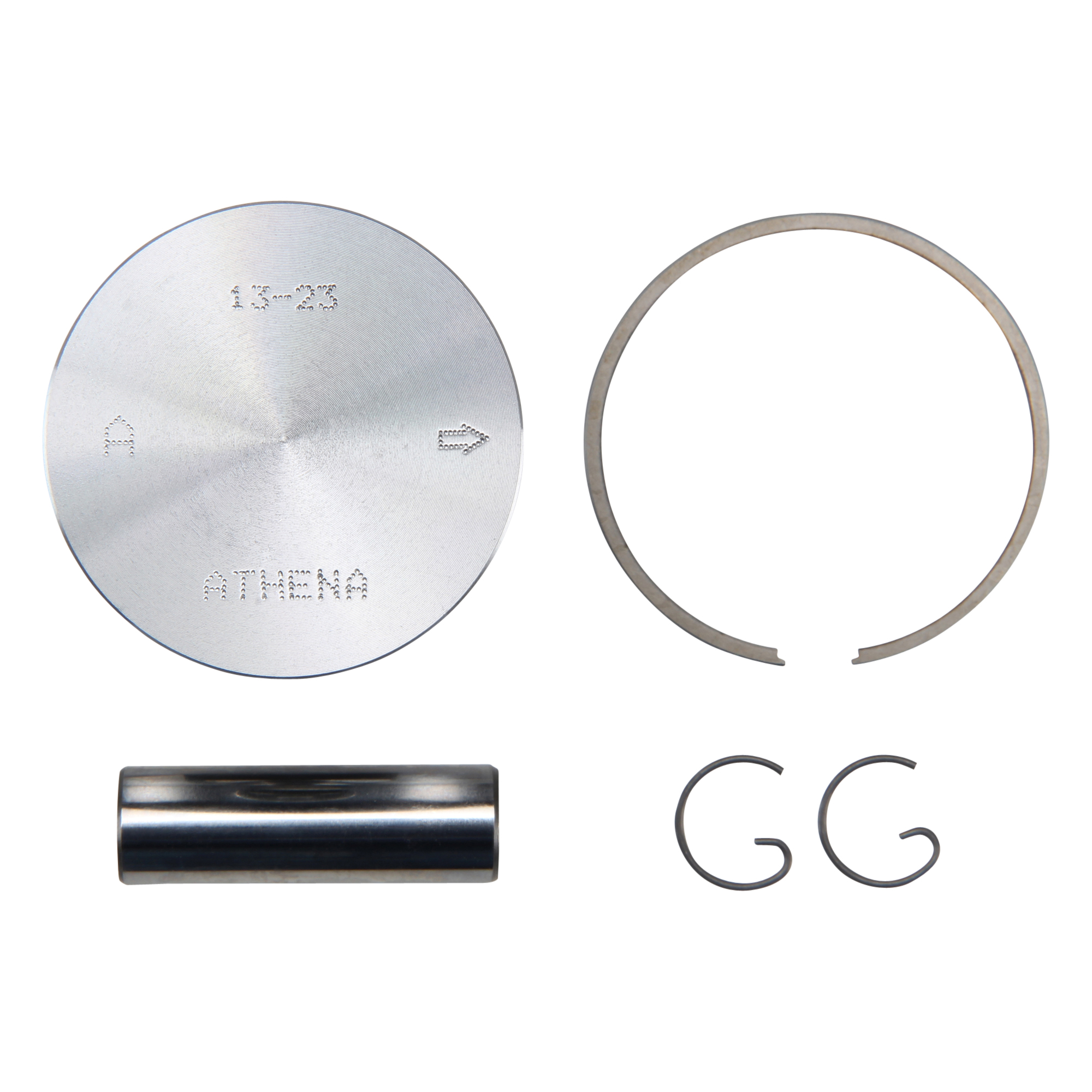

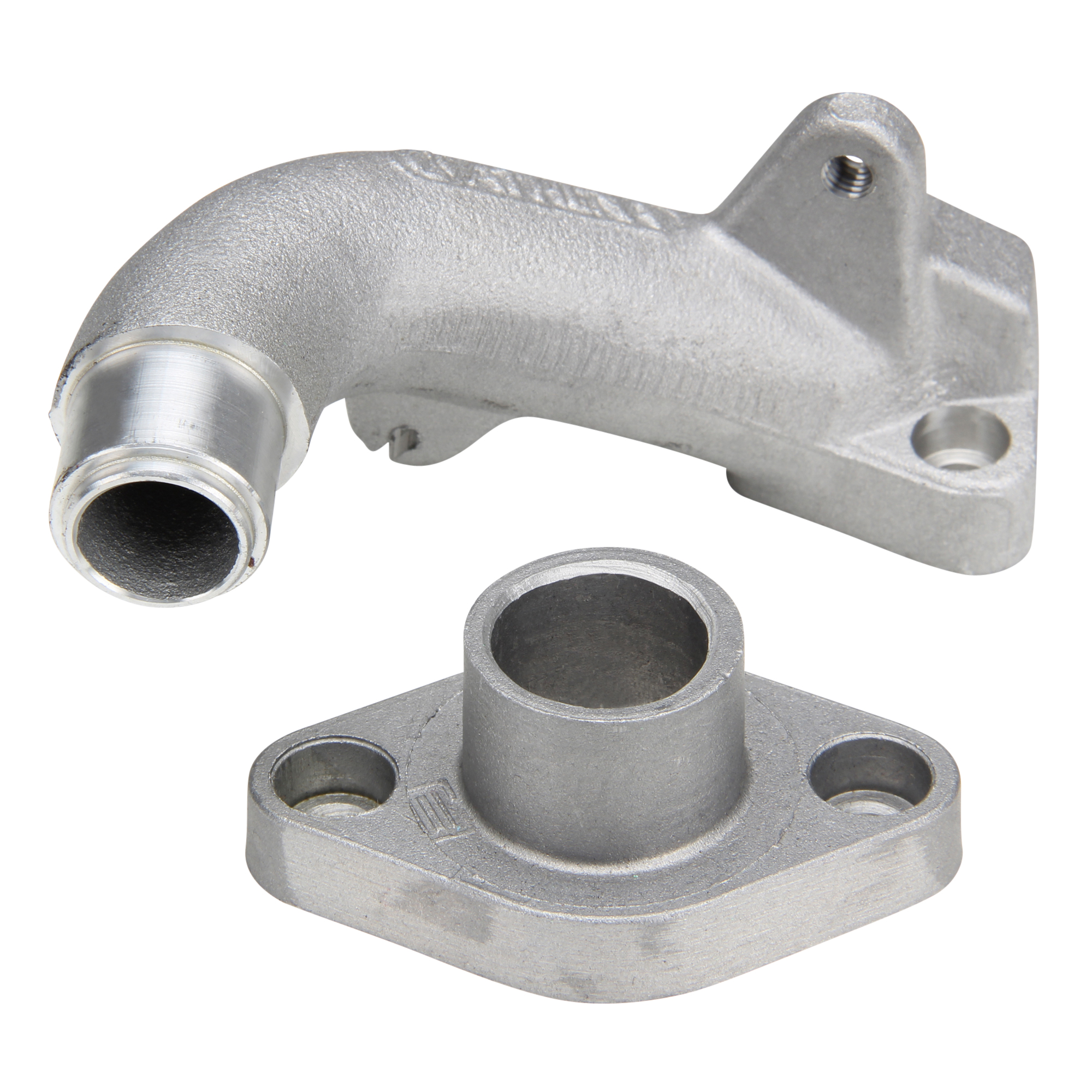

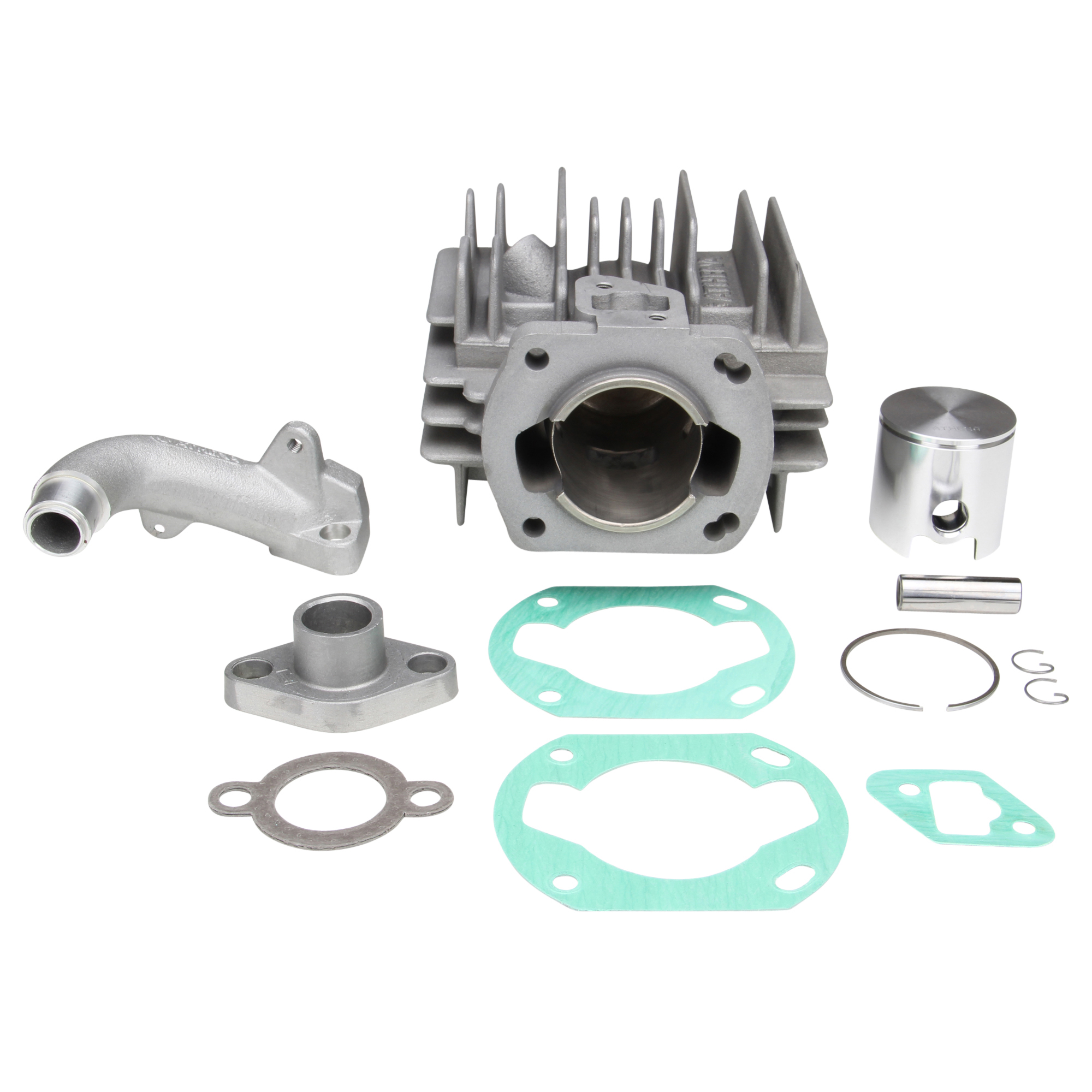

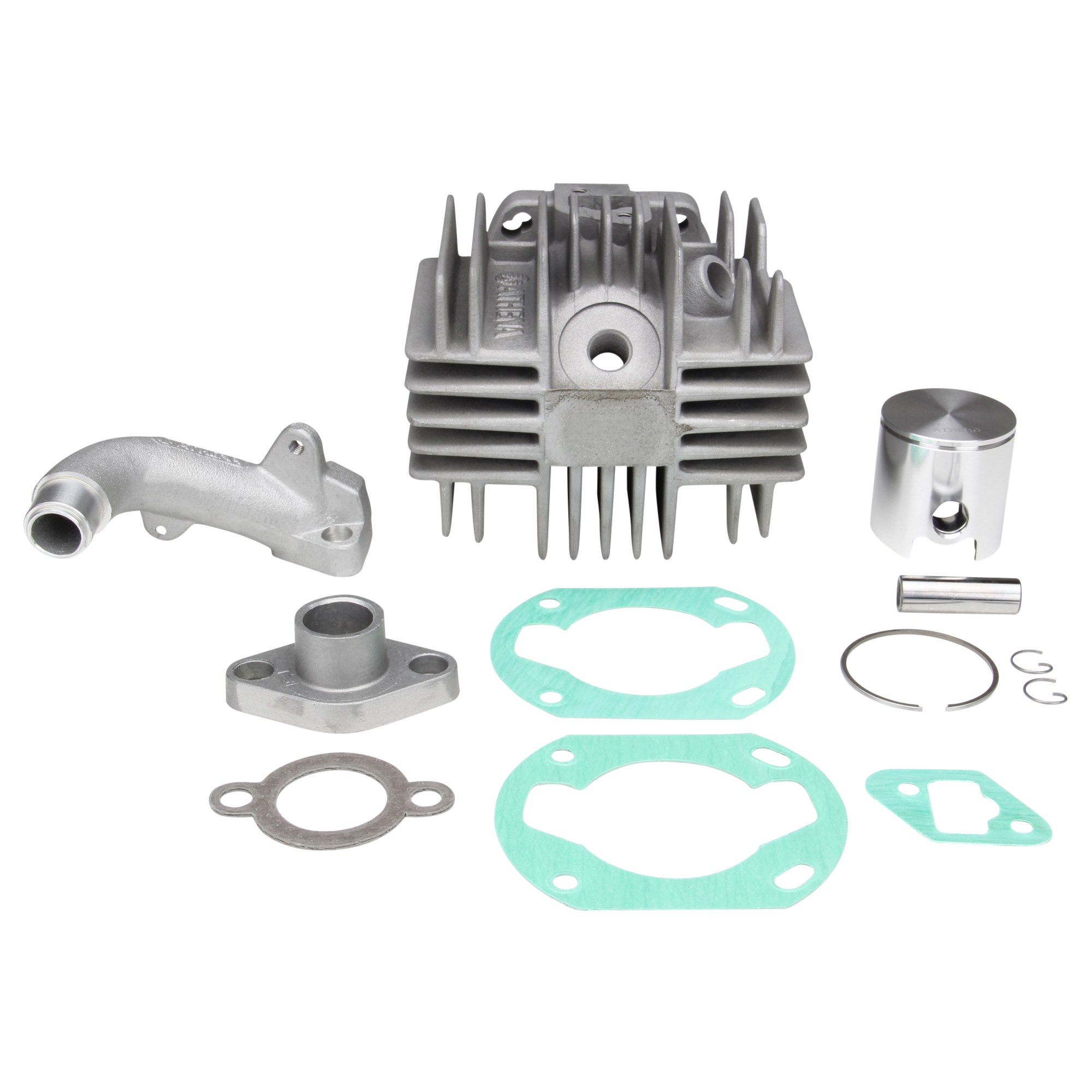

Scope of delivery: Cylinder, Gasket set, Intake manifold, Piston, Piston ring, Plug-in manifold connection
GTIN: 8050444897133
Outlet Outer dimension: 26 mm
Diffuser internal dimension: 20 mm
Inlet stud bolt thread: M6
Manifold connection type: Clamp/plug
Piston ring profile: Rectangular ring
Surface finish: Matt
Vintage part: Yes
Tuning & Styling Part: Yes
Piston pin diameter: 12 mm
ATTENTION!: TUNING: Not permitted in the area of the StVZO!
Color: Grey
Spark plug thread: M14 x 1.25
Number of piston rings: 1
Features: Corrosion resistant, Durable
Engine type: 2-stroke
Scope of delivery: 1x cylinder set
Manufacturer number: 074000
Country and region of manufacture: Italy
Product type: Cylinder set
Type of motorcycle: Moped & Mokick
Offer package: Yes
Units quantity: 1

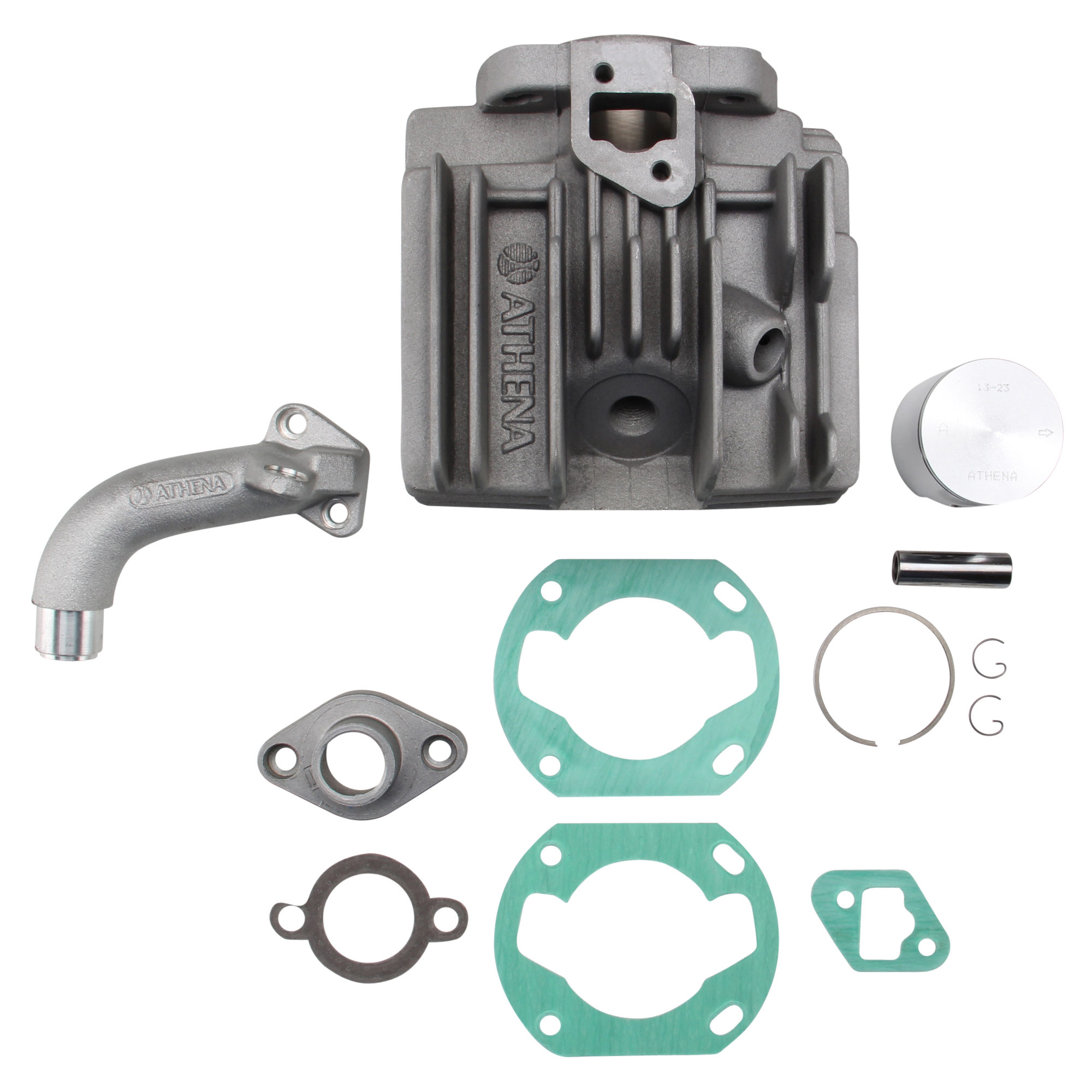

Description of the package content: Cylinder + piston + gasket set + intake manifold
Manufacturer warranty: 2 years
Weight: 1.90 kg
Material: Aluminum
Type: Tuning
