Kolben 70ccm 45mm Toleranz A (44,935mm) für Zündapp (714800)

Piston set 44.94mm Tol. A 70ccm for Zündapp Mini/Superterm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Bewerten

€54.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Only a few left!

Further variants / accessories

Kolben Set 44,94mm Tol. A 70ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Kolben Set 44,95mm Tol. B 70ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Kolben Set 44,96mm Tol. C 70ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Kolben Set 44,97mm Tol. D 70ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Item no: 003102.A
EAN: 4251048859860
Manufacturer: Athena
Manufacturer no.: 003102.A

Piston set 38.96mm Tol. CD 50ccm for Zündapp C KS RS 50 type 441 515 517 530 561 more

Close menu

Piston set 38.96mm Tol. CD 50ccm for Zündapp C KS RS 50 type 441 515 517 530 561

Tolerance size:	A (44.94mm)

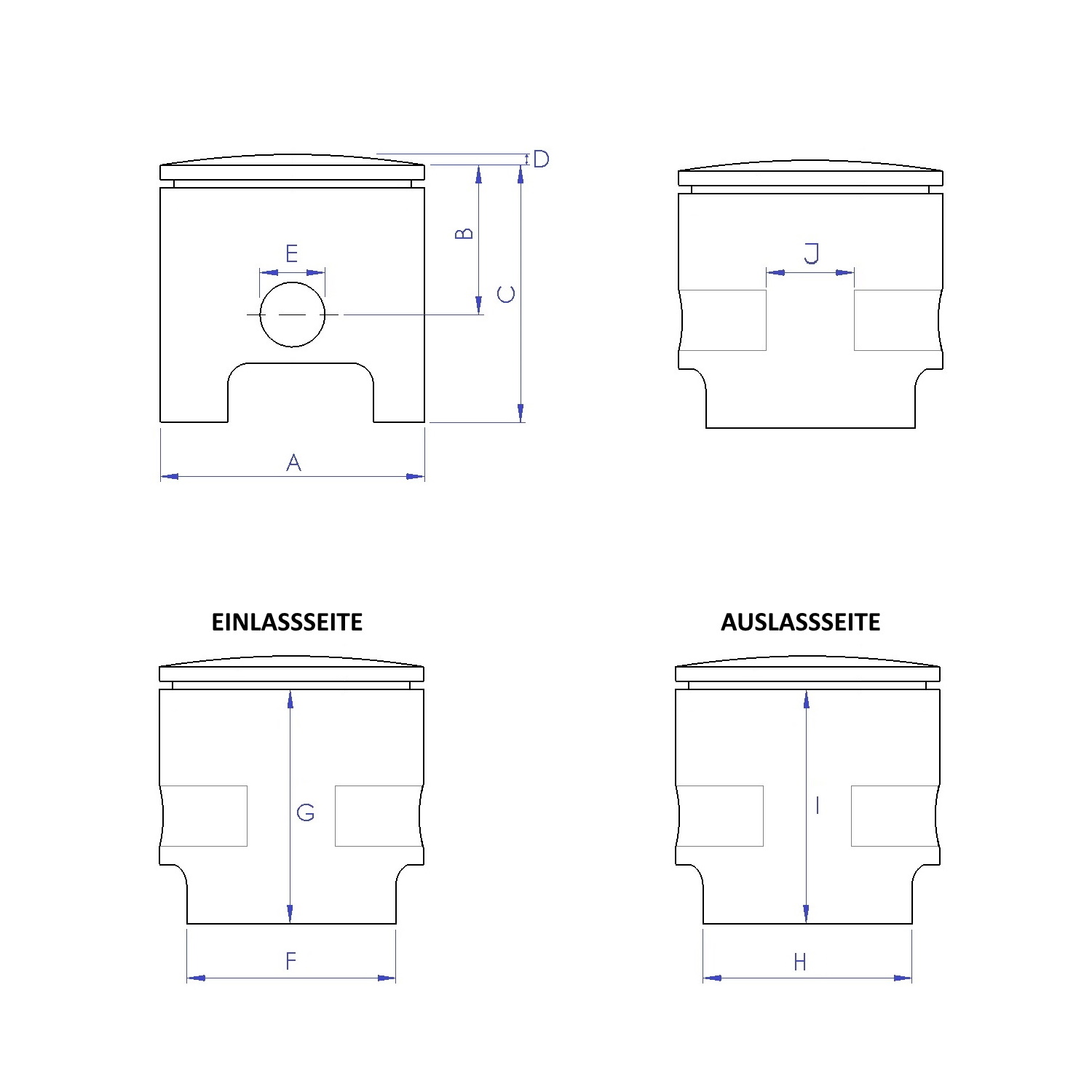

Dimension C + D (total height):	49.5 mm
Cylinder bores:	45 mm
Piston ring dimension:	45 x 1.5 mm
Dimension B (compression height):	26 mm

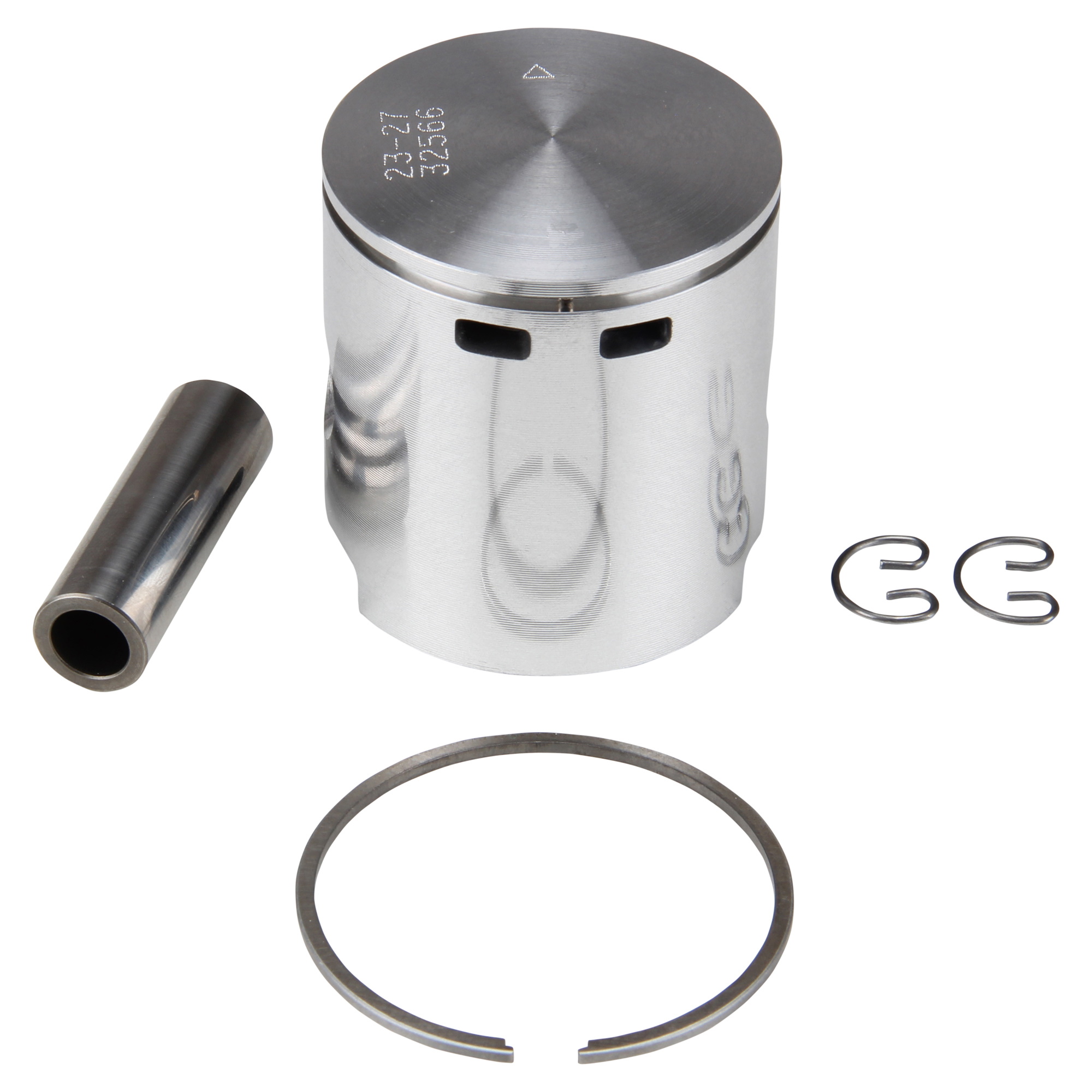

Note:	With two 3.5x7mm piston window bores / piston ring chrome-plated.
Bolt length:	38 mm
Piston ring width:	1.9 mm
Dimension C (piston height):	48 mm
Dimension G (piston skirt length inlet side):	44.5 mm
Dimension D (curvature):	1.5 mm
Dimension I (piston skirt length outlet side):	44.5 mm
Dimension F (piston skirt width inlet side):	39 mm
Dimension H (piston skirt width outlet side):	41 mm
GTIN:	4251048859860
OE/OEM reference number(s):	Athena 003102.A, Athena S4C04500004A
Dimension A (piston diameter):	44.94 mm
Dimension E (piston pin diameter):	12 mm
Dimension J (max. needle bearing width):	15.5 mm

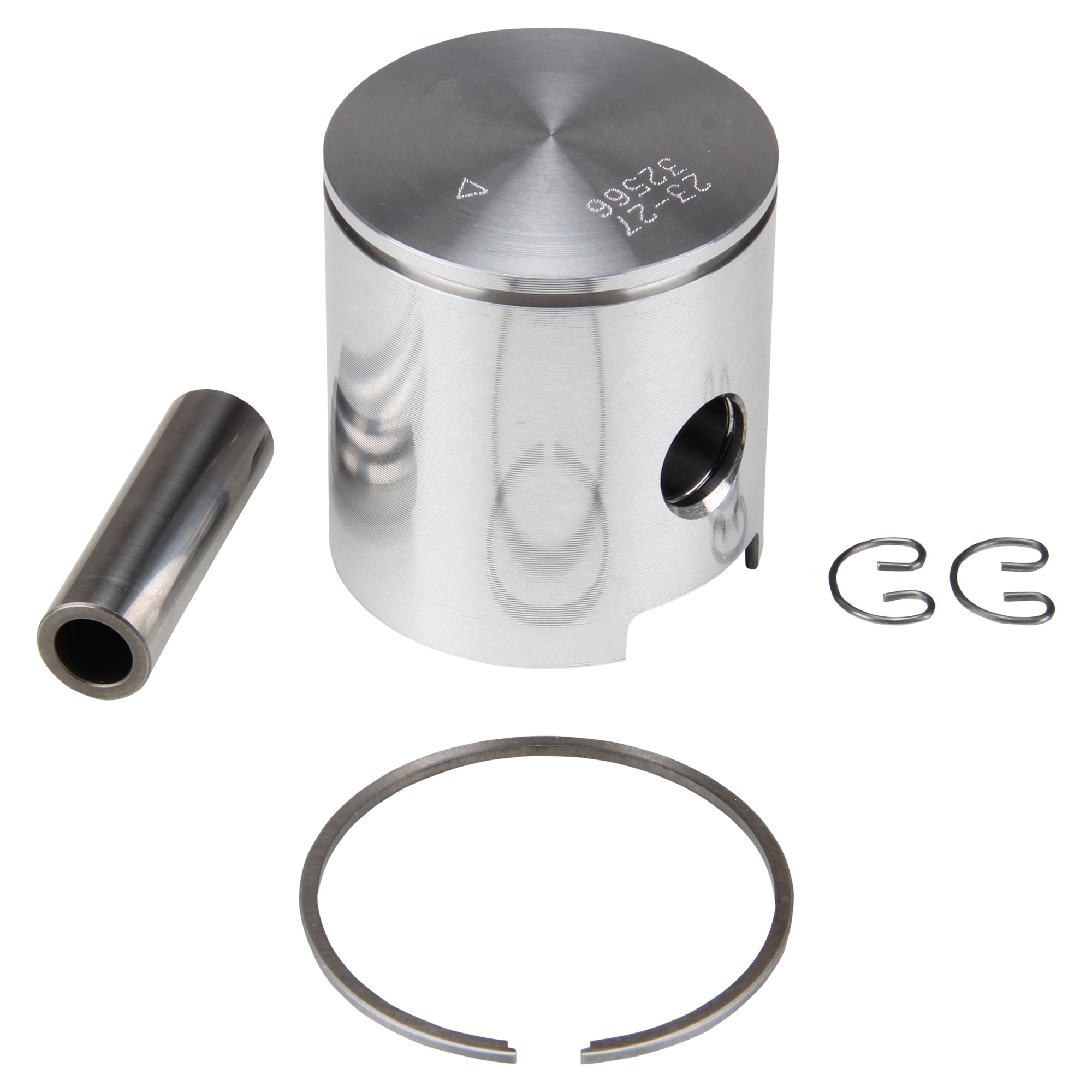

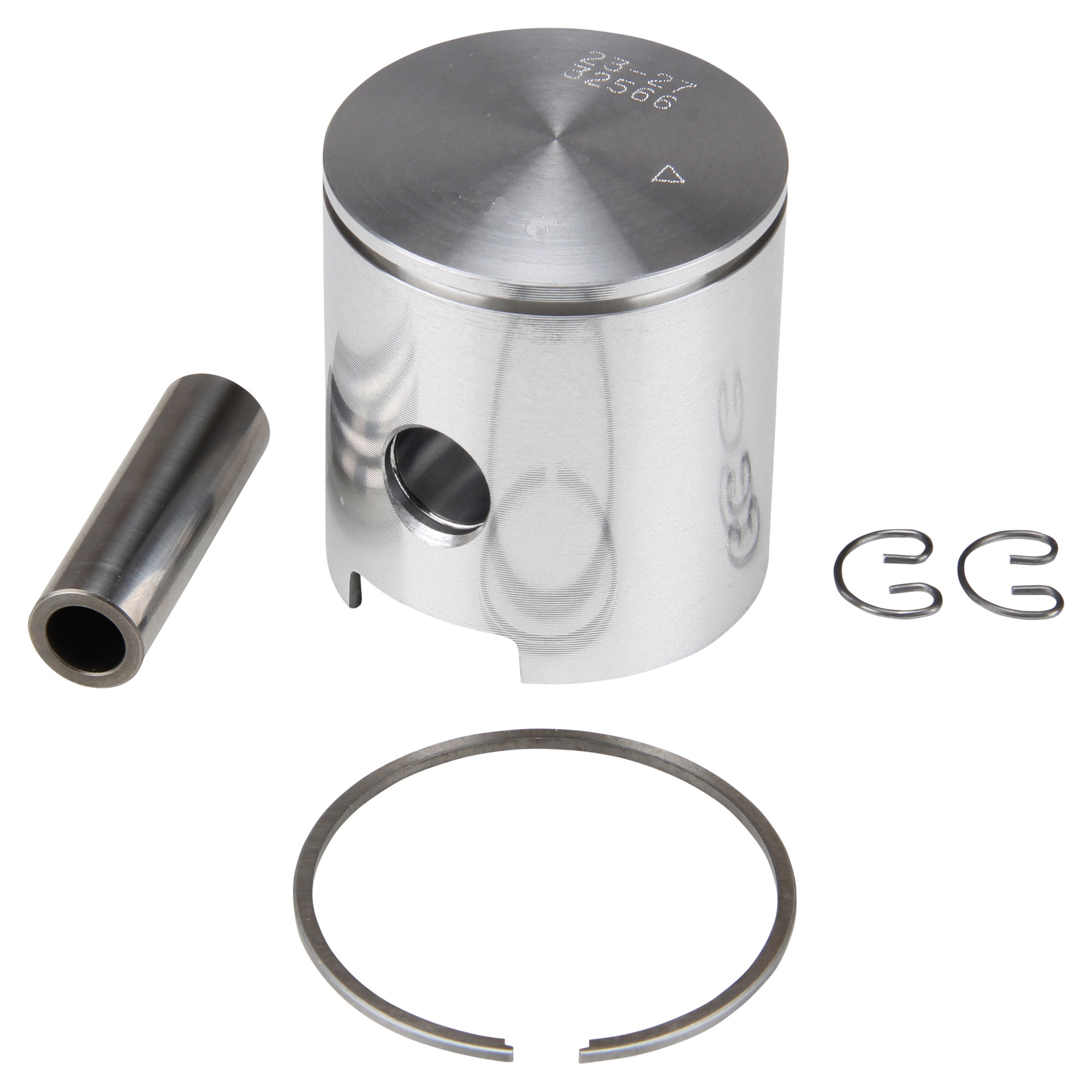

Scope of delivery:	Piston, Piston clips, Piston pin, Piston ring
Vintage part:	Yes
Tuning & Styling Part:	Yes
ATTENTION!:	TUNING: Not permitted in the area of the StVZO!
Piston ring shape:	B (groove for center locking pin)
Piston ring profile:	Rectangular ring
Bolt diameter:	12 mm
Color:	Silver
Piston diameter:	45 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	S4C04500004A
Country and region of manufacture:	Italy
Product type:	Piston set
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston ring + piston pin + piston clips
Manufacturer warranty:	2 years
Weight:	0.102 kg
Material:	Aluminum alloy
Suitable for:	70 ccm
