Kolben 50ccm 39mm Toleranz C für Zündapp (714812)

Piston set 38.97mm Tol. C 50ccm for Zündapp Mini/Superterm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Bewerten

€48.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

Delivery time on request

Further variants / accessories

Kolben Set 38,95mm Tol. A 50ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Kolben Set 38,96mm Tol. B 50ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Kolben Set 38,97mm Tol. C 50ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Kolben Set 38,98mm Tol. D 50ccm für Zündapp Mini/Supertherm GTS KS C CS ZD ZS ZX 446 448 460 517 529

Item no: 003002.C
EAN: 4251048859938
Manufacturer: Athena
Manufacturer no.: 003002.C

Piston set 38.955mm Tol. BC 50ccm for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460... more

Close menu

Piston set 38.955mm Tol. BC 50ccm for Zündapp ZD CS Hai CX ZX ZL C GTS KS RM Type 434 446 448 460 442 517 529 561

Tolerance size:	C (38.97mm)

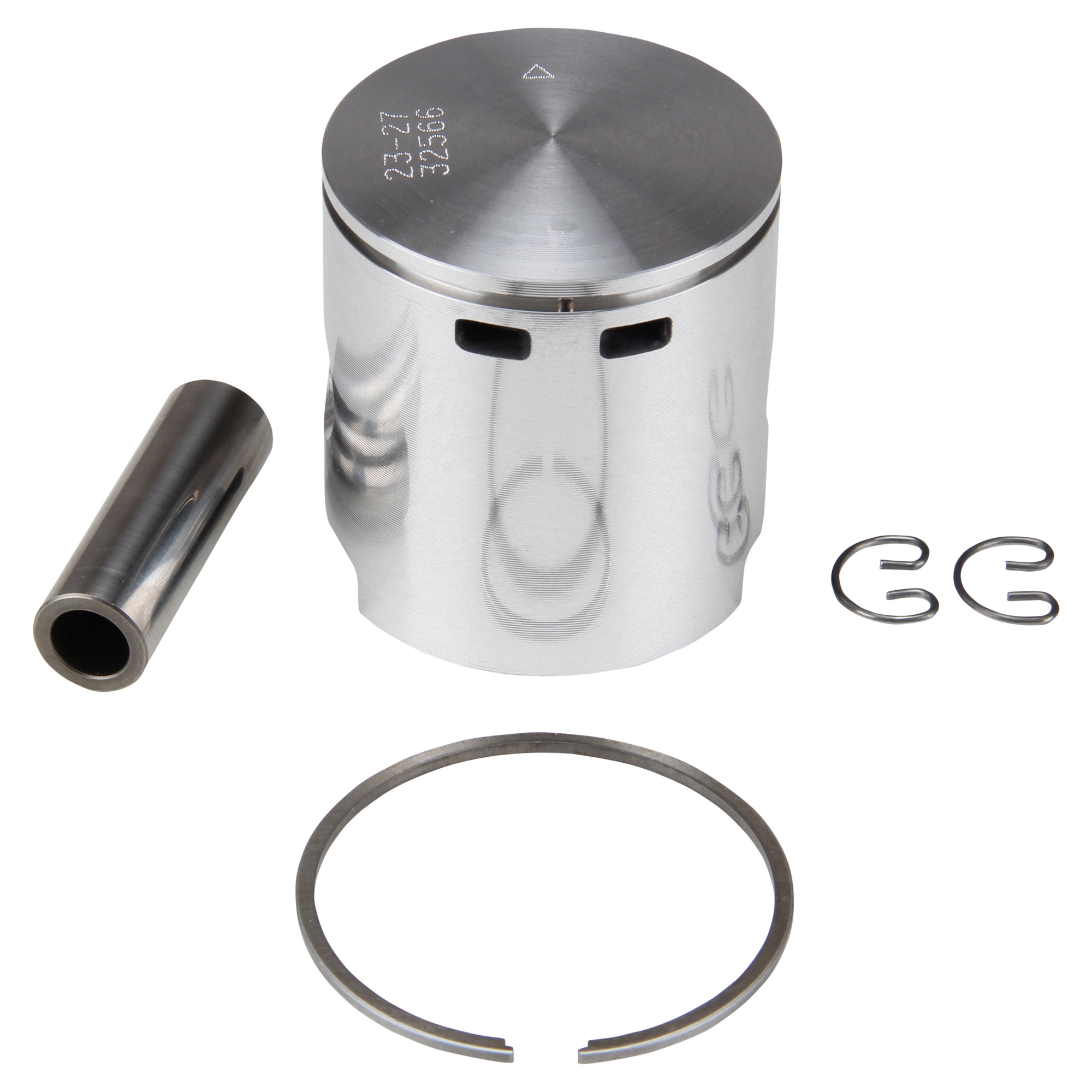

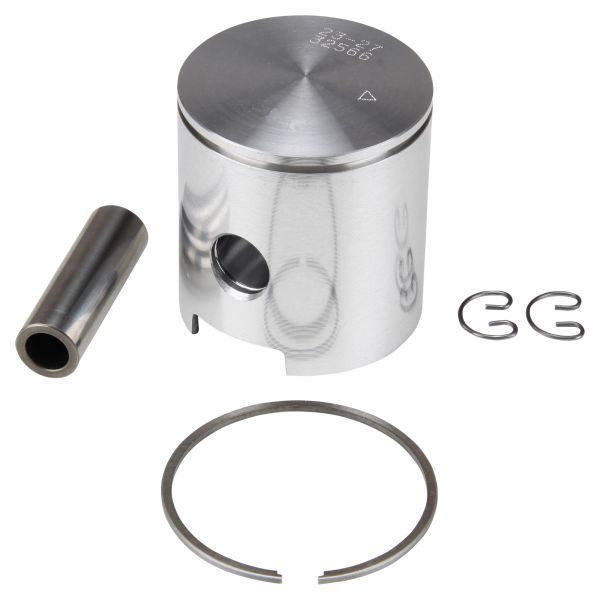

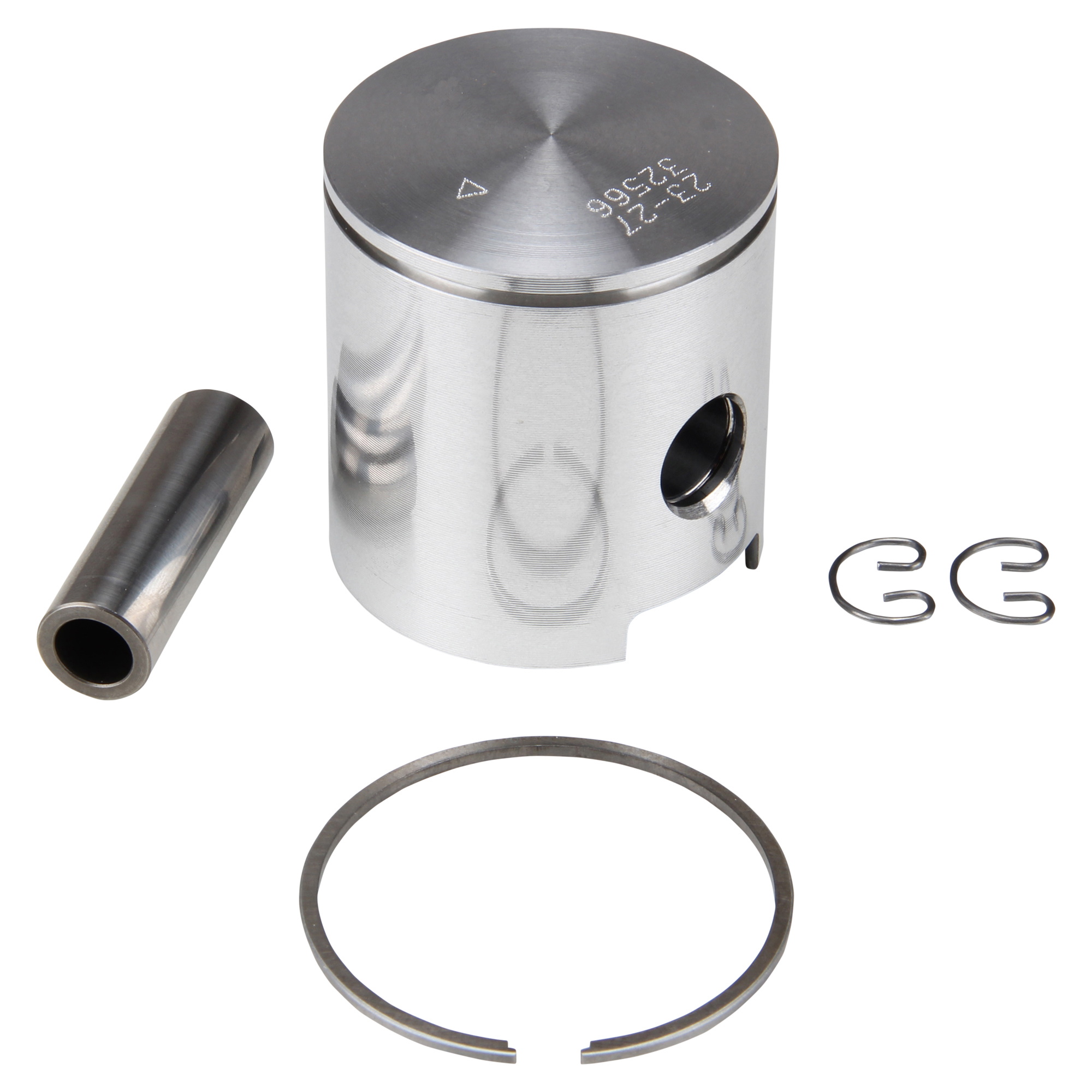

Scope of delivery:	Piston, Piston clips, Piston pin, Piston ring

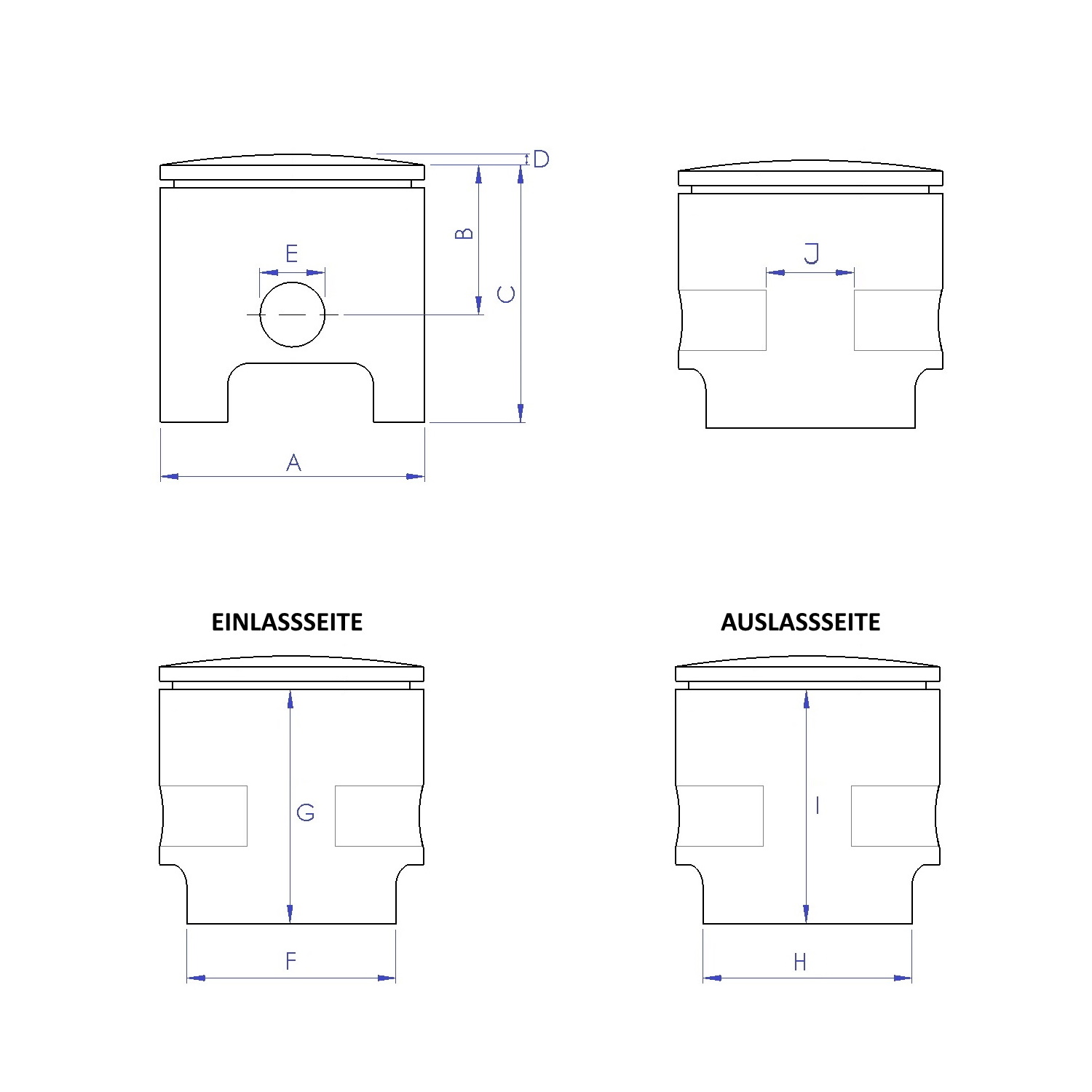

Dimension C (piston height):	50 mm
Dimension J (max. needle bearing width):	15.5 mm
Dimension E (piston pin diameter):	12 mm
Dimension D (curvature):	1.5 mm
Piston ring dimension:	39 x 1.5 mm
Dimension F (piston skirt width inlet side):	33 mm
Dimension A (piston diameter):	38.97 mm
Dimension B (compression height):	26 mm
Note:	With two 3.5x7mm piston window bores / piston ring chrome-plated.
Piston ring shape:	B (groove for center locking pin)
Piston ring profile:	Rectangular ring
Bolt length:	32 mm
Piston ring width:	1.8 mm
Bolt diameter:	12 mm
Cylinder bores:	39 mm
ATTENTION!:	TUNING: Not permitted in the area of the StVZO!
Dimension G (piston skirt length inlet side):	46.5 mm
Dimension I (piston skirt length outlet side):	46.5 mm
Tuning & Styling Part:	Yes
Vintage part:	Yes
Dimension H (piston skirt width outlet side):	32 mm
GTIN:	4251048859938
OE/OEM reference number(s):	Athena 003002.C, Athena S4C03900001C
Dimension C + D (total height):	51.5 mm
Color:	Silver
Piston diameter:	39 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	S4C03900001C
Country and region of manufacture:	Italy
Product type:	Piston set
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston ring + piston pin + piston clips
Manufacturer warranty:	2 years
Weight:	0.083 kg
Material:	Aluminum alloy
Suitable for:	50 cc
