Preview: Schaltzug schwarz für Zündapp ZD 10 Typ 446-210 211 / ZD 30 Typ 446-200 201 (446-17.616)

Schaltzug schwarz für Zündapp ZD 10 Typ 446-210 211 / ZD 30 Typ 446-200 201 (446-17.616)

Schaltzug schwarz für Zündapp ZD 10 Typ 446-210 211 / ZD 30 Typ 446-200 201

Bewerten

€6.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Item no: 446-17.616
EAN: 4060861183126
Manufacturer: Citomerx
Manufacturer no.: 446-17.616

Zündapp Original-/Vergleichsnummer: 446-17.616 TECHNISCHE DATEN: - Produktart: Schaltzug... more

Close menu

Zündapp Original-/Vergleichsnummer: 446-17.616

TECHNISCHE DATEN:
- Produktart: Schaltzug
- Farbe: Schwarz
- Einbauposition: Links
- Material Hülle: PVC
- Material Seil: Stahl
- Länge Hülle: 900 mm
- Länge Seil (Gesamtlänge): 1100 mm
- Durchmesser Hülle: 5,9 mm
- Durchmesser Seil: 1,5 mm

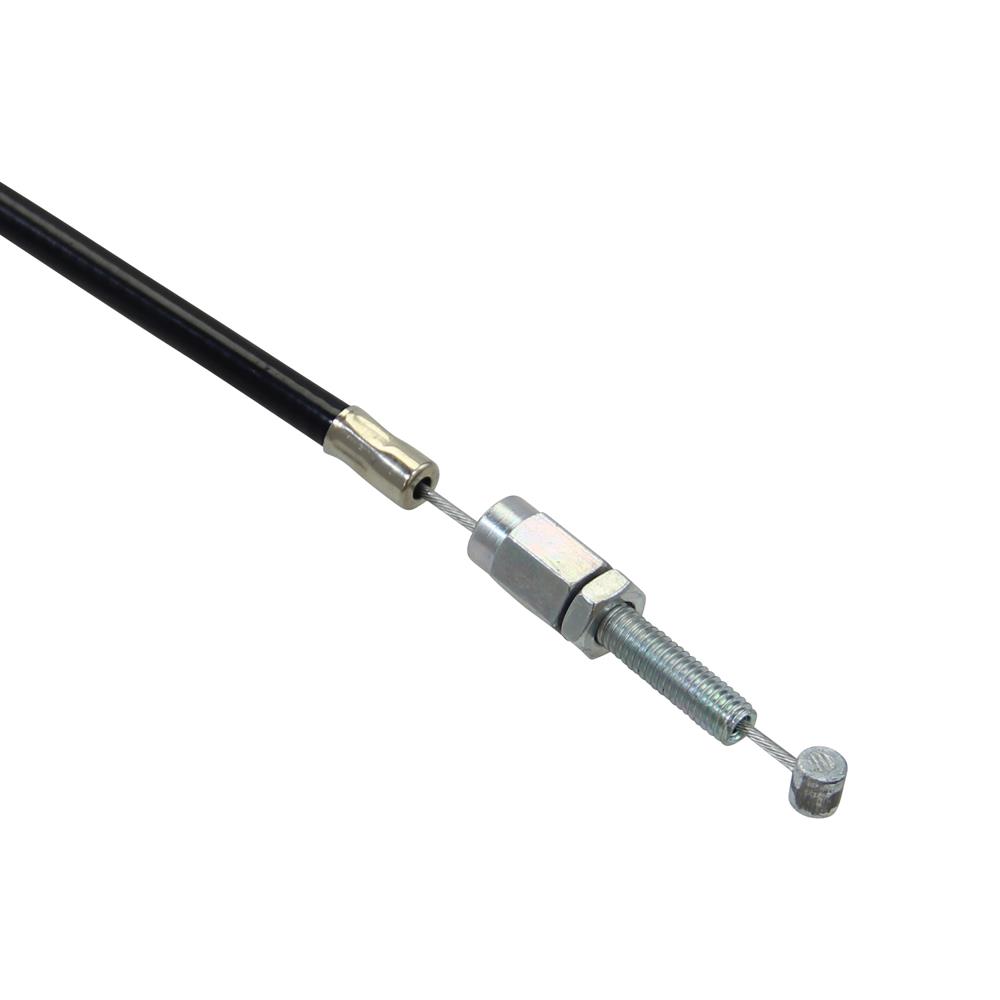

- Aufnahme 1: Tonnennippel Ø6 x 6 mm

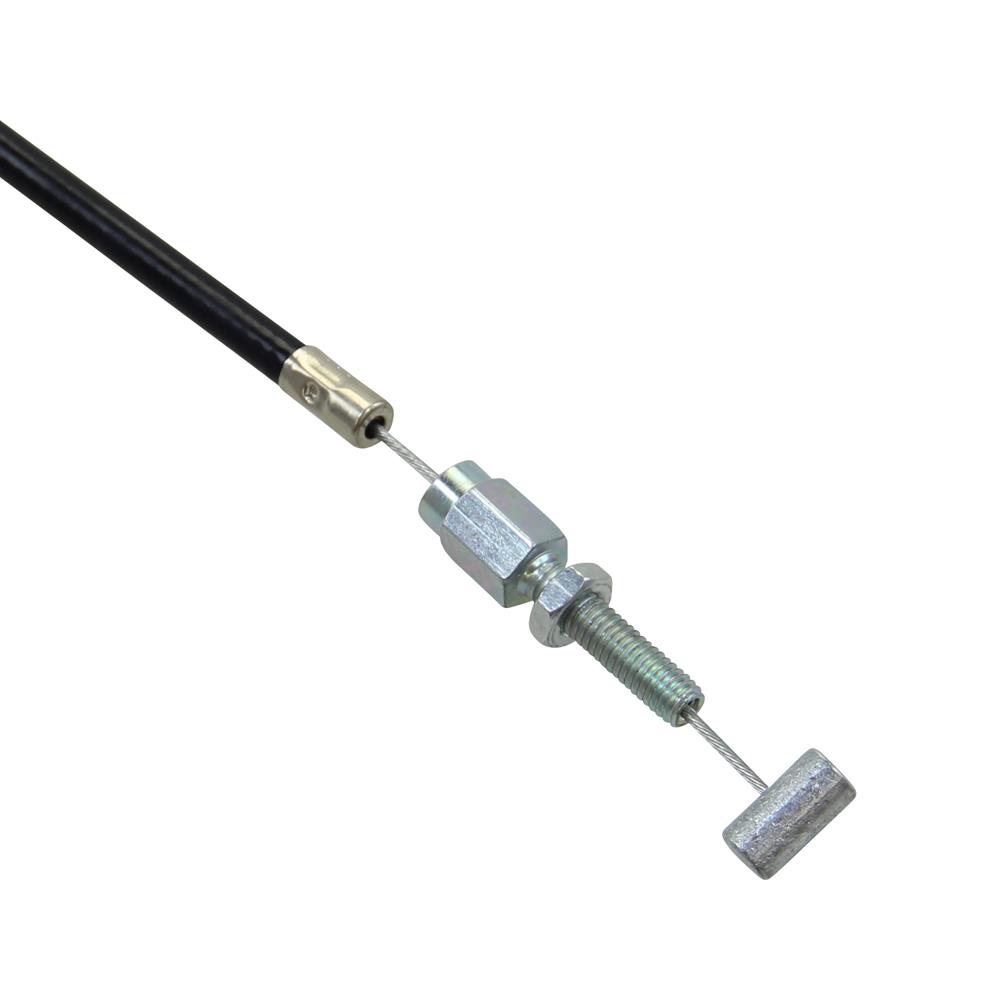

- Aufnahme 2: Tonnennippel Ø7,8 x 14,5 mm
- Bowdenzugspanner: 2x M6-Gewinde
- Bowdenzug Öler: Nein
- Hinweis: Bitte Aufnahmen und Länge vergleichen!

LIEFERUMFANG:
- 1x Schaltzug

ZD 30 Typ 446-200 (bis 9235092) BING 15mm / 118mm Trommel
ZD 30 Typ 446-200 (ab 9235093 - 9744036) BING 15mm / 120mm Trommel
ZD 30 Typ 446-200 (ab 9744037) Mikuni 13mm / 120mm Trommel
ZD 30 Typ 446-201
ZD 10 Typ 446-210 (bis 9248461) BING 10mm / 118mm Trommel
ZD 10 Typ 446-210 (ab 9248462 bis 9744036) BING 10mm / 120mm Trommel
ZD 10 Typ 446-210 (ab 9744037) MIKUNI 13mm / 120mm Trommel
ZD 10 Typ 446-211

OE/OEM reference number(s):	446-17.616
Rope length (total length):	1100 mm
GTIN:	4060861181740
Cover length:	900 mm
Diameter cover:	5.9 mm
Note:	Please compare recordings and length!
Cover material:	PVC
Rope material:	Steel
Bowden cable oiler:	No
Rope diameter:	1.5 mm
Recording 2:	Barrel nipple Ø7.8 x 14.5 mm
Recording 1:	Barrel nipple Ø6 x 6 mm
Bowden cable tensioner:	2x M6 thread
Color:	Black
Features:	Simple installation
Scope of delivery:	1x shift cable
Manufacturer number:	168251
Country and region of manufacture:	China
Installation position:	Links
Product type:	Shift cable
Type of motorcycle:	Road motorcycle
Manufacturer warranty:	2 years
