Cylinder kit 70ccm Superterm 6 channels for Zündapp
Bewerten
€247.90 *
Content:
1 piece
Prices incl. VAT plus shipping costs
Free shipping!
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
- Item no: 003100
- EAN: 8052204292103
- Manufacturer: Athena
- Manufacturer no.: 003100
Are you looking for spare parts for the restoration of your Zündapp bike? Then your search has... more
Product information about Cylinder kit 70ccm Superterm 6 channels for Zündapp
Are you looking for spare parts for the restoration of your Zündapp bike? Then your search has come to an end here!
DESCRIPTION:
In 1917, Fritz Ludwig Neumeyer founded Zünder Apparatebau-Gesellschaft m. b. H., which was one of the largest German motorcycle manufacturers. In the period from 1921 to 1984, practical utility motorcycles were built until 1958 in Nuremberg and later in Munich. Today the company is better known as Zündapp-Werke GmbH.

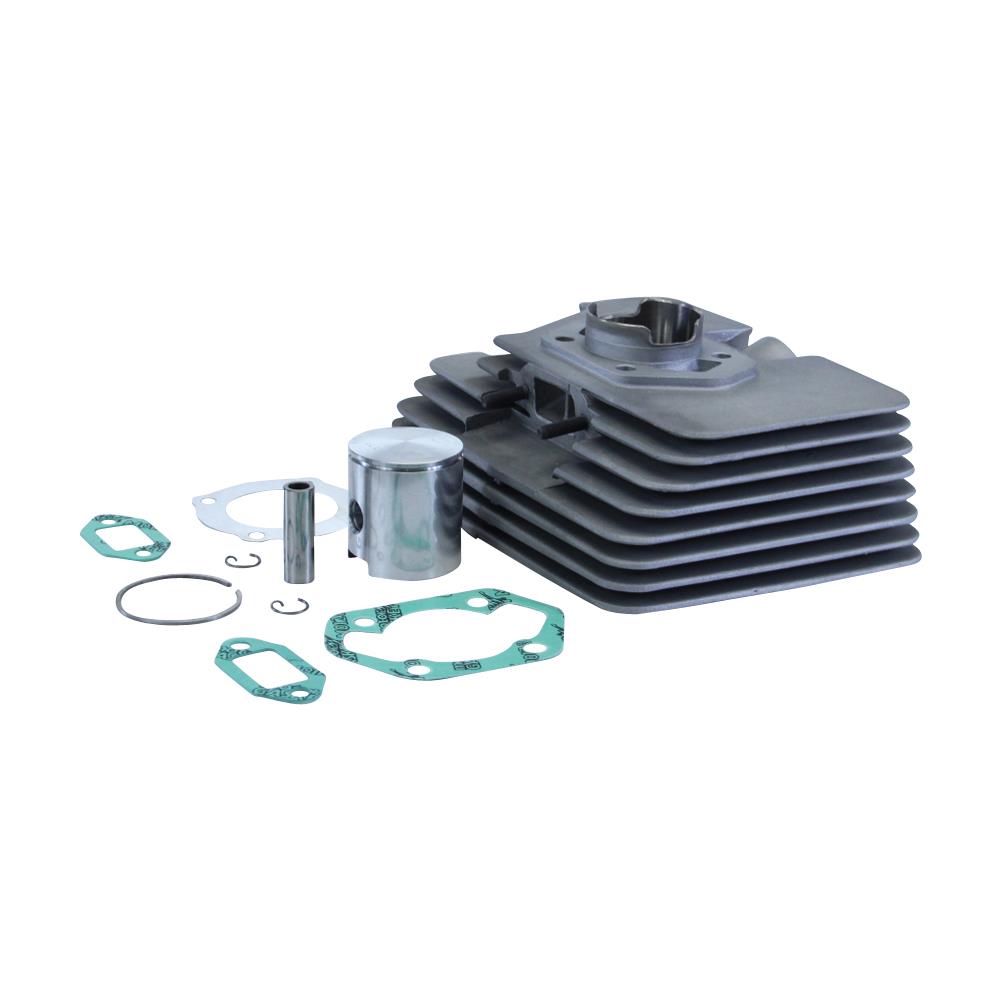

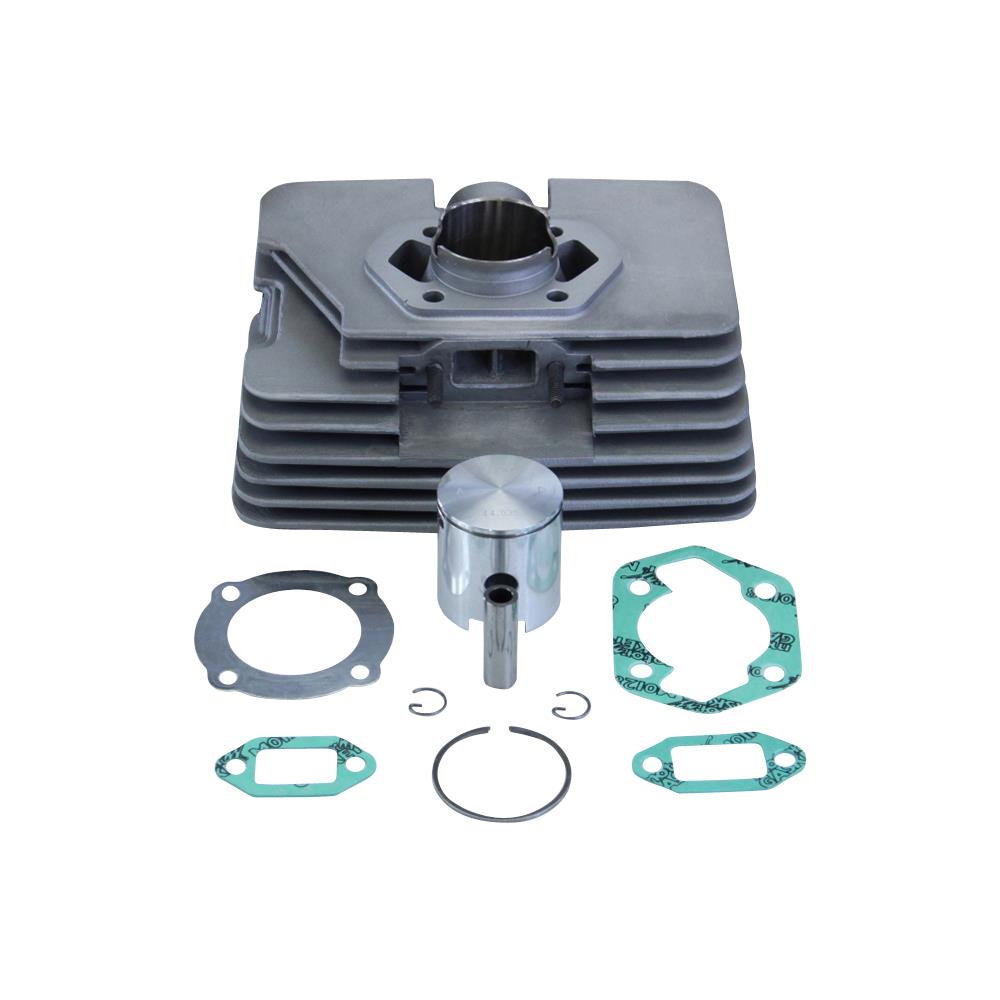

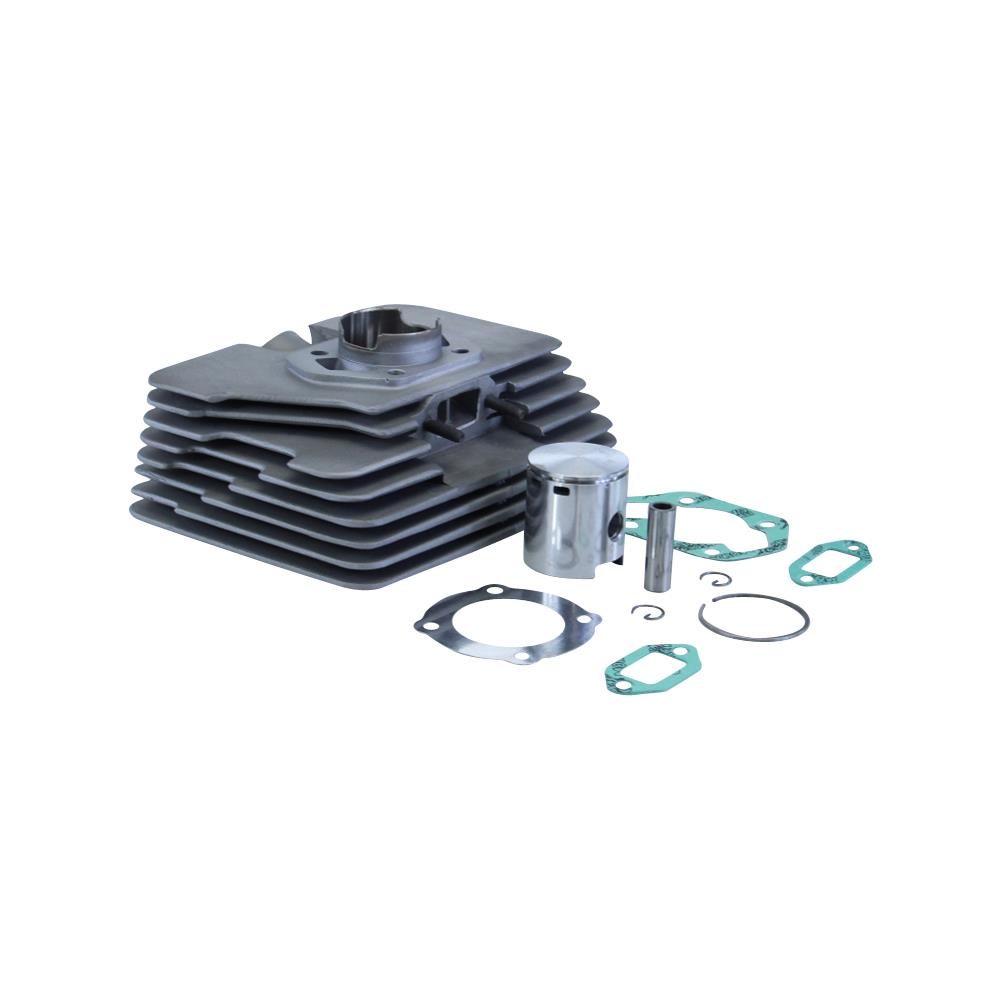

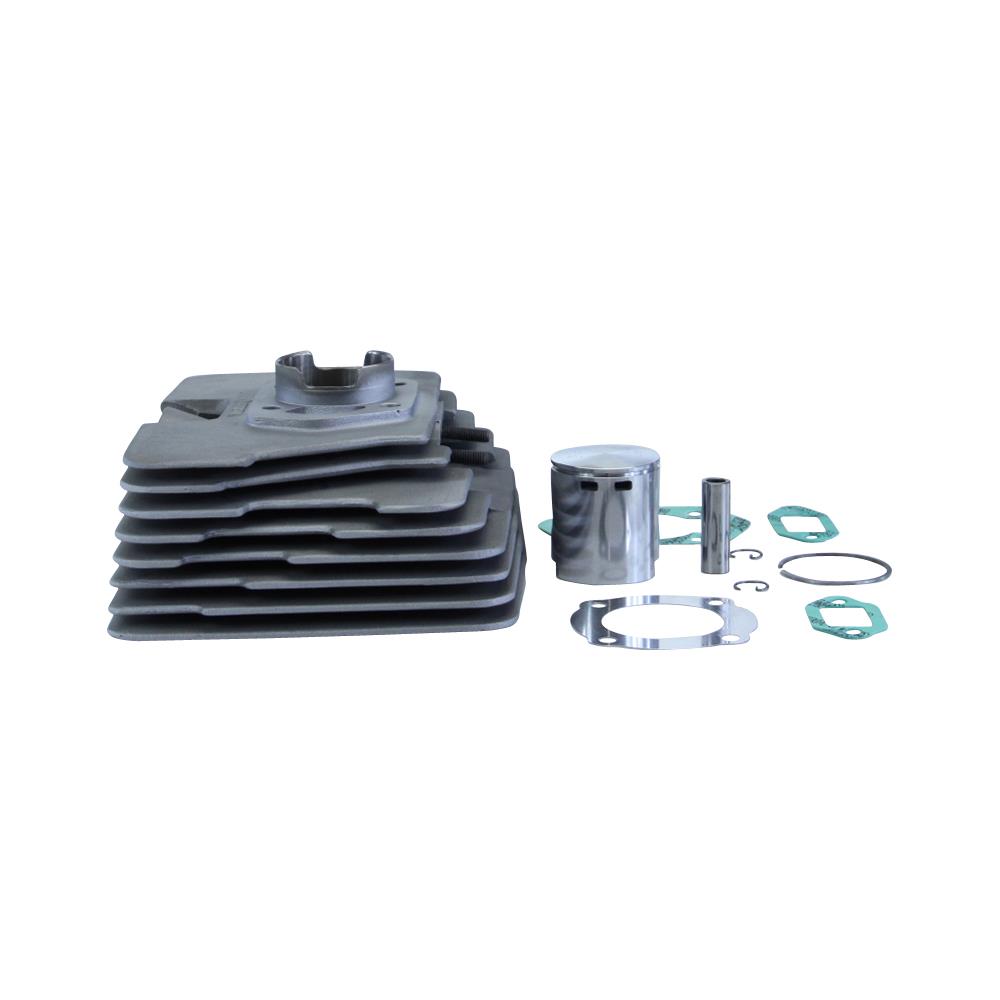

This Superterm Tuning cylinder kit is suitable for many Zündapp two-wheelers. It has a displacement of 70 ccm and a cylinder bore of 45 mm. The kit includes the cylinder, a high quality gasket set and a piston set. The cylinder is one of the most important parts of the engine. Here the complete combustion process takes place, by which the vehicle is driven.
TECHNICAL DATA:
- Cylinder Kit Athena Superterm 70cc Aluminium
- cylinder bore: 45mm
- Cylinder foliage web Nicasil-coated
- Outlet: 26mm or 36mm
- Inlet: 17mm x 30mm
- Stud bolt inlet: M6, distance 45mm
- Drill holes for cylinder studs: 8mm
- Piston with a piston ring and gudgeon pin clips
- piston pin diameter: 12mm
- inclusive gasket set: 1x cylinder head gasket metal, 1x cylinder foot gasket paper, 2x intake gasket paper
SCOPE OF DELIVERY:
✔ 1x cylinder kit
DESCRIPTION:
In 1917, Fritz Ludwig Neumeyer founded Zünder Apparatebau-Gesellschaft m. b. H., which was one of the largest German motorcycle manufacturers. In the period from 1921 to 1984, practical utility motorcycles were built until 1958 in Nuremberg and later in Munich. Today the company is better known as Zündapp-Werke GmbH.
This Superterm Tuning cylinder kit is suitable for many Zündapp two-wheelers. It has a displacement of 70 ccm and a cylinder bore of 45 mm. The kit includes the cylinder, a high quality gasket set and a piston set. The cylinder is one of the most important parts of the engine. Here the complete combustion process takes place, by which the vehicle is driven.
TECHNICAL DATA:
- Cylinder Kit Athena Superterm 70cc Aluminium
- cylinder bore: 45mm
- Cylinder foliage web Nicasil-coated
- Outlet: 26mm or 36mm
- Inlet: 17mm x 30mm
- Stud bolt inlet: M6, distance 45mm
- Drill holes for cylinder studs: 8mm
- Piston with a piston ring and gudgeon pin clips
- piston pin diameter: 12mm
- inclusive gasket set: 1x cylinder head gasket metal, 1x cylinder foot gasket paper, 2x intake gasket paper
SCOPE OF DELIVERY:
✔ 1x cylinder kit
Eigenschaften
Can the original cylinder head be used?: | Yes |
Scope of delivery: | Cylinder, Gasket set, Piston, Piston rings |
Outlet Outer dimension: | 36 mm |
Inlet stud spacing: | 45 mm |
Inlet stud bolt thread: | M6 |
Piston ring profile: | Rectangular ring |
Piston special feature: | With two 3.5x7mm piston window bores / piston ring chrome-plated. |
Manifold connection type: | Clamp/plug |
ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
Cylinder special feature: | Nikasil-coated piston track |
Inlet inside dimension: | 17 x 30 mm, square |
Cylinder dimensions (LxWxH): | 160 x 200 x 90 mm |
Cylinder stud distance: | 45 x 45 mm |
Cylinder stud bore: | 8 mm |
Piston pin diameter: | 12 mm |
GTIN: | 8052204292103 |
Surface finish: | Matt |
Comparison number: | Athena 003100 |
Displacement: | 70 ccm |
Number of overflows: | 6 |
Vintage part: | Yes |
Tuning & Styling Part: | Yes |
Diffuser internal dimension: | 27 mm |
Color: | Grey |
Number of piston rings: | 1 |
Features: | Corrosion resistant, Durable |
Engine type: | 2-stroke |
Scope of delivery: | 1x cylinder set |
Manufacturer number: | 003100 |
Country and region of manufacture: | Italy |
Product type: | Cylinder set |
Type of motorcycle: | Moped & Mokick |
Offer package: | Yes |
Units quantity: | 1 |
Description of the package content: | Cylinder + piston + gasket set |
Manufacturer warranty: | 2 years |
Weight: | 2.70 kg |
Material: | Aluminum |
Type: | Tuning |
Suitable for: | Zündapp Supertherm |
