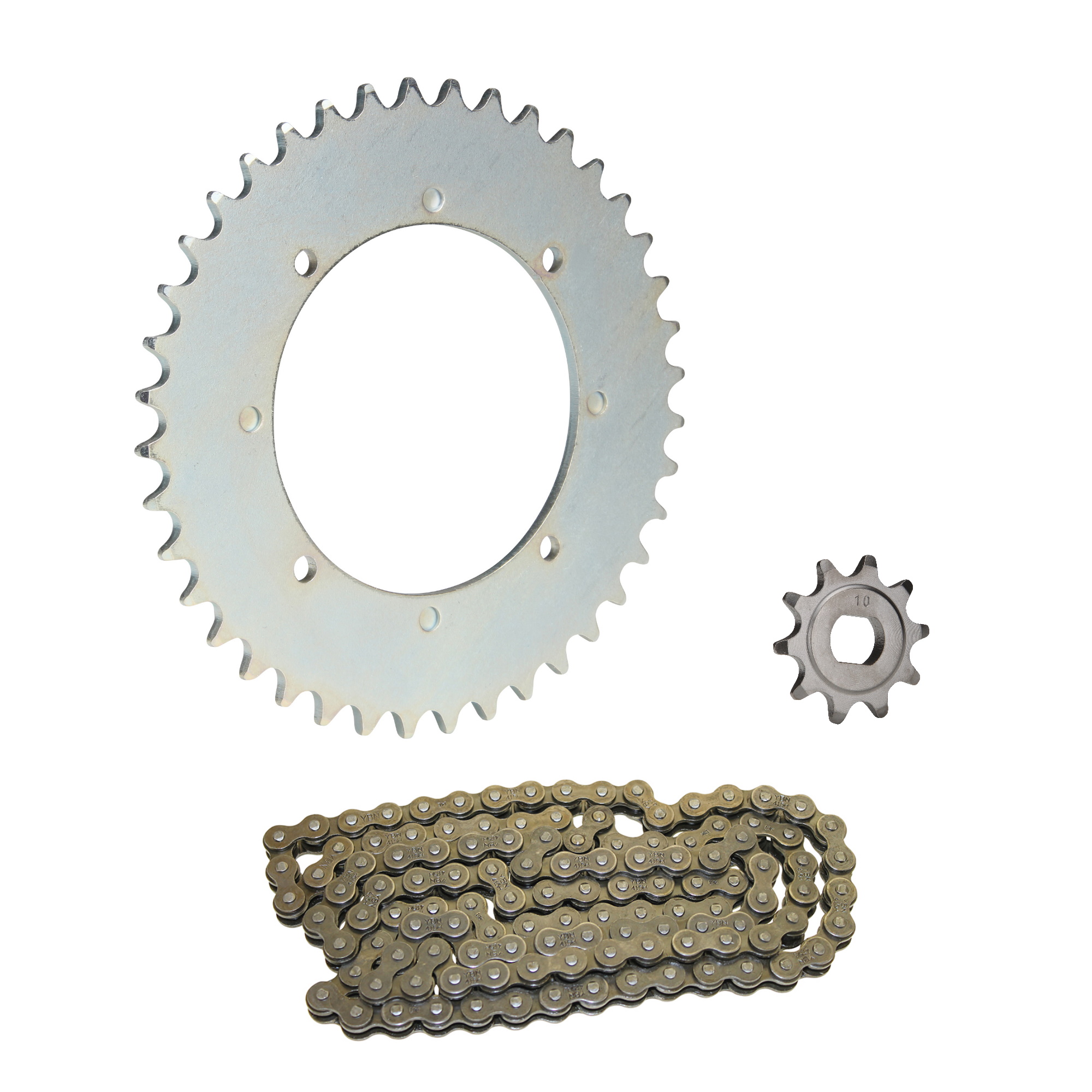

Chain set 3-piece silver 10/46 teeth for Hercules M1 M2 M3 Prima 2
Prices incl. VAT plus shipping costs
Delivery time on request
Further variants / accessories
- Item no: 1280591046106S
- EAN: 4060861200892
- Manufacturer: Citomerx
- Manufacturer no.: 1280591046106S
Hercules M 1 47 Type 506 M 25 km/h / 1-speed automatic 01.10.1972 506 1972-1978 Sachs 504/1 B
Hercules M 1 CH 47 Type 506 M CH (Switzerland) 25 km /h / 1-speed automatic 10/01/1972 506 1972-1978 Sachs 504/1 A CH
Hercules M 2 47 Type 504 M 25 km/h / 1-speed automatic 10/01/1972 504 1972-1978 Sachs 504/1 B
Hercules M 3 47 Type 510 25 km/h / 1-speed automatic 01.11.1972 510 1972-1978 Sachs 504/1 B
Hercules Prima 2 47 N 25 km/h / 1-speed automatic 01.12.1985 504 012 1978-1996 Sachs 504/1 BX
Hercules Prima 2 47 25 km/h / 1-speed automatic 01.12.1985 1978-1996 Sachs 505/2 BY
Hercules Prima 2 47 25 km/h / 1-speed automatic 1978-1996 Sachs 505/2 BY
| GTIN: | 4060861200892 |
| Pinion type: | 0235 |
| Sprocket version: | flat |
| Sprocket total width: | 4.60 mm |
| Sprocket thickness Chainring: | 3/16" (4.60 mm) |
| Pinion total width: | 6.50 mm |
| Sprocket thickness Chainring: | 3/16" (4.60 mm) |
| Pinion Shaft mount shape: | oval |
| Pinion shaft mounting Dimensions: | 12.0 x 15.5 mm |
| Chain length: | 106 links |
| Chains Note: | Chain may need to be shortened! |

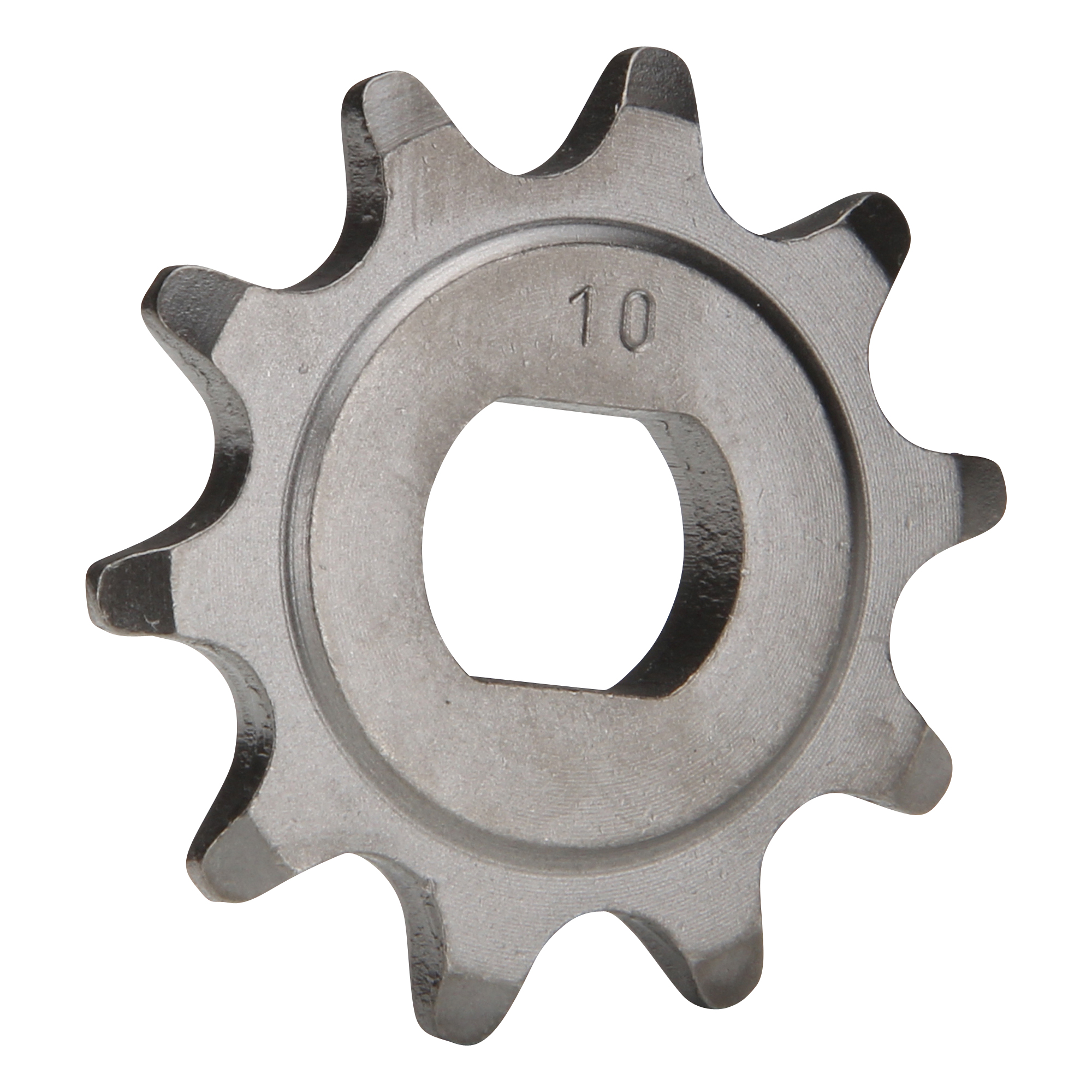

| Pinion Number of teeth: | 10 |

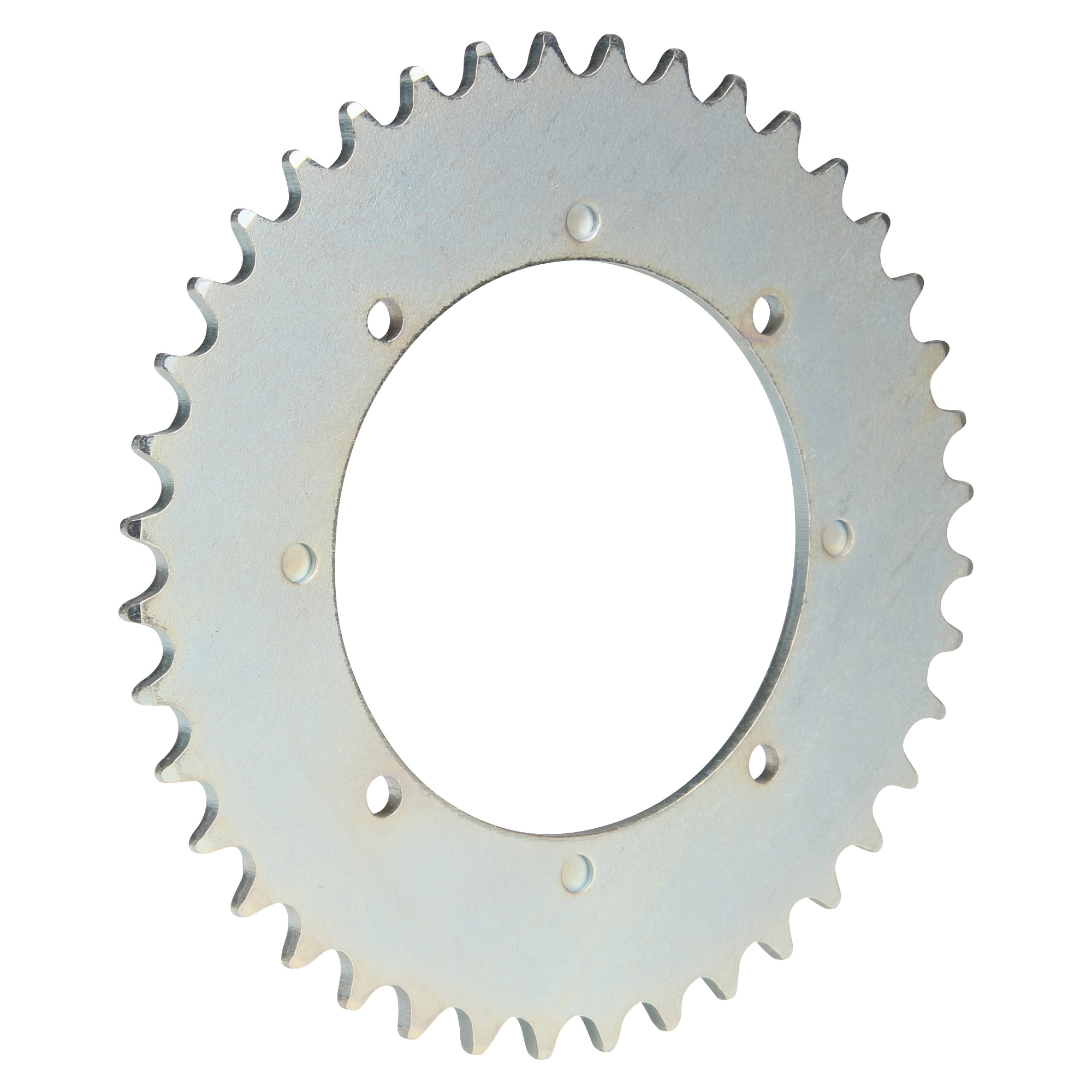

| Sprocket number of teeth: | 46 |
| Sprocket diameter Mounting holes: | 6.50 mm |
| Model compatibility: | Hercules M1 M2 M3 Prima 2 |
| Sprocket inner diameter: | 94.00 mm |
| Sprocket bolt circle: | 107.00 mm |
| Sprocket type: | 1629 |
| Sprocket Number of mounting holes: | 4 |
| Chain type: | Reinforced |
| Compatible year: | not specified |
| Universal compatibility: | No |
| Vintage part: | Yes |
| Chain link length: | 1/2" (12.70 mm) |
| Tuning & Styling Part: | Yes |
| Sprocket tuning note 2: | Fewer teeth -> more top speed / less acceleration |
| Sprocket tuning note 1: | More teeth -> better acceleration / less top speed |
| Pinion tuning hint 2: | Fewer teeth -> better acceleration / less top speed |
| Pinion tuning note 1: | More teeth -> more top speed / less acceleration |
| Division: | 415 (1/2 x 3/16 x 7.75) |
| Note: | Note the original translation! |
| ATTENTION!: | Change in the number of teeth -> Cancellation of operating license! |
| Color: | Silver |
| Scope of delivery: | 1x chain set 10 / 46 / 106 |
| Manufacturer number: | 1280591046106S |
| Country and region of manufacture: | China |
| Brand compatibility: | Hercules |
| Installation position: | Front, Rear |
| Product type: | Chain set |
| Type of motorcycle: | Moped & Mokick |
| Description of the package content: | Sprocket + sprocket + chain |
| Manufacturer warranty: | 2 years |
| Material: | Steel |
