Naraku clutch center springs NK900.46 Sport GY6 - 2 pieces
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Last article - Buy now
- Item no: 6790046
- EAN: 4250362411426
- Manufacturer: Naraku
- Manufacturer no.: NK900.46
In the variator drivetrain, the counter-pressure spring ensures that the V-belt does not slip and also influences the speed at which the variator changes the transmission ratio, i.e. “upshifts”.
If the performance of the vehicle has been increased, a stronger pressure spring must therefore always be installed to prevent the belt from slipping due to the higher tractive force. The shifting characteristics are changed in a similar way to the installation of lighter variator weights and can be further tuned with these.

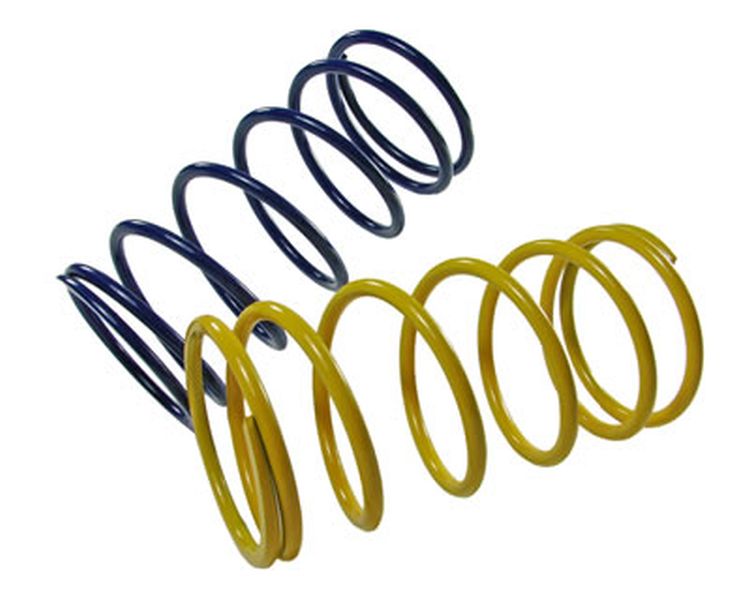

We offer a set of 2 Naraku Sport V.2 counter-pressure springs for tuned 50cc scooters and quads.
TECHNICAL DATA:
- 2 Naraku Sport V.2 compression springs for performance-tuned scooters and quads with GY6, Honda, Piaggio, Peugeot or Kymco 50cc engines
- the increase in shifting speed is printed on the springs (easier to calculate than percentages); here + 1000 rpm and + 1500 rpm
SCOPE OF DELIVERY:
- 1x counter pressure spring 1000rpm
- 1x counter pressure spring 1500rpm
| Product type: | Gegendruckfedern |
| Manufacturer number: | 6790046 |
| Country and region of manufacture: | Taiwan |
| Type of motorcycle: | Scooter, Quad ATV & Trike |
| Manufacturer warranty: | 2 years |
Naraku has been supplying extremely high quality spare and tuning parts for almost all scooters and maxi-scooters for many years. Particular attention is paid to a high accuracy of fit and a high quality level of spare parts. Naraku supplies cylinder kits in OEM quality as well as in various sport variants. In addition, ignitions as well as tuning parts and the entire range of spare parts.
