Preview: Athena Kolben Set 38mm Tol. B 50ccm für Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505 (073902.B)

Athena Kolben Set 38mm Tol. B 50ccm für Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505 (073902.B)

Athena piston set 38mm Tol. B 50ccm for Hercules Prima M 2 3 4 5 Optima Jogging Hobbyrider / Sachs 504 505

Rate

€58.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Only a few left!

Item no: 073902.B
EAN: 4251048883407
Manufacturer: Athena
Manufacturer no.: 073902.B

Close menu

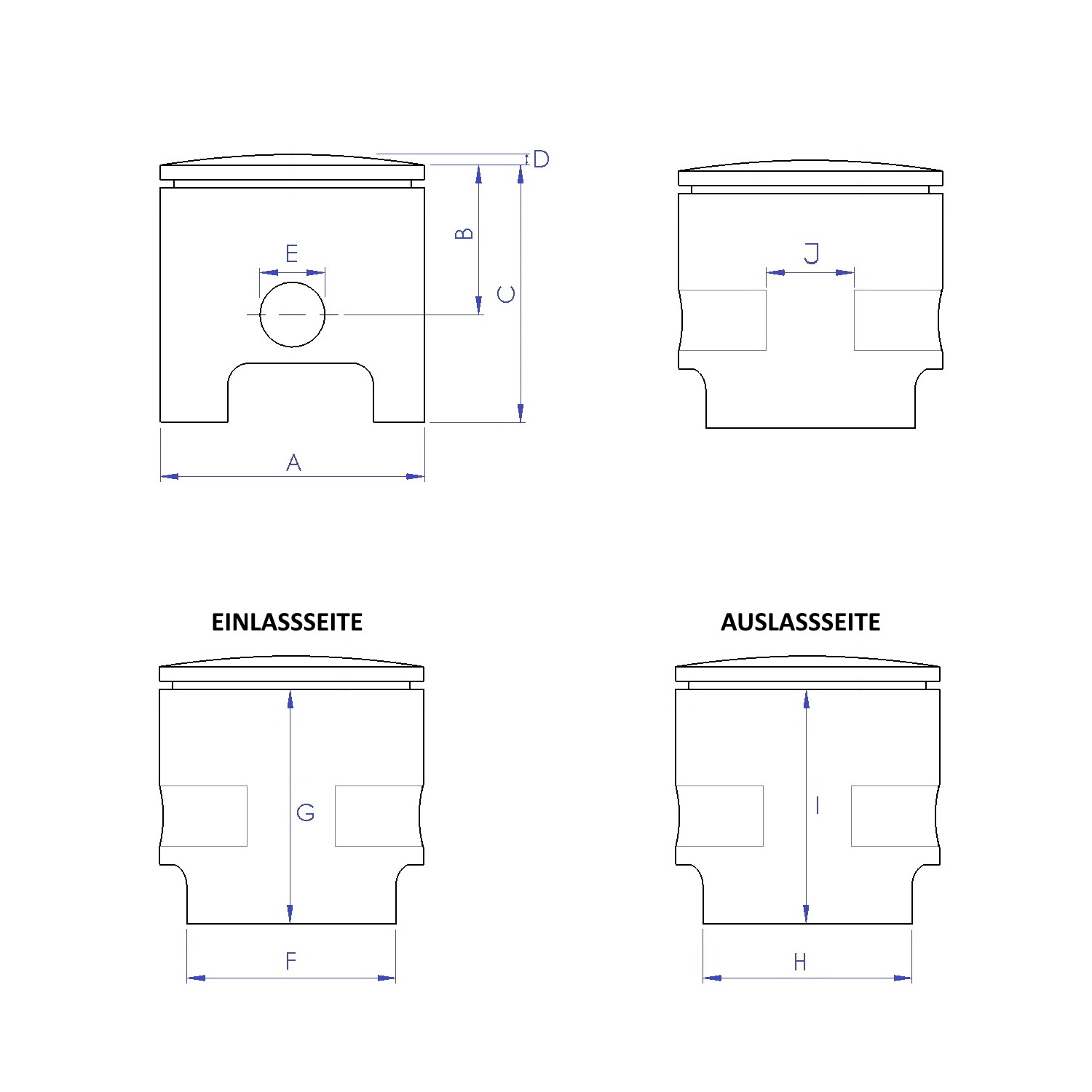

Dimension H (piston skirt width outlet side):	30 mm
Piston ring (bottom) Dimension:	38 x 1.5 mm
Dimension F (piston skirt width inlet side):	34 mm
Piston ring (top) Width:	1.65 mm
Piston ring (bottom) Width:	1.65 mm
Dimension B (compression height):	28 mm
Dimension D (curvature):	3 mm
Dimension C + D (total height):	53 mm
Dimension A (piston diameter):	37.95 mm
Piston ring (top) Shape:	B (groove for center locking pin)
Dimension J (max. needle bearing width):	14.5 mm
Piston ring (top) Profile:	Rectangular ring
Piston ring (bottom) Shape:	B (groove for center locking pin)
GTIN:	4251048883407
OE/OEM reference number(s):	Athena 073902.B
Note:	Piston ring chrome-plated / With two 4.5x10mm piston window bores!
Dimension G (piston skirt length inlet side):	35.5 mm
Dimension I (piston skirt length outlet side):	39 mm
Tolerance size:	B (37.95mm)
Piston ring (top) Dimension:	38 x 1.5 mm
Piston ring (bottom) Profile:	Rectangular ring
Dimension C (piston height):	50 mm

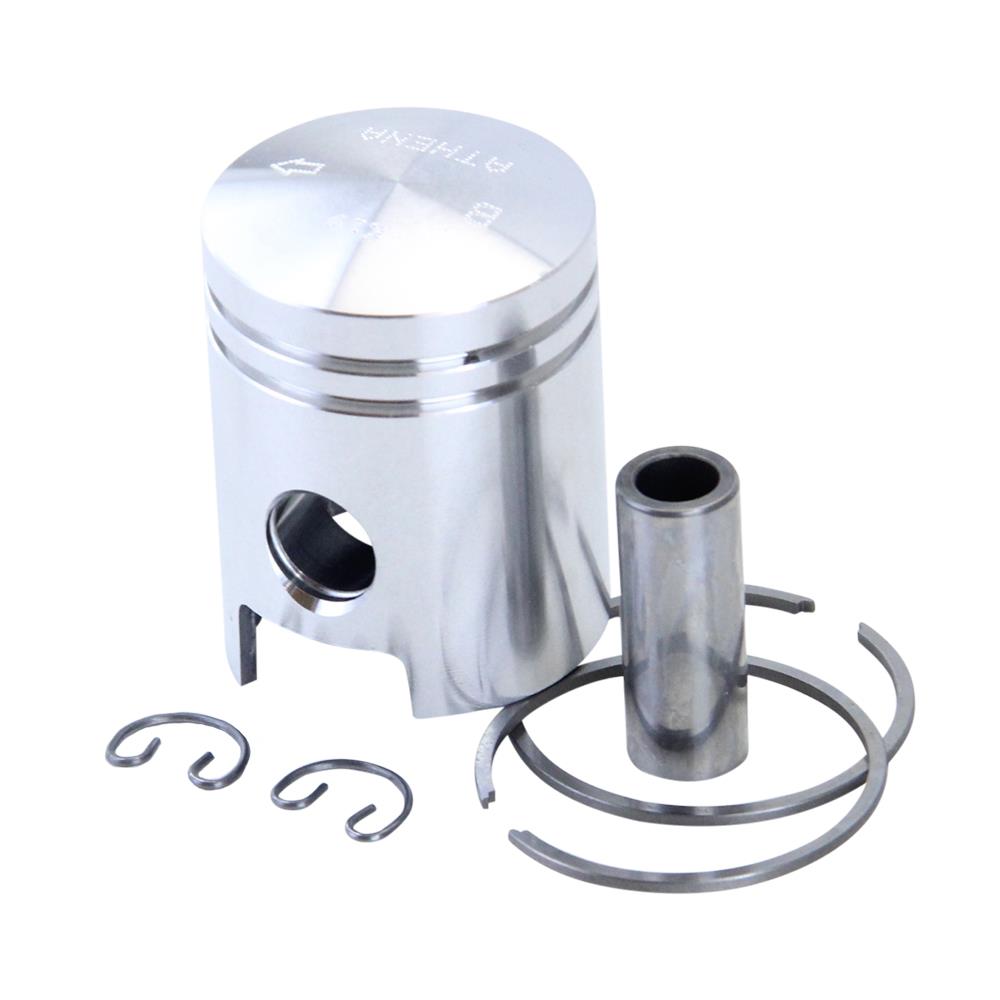

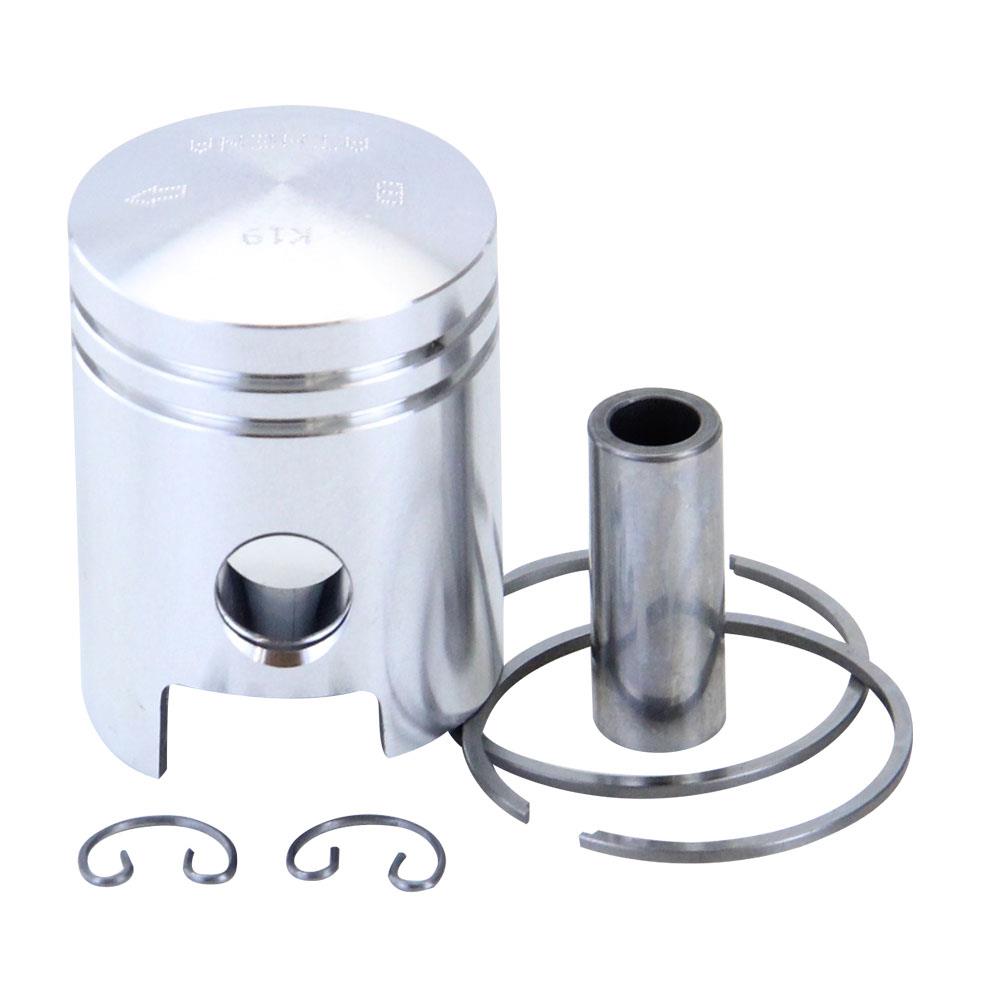

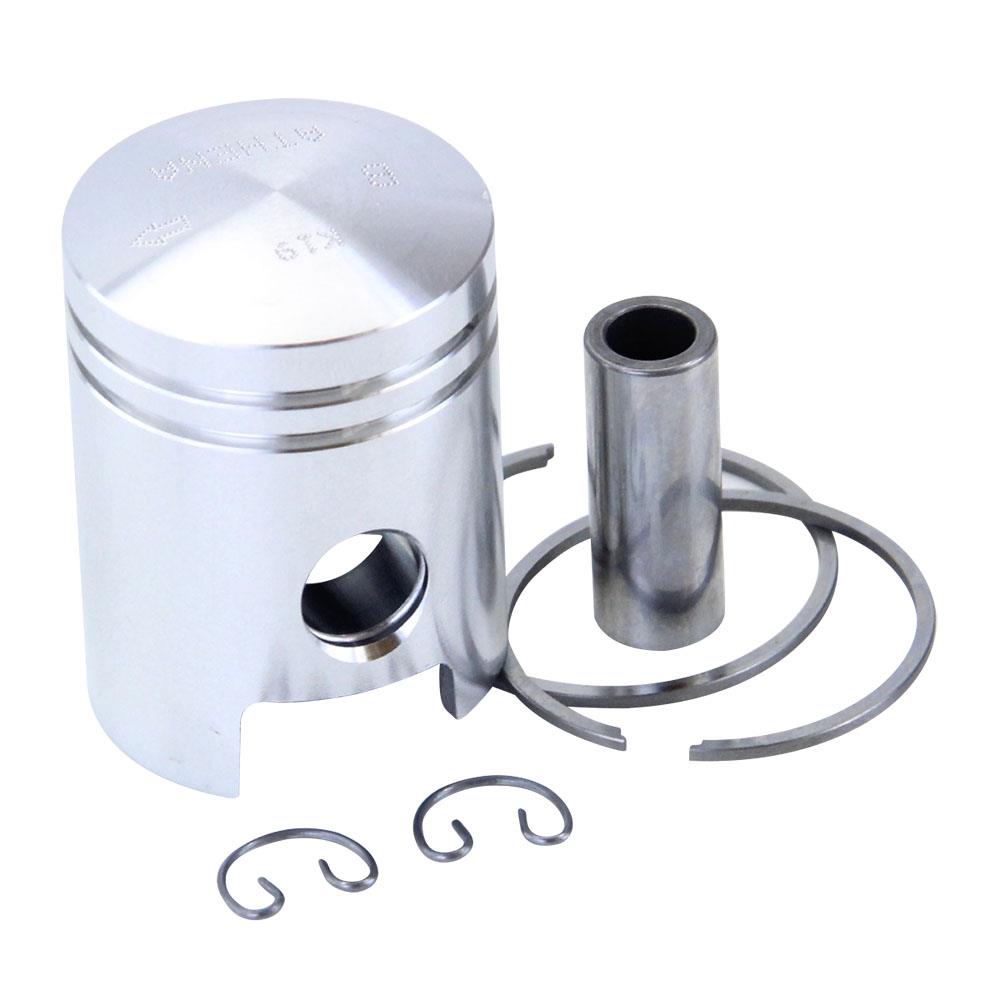

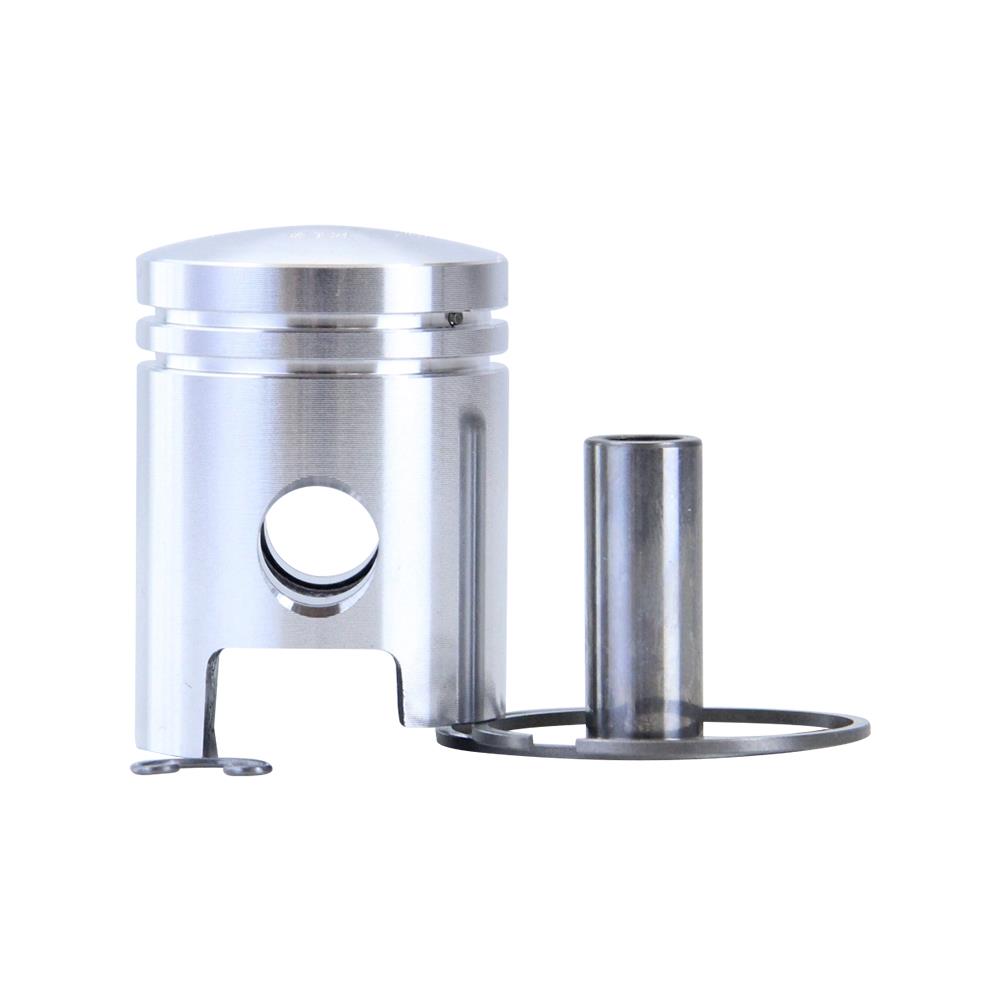

Scope of delivery:	Piston, Piston clips, Piston pin, Piston rings
ATTENTION!:	TUNING: Not permitted in the area of the StVZO!
Dimension E (piston pin diameter):	12 mm
Vintage part:	Yes
Tuning & Styling Part:	Yes
Cylinder bores:	38 mm
Bolt diameter:	12 mm
Bolt length:	31 mm
Color:	Silver
Piston diameter:	38 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	073902.B
Country and region of manufacture:	Italy
Product type:	Piston set
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston rings + piston pin + piston clips
Manufacturer warranty:	2 years
Material:	Aluminum alloy
Suitable for:	50 cc
