Piston set 33mm 30cc for Hercules Saxonette Sachs Spartamet engine 301
€19.90 *
€27.90 *
28.67% saved
Content:
1 piece
Prices incl. VAT plus shipping costs
Delivery time on request
- Item no: 720668
- EAN: 4251048883926
- Manufacturer: Citomerx
- Manufacturer no.: 720668
Hercules Saxonette Sachs Spartamet Sachs 301 engine more

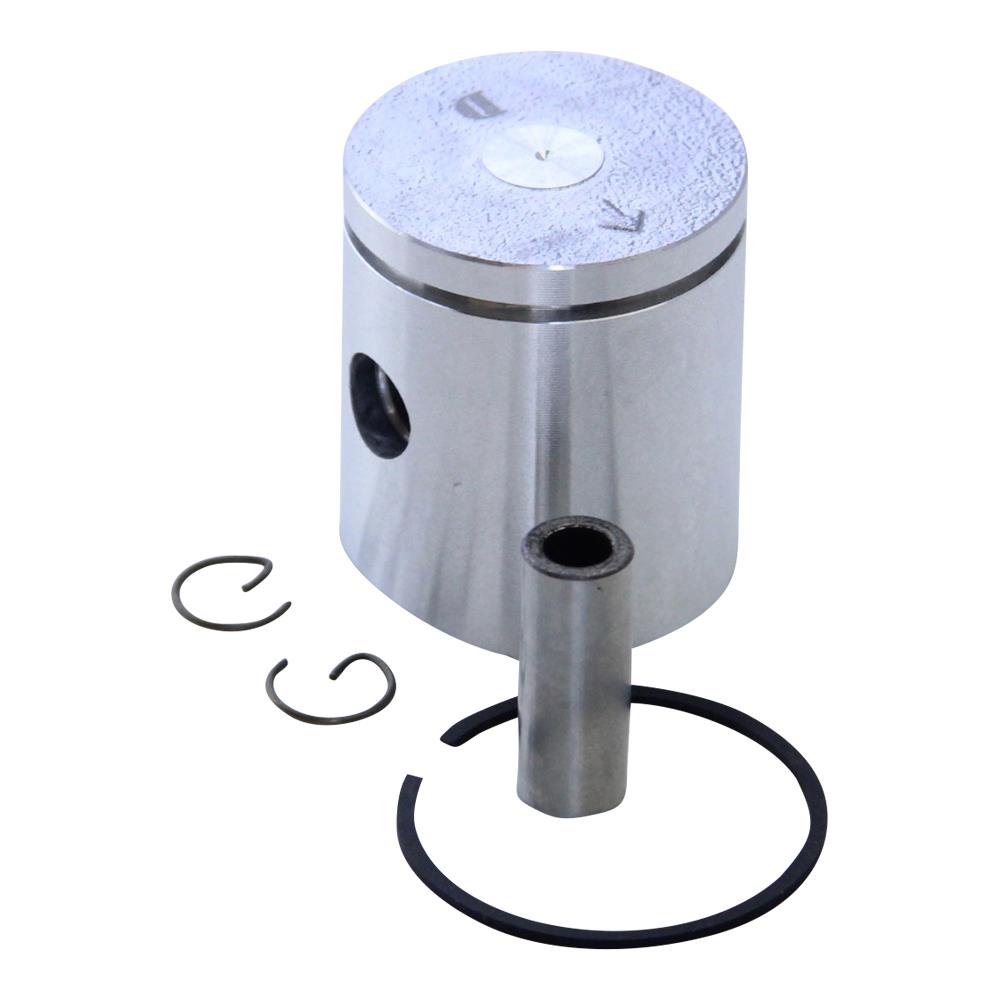

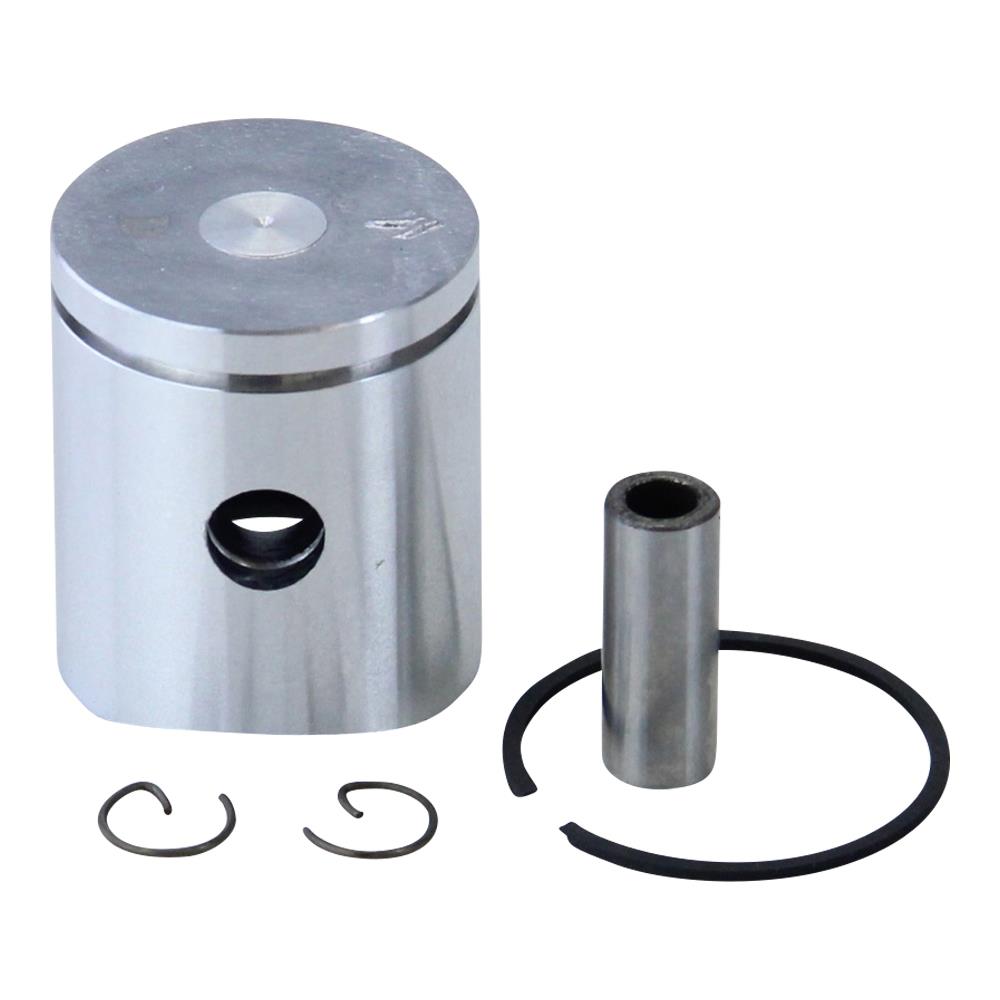

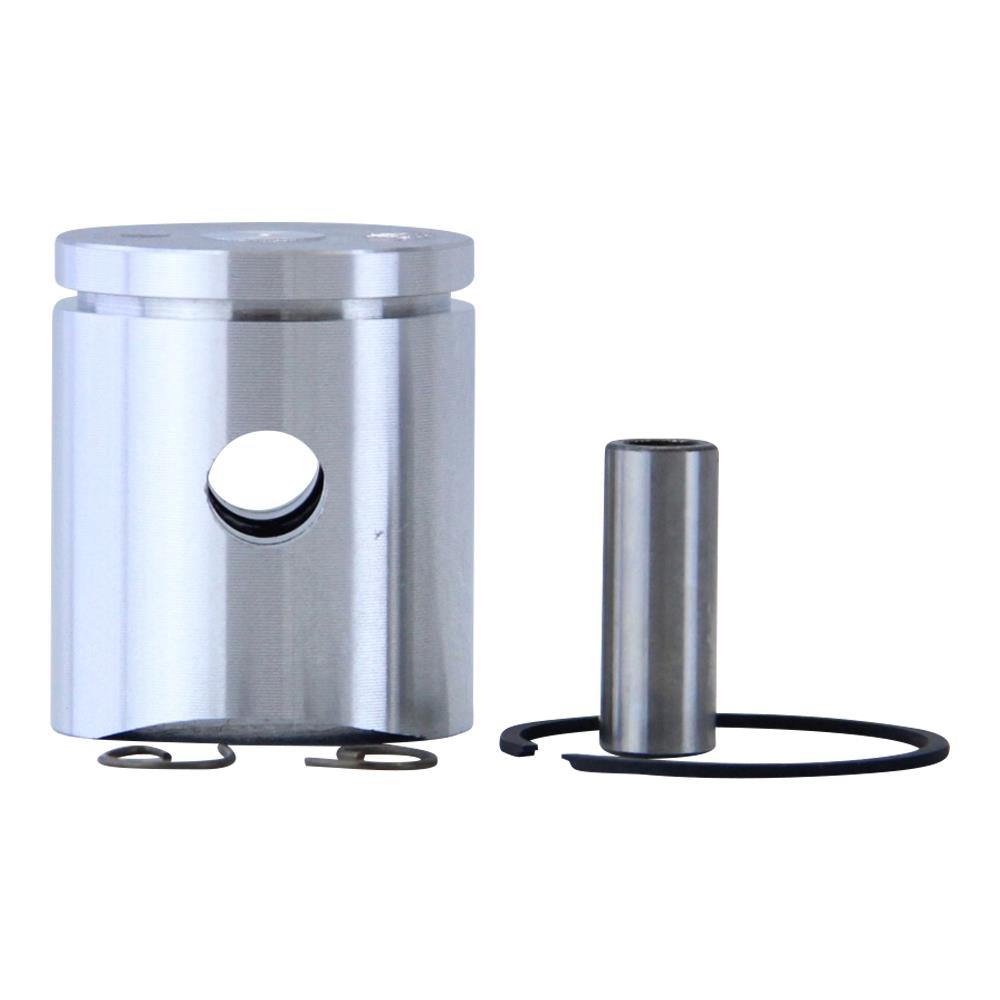

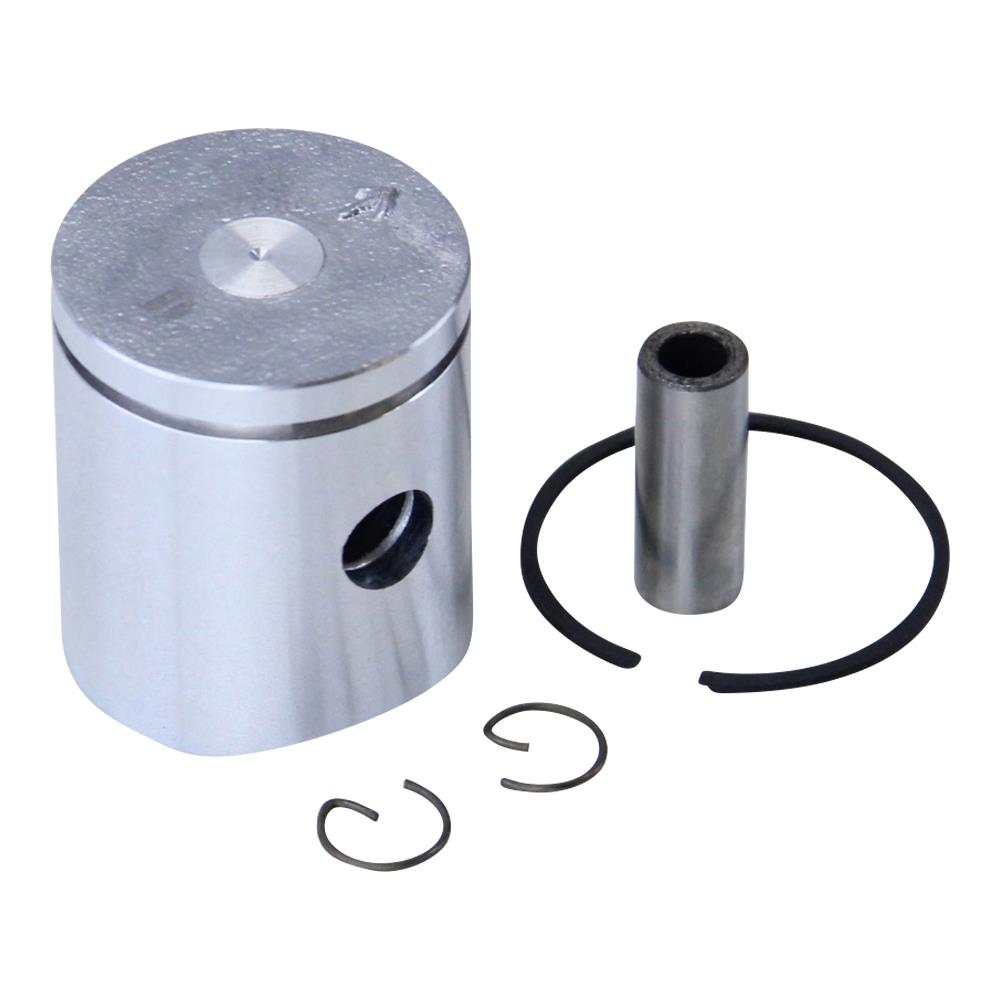

Product information about Piston set 33mm 30cc for Hercules Saxonette Sachs Spartamet engine 301
Hercules Saxonette
Sachs Spartamet
Sachs 301 engine
Eigenschaften
| Tolerance size: | D (32.96mm) |
| Piston ring profile: | Rectangular ring |
| OE/OEM reference number(s): | 2986 001 001, 2986001001 |

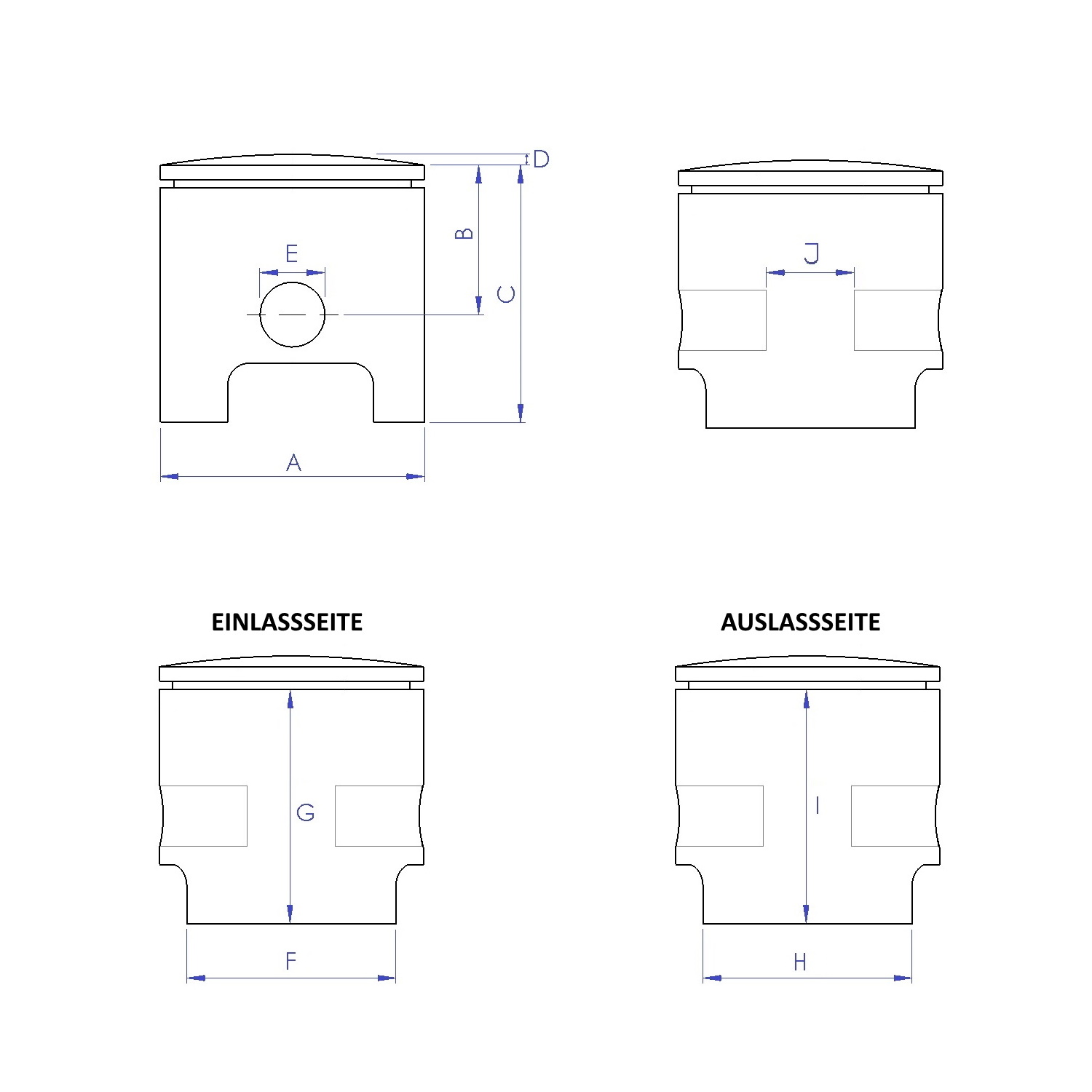

| Dimension I (piston skirt length outlet side): | 38.4 mm |
| Piston ring width: | 1.50 mm |
| Cylinder bores: | 33 mm |
| Bolt diameter: | 9 mm |
| Bolt length: | 24 mm |
| Piston ring shape: | C (groove for locking pin on the edge) |
| Piston ring dimension: | 33 x 1.5 mm |
| Dimension A (piston diameter): | 32.96 mm |
| Dimension B (compression height): | 18.5 mm |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston ring |
| Dimension C (piston height): | 38.4 mm |
| Dimension C + D (total height): | 38.4 mm |
| Vintage part: | Yes |
| Tuning & Styling Part: | No |
| Dimension E (piston pin diameter): | 9 mm |
| Dimension G (piston skirt length inlet side): | 38.25 mm |
| Dimension J (max. needle bearing width): | 13.5 mm |
| GTIN: | 4251048883926 |
| Color: | Silver |
| Piston diameter: | 33 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 720668 |
| Country and region of manufacture: | China |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston ring + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| Suitable for: | 30 ccm |
