Airsal piston set 43.5mm 63ccm for Hercules Prima M 1 2 3 4 5 6 NS Optima Jogging HR2 MX1 C 1 2 3 Sachs 504 505
€62.90 *
€71.90 *
12.52% saved
Content:
1 piece
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 062002435
- EAN: 4251048886620
- Manufacturer: AIRSAL
- Manufacturer no.: 62002435

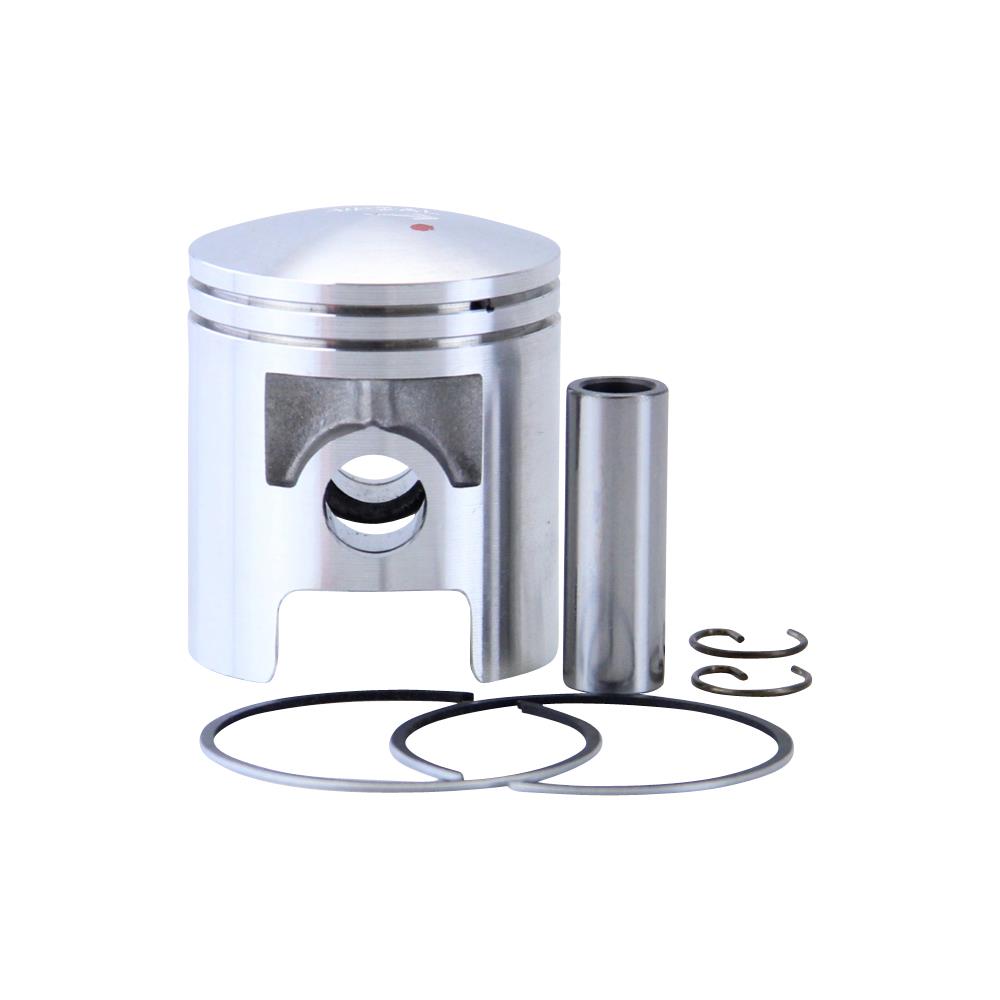

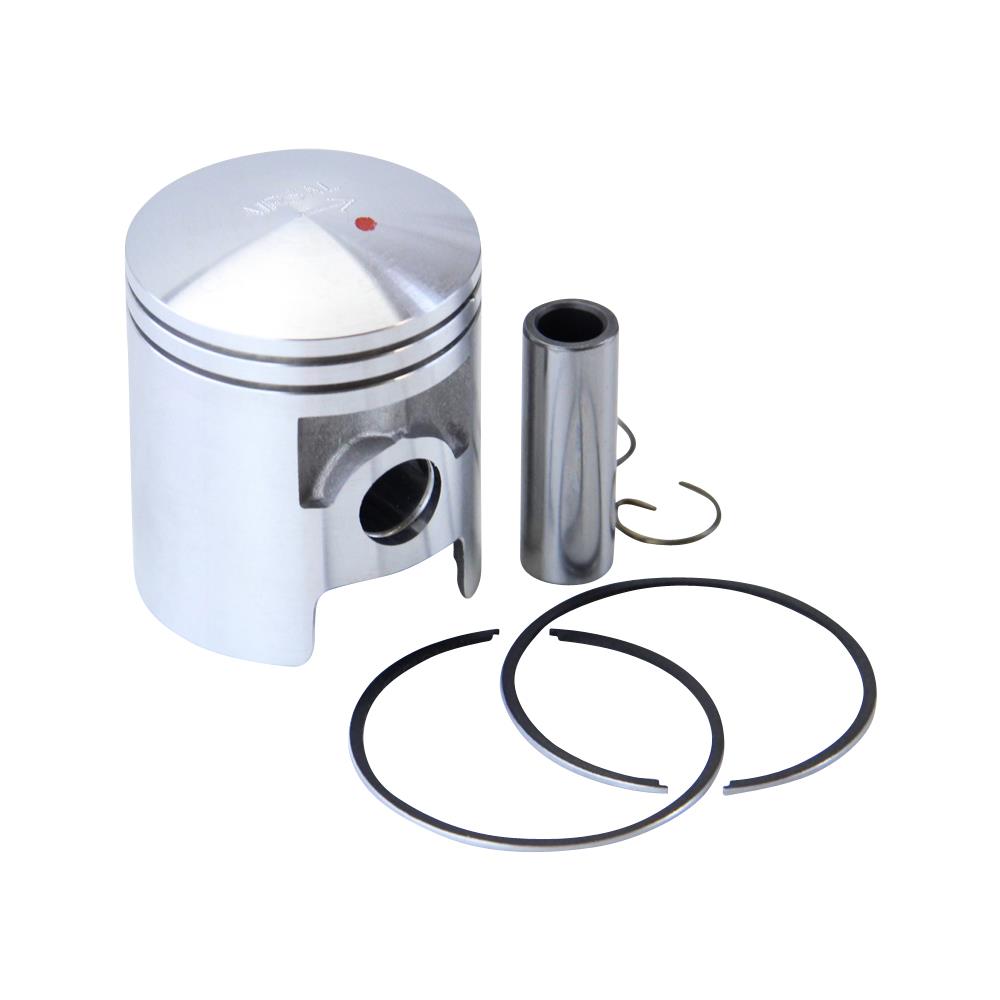

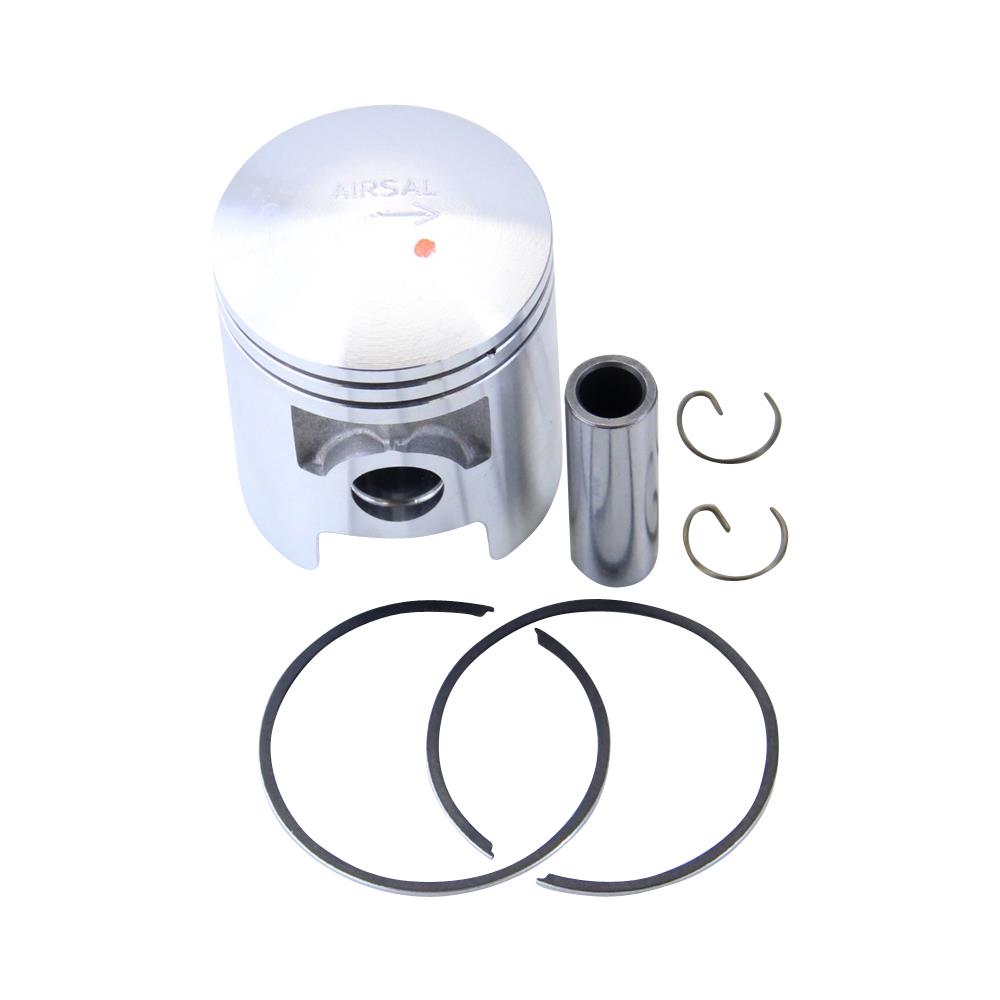

Product information about Airsal piston set 43.5mm 63ccm for Hercules Prima M 1 2 3 4 5 6 NS Optima Jogging HR2 MX1 C 1 2 3 Sachs 504 505
Properties

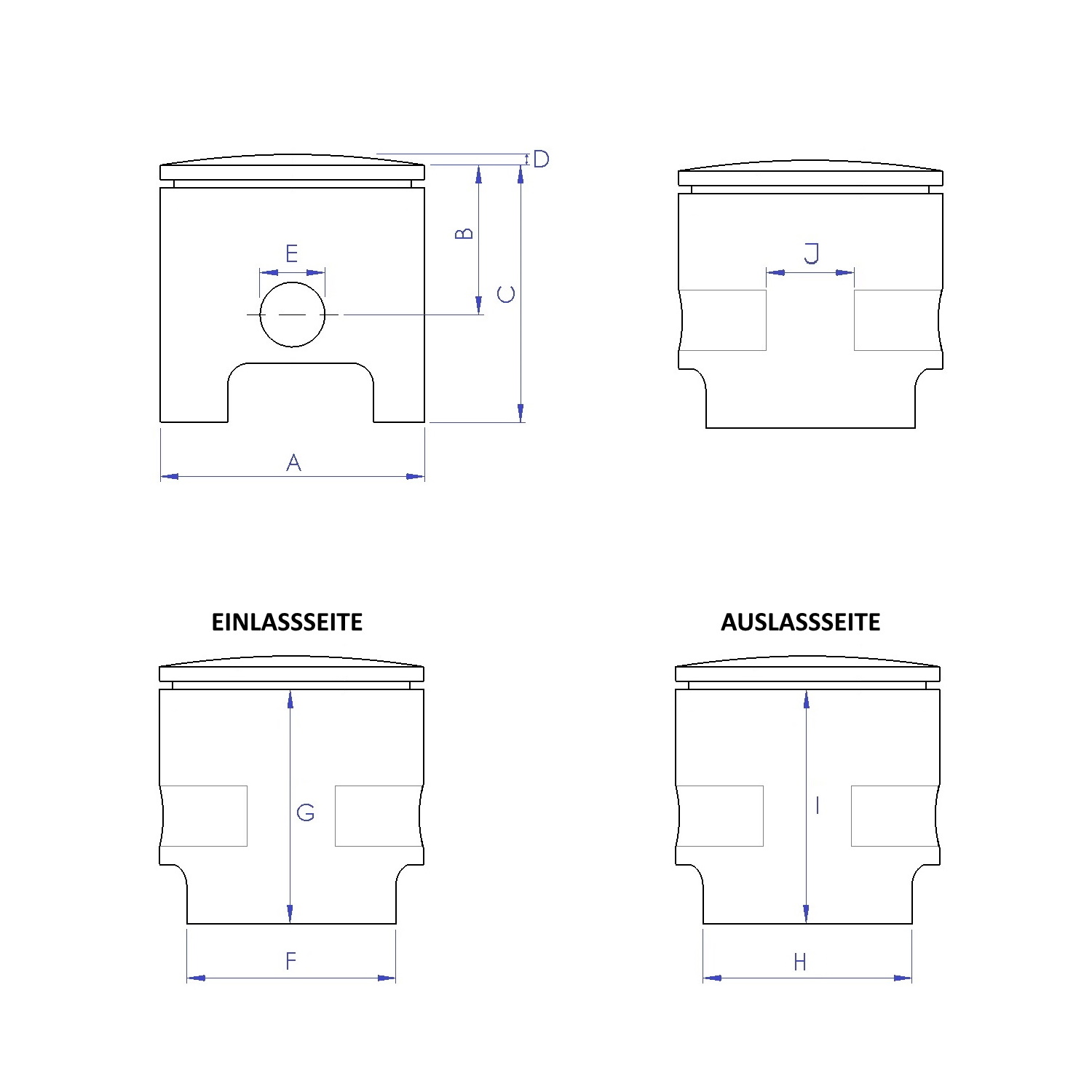

| Dimension H (piston skirt width outlet side): | 37 mm |
| Piston ring (bottom) Dimension: | 43.5 x 1.0 mm |
| Dimension C (piston height): | 48 mm |
| Dimension F (piston skirt width inlet side): | 37 mm |
| Dimension D (curvature): | 4 mm |
| Piston ring (top) Shape: | B (groove for center locking pin) |
| Cylinder bores: | 43.5 mm |
| Piston ring (top) Dimension: | 43.5 x 1.0 mm |
| Piston ring (bottom) Shape: | B (groove for center locking pin) |
| Piston ring (top) Width: | 1.85 mm |
| Piston ring (top) Profile: | Rectangular ring |
| Piston ring (bottom) Width: | 1.85 mm |
| GTIN: | 4251048886620 |
| OE/OEM reference number(s): | Airsal 62002435 |
| Bolt length: | 35.5 mm |
| Dimension A (piston diameter): | 43.50 mm |
| Dimension G (piston skirt length inlet side): | 40 mm |
| Dimension I (piston skirt length outlet side): | 40 mm |
| Dimension B (compression height): | 26 mm |
| Piston ring (bottom) Profile: | Rectangular ring |
| ATTENTION!: | TUNING: Not permitted in the area of the StVZO! |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston rings |
| Vintage part: | Yes |
| Dimension E (piston pin diameter): | 12 mm |
| Dimension C + D (total height): | 52 mm |
| Tuning & Styling Part: | Yes |
| Dimension J (max. needle bearing width): | 15.5 mm |
| Bolt diameter: | 12 mm |
| Color: | Silver |
| Piston diameter: | 43.5 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 62002435 |
| Country and region of manufacture: | Spain |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| Suitable for: | 63 ccm |
Customers also searched for this product under:
Further links to "Airsal piston set 43.5mm 63ccm for Hercules Prima M 1 2 3 4 5 6 NS Optima Jogging HR2 MX1 C 1 2 3 Sachs 504 505"
Airsal is known for its affordable but high-quality cylinder kits for scooters, mopeds and... more
"AIRSAL"
Airsal is known for its affordable but high-quality cylinder kits for scooters, mopeds and geared mopeds. Airsal cylinders are becoming increasingly popular as they are available for most scooter engines. The Spanish manufacturer specializes in 50cc - 70cc aluminium cylinders with hard chrome-plated piston bores which are considered to be very stable. Airsal offers the most powerful cylinders as T6 & Xtreme models. In addition to the popular cylinder kits, the manufacturer also offers a complete range of spare parts such as pistons, piston rings, gaskets and cylinder heads.
