Crankshaft bearing 6202/C3 for Hercules Prima M 2 3 4 5 with Sachs 504/505 engine
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
- Item no: 0232102001
- EAN: 4060861221583
- Manufacturer: SKF
- Manufacturer no.: 0232102001
Looking for spare parts? Then you've come to the right place if you ride a Hercules motorcycle!
The Nuremberg Hercules works were a major part of the 1920s motorcycle industry in Nuremberg. The company was founded by Karl Marschütz and his brother and manufactured two-wheelers up to 200 cc from 1928. An engine from Fichtel & Sachs was installed in the Hercules chassis.

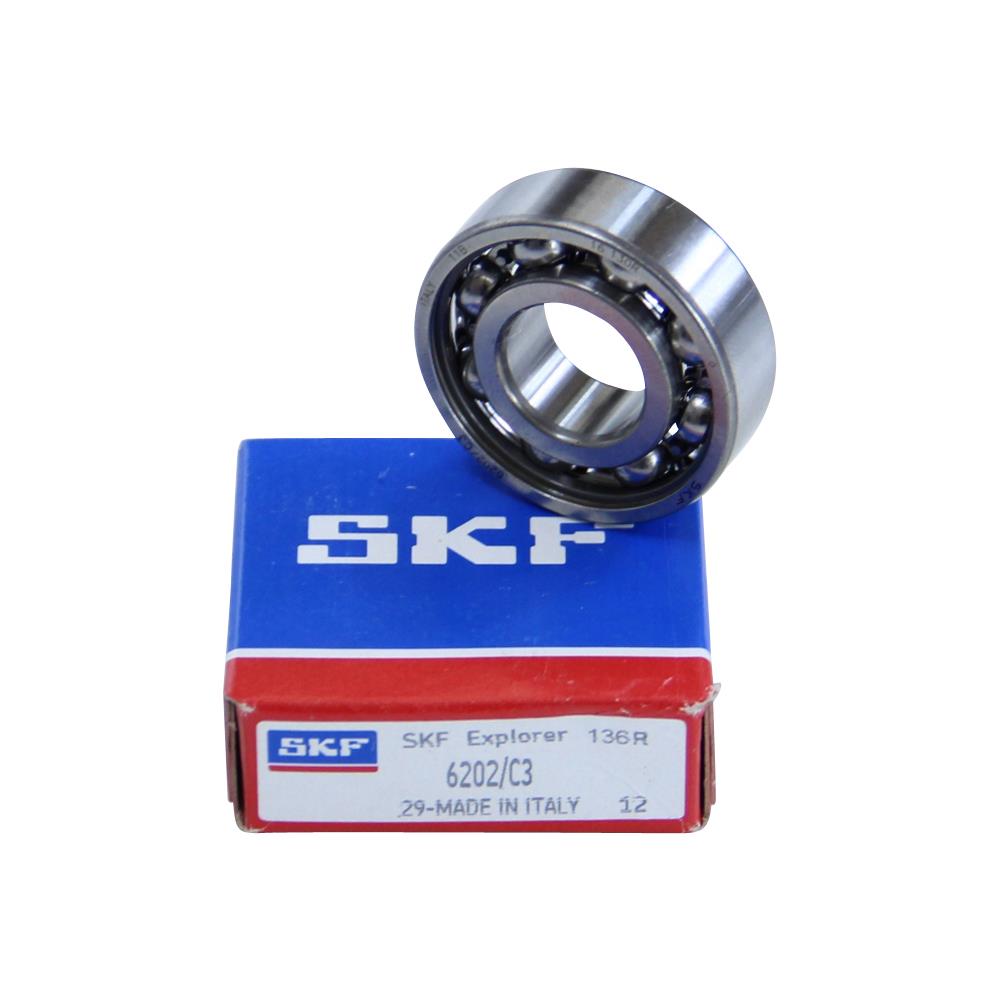

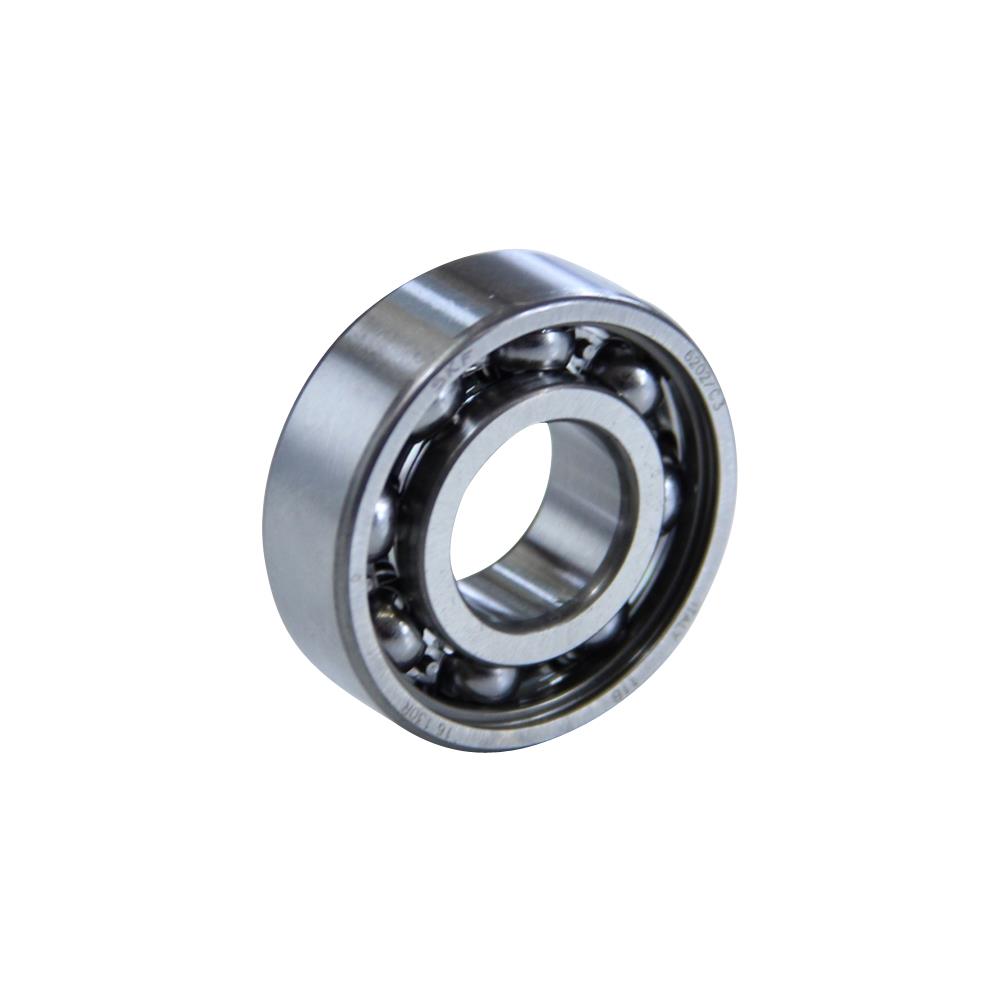

You can find the matching crankshaft ball bearings here! This ball bearing comes from the Swedish manufacturer SKF, headquartered in Gothenburg. With over 110 years of experience, the company has become one of the world's leading manufacturers of ball bearings, supplying luxury car brands such as Rolls-Royce and Formula 1 teams. The bearing consists of an inner and outer ring. Between them, the balls are evenly spaced in a so-called cage. The resulting rolling friction is relatively low, as the rolling elements roll on hardened steel surfaces with optimized lubrication.
Rely on quality and a perfect fit! Choose the right spare part for you now!
TECHNICAL DATA:
- Type: Deep groove ball bearing 6202 C3
- Bearing clearance: C3 larger than normal
- Sealing: open
- Maximum speed: max 28000 rpm- Outer diameter: 35mm
- inner diameter: 15mm
- width: 11mm
- Limit speed: 28000 rpm
- reference speed: 43000 rpm
- suitable models: Hercules Prima M 2/3/4/5 - Sachs 504/505 engine
- OEM number: 0232102001
SCOPE OF SUPPLY:
✔ SKF crankshaft bearing 6202C3 for Hercules Prima M
SKF ball bearings for professionals in workshop and service. At ZS2Radteile you can find SKF ball bearings, deep groove ball bearings, needle roller bearings and other technical products of the highest quality directly online. We deliver SKF tapered roller bearings, deep groove ball bearings, roller bearings or crankshaft bearings quickly and inexpensively to your home.
