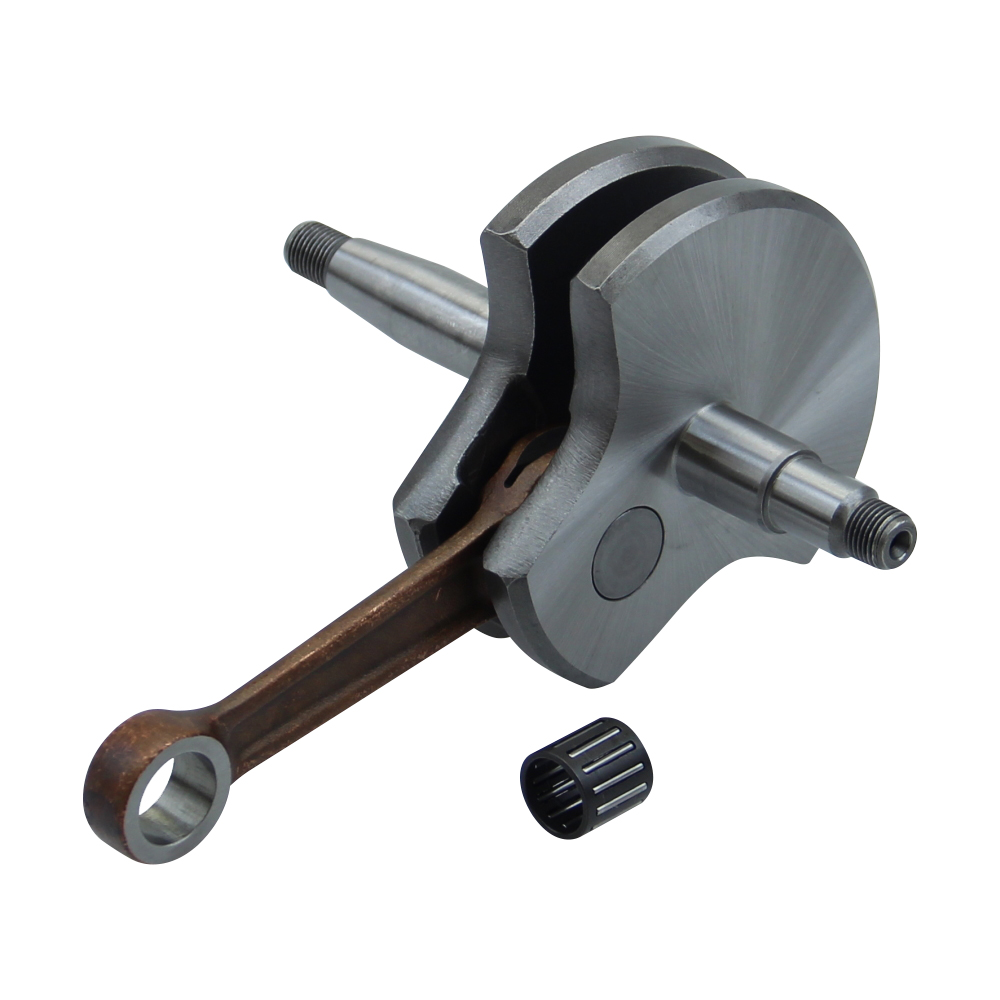

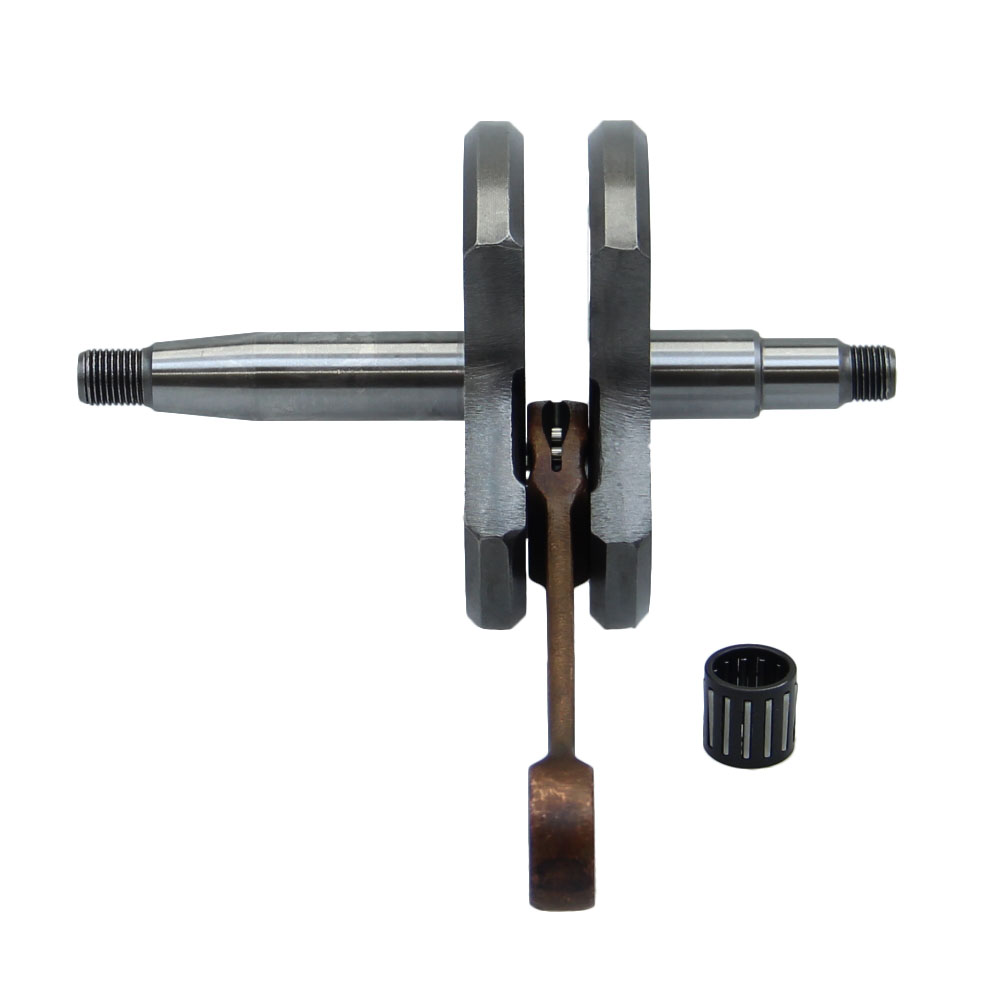

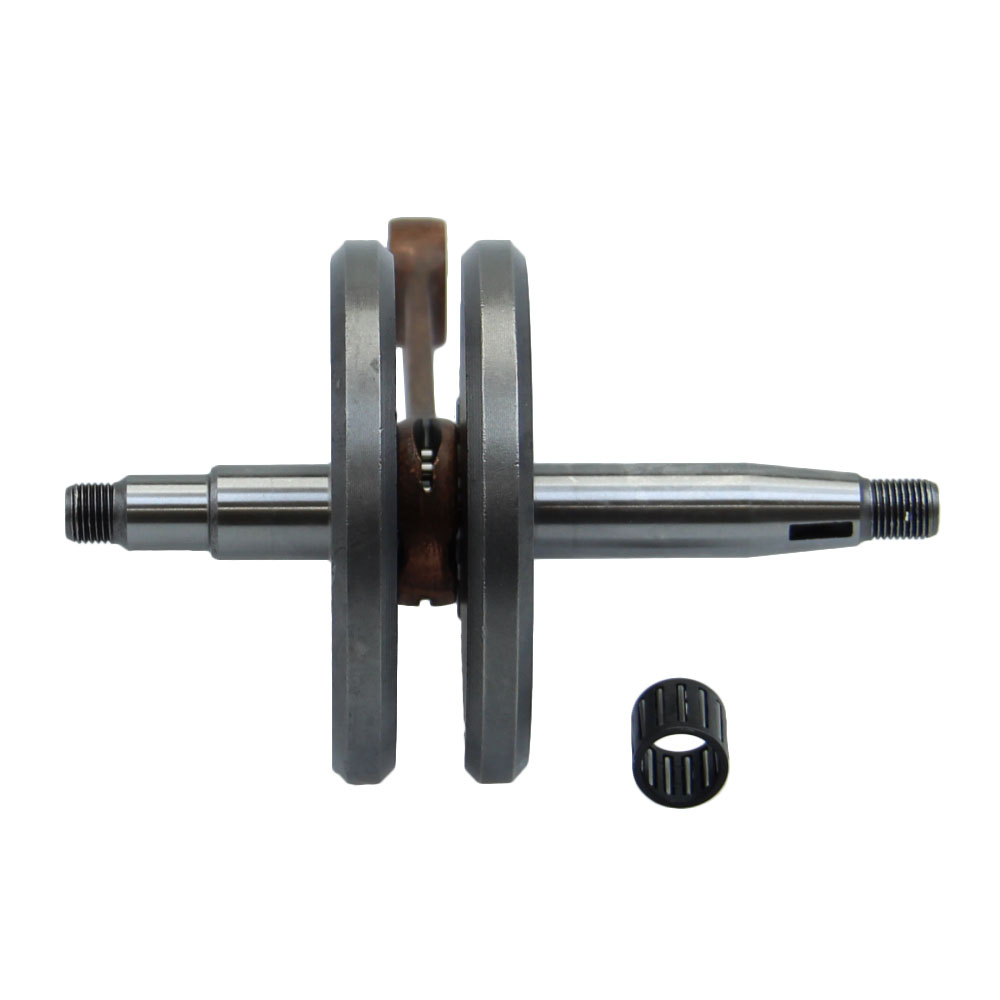

Crankshaft ORIGINAL (E15 bearing 15mm) for Sachs 50/2 50/3 engine
€129.90 *
Content:
1 piece
Prices incl. VAT plus shipping costs
Free shipping!
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 187916
- EAN: 4060861042096
- Manufacturer: Citomerx
- Manufacturer no.: 187916
Sachs 50/2 MA Sachs 50/2 MA NL Sachs 50/2 MA SF Sachs 50/2 MA X Sachs 50/2 MB Sachs 50/2 S Sachs... more
Product information about Crankshaft ORIGINAL (E15 bearing 15mm) for Sachs 50/2 50/3 engine
Sachs 50/2 MA
Sachs 50/2 MA NL
Sachs 50/2 MA SF
Sachs 50/2 MA X
Sachs 50/2 MB
Sachs 50/2 S
Sachs 50/2 DK
Sachs 50/2 C
Sachs 50/2 D
Sachs 50/2 D NL
Sachs 50/ 2 MAK
Sachs 50/2 MAK SF
Sachs 50/2 K
Sachs 50/2 K S
Sachs 50/2 K DK
Sachs 50/2 MLA< br />Sachs 50/2 MLA
Sachs 50/3 MA SF
Sachs 50/3 MA X
Sachs 50/3 MB
Sachs 50/3 MK
Sachs 50/3 MK X
Sachs 50/3 MAK
Sachs 50/3 MAK SF
Sachs 50/3 MKA
Sachs 50/3 MKA I
Sachs 50/3 L
Sachs 50/3 LS
Sachs 50/3 H
Properties
| Product type: | Crankshaft |

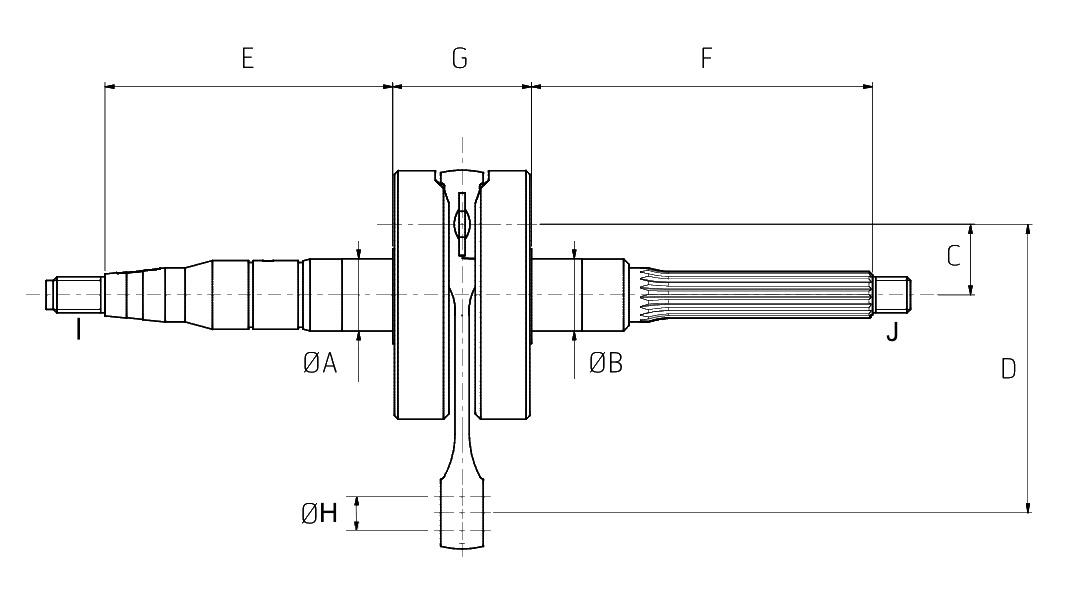

| Dimension B (shaft diameter on coupling side): | 15 mm |
| Crankshaft type: | Half cheek crankshaft |
| Dimension F (length of crankshaft stub on clutch side): | 32.5 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Dimensions needle bearing piston pin: | 12x15x15 mm |
| Dimension C (stroke pin offset = half stroke): | 21 mm |
| Dimension J (thread on coupling side): | M10 x 1 right-hand thread |
| Crankshaft stroke: | 42 mm |
| Dimension G (width of crank webs): | 30.1 mm |
| Surface finish: | Matt |
| matching piston pin: | 12 mm |
| OE/OEM reference number(s): | 0286139400, 0286 139 400 |
| GTIN: | 4060861042096 |
| Dimension D (connecting rod length): | 85 mm |
| Dimension H (top diameter of connecting rod eye): | 15 mm |
| Dimension A (shaft diameter on alternator side): | 15 mm |
| Scope of delivery: | Crankshaft + needle bearing |
| Dimension E (length of crankshaft stub on alternator side): | 52 mm |
| Dimension I (thread on alternator side): | M10 x 1 right-hand thread |
| Color: | Grey |
| Scope of delivery: | 1x crankshaft |
| Manufacturer number: | 187916 |
| Country and region of manufacture: | China |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Crankshaft incl. needle bearing |
| Manufacturer warranty: | 2 years |
| Weight: | not specified |
| Material: | Cast iron |
| Type: | Standard |
