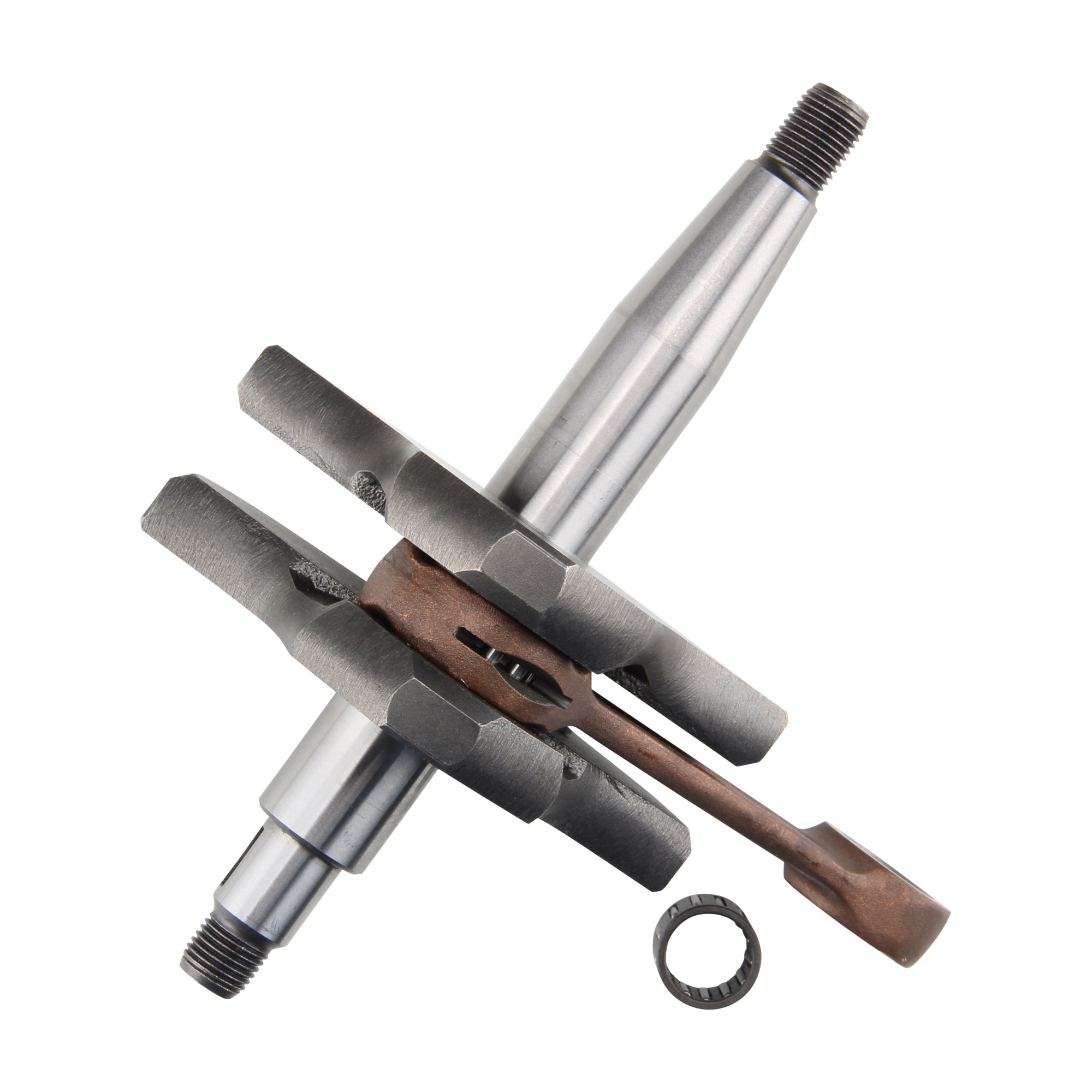

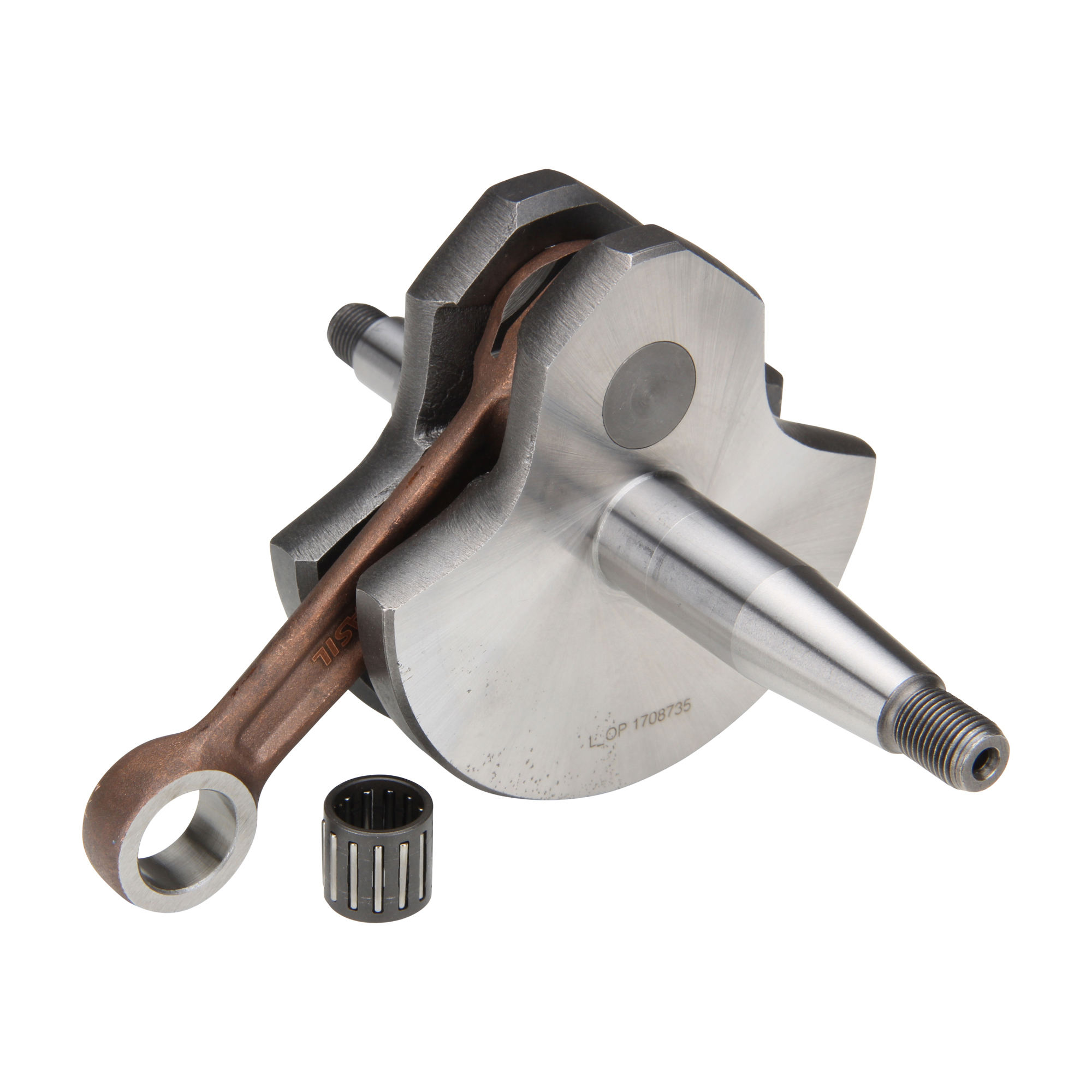

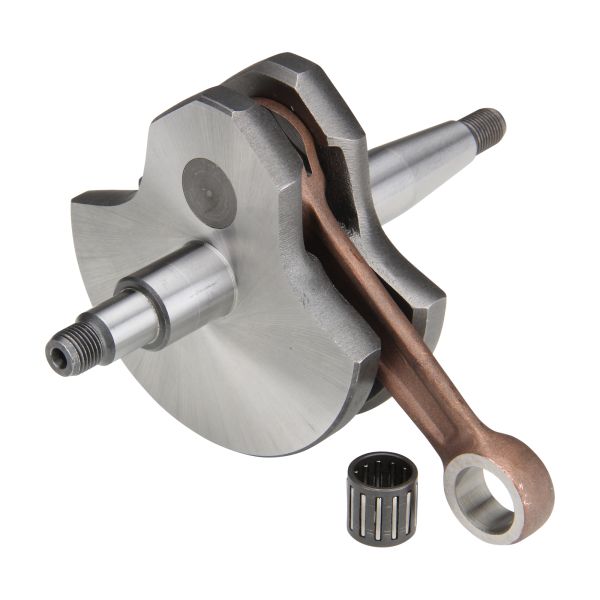

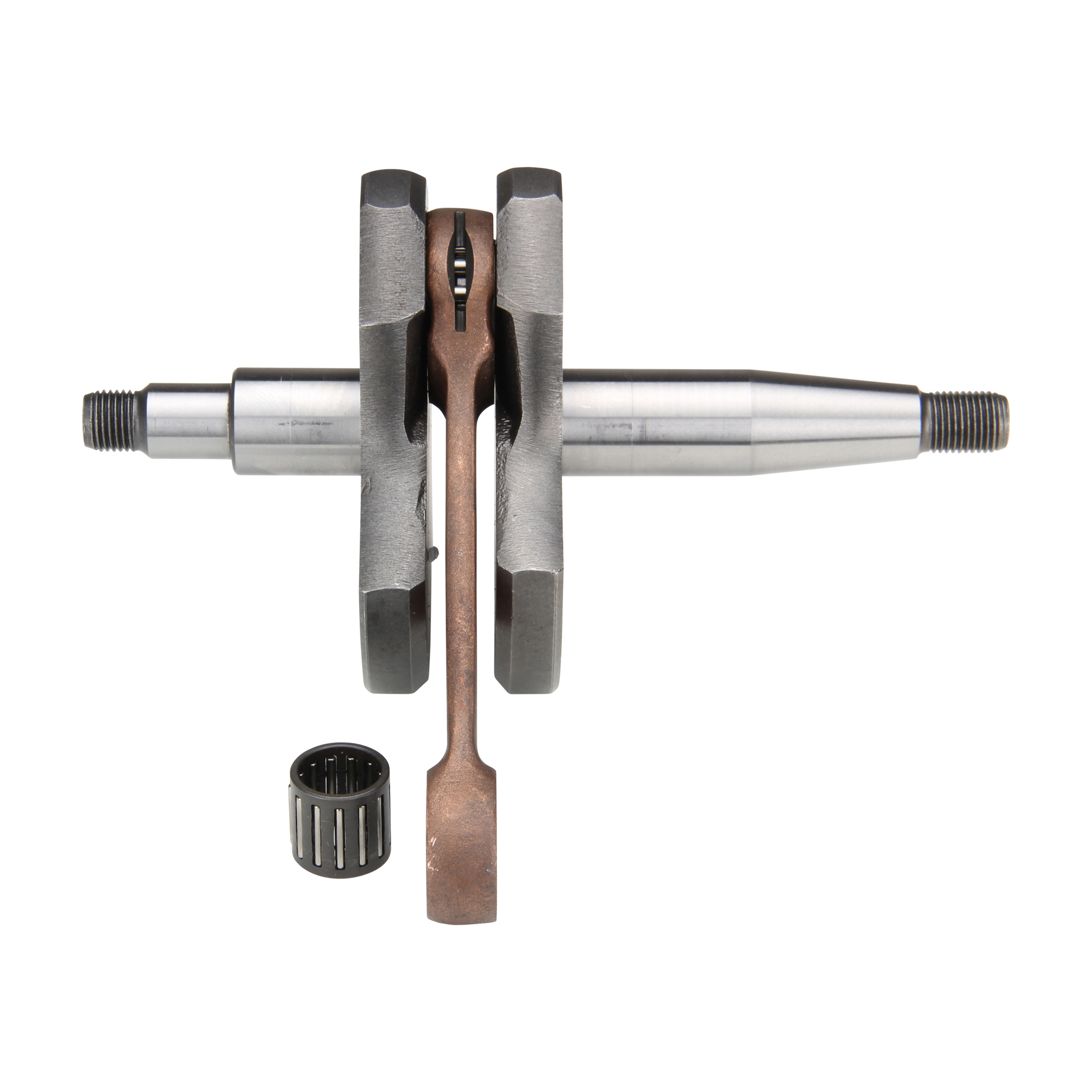

Crankshaft ORIGINAL (L17 bearing 17mm) for Sachs 50/3 50/4 engine

€129.90 *
Content: 1 piece

Prices incl. VAT plus shipping costs

Free shipping!

IN STOCK - Delivery time 1-3 working days

Only a few left!

3 Jahre Verschleiß-Plus-Garantie für Artikel 0286203100
Jetzt 3 Jahre zusätzliche Garantie sichern.   » Details
€6.50*
  • 187918
  • 4060861042119
  • Citomerx
  • 187918
Sachs 50/3 MLA Sachs 50/3 MLA X Sachs 50/3 MLA NL Sachs 50/3 MLB Sachs 50/3 LH Sachs 50/3 LH 3... more
Product information about Crankshaft ORIGINAL (L17 bearing 17mm) for Sachs 50/3 50/4 engine

Sachs 50/3 MLA
Sachs 50/3 MLA X
Sachs 50/3 MLA NL
Sachs 50/3 MLB
Sachs 50/3 LH
Sachs 50/3 LH 3 LKH NL
Sachs 50/3 C
Sachs 50/3 C NL
Sachs 50/3 D
Sachs 50/3 MAKF
Sachs 50/3 MAKF SF
Sachs 50/3 MAKF />Sachs 50/3 MLFB
Sachs 50/3 LFH
Sachs 50/3 LFS

Sachs 50/4 CF
Sachs 50/4 CF NL
Sachs 50/4 DF
Sachs 50/4 DF X
Sachs 50/4 LF
Sachs 50/4 LF NL
Sachs 50/4 MLFA
Sachs 50 /4 MLFA NL
Sachs 50/4 MLFB
Sachs 50/4 MLKA X
Sachs 50/4 LKS
Sachs 50/4 LKH

Eigenschaften

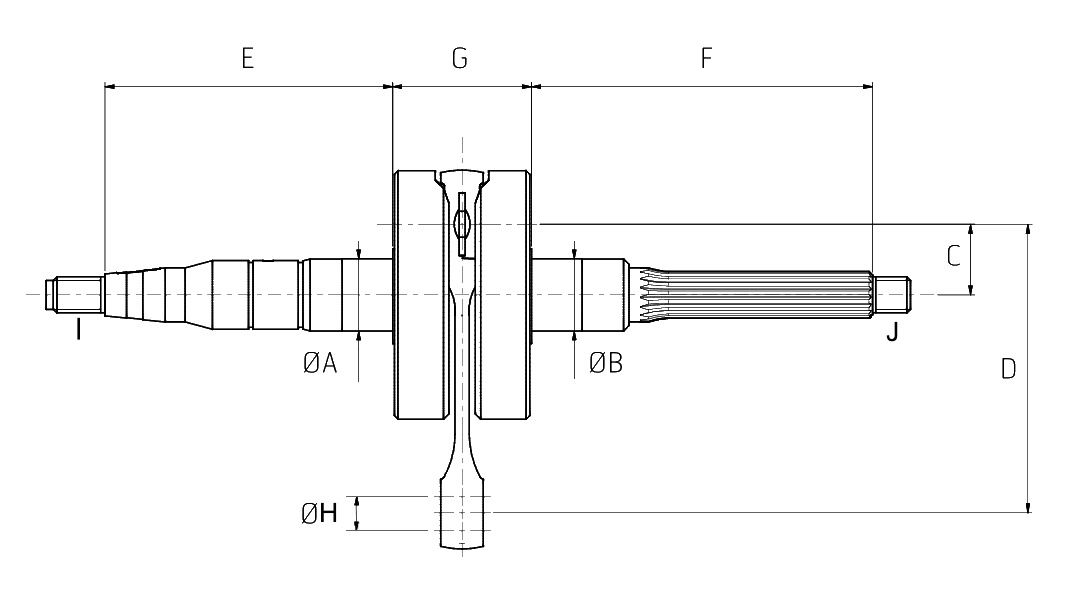

Dimension F (length of crankshaft stub on clutch side): 34.5 mm
Dimension H (top diameter of connecting rod eye): 15 mm
Dimension E (length of crankshaft stub on alternator side): 56 mm
OE/OEM reference number(s): 0286 203 000, 0286 203 100, 0286203000, 0286203100
GTIN: 4060861042119
Dimension G (width of crank webs): 30.1 mm
Dimension C (stroke pin offset = half stroke): 21 mm
Crankshaft stroke: 42 mm
Dimension B (shaft diameter on coupling side): 17 mm
Dimension J (thread on coupling side): M10 x 1 right-hand thread
Dimension D (connecting rod length): 85 mm
Crankshaft type: Half cheek crankshaft

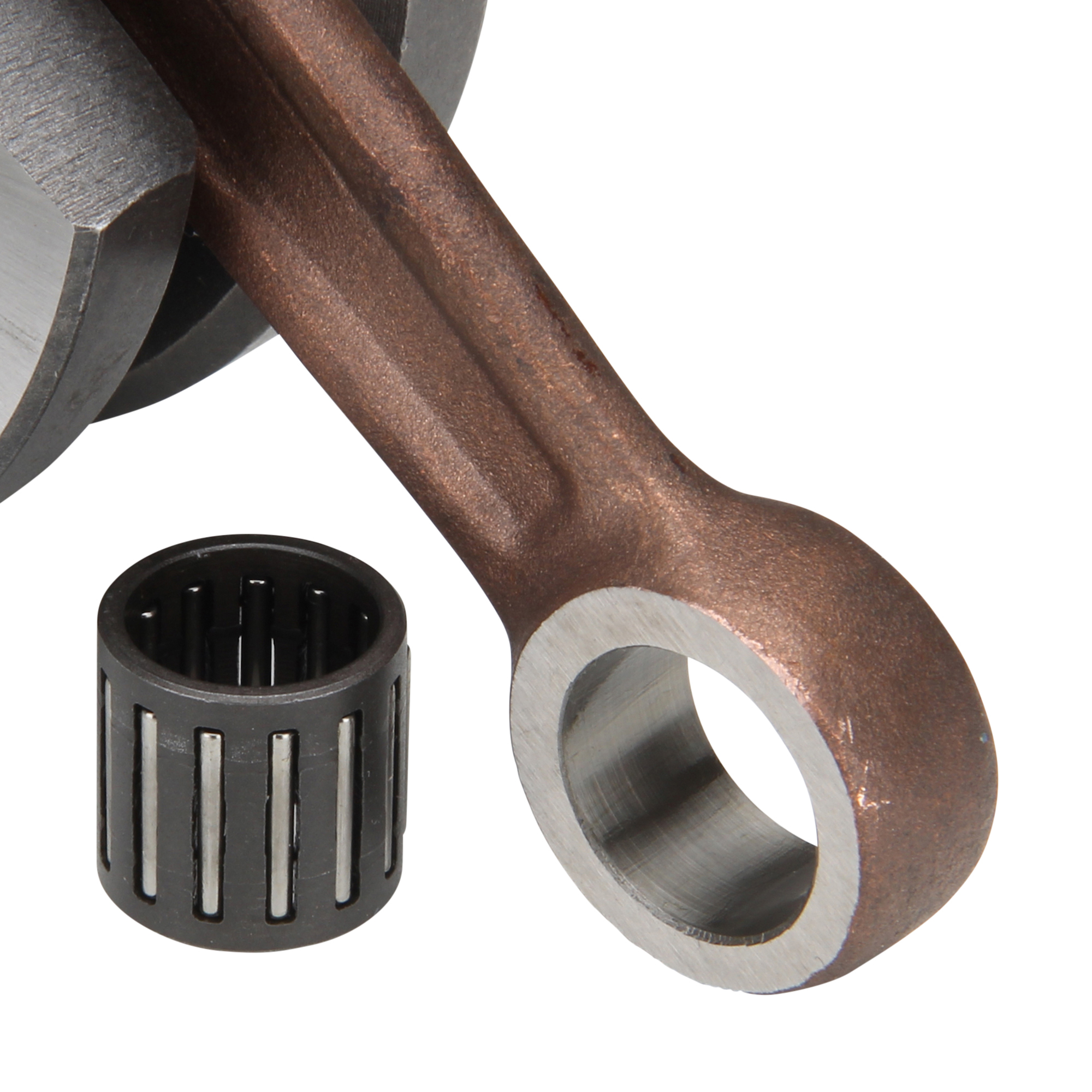

Dimensions needle bearing piston pin: 12x15x15 mm
matching piston pin: 12 mm
Vintage part: Yes
Dimension I (thread on alternator side): M10 x 1 right-hand thread
Dimension A (shaft diameter on alternator side): 17 mm
Scope of delivery: Crankshaft + needle bearing
Tuning & Styling Part: No
Surface finish: Matt
Color: Grey
Scope of delivery: 1x crankshaft
Manufacturer number: 187918
Country and region of manufacture: China
Product type: Crankshaft
Type of motorcycle: Moped & Mokick
Offer package: Yes
Description of the package content: Crankshaft incl. needle bearing
Manufacturer warranty: 2 years
Weight: not specified
Material: Cast iron
Type: Standard
