Kurbelwelle für Sachs 504/1 A B Motor (102152)
Kurbelwelle für Sachs 504/1 A B Motor (102152)
Kurbelwelle für Sachs 504/1 A B Motor (102152)
Kurbelwelle für Sachs 504/1 A B Motor (102152)
Kurbelwelle für Sachs 504/1 A B Motor (102152)
Kurbelwelle für Sachs 504/1 A B Motor (102152)

Citomerx

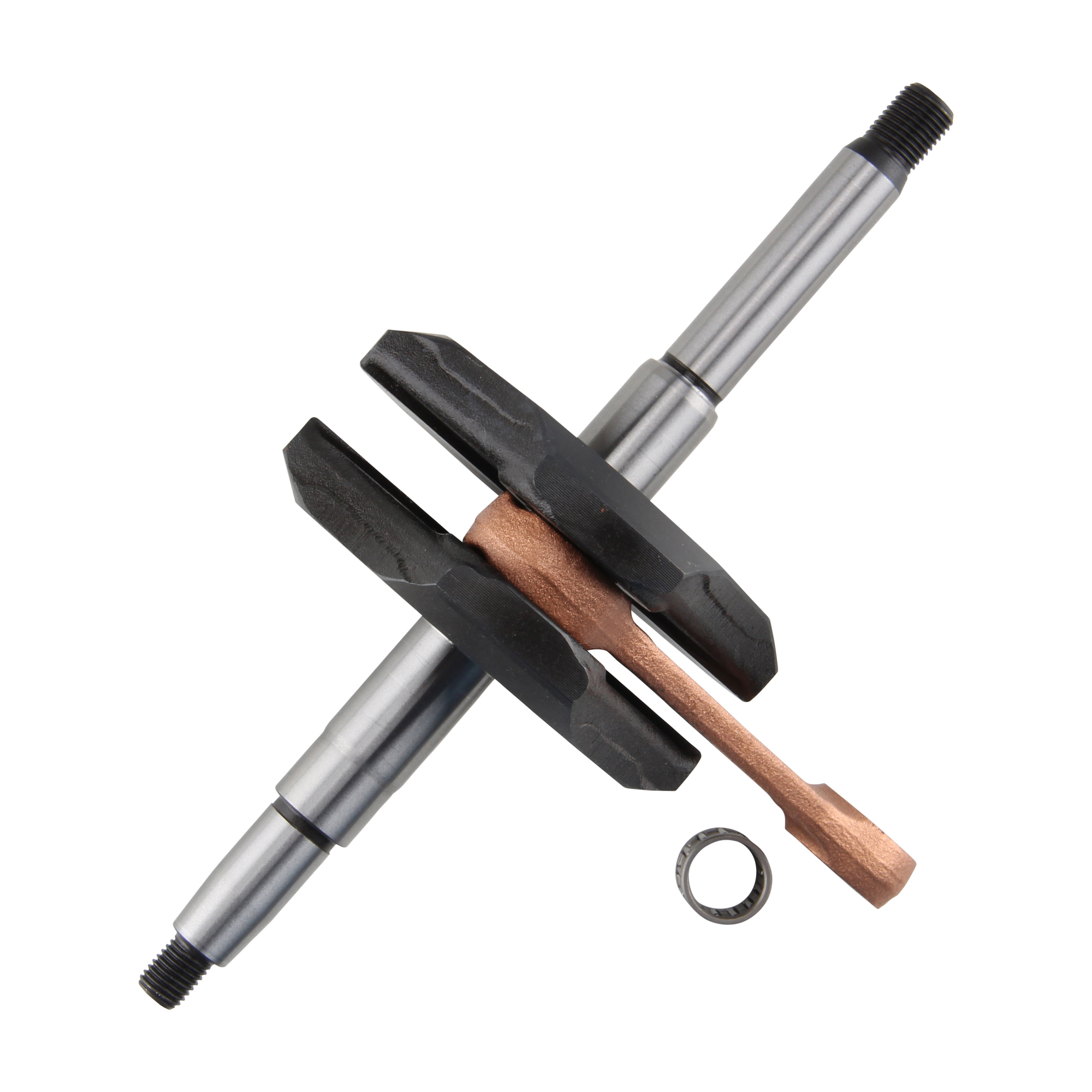

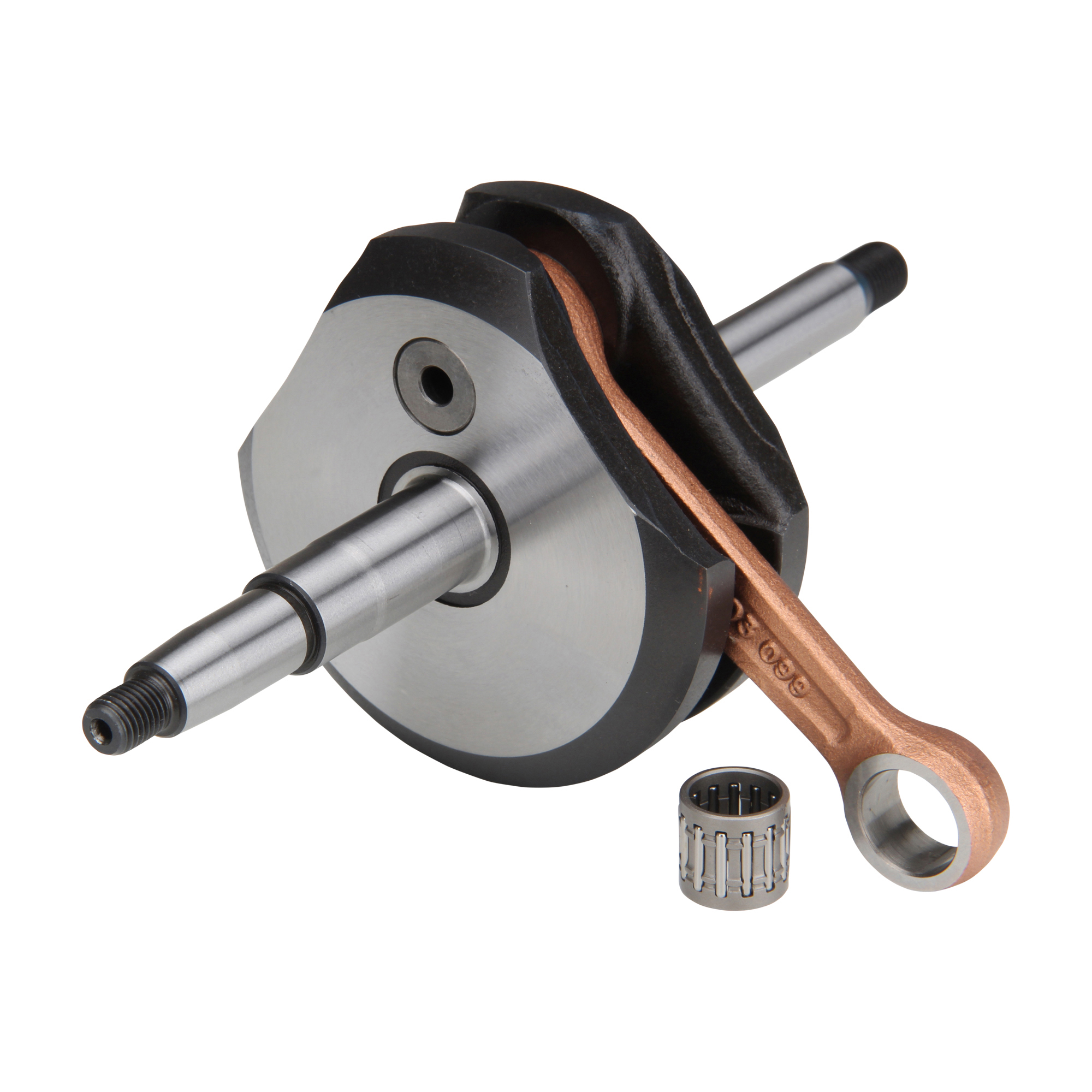

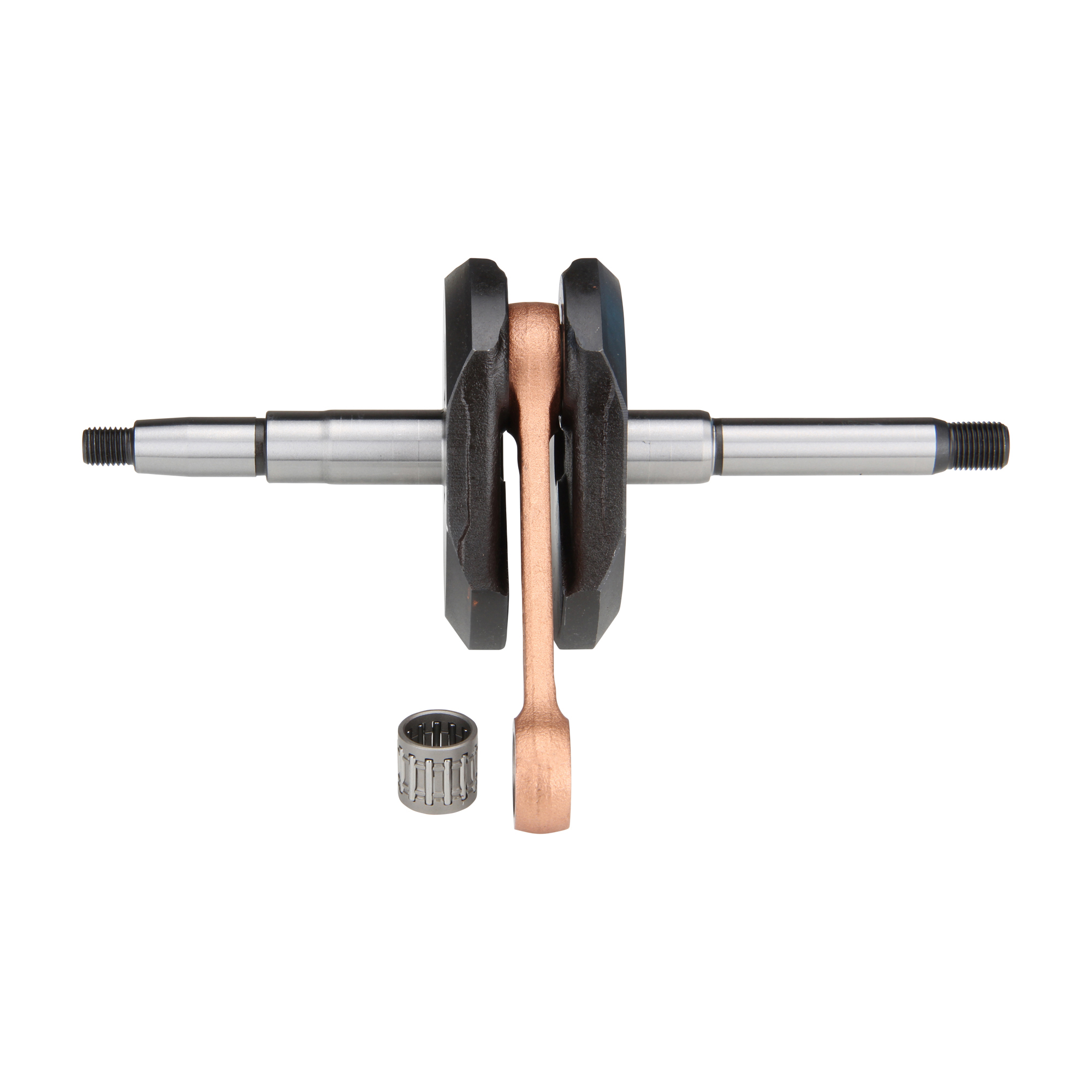

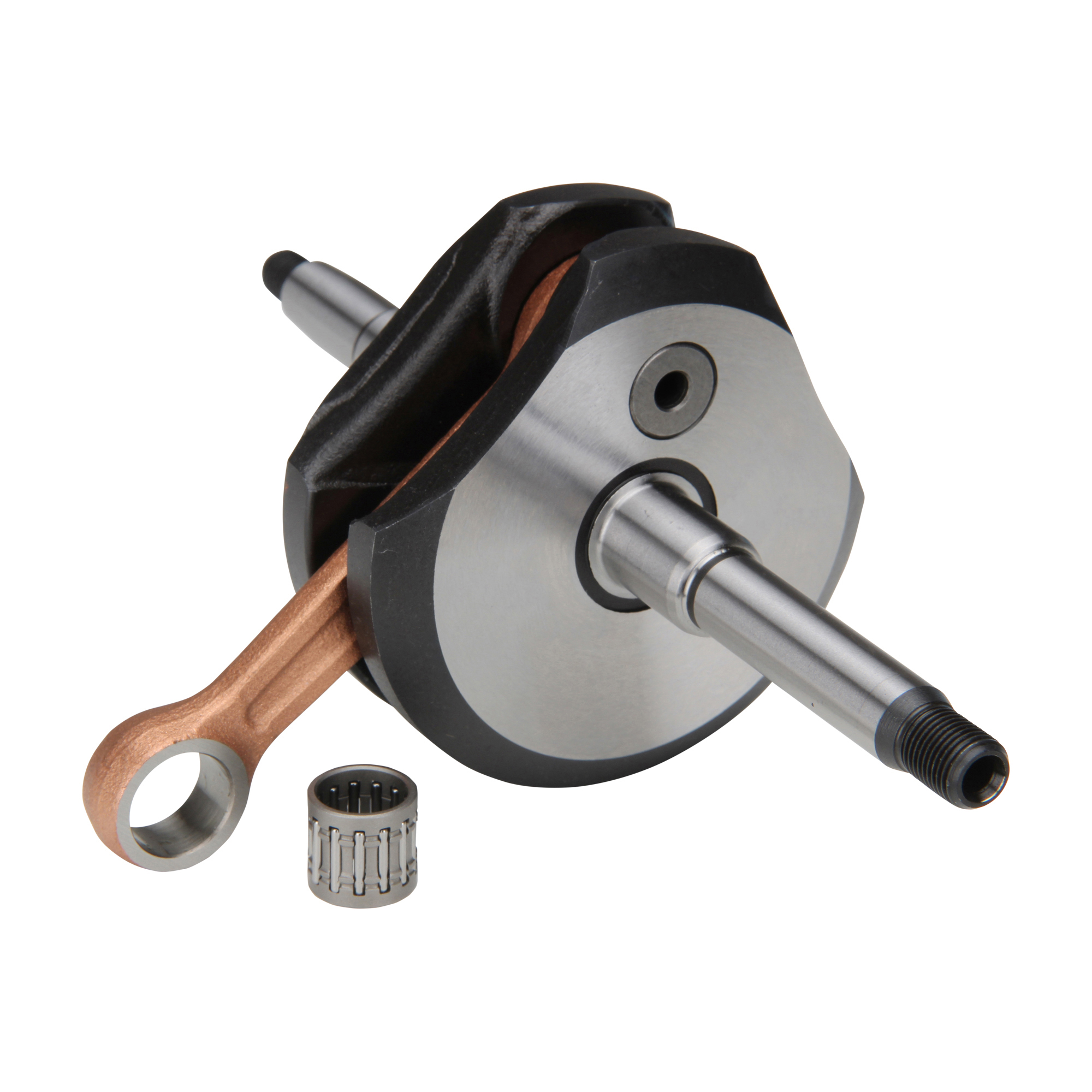

Crankshaft for Sachs 504/1 AB engine

Bewerten
€119.90 *
Content: 1 piece

Prices incl. VAT plus shipping costs

Free shipping!

IN STOCK - Delivery time 1-3 working days

Only a few left!

  • Item no: 102152
  • EAN: 4060861192838
  • Manufacturer: Citomerx
  • Manufacturer no.: 102152
Description Manufacturer Reviews 0
Description
Sachs 504/1 A Sachs 504/1 B more
Close menu
Product information about Crankshaft for Sachs 504/1 AB engine

Sachs 504/1 A
Sachs 504/1 B

Eigenschaften

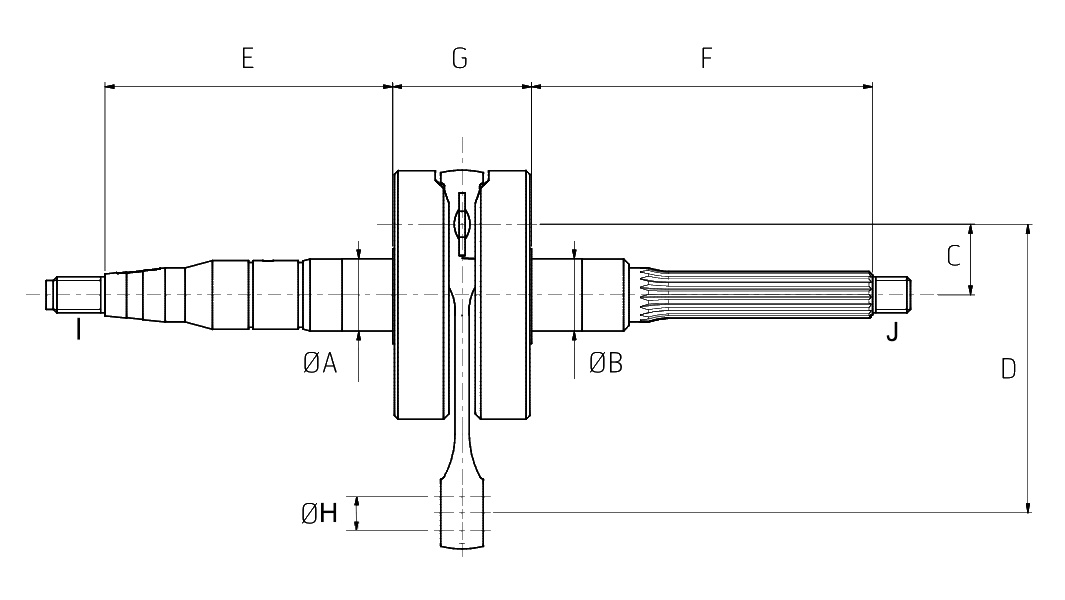

Dimension I (thread on alternator side): M8 x 1 right-hand thread
Crankshaft type: Half cheek crankshaft
Dimension G (width of crank webs): 34.3 mm
Dimension F (length of crankshaft stub on clutch side): 63 mm
Dimension E (length of crankshaft stub on alternator side): 61 mm
OE/OEM reference number(s): 0288 112 100, 0288 112 102, 0288112100, 0288112102
GTIN: 4060861192838
Dimension C (stroke pin offset = half stroke): 21 mm
Crankshaft stroke: 42 mm
Dimension J (thread on coupling side): M10 x 1 right-hand thread
Dimension A (shaft diameter on alternator side): 15 mm
Dimension D (connecting rod length): 85 mm
Dimension H (top diameter of connecting rod eye): 15 mm

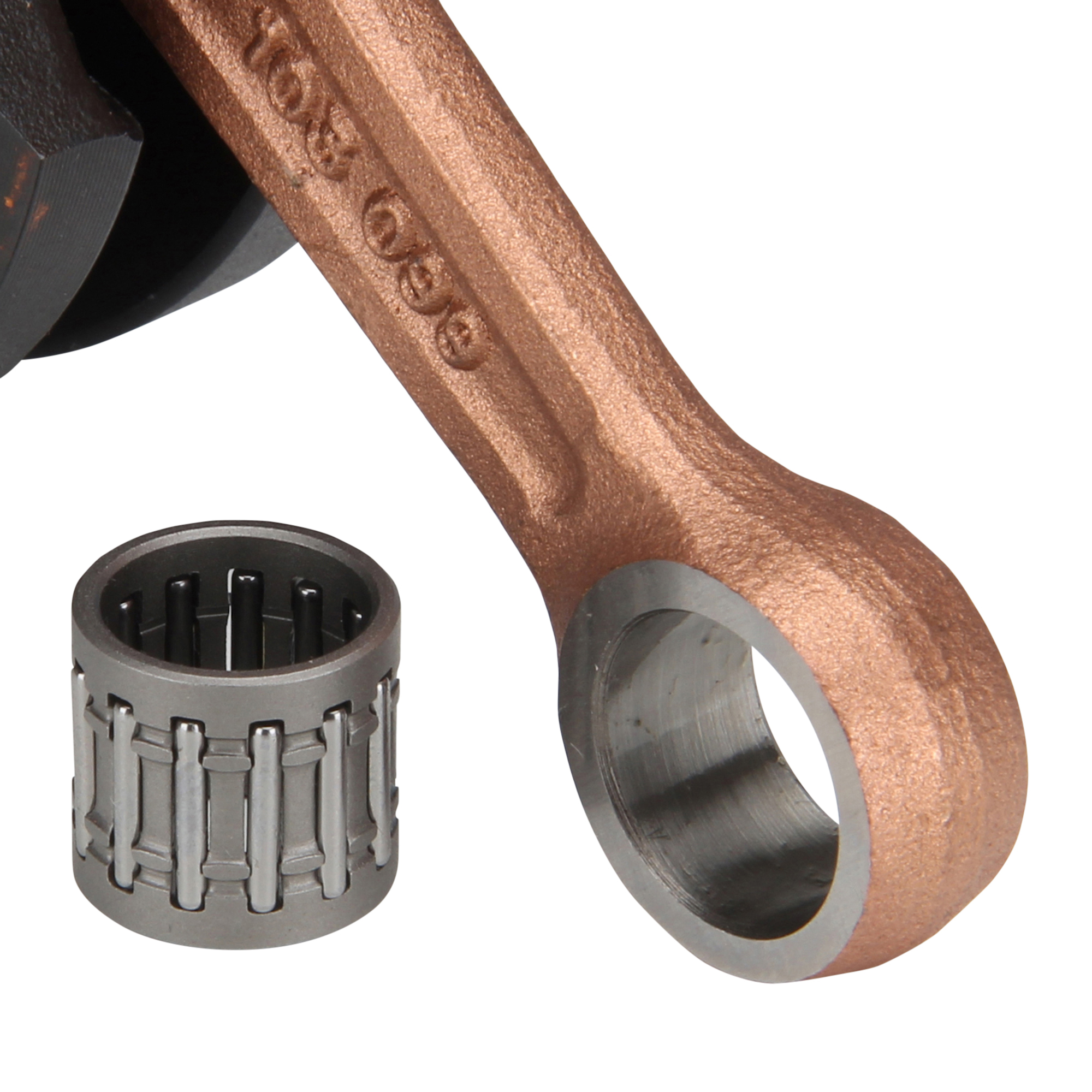

Dimensions needle bearing piston pin: 12x15x15 mm
Vintage part: Yes
matching piston pin: 12 mm
Dimension B (shaft diameter on coupling side): 15 mm
Scope of delivery: Crankshaft + needle bearing
Tuning & Styling Part: No
Surface finish: Matt
Color: Grey
Scope of delivery: 1x crankshaft
Manufacturer number: 102152
Country and region of manufacture: China
Product type: Crankshaft
Type of motorcycle: Moped & Mokick
Offer package: Yes
Description of the package content: Crankshaft incl. needle bearing
Manufacturer warranty: 2 years
Weight: not specified
Material: Cast iron
Type: Standard
