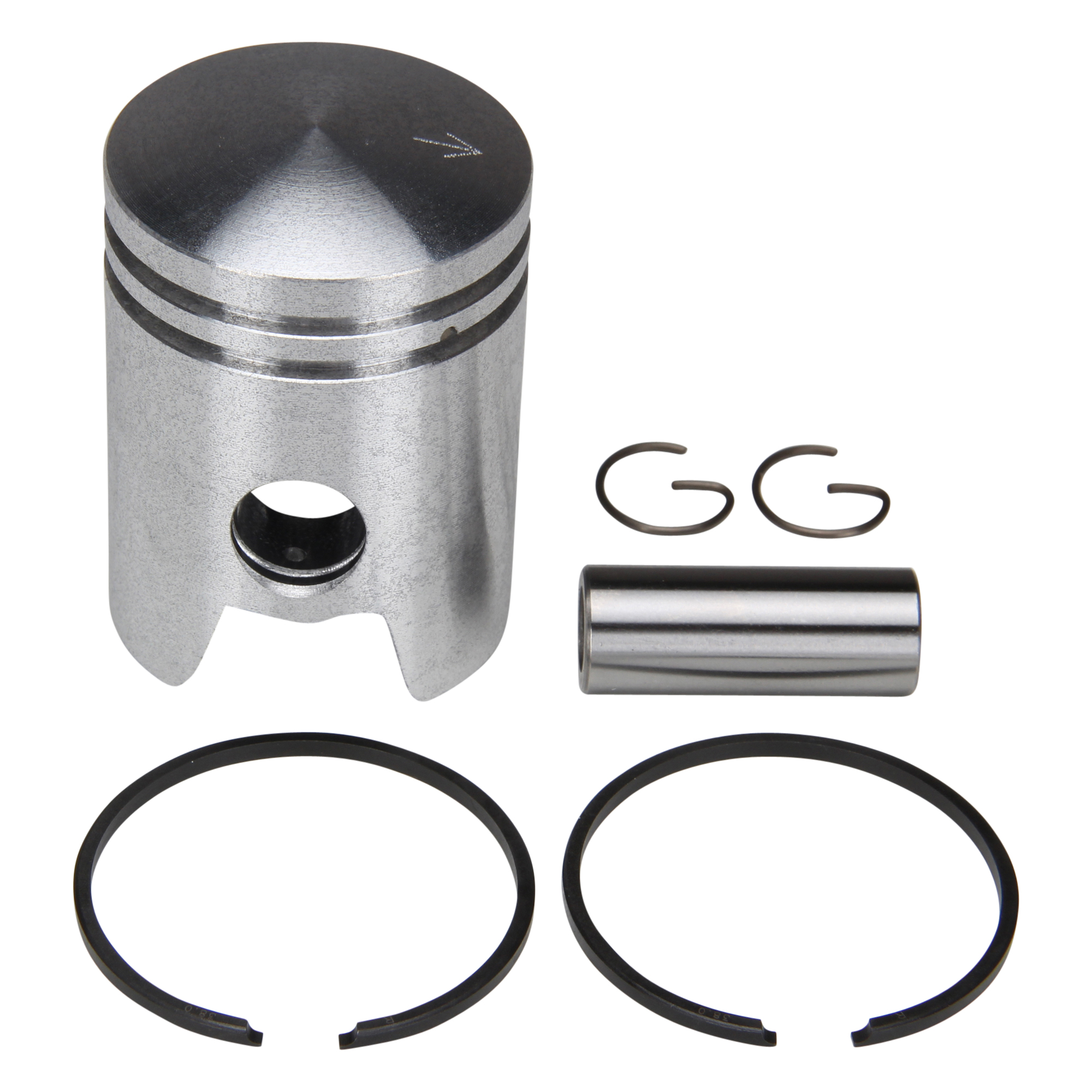

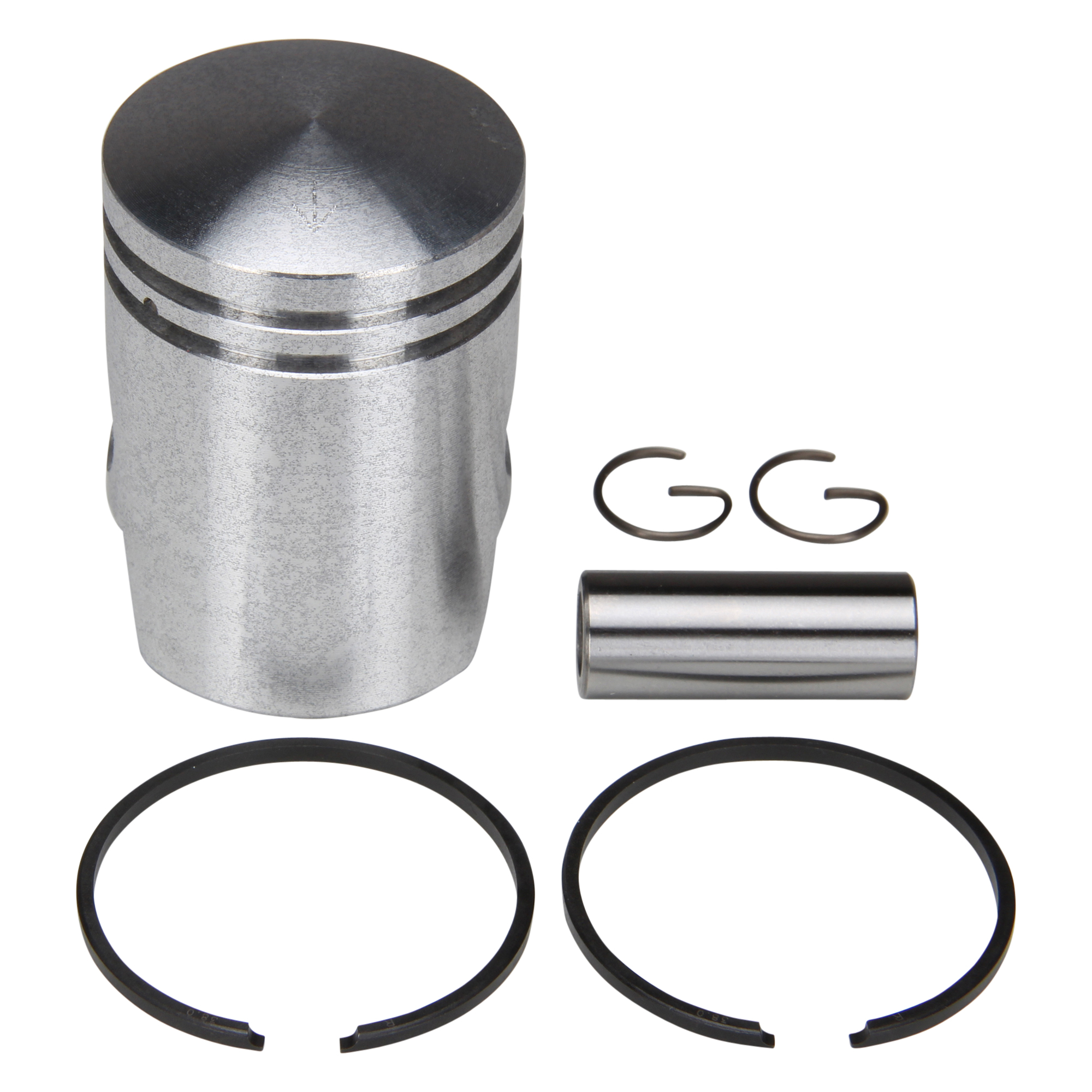

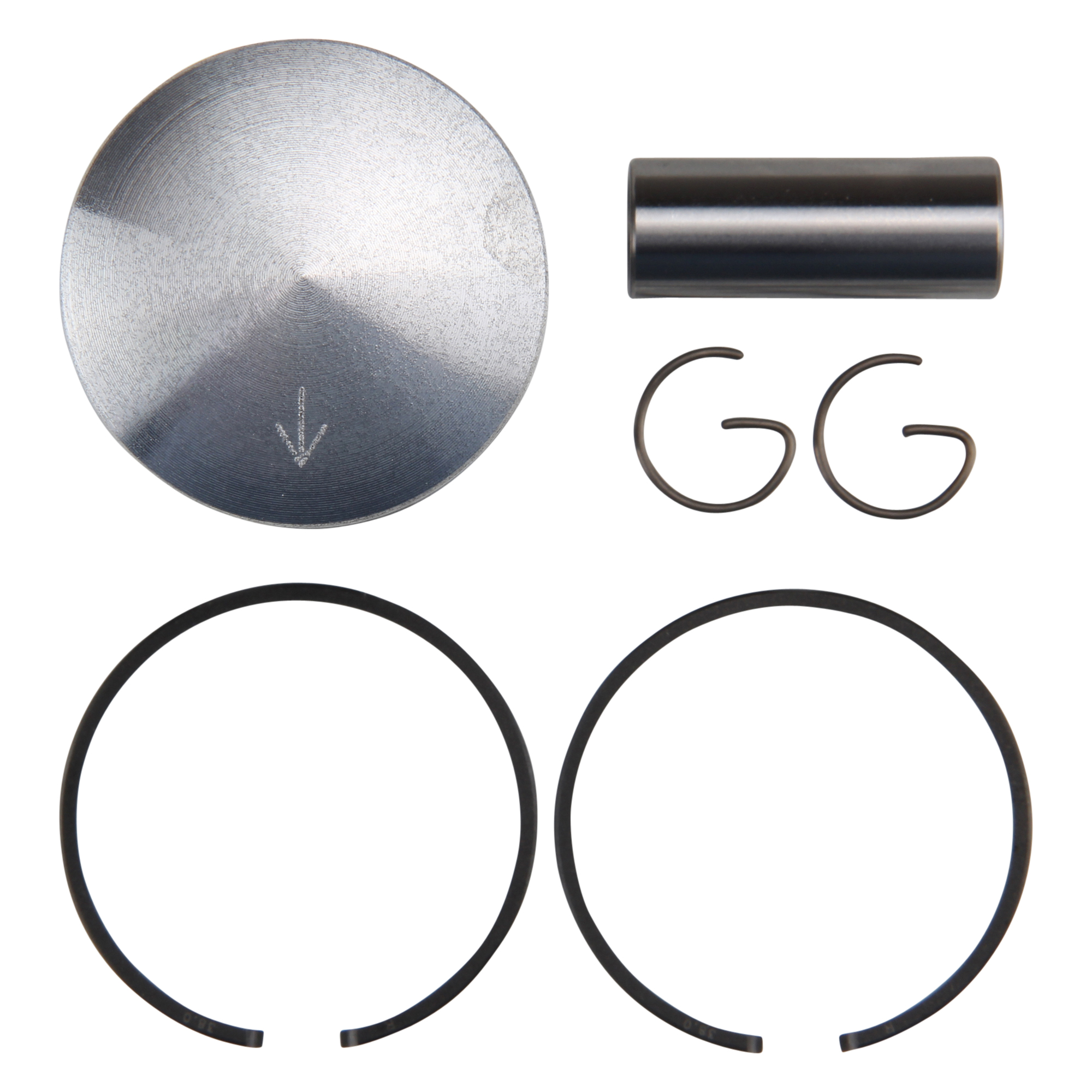

Piston set 38mm 50cc for Hercules Prima M 2 3 4 5 Jogging C 1 2 3 HR2 Hobby Rider
Prices incl. VAT plus shipping costs
IN STOCK - Delivery time 1-3 working days
Only a few left!
- Item no: 102049
- EAN: 4060861180828
- Manufacturer: Citomerx
- Manufacturer no.: 102049
Hercules C 1 City Bike (1972-1974
Hercules C 3 City Bike (1972-1974)
Hercules HR 2 Hobby Rider (1974-1987)
Hercules Jogging Type 516 (1984 -1986)
Hercules M 1 (1972-1978)
Hercules M 1 CH (1972-1978)
Hercules M 2 (1972-1978)
Hercules M 3 (1972-1978) 1978)
Hercules M 4 (1974-1975)
Hercules M 4 S (1974-1975)
Hercules M 5 (1974-1975)
Hercules M 5 S (1974- 1975)
Hercules MX 1 (1985-1994)
Hercules Prima S (1978-1987)
Hercules Prima (1978-1987)
Hercules Prima 2 N (1978-1996)
Hercules Prima 2 S (1978-1996)
Hercules Prima 3 S (1978-1996)
Hercules Prima 4 LN (1978-1996)
Hercules Prima 4 N (1978-1996) 1996)
Hercules Prima 4 S (1978-1996)
Hercules Prima 4 SL (1978-1996)
Hercules Prima 5 N (1978-1996)
Hercules Prima 5 S ( 1978-1996)
Hercules Prima 5 (1978-1996)
Hercules Prima 6 (1979-1981)
Hercules C 2 City Bike (1972-1974)
Hercules P 1 ( 1972-1977)
Hercules P 1 CH (1972-1977)
Hercules P 1 I (1972-1977)
Hercules P 1 X (1972-1977)
| GTIN: | 4060861180828 |
| Dimension B (compression height): | 28 mm |
| Piston ring (bottom) Shape: | C (groove for locking pin on the edge) |
| Piston ring (bottom) Profile: | Rectangular ring |
| Dimension C + D (total height): | 53.5 mm |
| Dimension F (piston skirt width inlet side): | 35 mm |
| Piston ring (top) Width: | 1.65 mm |
| Piston ring (bottom) Width: | 1.65 mm |
| Dimension A (piston diameter): | 38.00 mm |
| Dimension J (max. needle bearing width): | 15 mm |
| Piston ring (top) Shape: | C (groove for locking pin on the edge) |
| Piston ring (top) Dimension: | 38 x 2.0 mm |
| Piston ring (bottom) Dimension: | 38 x 2.0 mm |
| OE/OEM reference number(s): | 0286 378 005, 0286378005 |
| Dimension G (piston skirt length inlet side): | 39.5 mm |
| Dimension I (piston skirt length outlet side): | 39.5 mm |
| Dimension H (piston skirt width outlet side): | 35 mm |
| Dimension D (curvature): | 3.5 mm |
| Piston ring (top) Profile: | Rectangular ring |
| Dimension C (piston height): | 50 mm |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston rings |
| Dimension E (piston pin diameter): | 12 mm |
| Tuning & Styling Part: | No |
| Vintage part: | Yes |
| Cylinder bores: | 38 mm |
| Bolt diameter: | 12 mm |
| Bolt length: | 31 mm |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 102049 |
| Country and region of manufacture: | China |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| Suitable for: | 50 cc |
"Fast goods", is the translation of Citomerx and this is also the motto of the company from Bavaria, which offers numerous spare parts for two- and four-stroke scooters. Speed is the declared goal for both the vehicles and the delivery of the goods, as well as a reasonable price-performance ratio for the standard, racing or high-end products. The range includes almost everything that the scooter rider needs: from exhaust systems and batteries to cylinder kits. An additional plus point is the know-how of the Citomerx crew, acquired over years of experience.
