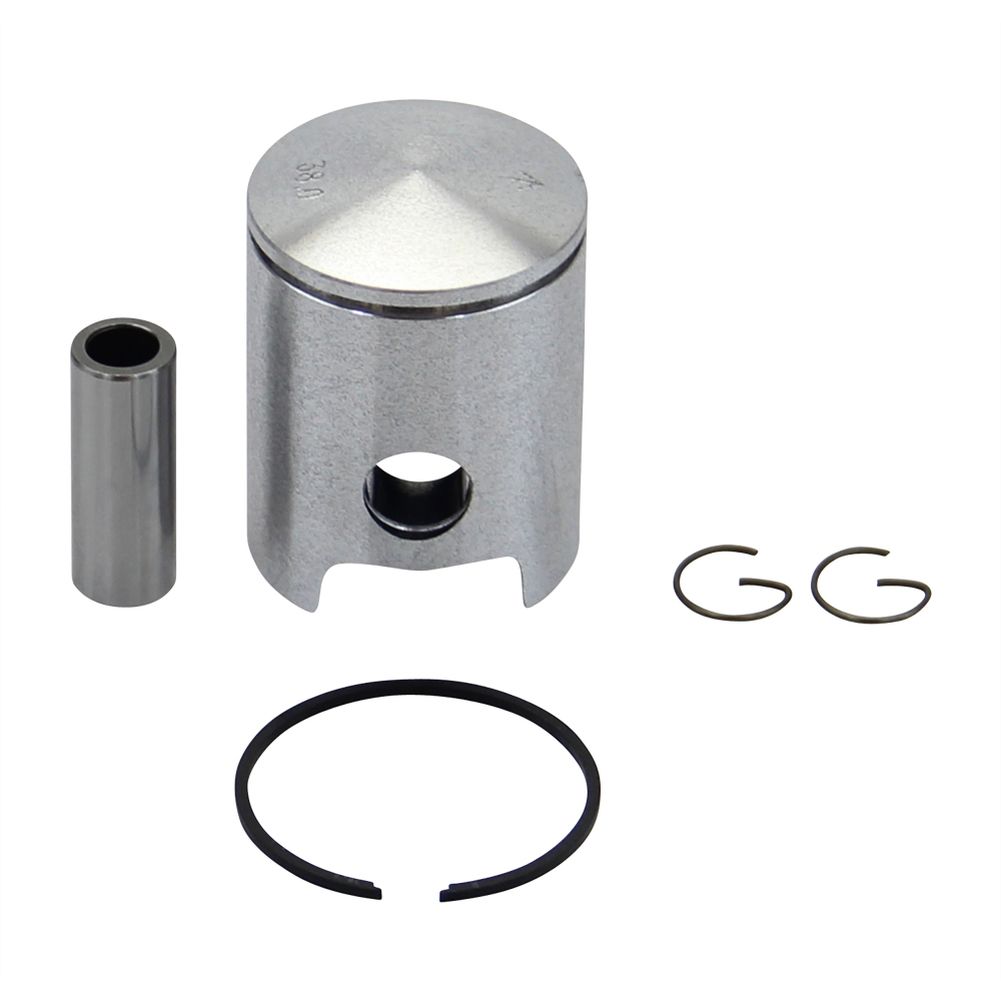

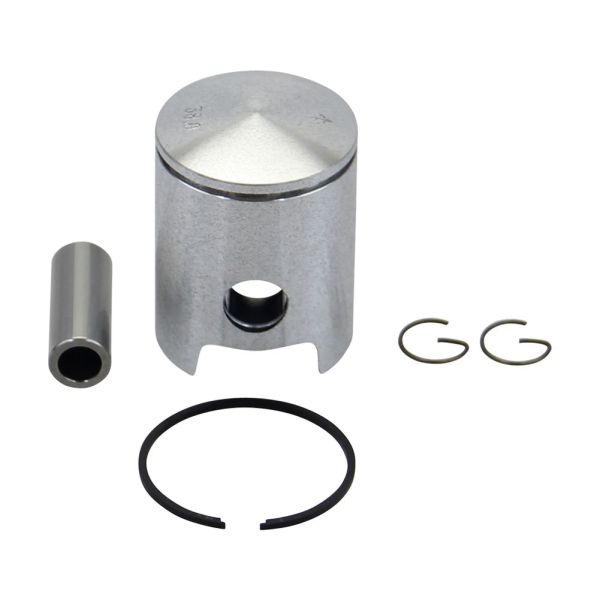

Piston set 38mm 50cc for Sachs 505/2 C CK D DK
- Item no: 189051
- EAN: 4060861053467
- Manufacturer: Citomerx
- Manufacturer no.: 189051
Sachs 505/2 C Sachs 505/2 CK Sachs 505/2 D Sachs 505/2 DK more
Product information about Piston set 38mm 50cc for Sachs 505/2 C CK D DK
Sachs 505/2 C
Sachs 505/2 CK
Sachs 505/2 D
Sachs 505/2 DK
Eigenschaften
| Dimension H (piston skirt width outlet side): | 28.5 mm |
| Cylinder bores: | 38 mm |
| Dimension B (compression height): | 28 mm |
| Dimension A (piston diameter): | 38.00 mm |
| Piston ring dimension: | 38 x 1.5 mm |
| Dimension C + D (total height): | 50.5 mm |
| OE/OEM reference number(s): | 0286 378 011, 0286 378 051, 0286378011, 0286378051 |
| Dimension E (piston pin diameter): | 12 mm |
| Piston ring shape: | B (groove for center locking pin) |
| Piston ring profile: | Rectangular ring |
| Scope of delivery: | Piston, Piston clips, Piston pin, Piston rings |
| Bolt length: | 32 mm |
| Dimension J (max. needle bearing width): | 14 mm |
| Bolt diameter: | 12 mm |
| Dimension D (curvature): | 3.5 mm |
| GTIN: | 4060861053467 |
| Vintage part: | Yes |
| Tuning & Styling Part: | No |
| Dimension C (piston height): | 47 mm |
| Dimension G (piston skirt length inlet side): | 43.5 mm |
| Dimension I (piston skirt length outlet side): | 43.5 mm |
| Dimension F (piston skirt width inlet side): | 32 mm |
| Piston ring width: | 1.60 mm |
| Color: | Silver |
| Piston diameter: | 38 mm |
| Engine type: | 2-stroke |
| Scope of delivery: | 1x piston set |
| Manufacturer number: | 189051 |
| Country and region of manufacture: | China |
| Product type: | Piston set |
| Type of motorcycle: | Moped & Mokick |
| Offer package: | Yes |
| Description of the package content: | Piston + piston rings + piston pin + piston clips |
| Manufacturer warranty: | 2 years |
| Material: | Aluminum alloy |
| Suitable for: | 50 cc |
