Kolben Set 38mm 50ccm für Hercules K50 RS Sport Super Sport RE RL RX SE SL SX Sprint Ultra / SB 1 5 (192171)

Piston set 38mm 50cc for Hercules K50 RS Sport Super Sport RE RL RX SE SL SX Sprint Ultra / SB 1 5

Rate

€25.90 *

Content: 1 piece

Prices incl. VAT plus shipping costs

IN STOCK - Delivery time 1-3 working days

Only a few left!

Item no: 192171
EAN: 4060861084669
Manufacturer: Citomerx
Manufacturer no.: 192171

Hercules K 50 RS (1968-1970) Hercules K 50 Sport (1968-1969) Hercules K 50 Super Sport... more

Close menu

Hercules K 50 RS (1968-1970)
Hercules K 50 Sport (1968-1969)
Hercules K 50 Super Sport (1968-1970)
Hercules K 50 (1963-1970 )
Hercules K 50 RE (1973-1974)
Hercules K 50 RL (1974-1980)
Hercules K 50 RX (1969-1972)
Hercules K 50 SE (1973 -1974)
Hercules K 50 SL (1974-)
Hercules K 50 SX (1969-1972)
Hercules K 50 Sprint (1969-1980)
Hercules K 50 Ultra AC (09/1976-1979)
Hercules K 50 Ultra II AC (1979-1980)
Hercules RT 159 Jet (1973)
Hercules RT 159 (1973)
Hercules SB 1 Sport Bike (1972-1975)
Hercules SB 5 Sport Bike (1975-1979)

Product type:	Piston set

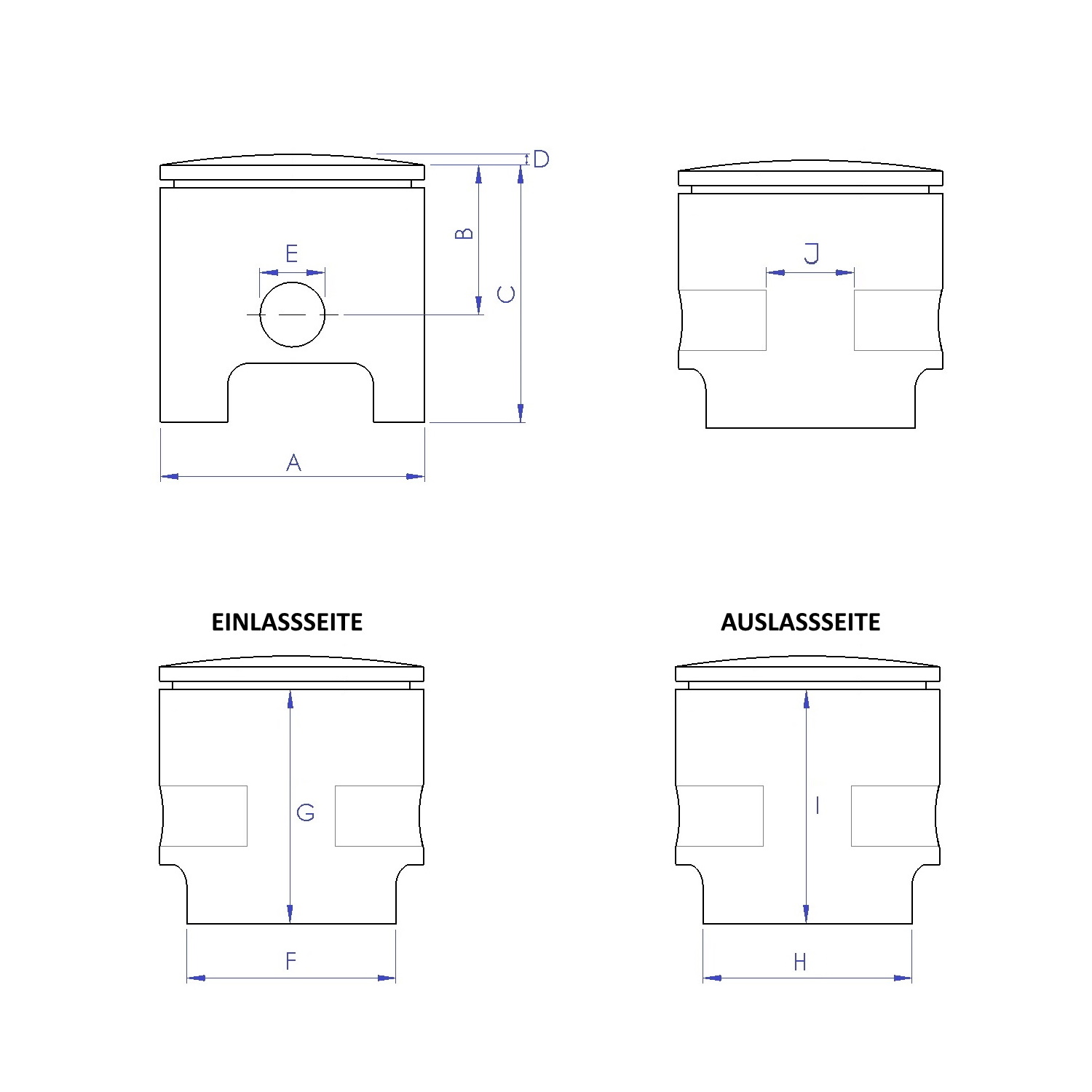

Dimension B (compression height):	28 mm
Dimension F (piston skirt width inlet side):	31.5 mm
Dimension I (piston skirt length outlet side):	42.7 mm
Tuning & Styling Part:	No
Piston ring (top) Width:	1.75 mm
Vintage part:	Yes
Piston ring (top) Shape:	B (groove for center locking pin)
Cylinder bores:	38 mm
Dimension C (piston height):	49 mm
Dimension J (max. needle bearing width):	14 mm
Piston ring (top) Dimension:	38 x 2.0 mm
Piston ring (top) Profile:	L-ring
Dimension C + D (total height):	51 mm
Dimension G (piston skirt length inlet side):	42.7 mm
OE/OEM reference number(s):	0286344011, 0286 344 111, 0286 344 011, 0286344111
Piston ring (bottom) Width:	1.65 mm
GTIN:	4060861084669
Piston ring (bottom) Shape:	C (groove for locking pin on the edge)
Dimension A (piston diameter):	38.00 mm
Bolt diameter:	14 mm
Piston ring (bottom) Dimension:	38 x 1.5 mm
Dimension D (curvature):	2 mm
Piston ring (bottom) Profile:	Rectangular ring
Dimension H (piston skirt width outlet side):	29 mm

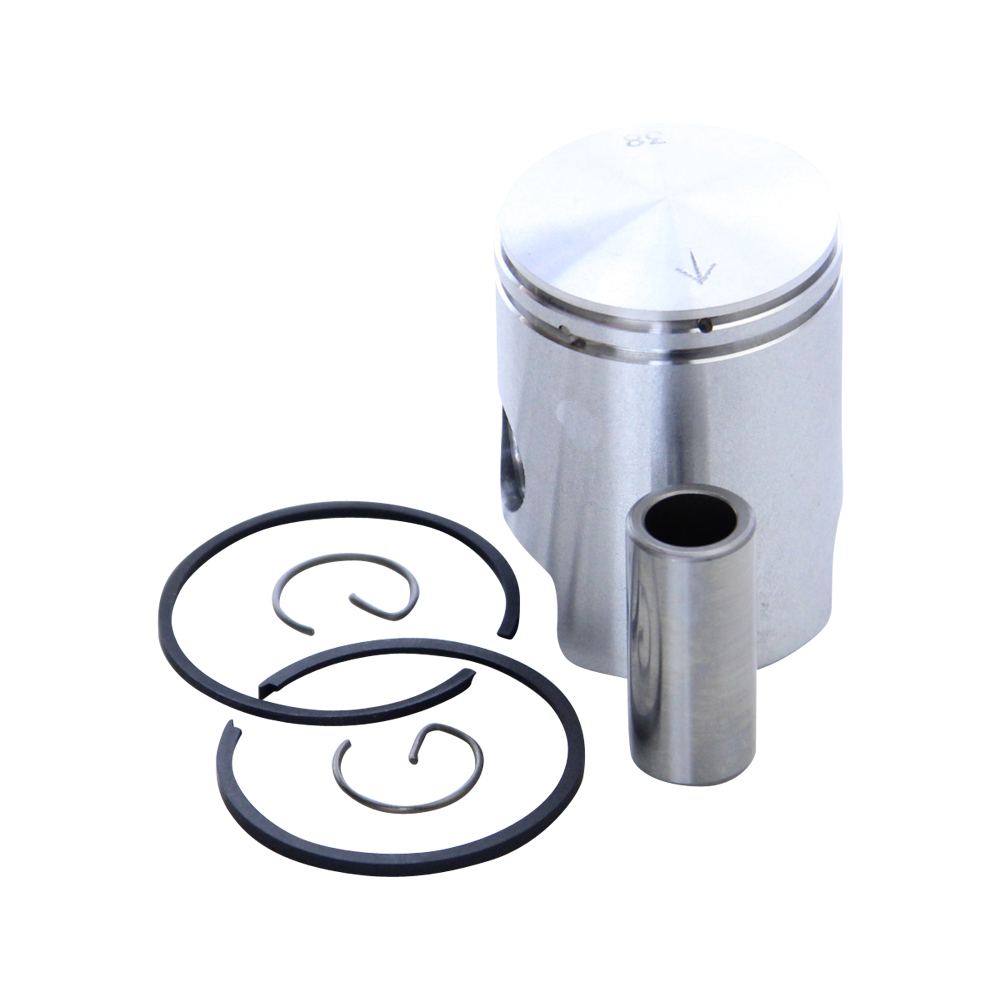

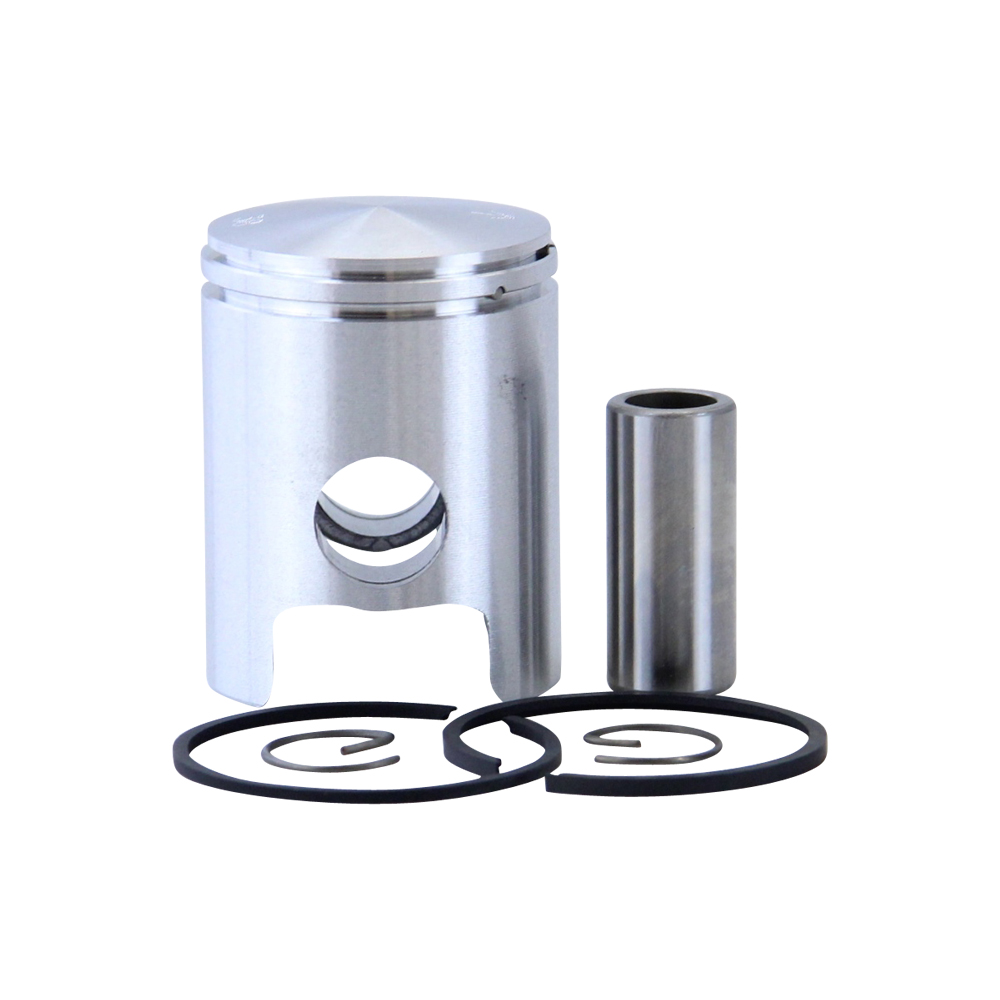

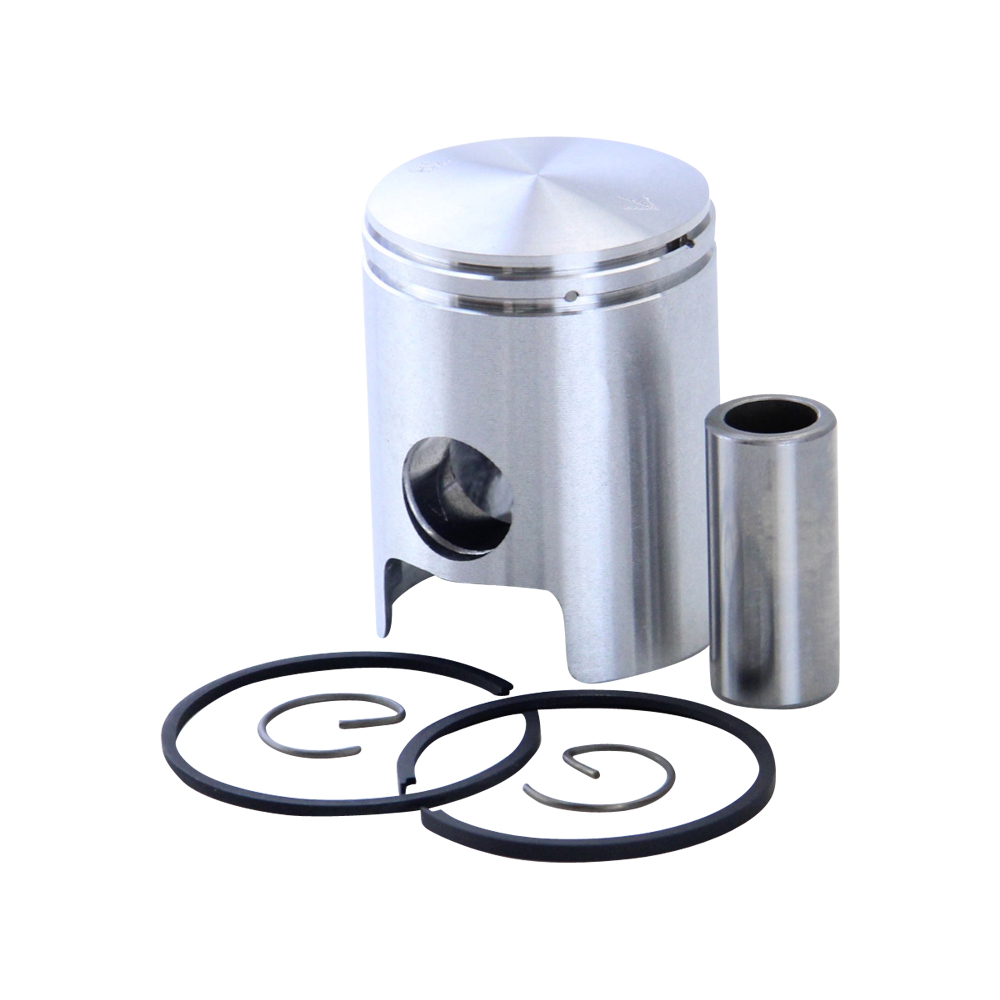

Scope of delivery:	Piston clips, Piston pin, Piston rings, Piston
Bolt length:	31 mm
Dimension E (piston pin diameter):	14 mm
Color:	Silver
Piston diameter:	38 mm
Engine type:	2-stroke
Scope of delivery:	1x piston set
Manufacturer number:	192171
Country and region of manufacture:	China
Type of motorcycle:	Moped & Mokick
Offer package:	Yes
Description of the package content:	Piston + piston rings + piston pin + piston clips
Manufacturer warranty:	2 years
Material:	Aluminum alloy
Suitable for:	50 cc
